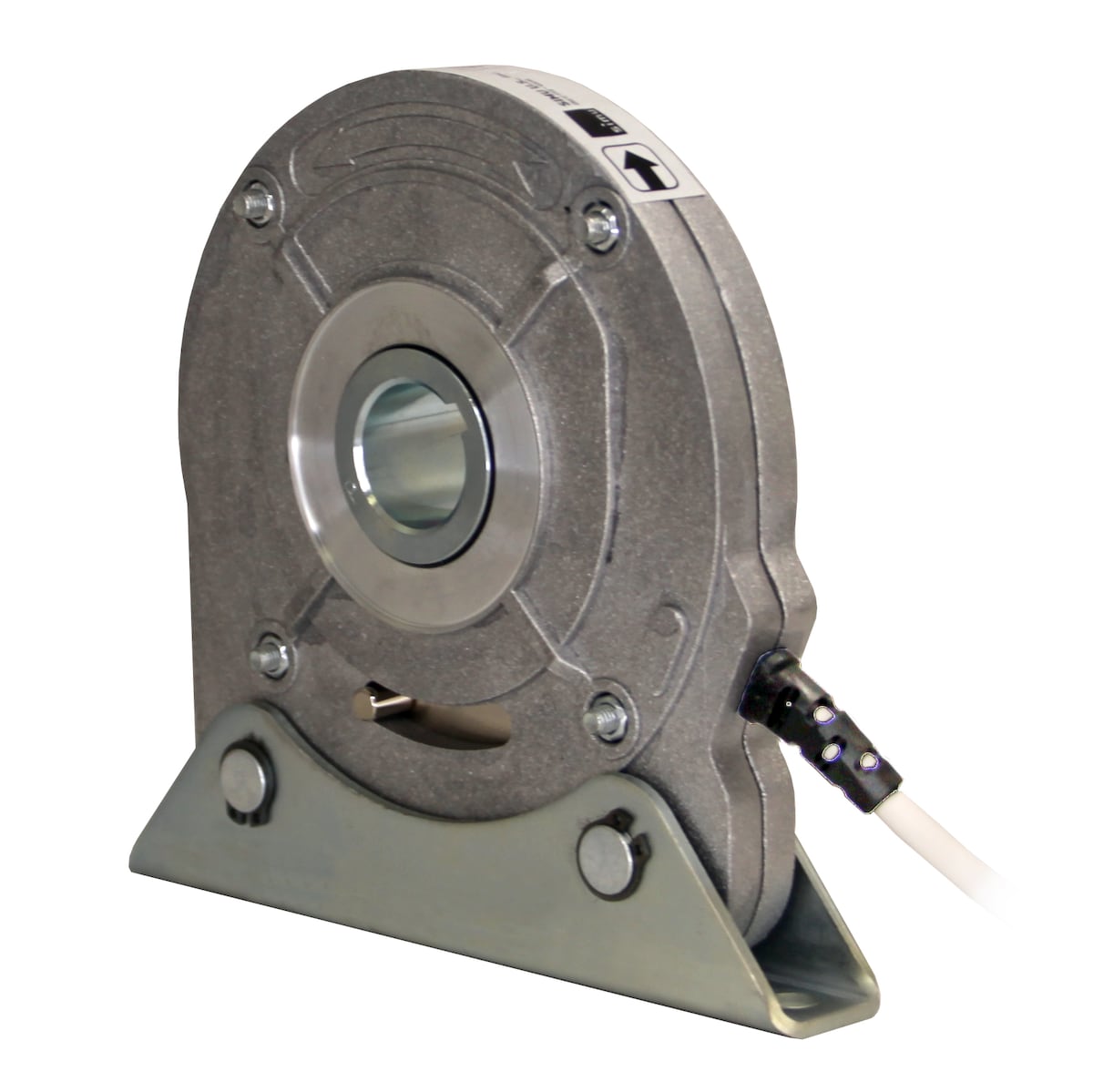

Somfy Simu Safety Brake M10A, 1000 Nm Torque (2005629)
Somfy Simu Safety Brake M10A, 1000 Nm Torque (2005629)
Ships in 1-2 business days. US shipping $15 flat.
Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy
Not sure this fits? Ask our tech team
Your case has been assigned to Colin. He'll be in touch shortly via email.
Safety Brake M10A, 1000 Nm Torque -- 1000 Nm fall protection for heavy rolling closures
The Safety Brake M10A (2005629) holds up to 1000 Nm of torque on heavy rolling shutter and door installations. Somfy lists it for its T8, T8M, T8S, T8S DMI and T9 operators. Specify it on large commercial closures that need a rated brake on the barrel.
Benefits
- Rated for 1000 Nm of torque
- Somfy lists it for T8, T8M, T8S, T8S DMI and T9 operators
- Covers 200 Nm and 280 Nm T8S motors and 400 Nm and 600 Nm T9 motors
- Genuine Somfy safety component
- Carries a 5-year Somfy warranty
Specifications
| Torque | 1000 Nm |
| Model | M10A |
| Compatible motors | Somfy T8, T8M, T8S, T8S DMI and T9 operators |
| Application | Heavy rolling shutters and doors |
| Warranty | 5 years |
Compatible with: Somfy Simu T8 200 Nm (2004248), T8M 200 Nm (2006337), T8S 200 Nm (2008288, 2008627), T8S DMI 200 Nm (2008302, 2008626), T8S DMI 280 Nm (2008303, 2008769) and T9 400 Nm and 600 Nm (2006790, 2006792) operators.
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What torque does the Safety Brake 2005629 handle?
Somfy rates the Safety Brake M10A, part 2005629, for 1000 Nm of torque. That rating covers the heaviest Somfy operators it lists, including the T9 at 400 Nm and 600 Nm and the T8S DMI at 280 Nm, on large commercial rolling closures.
Which motors does Somfy list for the 2005629?
Somfy lists ten operators for the 2005629: the T8 200 Nm, T8M 200 Nm, T8S 200 Nm in fixed and adjustable diameters, T8S DMI 200 Nm and 280 Nm in 94mm and 99-108mm heads, and the T9 400 Nm and 600 Nm three-phase motors.
Should I use the 1000 Nm or the 404 Nm brake?
Somfy sells the M10A 1000 Nm brake, part 2005629, alongside a 404 Nm model, part 2005627. Somfy lists the 1000 Nm unit for T8 and T9 class operators. Match the brake rating to the motor and the load your installer calculates for the closure.
What lead time and warranty apply to the 2005629?
Somfy notes that longer lead times may apply to the Safety Brake 2005629, so order early in your project schedule. Somfy backs it with a 5-year warranty, and ShadeMotorsDirect supplies it as a genuine Somfy part.
Couldn't load pickup availability
Replace worn exterior hardware or build a new exterior system.
12- 1Shaft bore The shaft passes through here.
- 2Mounting foot Bolts the brake in place.
Replacing one
-
1
Support the system
Cut power and support the awning or shutter.
-
2
Swap the part
Remove the worn part and fit the Simu Safety Brake M10A, 1000 Nm Torque.
-
3
Test
Run the system through a full cycle.
Not sure it fits? Send us a photo of the label on your old part or motor. We'll confirm before you order. Ask us
Starting new
-
1
Check the fit
Match the size and fitting to your motor and gear.
-
2
Install it
Fit the Simu Safety Brake M10A, 1000 Nm Torque as the system guide shows.
-
3
Test it
Run the system through a full cycle.
Planning a new install? Send us the window size and a photo. We'll build the parts list with you. Ask us
Motors the Simu Safety Brake M10A, 1000 Nm Torque works with
Somfy lists these motors as compatible with part 2005629.
Somfy backs the Simu Safety Brake M10A, 1000 Nm Torque for 5 years. We handle the claim.
Somfy warranty on the Simu Safety Brake M10A, 1000 Nm Torque, part 2005629.
- What Somfy covers
- Defects in materials and workmanship, for 5 years from purchase.
- If it fails
- Email us your order number. We arrange the replacement with Somfy.
- Where it comes from
- ShadeMotorsDirect is an authorized Somfy distributor. You get the US version, new in Somfy packaging.
- Returns
- Unopened items in original packaging. Ask us for an RA number before you ship.
- Questions
- Call or chat, 8:00 AM - 7:30 PM ET.
