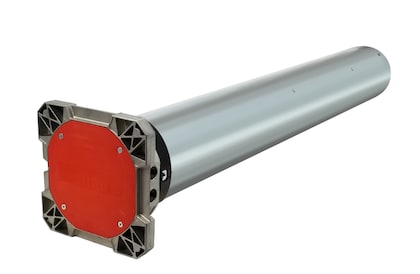

Somfy Simu T8S 200Nm Adjustable Diameter 99-108mm 120V Slim Head (2008627)
Somfy Simu T8S 200Nm Adjustable Diameter 99-108mm 120V Slim Head (2008627)
Ships in 1-2 business days. US shipping $15 flat.
Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy
Not sure this fits? Ask our tech team
Your case has been assigned to Colin. He'll be in touch shortly via email.
Simu T8S 200Nm Adjustable Diameter 99-108mm 120V Slim Head -- a slim head commercial operator
The Simu T8S 200Nm Adjustable Diameter 99-108mm 120V Slim Head (2008627) is a wired axial tubular operator for industrial and commercial rolling closures. It delivers 200 Nm at 10 rpm on 120V/60Hz power and fits an adjustable 99-108mm tube. Choose it for heavy doors, grilles and shutters that need more torque than a T6.
Benefits
- 200 Nm at 10 rpm for heavy commercial rolling closures
- Slim head design on an adjustable 99-108mm tube
- Wired control for switches, key switches and relays
- Somfy lists the T8-S / T8-S DMI operator bracket (9018069) and safety brakes as accessories
- Backed by a 5-year Somfy warranty
Specifications
| Torque / Speed | 200 Nm / 10 rpm |
| Voltage | 120V / 60Hz AC |
| Control | Wired |
| Head type | Slim head |
| Tube diameter | 99-108mm adjustable |
| Applications | Industrial and commercial closures, rolling shutters |
| Warranty | 5 years |
Compatible with: T8 round drives and sets for 200 Nm to 280 Nm listed by Somfy for this motor (9001297, 9001312, 9013824), the T8-S / T8-S DMI operator bracket (9018069), Simu safety brakes (404 Nm 2005627, 1000 Nm 2005629) and 120V switches or relays for wired motors.
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What is the Simu 2008627 built for?
Somfy rates the Simu T8S 200Nm Adjustable Diameter 99-108mm 120V (2008627) for industrial and commercial closures and rolling shutters. It delivers 200 Nm at 10 rpm on 120V/60Hz power, which suits heavy doors and grilles beyond the range of T5 and T6 motors.
What tube size does the 2008627 fit?
The 2008627 fits an adjustable 99-108mm tube. Its slim head keeps the motor end compact. Somfy lists T8 round drives and sets for 200 Nm to 280 Nm motors, including the 94mm round drive (9001297) and the 97mm and 124mm round sets.
Which bracket and brakes go with the 2008627?
Somfy lists the T8-S / T8-S DMI operator bracket (9018069) for slim head T8S motors, along with Simu safety brakes rated from 258 Nm to 3000 Nm, such as 404 Nm (2005627) and 1000 Nm (2005629). Check local code for brake requirements.
How is the 2008627 wired?
The 2008627 is a wired T8S motor. Connect it to a 120V switch, key switch or relay rated for commercial operators, following the Somfy T8S brochure. Somfy backs it with a 5-year warranty and lists the 4-wire motor tester cable (9012116) for setup.
Couldn't load pickup availability
Replace a Simu T6, DMI6 or T8 motor, or build a new shutter, screen or awning.
Replacing? Your roller stays built. Building new? Every part below is Somfy-matched to part 2008627.
12- 1Motor head Mounts to the bracket at the motor end.
- 2Motor tube Slides inside the roller tube.
Replacing a motor
-
1
Cut power and support
Turn off the circuit and support the roller or curtain before you remove the motor.
-
2
Pull the old motor
Unbolt the head from its bracket and slide the motor out of the tube.
-
3
Fit crown and drive
Fit the crown and drive for your tube, slide the new motor in and bolt the head to its bracket.
-
4
Wire and set limits
Connect the 4 wires to your up/down switch, then set the limits.
Not sure of your tube size or head type? Send us a photo of the label on your old motor. We'll confirm the part before you order. Ask us
Building something new
-
1
Measure the tube
Measure across the outside of the tube end and note its shape. That sets the crown and drive.
-
2
Pick the parts
Add the crown and drive, the motor bracket and a remote or switch from the list below.
-
3
Mount and fit
Fit the crown and drive, slide the motor into the tube and seat the head in its bracket.
-
4
Wire and set limits
Connect the 4 wires to your up/down switch, then set the limits.
Planning a new shutter, screen or awning? Send us the size and tube. We'll build the parts list with you. Ask us
Pick your bracket.
1Pick the bracket that matches how your shade mounts.
Every bracket here fits this motor's head.
Not sure? Send us a photo of the tube end and the motor end. Ask us
What the Simu T8S 200Nm Adjustable Diameter 99-108mm 120V Slim Head needs to run
Somfy lists every part below as compatible with part 2008627. Pick one from each row.
1Power
Cables, chargers and power made for this motor.
2Mounting
Holds the motor head and the idle end in place.
3Also fits
Other parts Somfy lists with this product.
Somfy backs the Simu T8S 200Nm Adjustable Diameter 99-108mm 120V Slim Head for 5 years. We handle the claim.
Somfy warranty on the Simu T8S 200Nm Adjustable Diameter 99-108mm 120V Slim Head, part 2008627.
- What Somfy covers
- Defects in materials and workmanship, for 5 years from purchase.
- If it fails
- Email us your order number. We arrange the replacement with Somfy.
- Where it comes from
- ShadeMotorsDirect is an authorized Somfy distributor. You get the US version, new in Somfy packaging.
- Returns
- Unopened items in original packaging. Ask us for an RA number before you ship.
- Questions
- Call or chat, 8:00 AM - 7:30 PM ET.
- Somfy documents
- Simu T8S Brochure (PDF)
