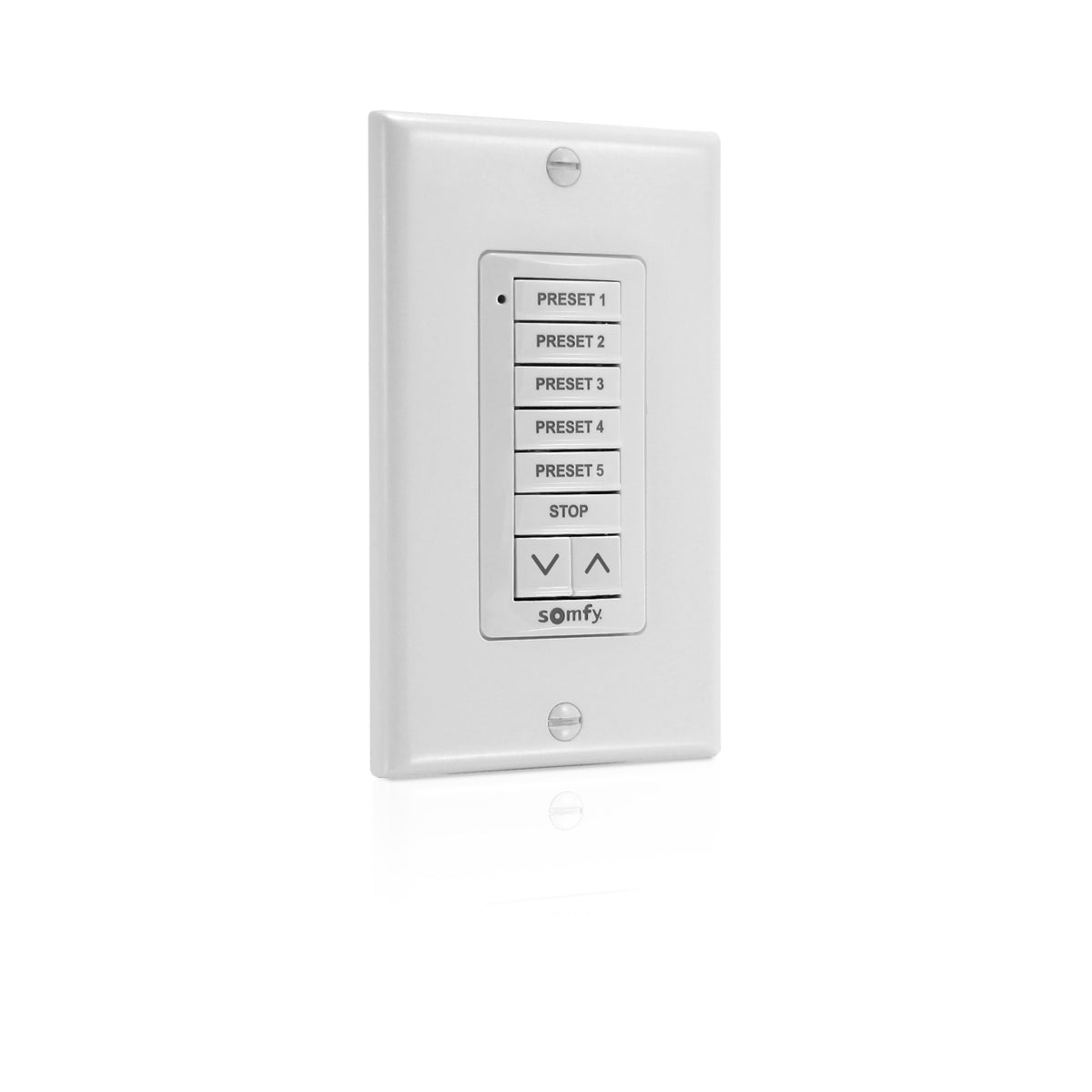

Somfy SDN V2 DecoFlex Digital Keypad, 8-Button, White

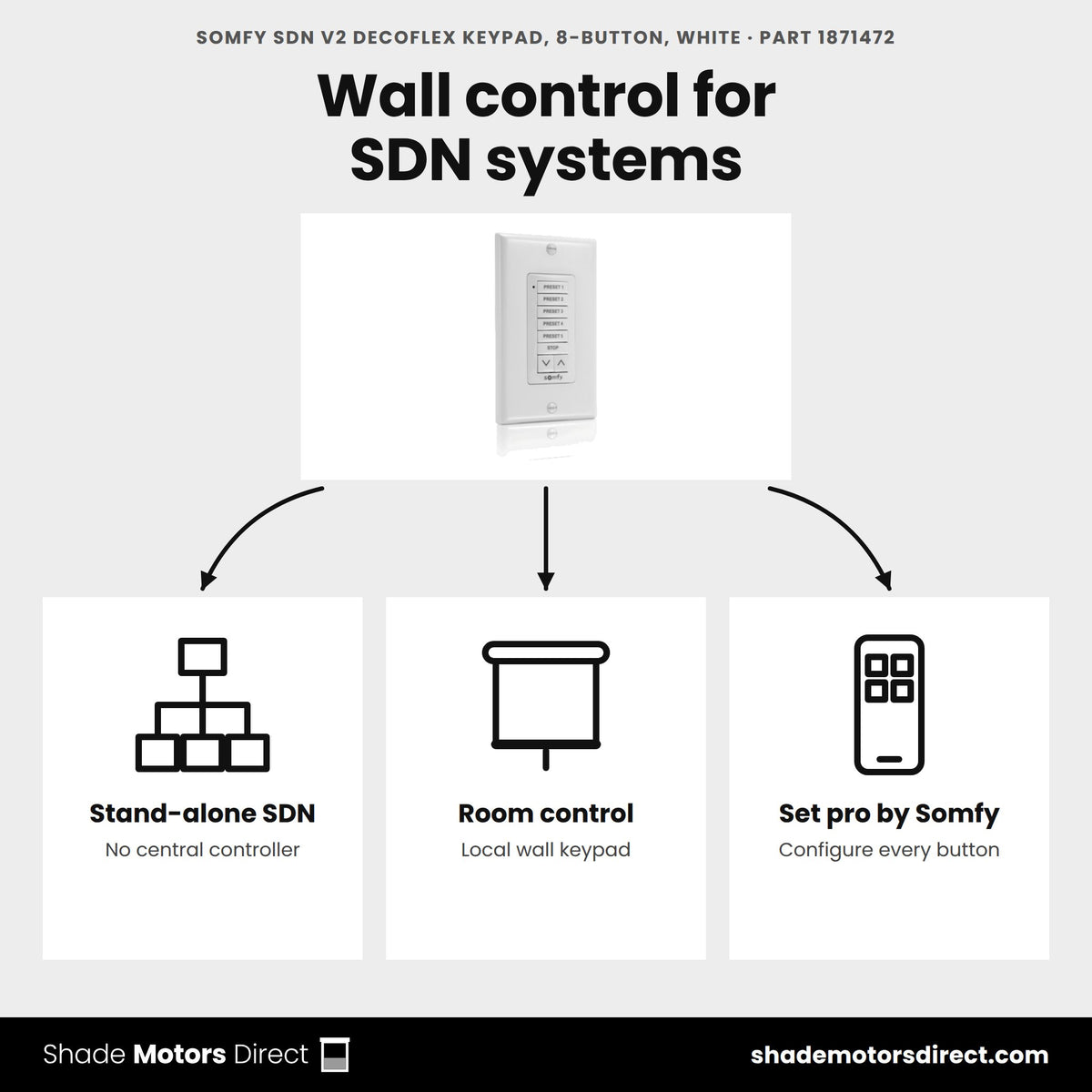

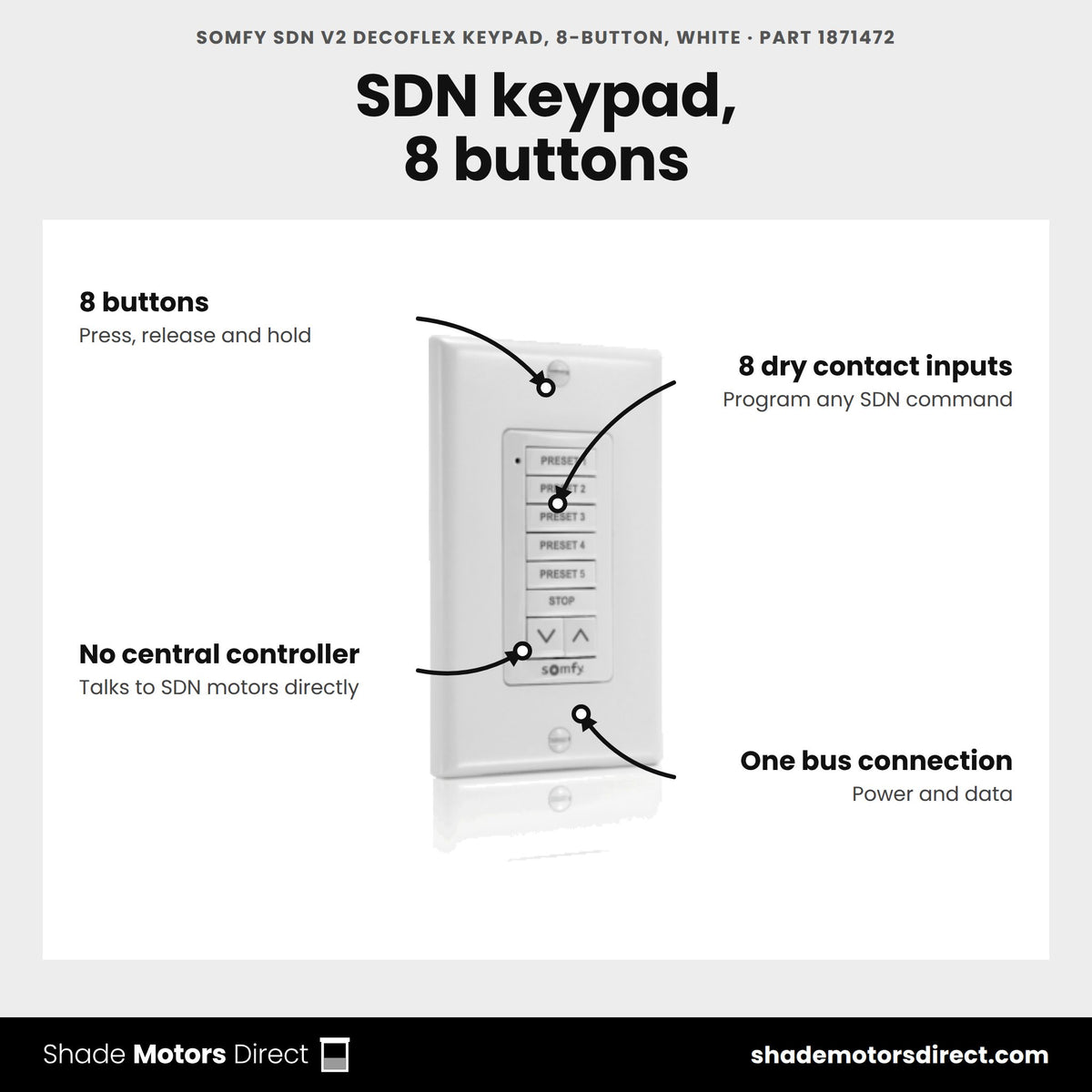

A hard-wired, in-wall SDN keypad with 8 fully programmable buttons, providing a local user interface for a stand-alone Somfy Digital Network system. Each keypad communicates directly with intelligent motors on the network -- no centralized controller required -- and includes 8 dry contact inputs on the back regardless of front-button count, all programmable to output SDN commands via Set pro by Somfy configuration software.
Specifications
| Part type | SDN in-wall keypad |
| Buttons | 8 |
| Dry contact inputs | 8 (regardless of button count) |
| Programming | Press, Release, Hold -- per button; Set pro by Somfy software |
| Color | White |
| Power/comms | Single SDN bus connection (power + data) |
| Genuine part | Yes -- Somfy 1871472 |

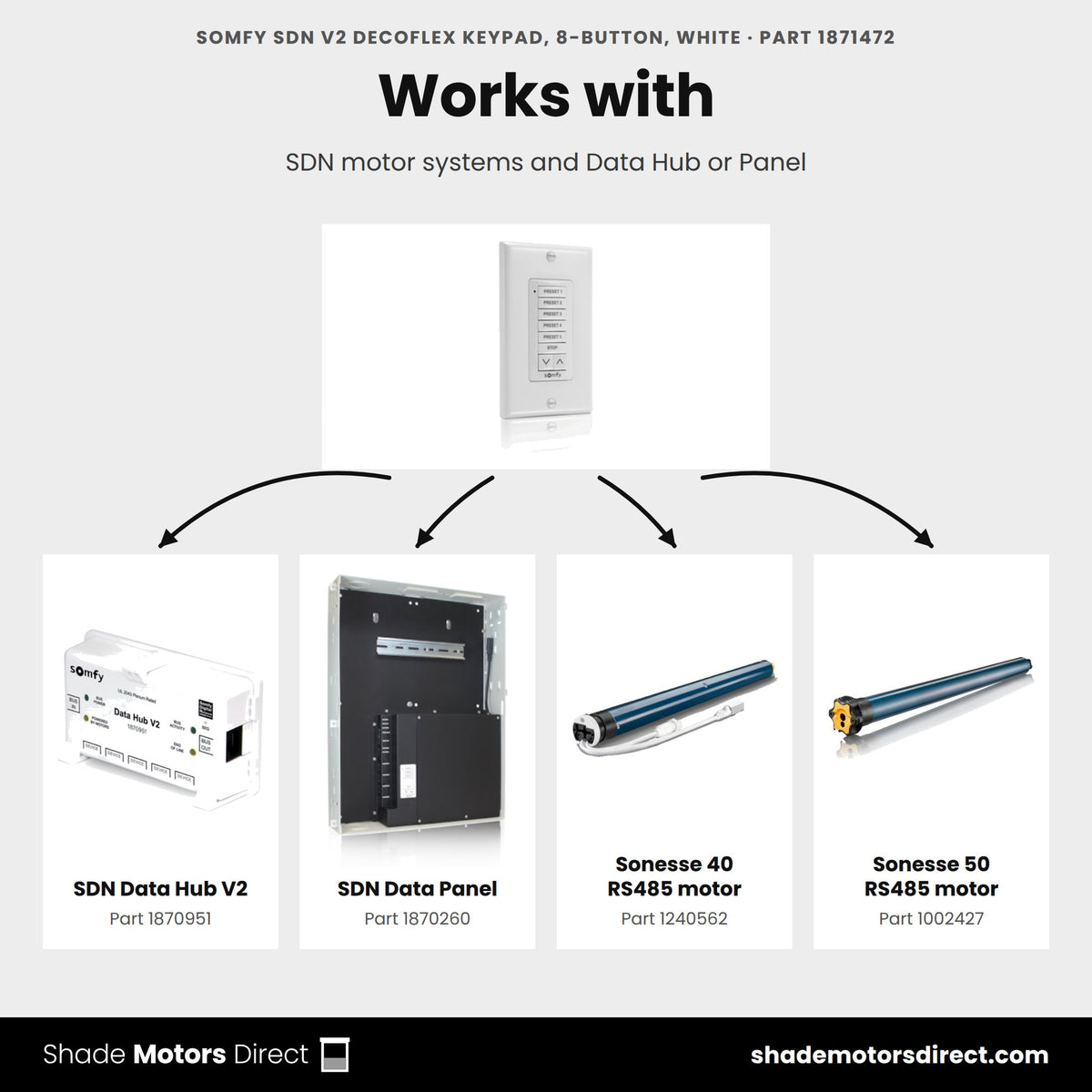

Compatible with: Somfy Digital Network (SDN) RS485 motor systems, SDN Data Hub/Panel
Official Somfy documentation
- 500 Series -- Databook (PDF)
- SDN V2 DecoFlex Digital Keypad, 8-Button, White -- Somfy Pro Product Page
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What does the DecoFlex SDN Keypad V2 do?
It is a hard-wired, in-wall keypad with 8 buttons for stand-alone Somfy Digital Network shading systems. It talks to the SDN motors on the bus, so no central controller is required.
How are the buttons programmed?
Each button can hold different commands for Press, Release and Hold. You configure the keypad with Set pro by Somfy software, and you can export and back up each keypad configuration.
What are the dry contact inputs for?
The keypad has eight dry contact inputs, whatever the button count. You program each input to output SDN commands, which lets a wired contact closure trigger shade moves.
Can a button save a favorite shade position?
Yes. A button press sets an intermediate position at the shade's current position, so the keypad can recall that stop later. Somfy lists the keypad for blinds, draperies and shades.
How is the keypad powered?
The keypad connects to the SDN bus, and Somfy lists a minimum voltage of 24 V. The SDN Data Hub V2 (1870951) can power up to 3 keypads from its ports. Somfy rates it IP 20.
Which other versions are available?

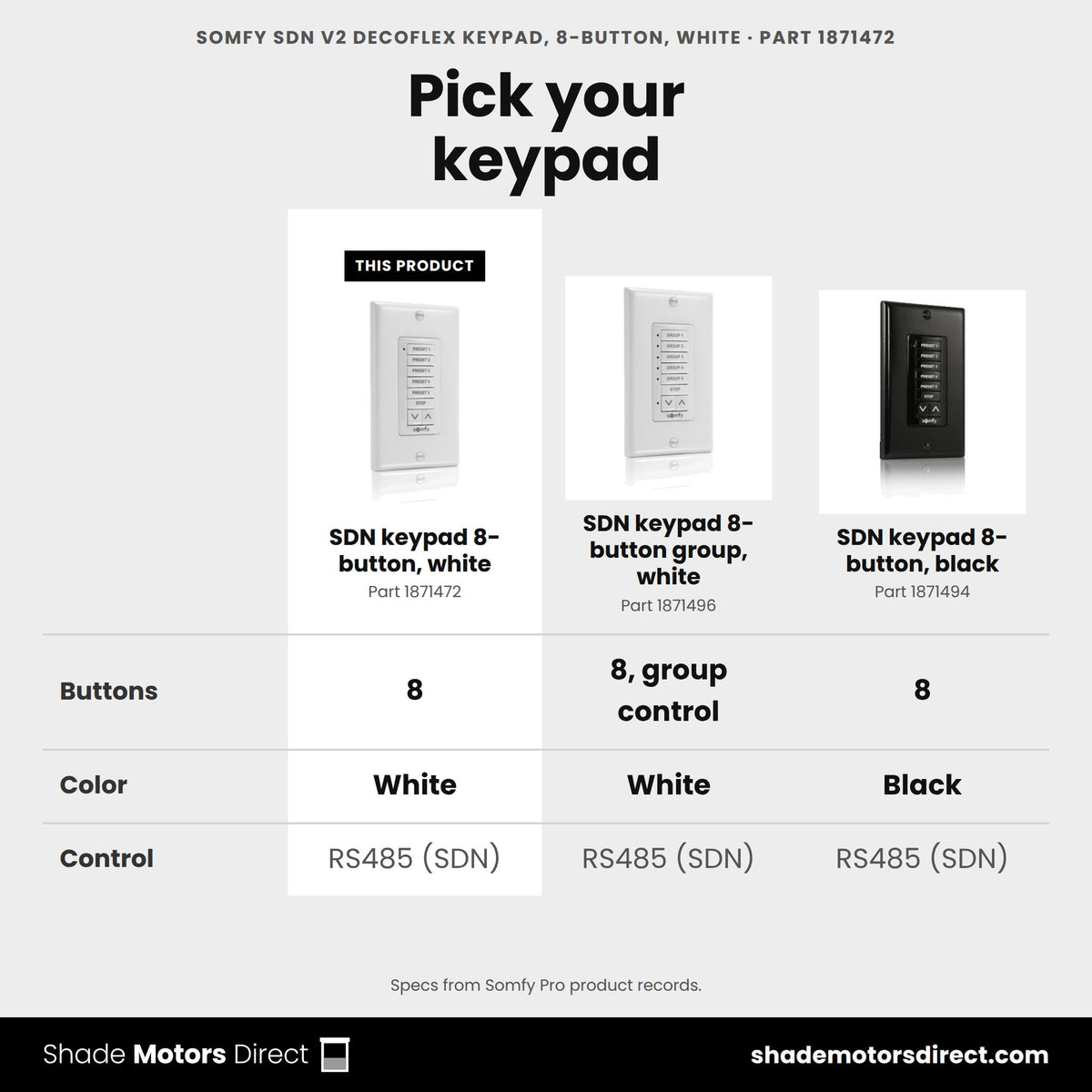

Somfy offers this keypad as a 6-button white version (1871479) and as group control versions with 8 buttons (1871496) or 6 buttons (1871497), all sold here.
Couldn't load pickup availability
How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy SDN V2 DecoFlex Digital Keypad, 8-Button White (1871472)
|

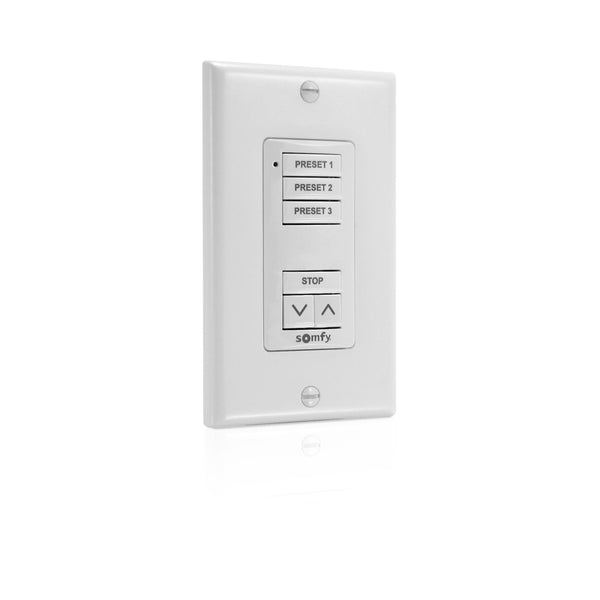

Somfy DecoFlex SDN Keypad V2, 6-Button, White (1871479)
|
Somfy SDN DecoFlex Digital Keypad, 6-Button Black (1871495)
|

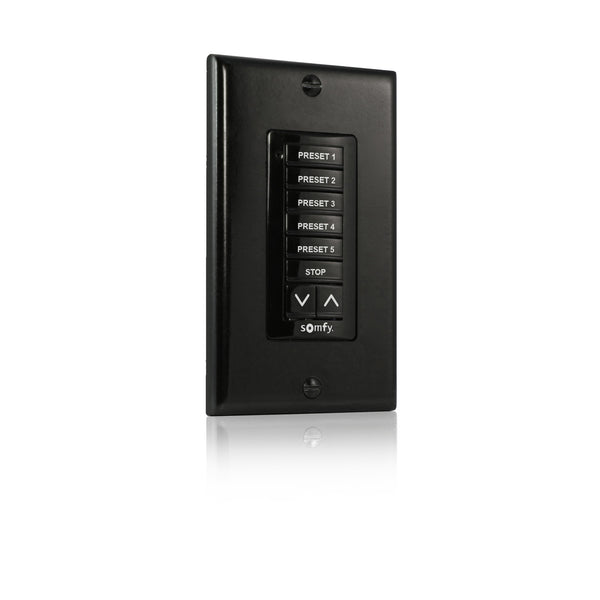

Somfy SDN DecoFlex Digital Keypad, 8-Button Black (1871494)
|
|---|---|---|---|---|
| Price | ||||
| Control | RS485 (SDN) | RS485 (SDN) | RS485 (SDN) | RS485 (SDN) |
| Power | 24V DC via SDN bus | Wired | 24V DC via SDN bus | 24V DC via SDN bus |
| What's different | The product on this page | Close alternative | Close alternative | Close alternative |
| Buy | Currently viewing | View details | View details | View details |
