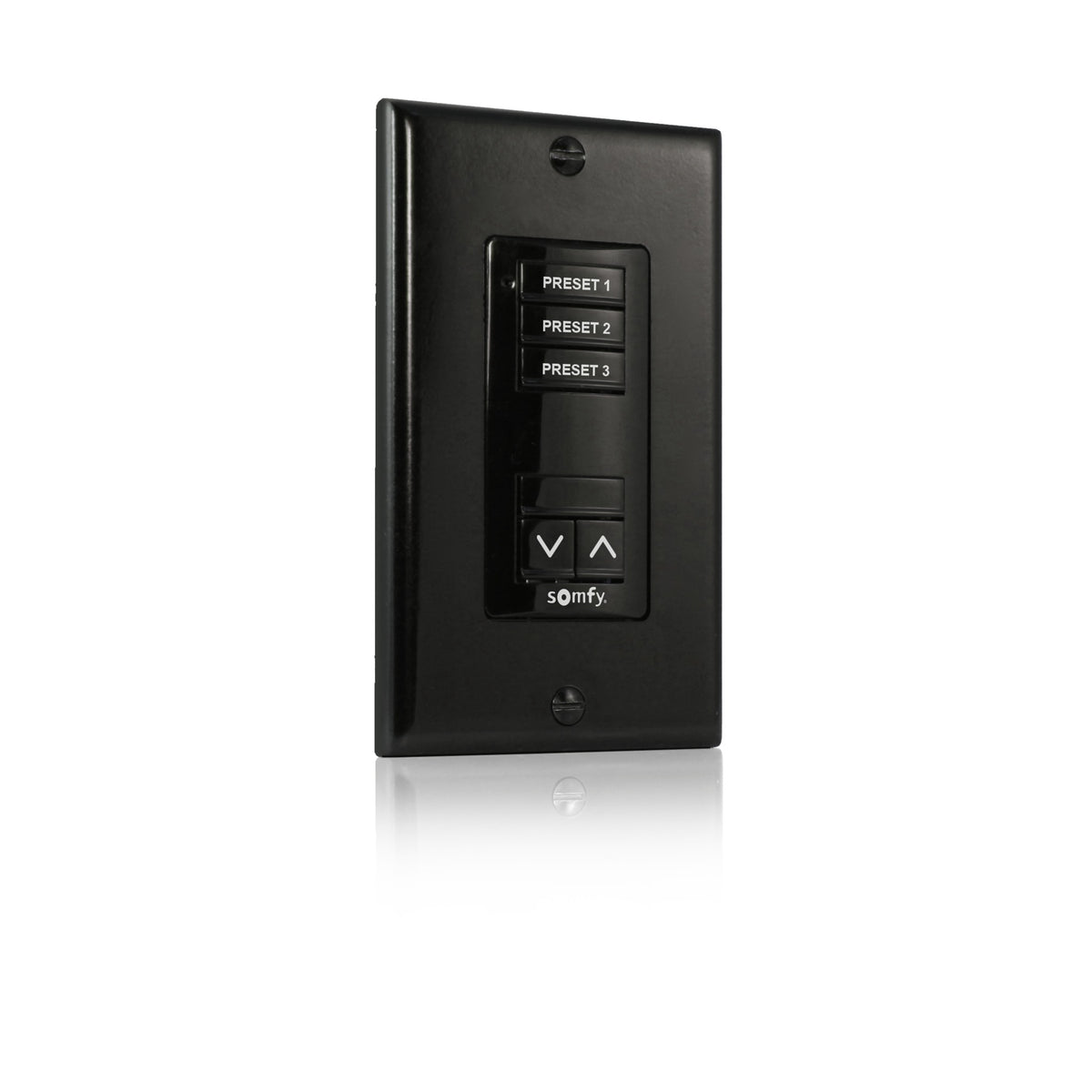

Somfy SDN DecoFlex Digital Keypad, 6-Button Black (1871495)
Somfy SDN DecoFlex Digital Keypad, 6-Button Black (1871495)
Ships in 1-2 business days. US shipping $15 flat.
Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy
Not sure this fits? Ask our tech team
Your case has been assigned to Colin. He'll be in touch shortly via email.
Somfy SDN DecoFlex Digital Keypad V2, 6-Button, Black

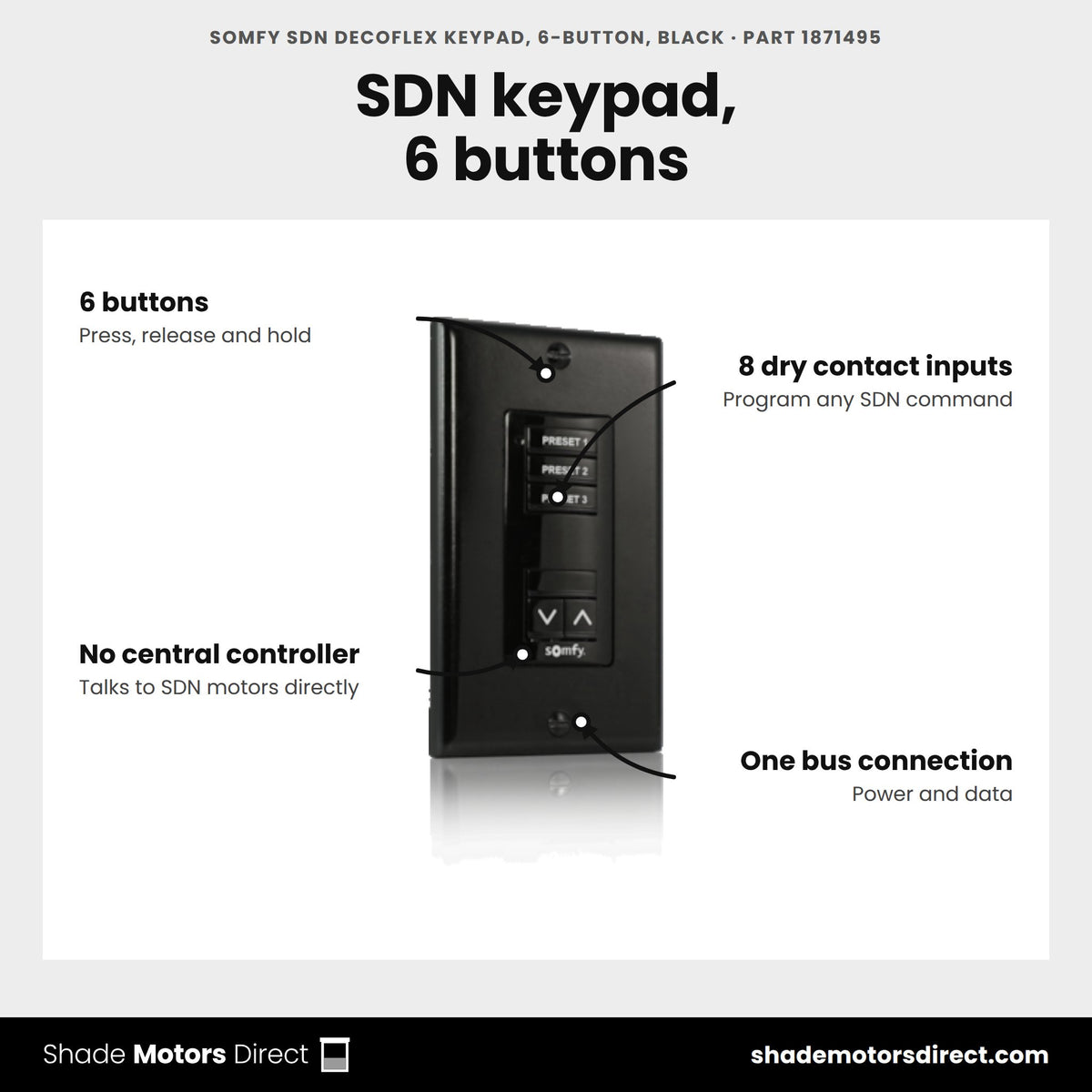

A hard-wired, in-wall SDN keypad with 6 fully programmable buttons, providing a local user interface for a stand-alone Somfy Digital Network system. Each keypad communicates directly with intelligent motors on the network -- no centralized controller required -- and includes 8 dry contact inputs on the back regardless of front-button count, all programmable to output SDN commands via Set pro by Somfy configuration software.
Specifications
| Part type | SDN in-wall keypad |
| Buttons | 6 |
| Dry contact inputs | 8 (regardless of button count) |
| Programming | Press, Release, Hold -- per button; Set pro by Somfy software |
| Color | Black |
| Power/comms | Single SDN bus connection (power + data) |
| Genuine part | Yes -- Somfy 1871495 |
Compatible with: Somfy Digital Network (SDN) RS485 motor systems, SDN Data Hub/Panel
Official Somfy documentation
- 500 Series -- Databook (PDF)
- SDN DecoFlex Digital Keypad V2, 6-Button, Black -- Somfy Pro Product Page
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What does the DecoFlex SDN Keypad V2, 6-Button, Black do?

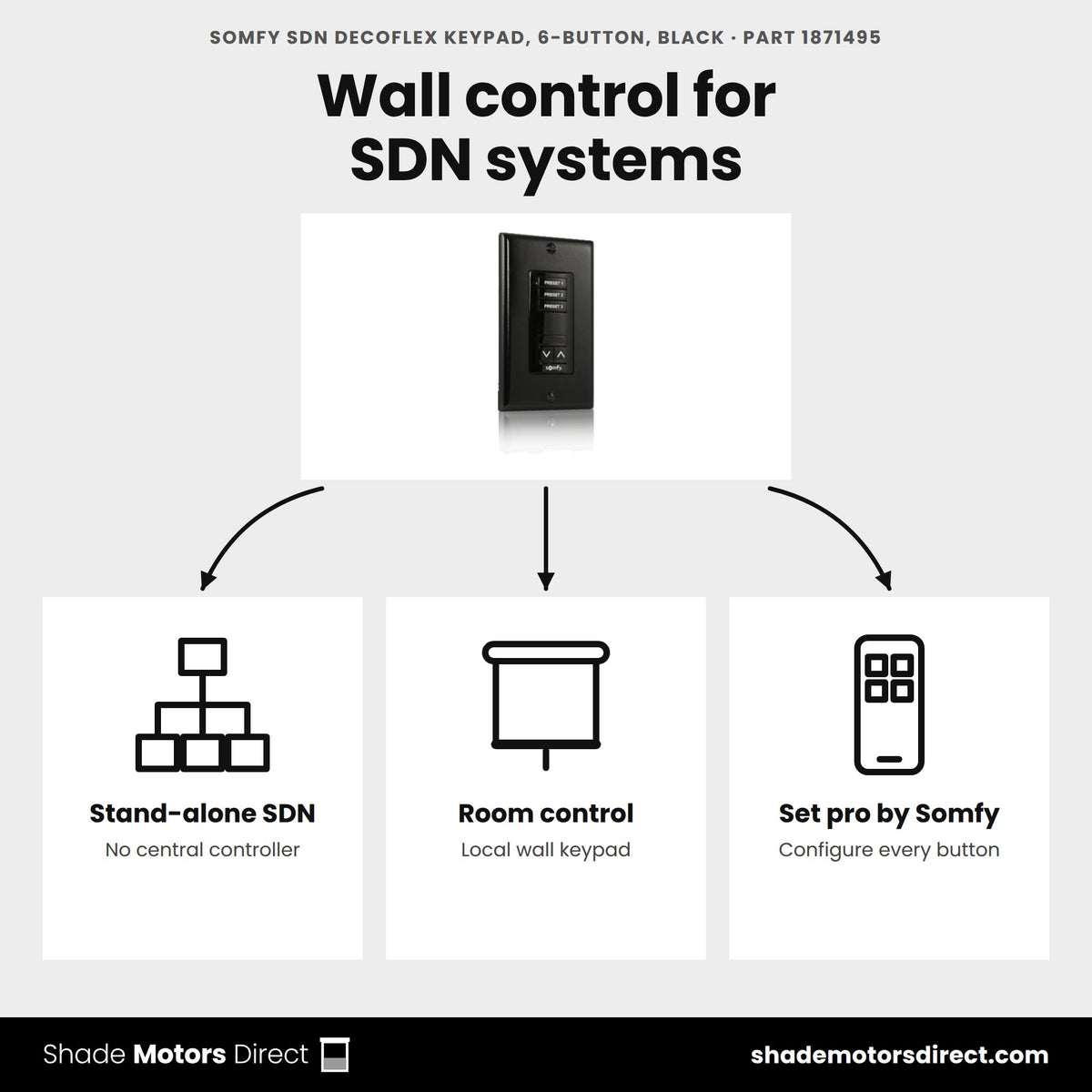

Part 1871495 is an in-wall keypad for stand-alone Somfy Digital Network (SDN) shading systems. It talks to SDN motors direct, so the project needs no central controller, and it suits interior blinds, shades and draperies.
How many buttons and inputs does it have?
It has 6 buttons, and each one can carry separate commands for Press, Release and Hold. Somfy builds 8 dry contact inputs into the keypad regardless of button count.
How do I program it?
Somfy configures the keypad with Set pro by Somfy software, and you can export and back up each configuration for later jobs. On site, a button press saves the shade's current height as an intermediate position.

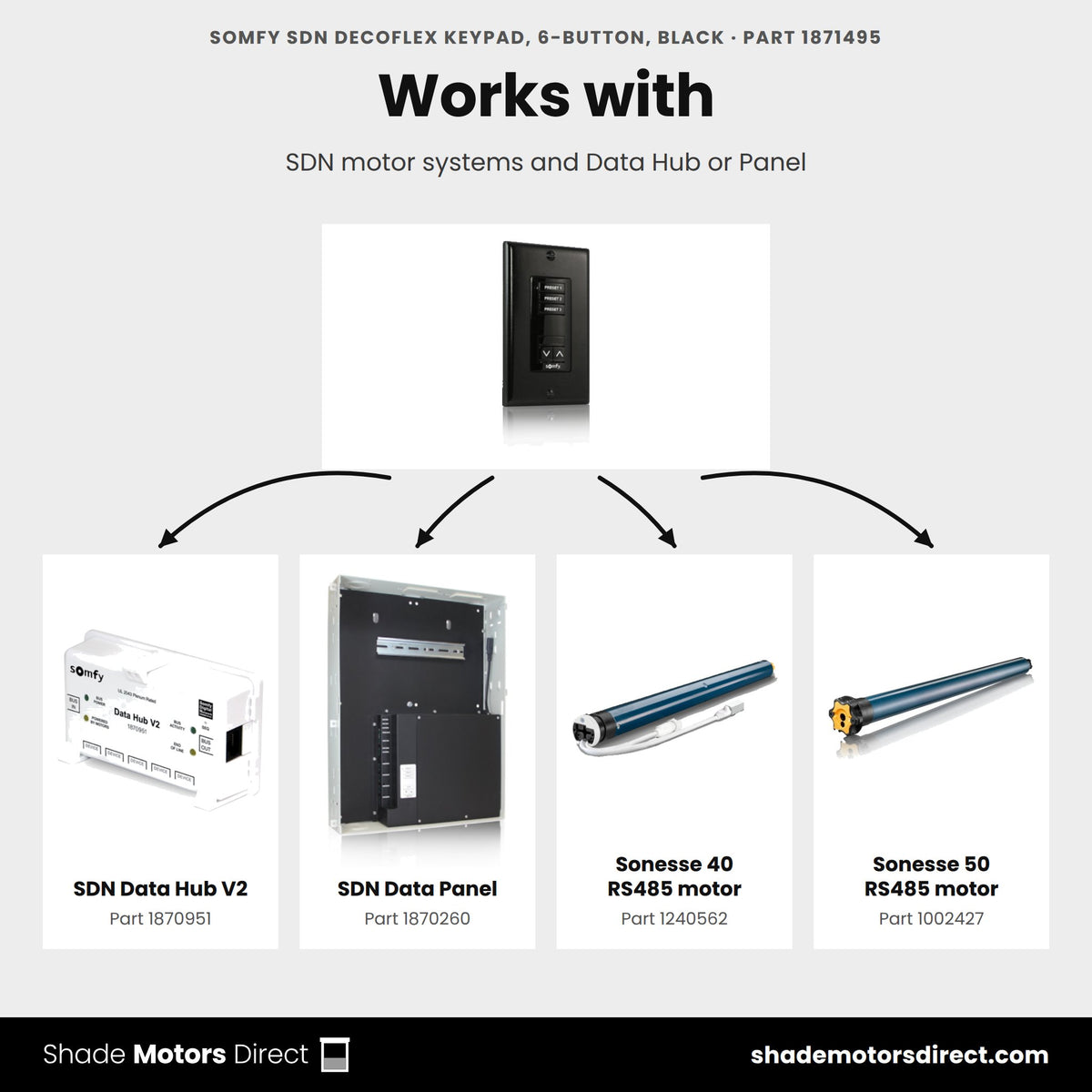

What does it connect to on the SDN network?
It works with Somfy SDN motors and SDN Connect parts. The Somfy Data Hub V2 (1870951) adds 5 device ports to a bus line, and Somfy rates it to power 3 keypads from those ports.
Is there a white version, and what warranty does it carry?
Yes. The DecoFlex SDN Keypad V2, 6-Button, White (1871479) matches this keypad in a white finish. Somfy lists the black keypad as UL approved and backs it with a 5-year warranty.
Couldn't load pickup availability

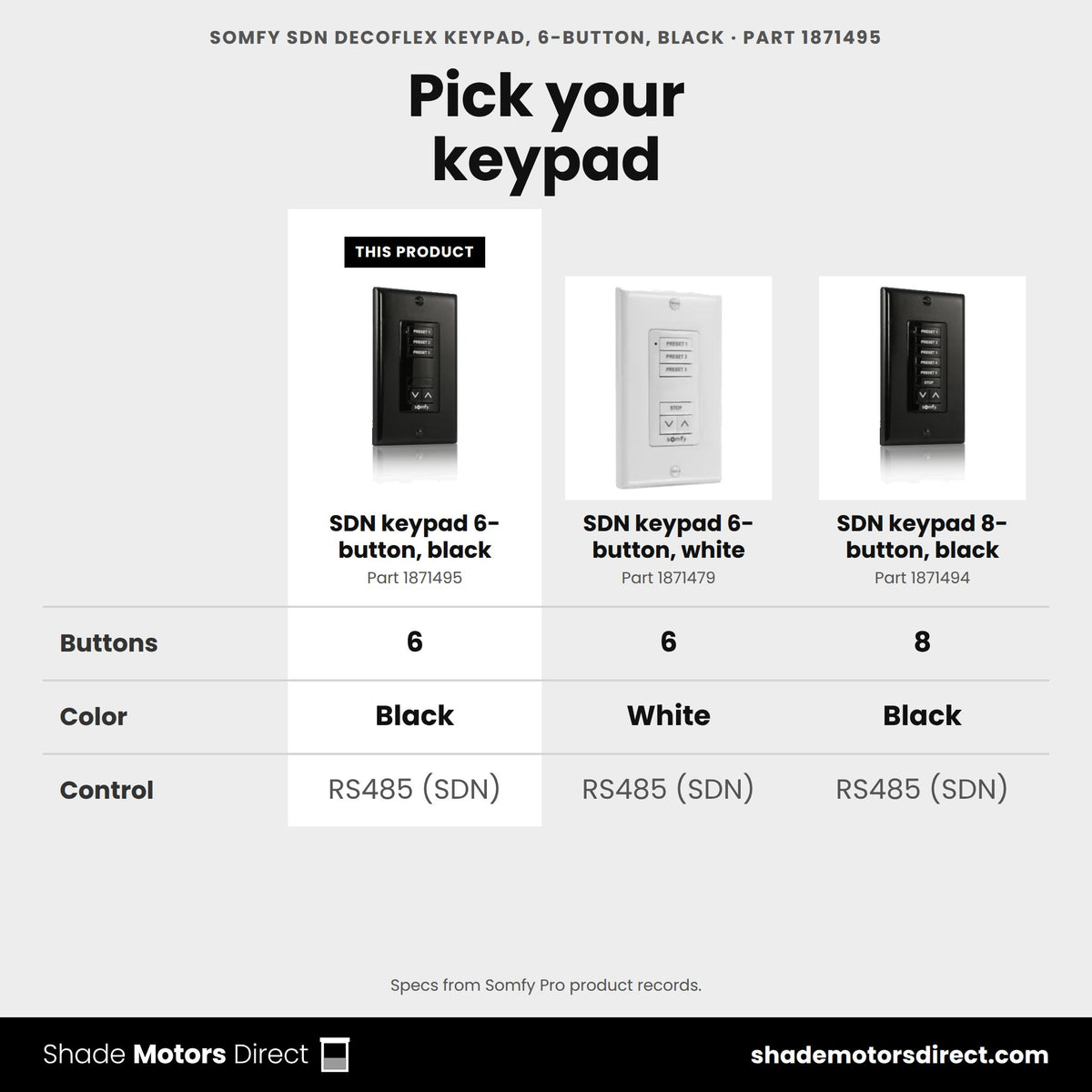

How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy SDN DecoFlex Digital Keypad, 6-Button Black (1871495)
|
Somfy DecoFlex SDN Keypad V2, 6-Button, White (1871479)
|
Somfy SDN DecoFlex Digital Keypad, 8-Button Black (1871494)
|
Somfy SDN DecoFlex Digital Keypad, 8-Button White (1811253)
|
|---|---|---|---|---|
| Price | ||||
| Control | RS485 (SDN) | RS485 (SDN) | RS485 (SDN) | RS485 (SDN) |
| Power | 24V DC via SDN bus | Wired | 24V DC via SDN bus | 24V DC via SDN bus |
| What's different | The product on this page | Close alternative | Close alternative | Close alternative |
| Buy | Currently viewing | View details | View details | View details |
