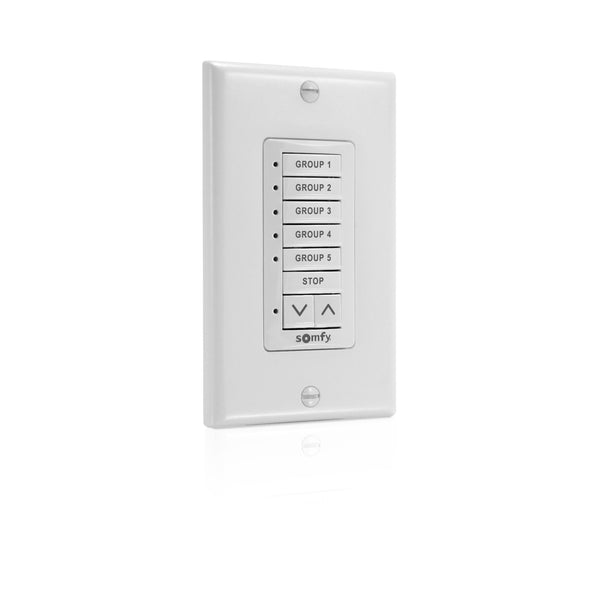

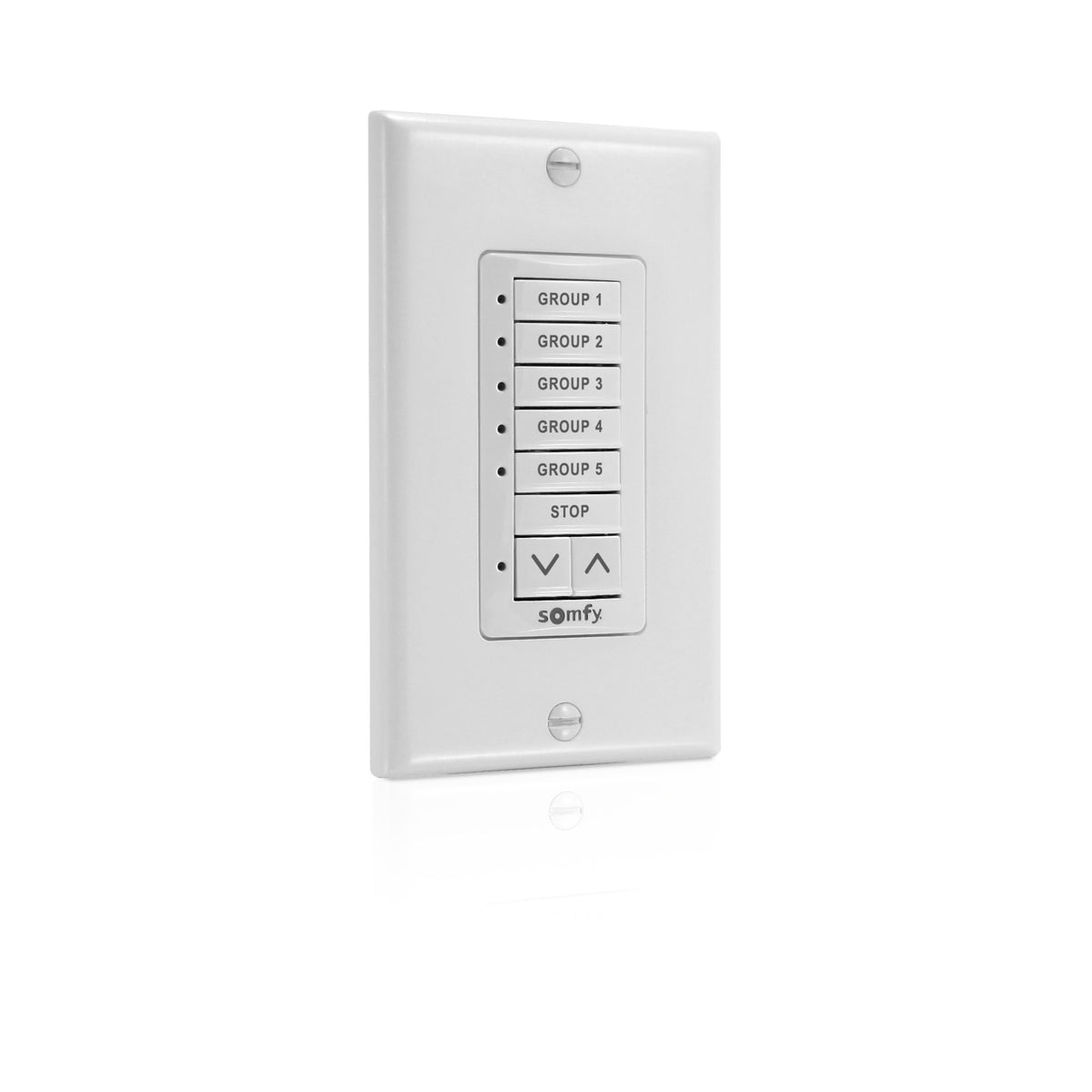

Somfy SDN V2 DecoFlex Digital Keypad, 8-Button, Group Control, White
A hard-wired, in-wall SDN keypad with 8 fully programmable buttons with LED group-selection control, providing a local user interface for a stand-alone Somfy Digital Network system. Each keypad communicates directly with intelligent motors on the network -- no centralized controller required -- and includes 8 dry contact inputs on the back regardless of front-button count, all programmable to output SDN commands via Set pro by Somfy configuration software.
Specifications
| Part type | SDN in-wall keypad |
| Buttons | 8 (group control) |
| Dry contact inputs | 8 (regardless of button count) |
| Programming | Press, Release, Hold -- per button; Set pro by Somfy software |
| Color | White |
| Power/comms | Single SDN bus connection (power + data) |
| Genuine part | Yes -- Somfy 1871496 |

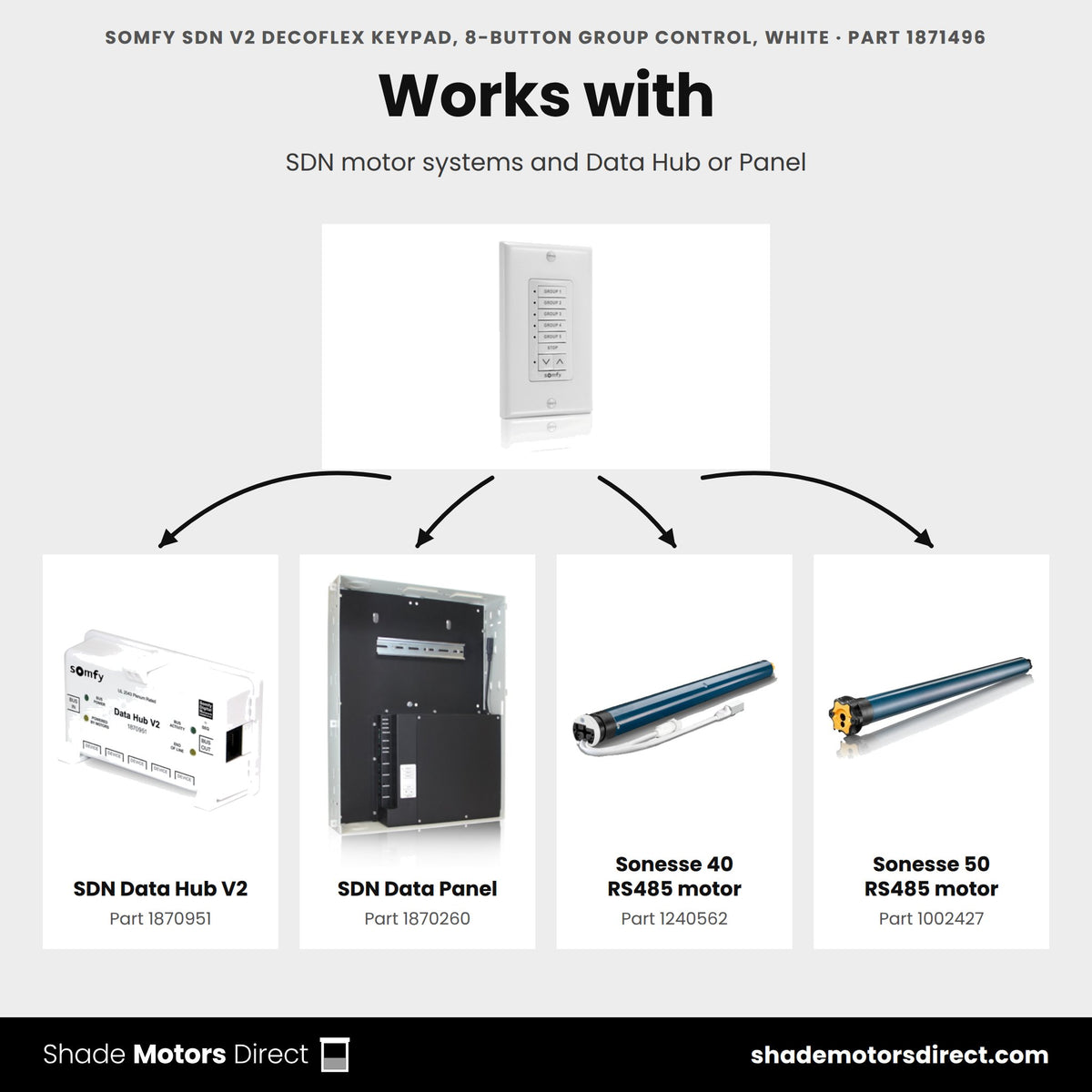

Compatible with: Somfy Digital Network (SDN) RS485 motor systems, SDN Data Hub/Panel
Official Somfy documentation
- 500 Series -- Databook (PDF)
- SDN V2 DecoFlex Digital Keypad, 8-Button, Group Control, White -- Somfy Pro Product Page
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What is the DecoFlex SDN Keypad V2 8-Button Group Control?
It is a hard-wired, in-wall keypad for Somfy Digital Network (SDN) shading systems. It gives a room a local control point with eight programmable buttons and LED group selection, so one keypad can direct several groups of SDN motors.
Does it need a central controller?
No. Each keypad talks to the intelligent SDN motors on the network, so a stand-alone SDN system runs without a central processor. A single SDN bus connection carries both power and data to the keypad.
How do I program the buttons?
You set it up with Set pro by Somfy configuration software. Each button can send a different command on Press, Release and Hold, and you can export and back up the finished configuration for the job file.
What are the dry contact inputs on the back for?
Part 1871496 has eight dry contact inputs on the back. You can program each one in Set pro by Somfy to send SDN commands, which lets a third-party switch or sensor trigger shade moves.
Which motors does it work with?
It works with Somfy SDN RS485 motors, such as the Sonesse 40 404S2 RS485 SDN Motor (1240562), in stand-alone SDN systems. Somfy lists it for interior blinds, draperies and shades and rates it IP 20.

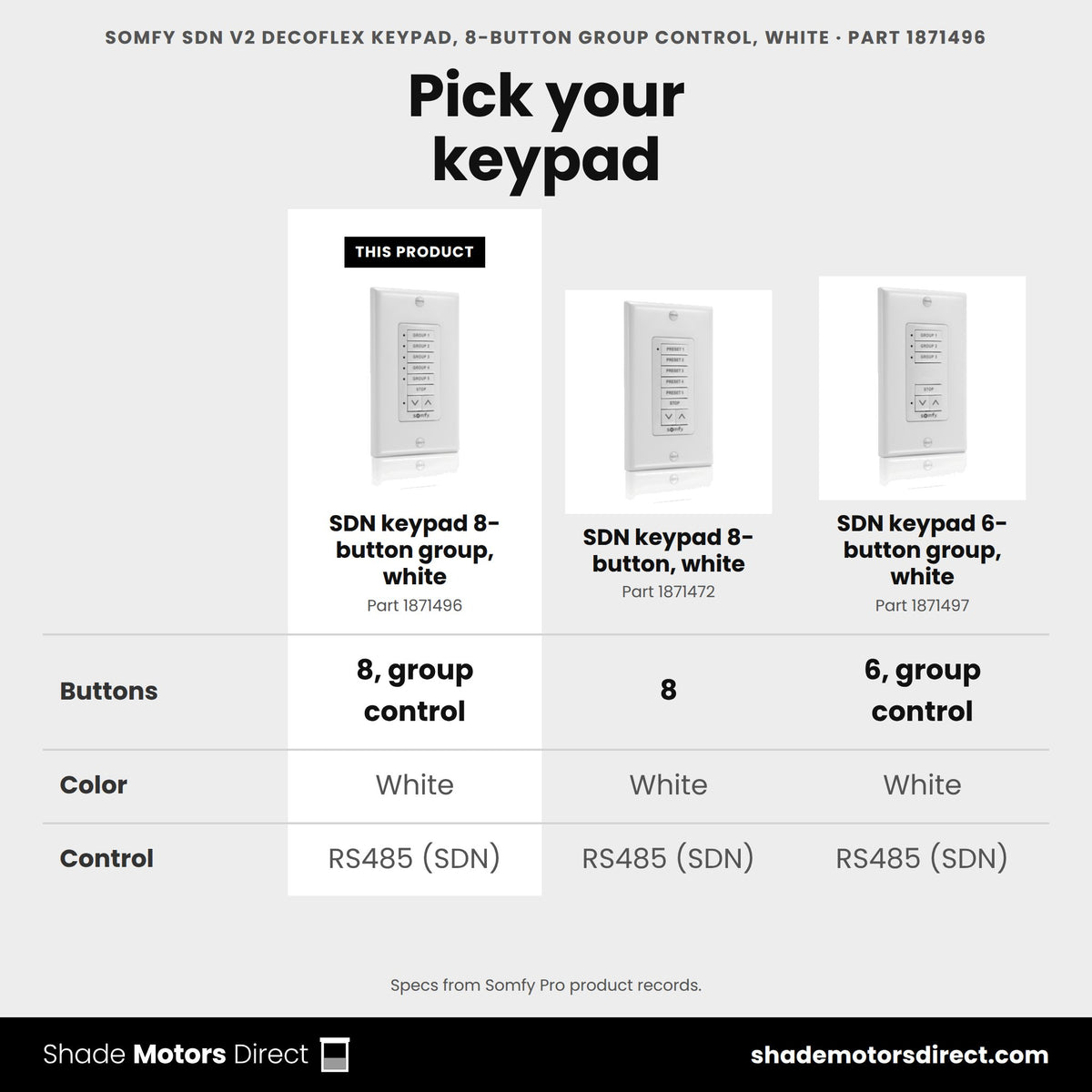

Which other SDN keypads are there?
For a smaller wall, the SDN V2 DecoFlex 6-Button Group Controller (1871497) uses the same group-control layout. If you do not need group selection, the SDN V2 DecoFlex 8-Button keypad (1871472) gives eight direct buttons.
Couldn't load pickup availability
How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy SDN V2 DecoFlex Digital Keypad, 8-Button Group Control White (1871496)
|
Somfy DecoFlex SDN Keypad V2, 6-Button, White (1871479)
|
Somfy SDN DecoFlex Digital Keypad, 6-Button Black (1871495)
|
Somfy SDN DecoFlex Digital Keypad, 8-Button Black (1871494)
|
|---|---|---|---|---|
| Price | ||||
| Control | RS485 (SDN) | RS485 (SDN) | RS485 (SDN) | RS485 (SDN) |
| Power | 24V DC via SDN bus | Wired | 24V DC via SDN bus | 24V DC via SDN bus |
| What's different | The product on this page | Close alternative | Close alternative | Close alternative |
| Buy | Currently viewing | View details | View details | View details |
