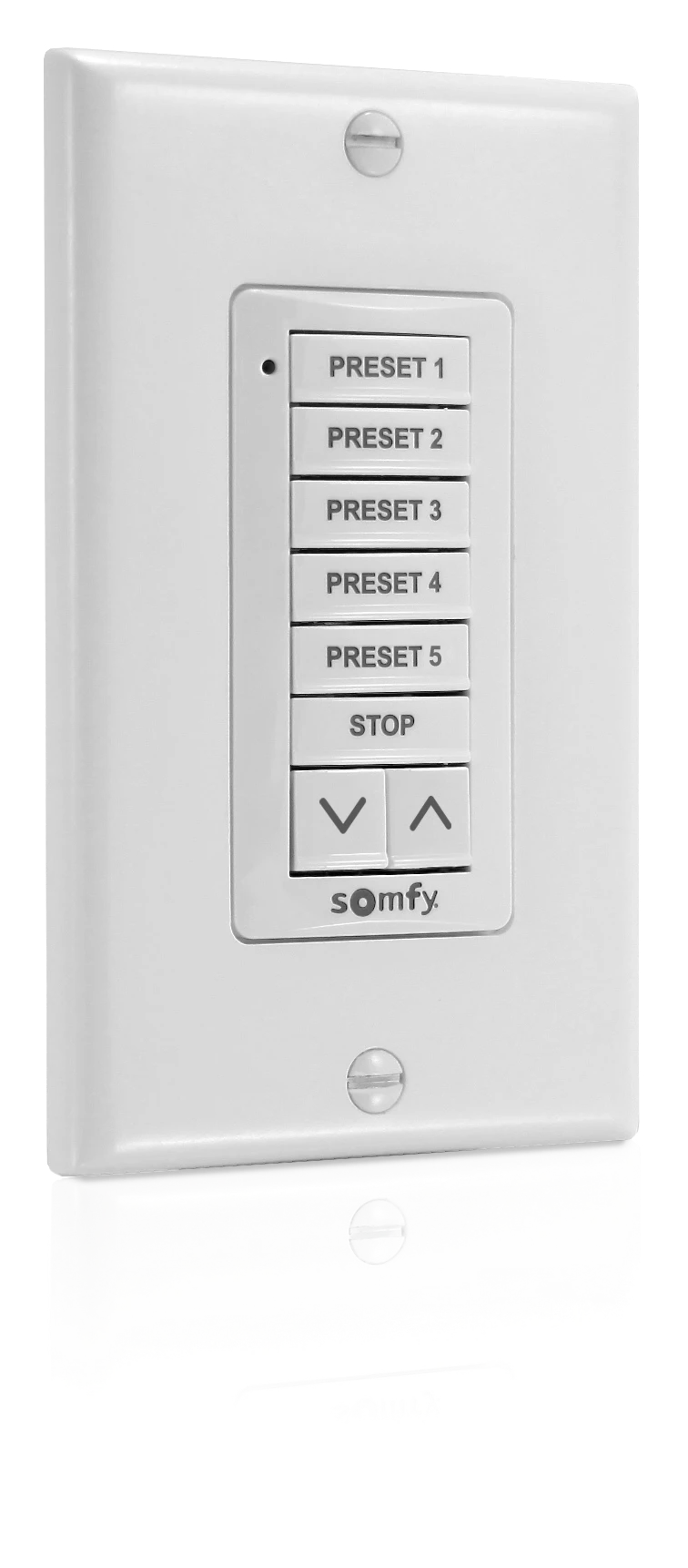

Somfy SDN DecoFlex Digital Keypad, 8-Button, White

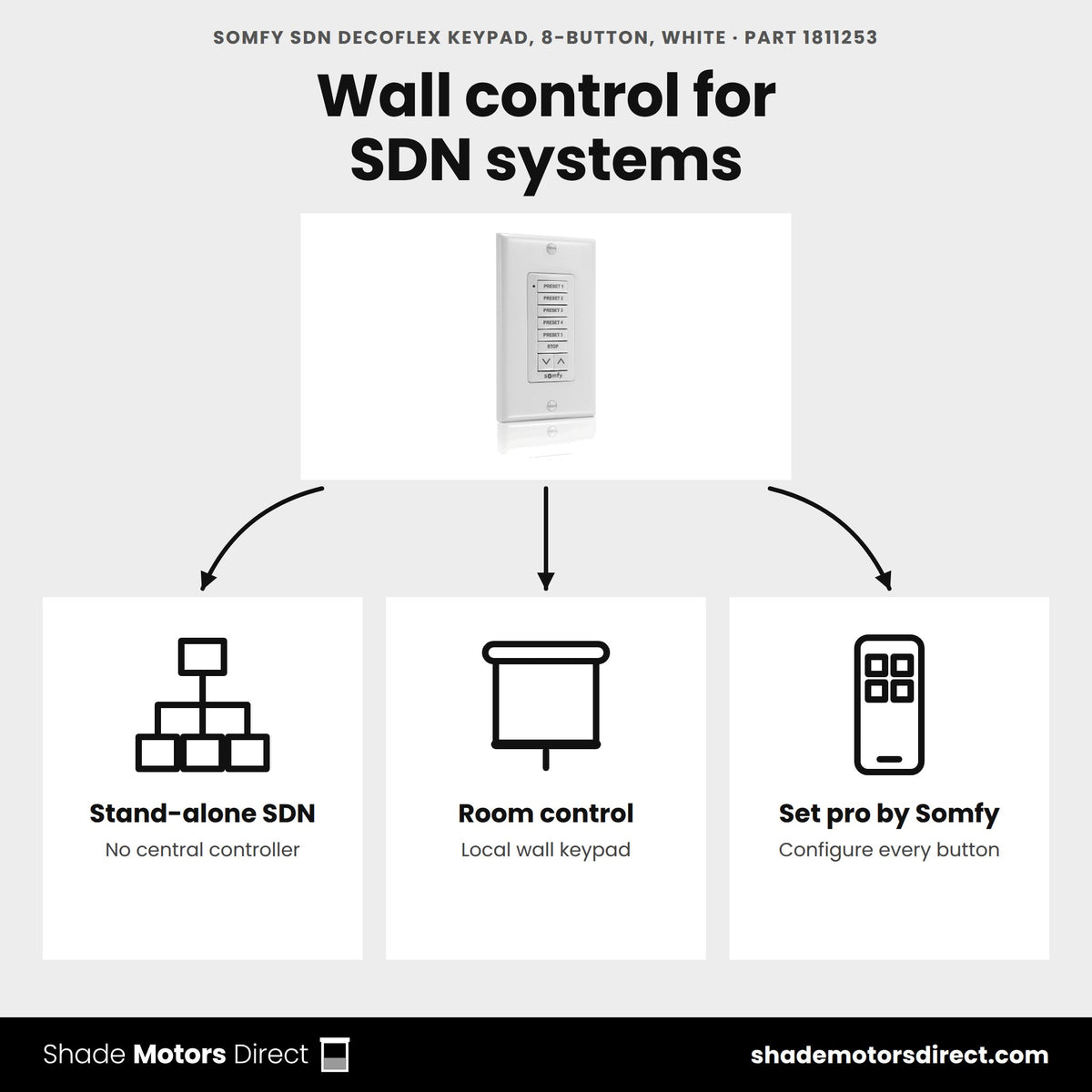

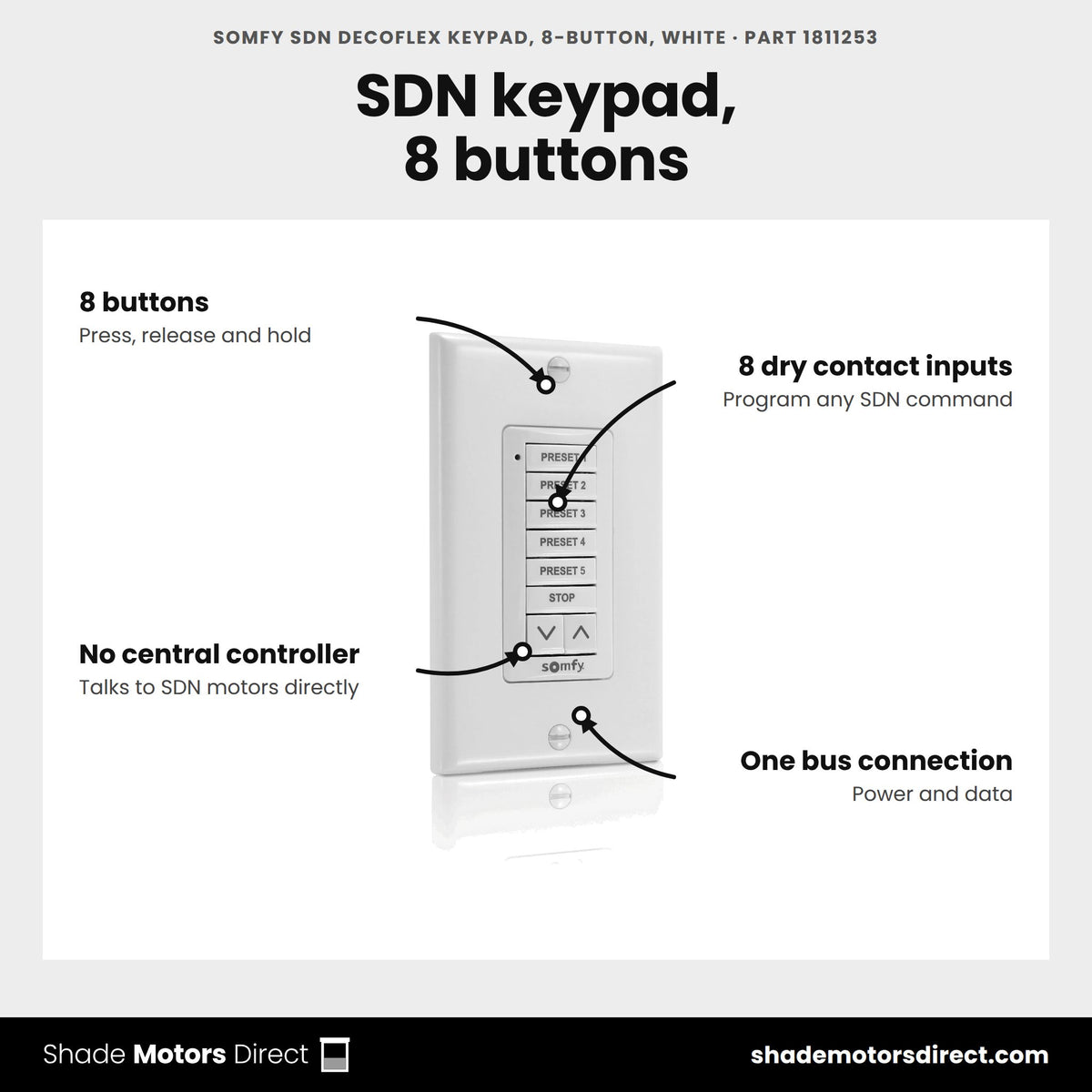

A hard-wired, in-wall SDN keypad with 8 fully programmable buttons, providing a local user interface for a stand-alone Somfy Digital Network system. Each keypad communicates directly with intelligent motors on the network -- no centralized controller required -- and includes 8 dry contact inputs on the back regardless of front-button count, all programmable to output SDN commands via Set pro by Somfy configuration software.
Specifications
| Part type | SDN in-wall keypad |
| Buttons | 8 |
| Dry contact inputs | 8 (regardless of button count) |
| Programming | Press, Release, Hold -- per button; Set pro by Somfy software |
| Color | White |
| Power/comms | Single SDN bus connection (power + data) |
| Genuine part | Yes -- Somfy 1811253 |
Compatible with: Somfy Digital Network (SDN) RS485 motor systems, SDN Data Hub/Panel
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What does the SDN DecoFlex Digital Keypad, 8-Button, White do?
Part 1811253 is a hard-wired, in-wall keypad with 8 programmable buttons. It gives a stand-alone Somfy Digital Network system a local control point and talks to the SDN motors on the network, so no central controller is required.
How are the buttons programmed?
Each button can hold separate commands for Press, Release and Hold. You set up the keypad and its buttons with Set pro by Somfy configuration software.
What are the dry contact inputs for?
The back of the keypad carries 8 dry contact inputs, whatever the button count. You program each input to output SDN commands, so a wired contact closure from another system can trigger shade moves.
How does it connect and get power?
It needs a single SDN bus connection, which carries both power and data. The keypad pairs with Somfy Digital Network RS485 motor systems and an SDN Data Hub or SDN Data Panel.

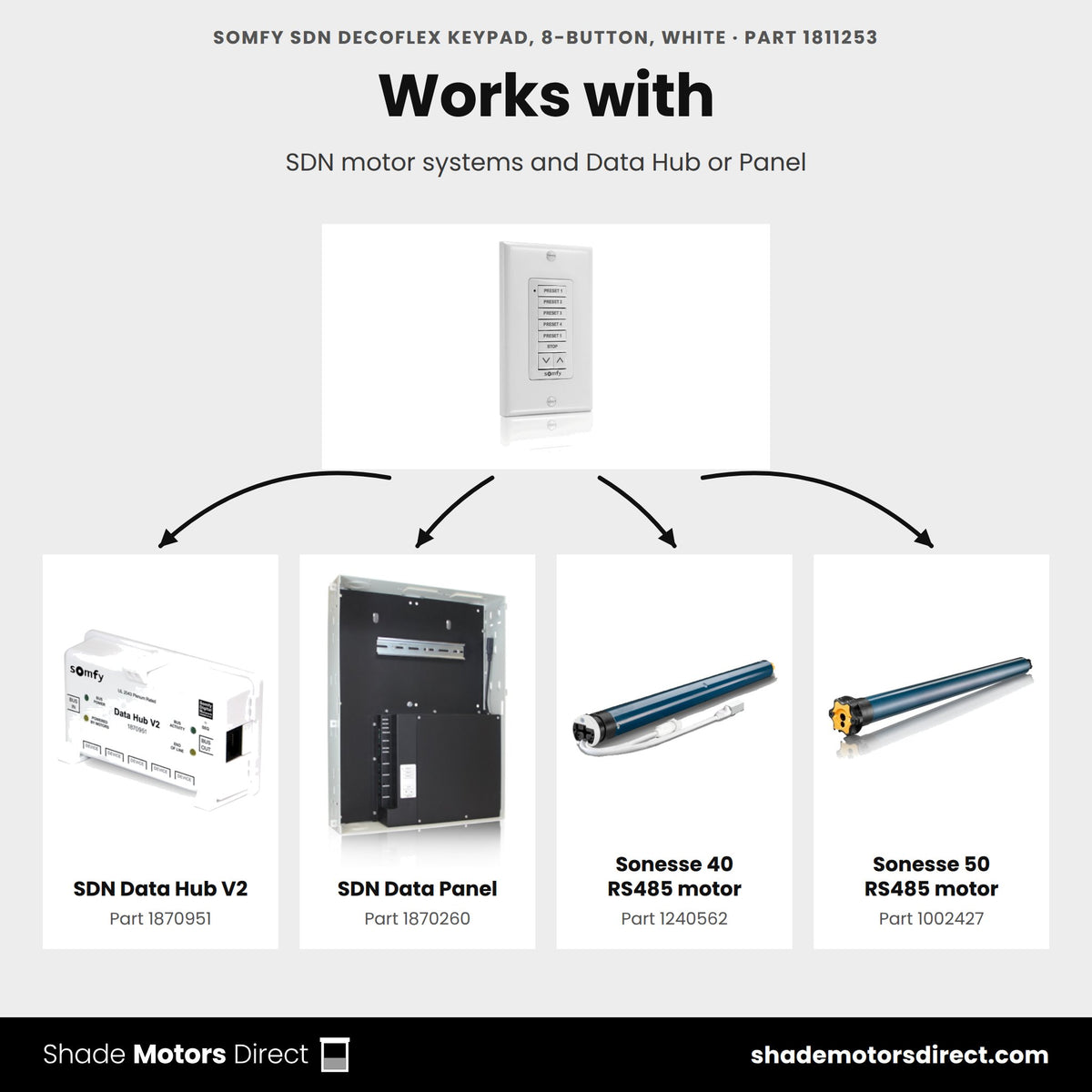

Which SDN motors and hubs work with it?
It works with Somfy SDN RS485 motors such as the Sonesse 40 406A2 RS485 SDN Motor (1240563). For the network side, the SDN Data Hub V2 (1870951) and SDN Data Panel (1870260) are both sold here.
Is there a newer version of this keypad?
Yes. Somfy offers the DecoFlex SDN Keypad V2, 8-Button, White (1871472), sold here. For group control, the V2 8-button group control keypad (1871496) adds LEDs for group identification.
Couldn't load pickup availability
How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy SDN DecoFlex Digital Keypad, 8-Button White (1811253)
|
Somfy DecoFlex SDN Keypad V2, 6-Button, White (1871479)
|
Somfy SDN DecoFlex Digital Keypad, 6-Button Black (1871495)
|
Somfy SDN DecoFlex Digital Keypad, 8-Button Black (1871494)
|
|---|---|---|---|---|
| Price | ||||
| Control | RS485 (SDN) | RS485 (SDN) | RS485 (SDN) | RS485 (SDN) |
| Power | 24V DC via SDN bus | Wired | 24V DC via SDN bus | 24V DC via SDN bus |
| What's different | The product on this page | Close alternative | Close alternative | Close alternative |
| Buy | Currently viewing | View details | View details | View details |
