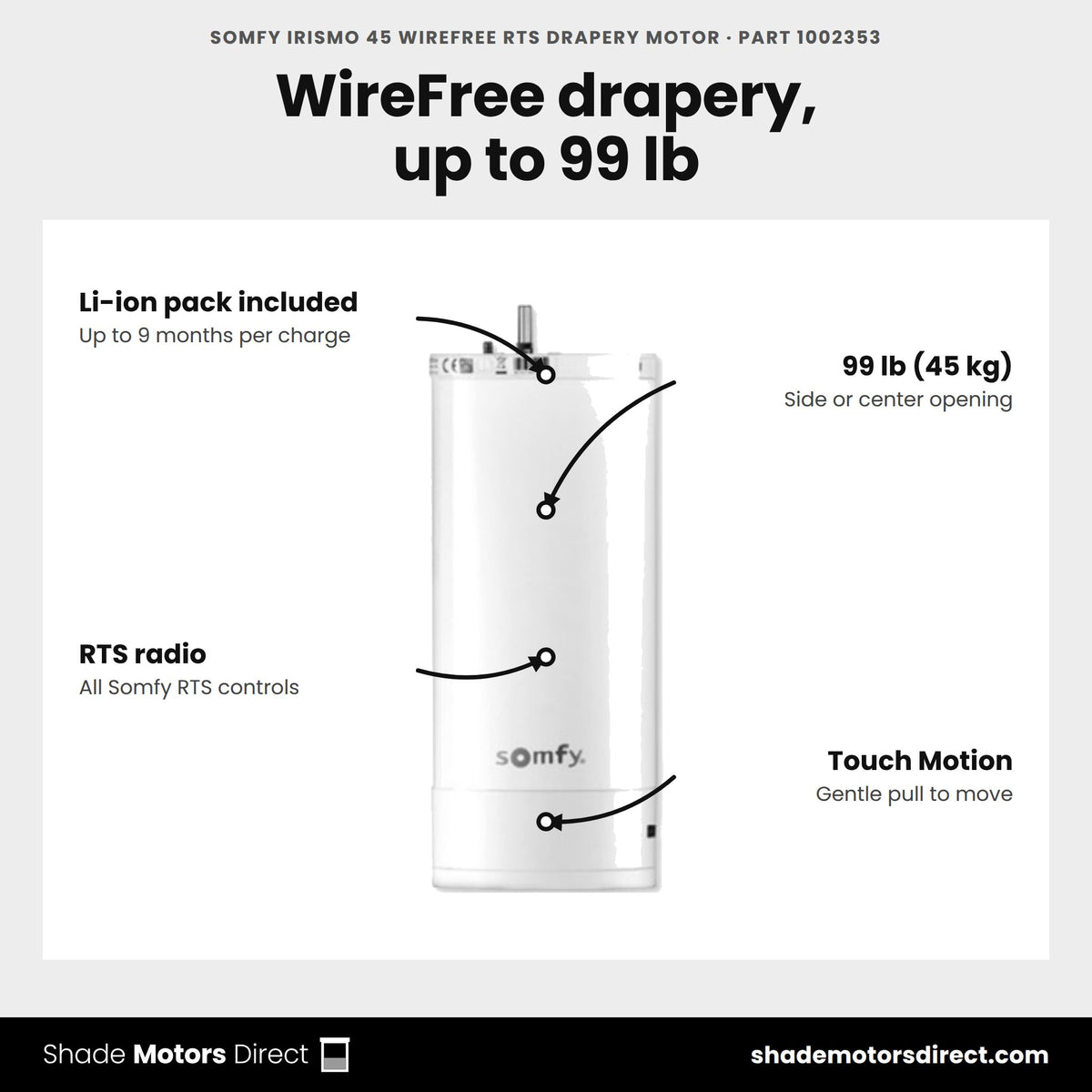

Somfy Irismo 45 WireFree RTS Drapery Motor, part 1002353, features: 99 lb max drapery, 25.9V Li-ion pack up to 9 months per charge, RTS radio, 33 ft track, 39 dB

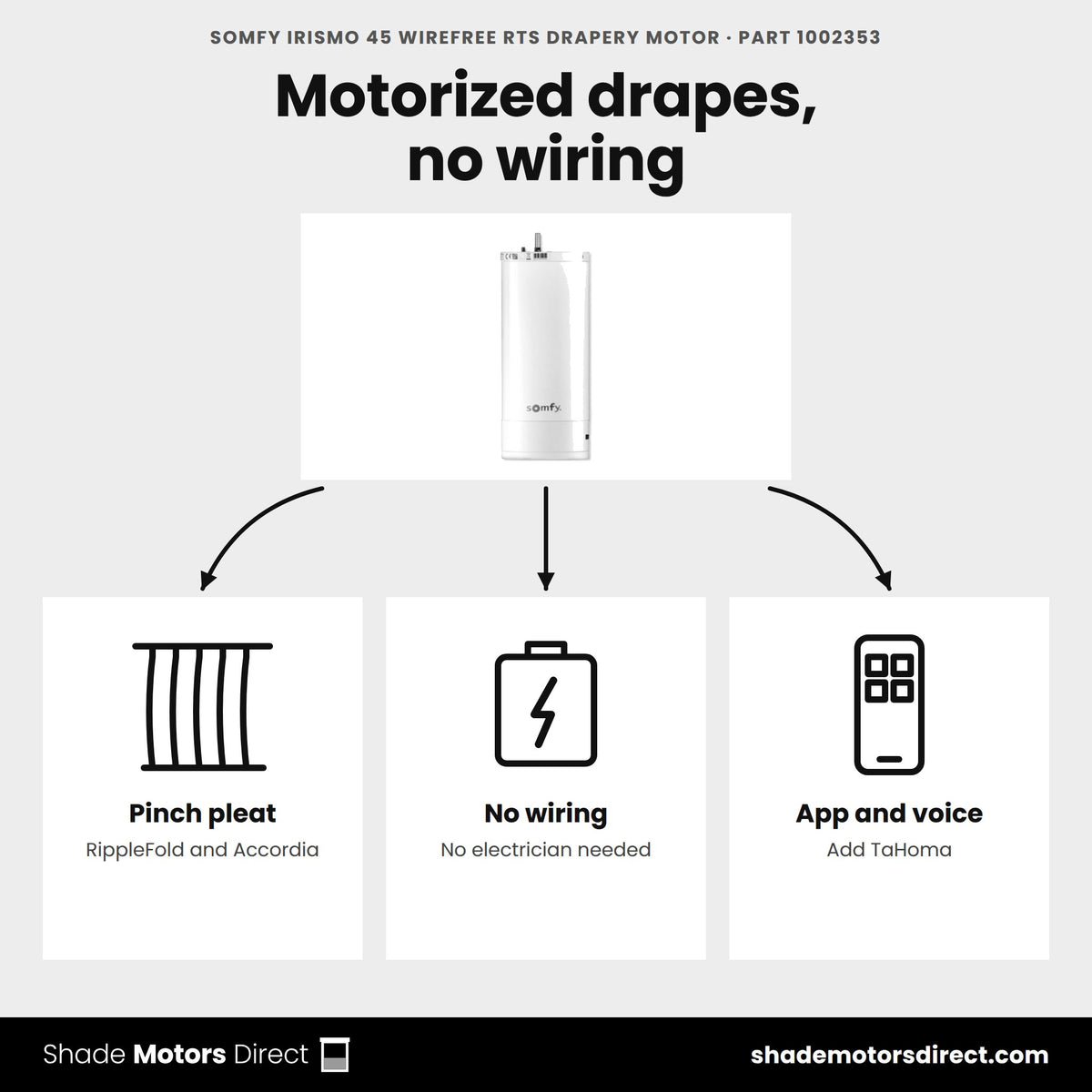

Somfy Irismo 45 WireFree RTS motor 1002353 uses: pinch pleat, RippleFold and Accordia draperies, no wiring, TaHoma app and voice

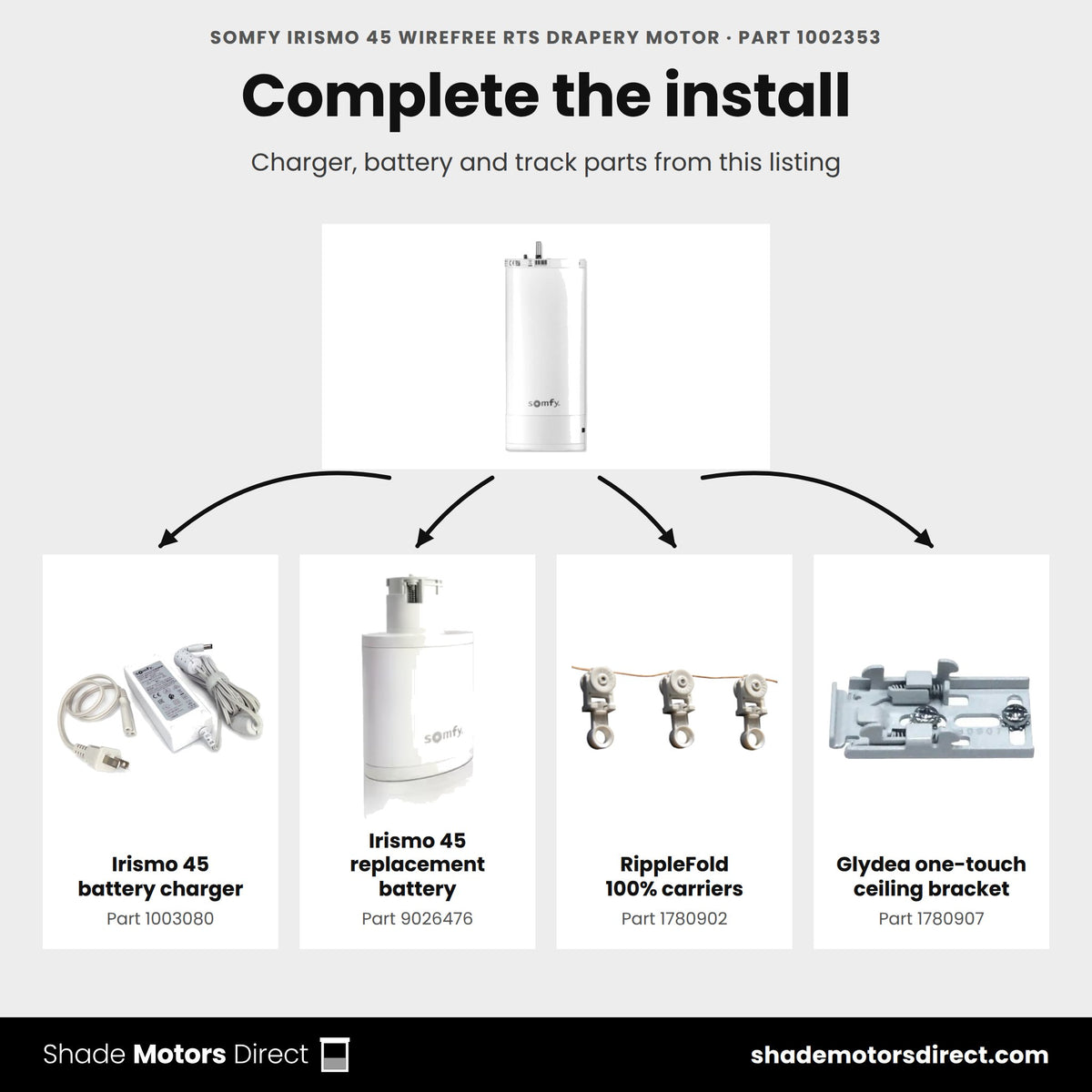

Parts that work with the Somfy Irismo 45 WireFree RTS motor 1002353: Irismo 45 battery charger 1003080, Irismo 45 replacement battery 9026476, RippleFold 100% carriers 1780902, Glydea one-touch ceiling bracket 1780907

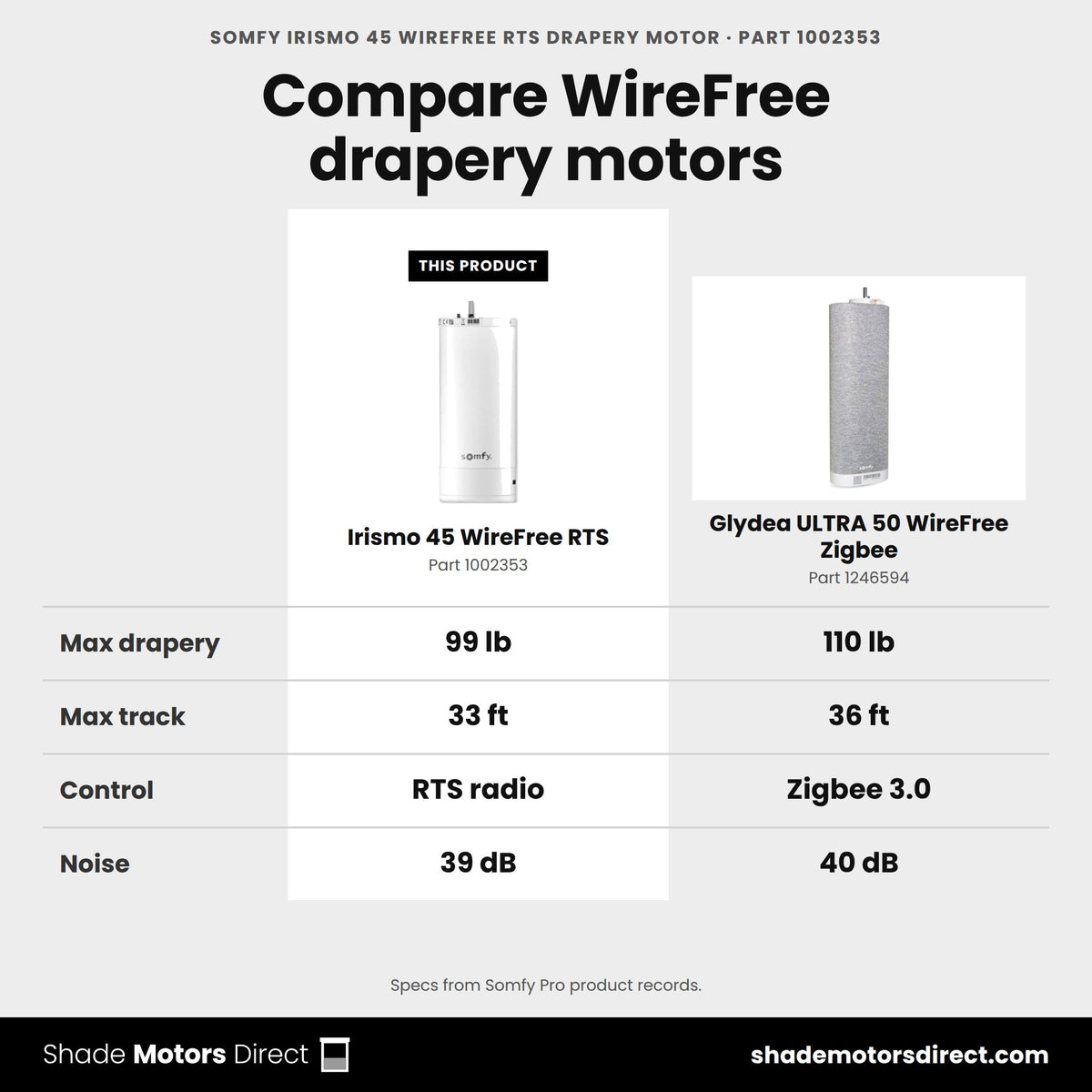

Somfy Irismo 45 WireFree RTS motor 1002353 compared: Glydea ULTRA 50 WireFree Zigbee 1246594

Buy the Somfy Irismo 45 WireFree RTS Drapery Motor, part 1002353, genuine new with 5-year warranty, from ShadeMotorsDirect

Video: build a Somfy Irismo 45 WireFree RTS battery drapery track for a sliding door, step by step

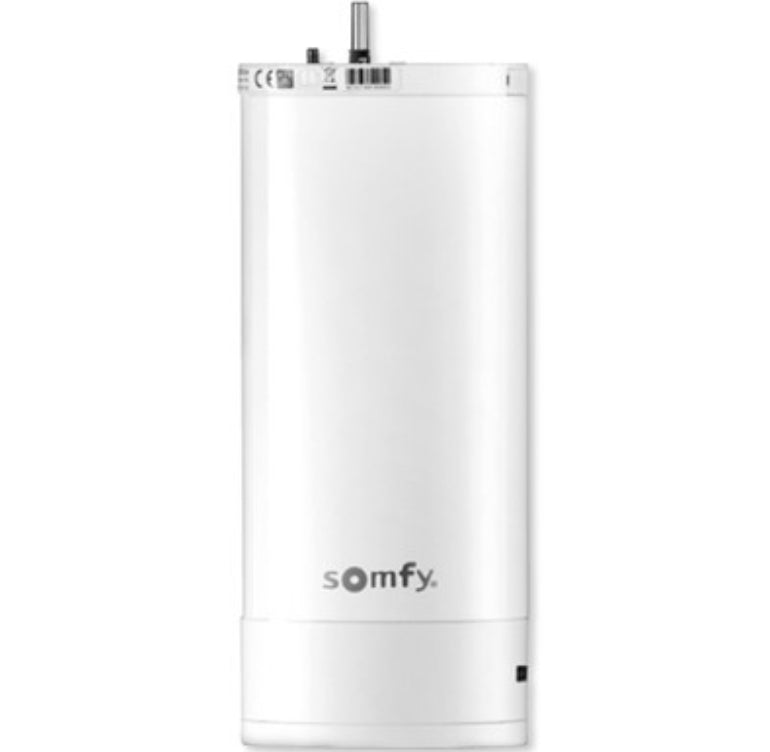

Somfy Irismo 45 WireFree RTS Drapery Motor (1002353)

SKU: 1002353

$541.95

Shipping calculated at checkout.

Customize a track with this motor

This listing is the motor on its own. Build the complete system and we cut the track to your width, work out the brackets and list every part before you pay.

Secure checkout with

Genuine Somfy Authorized distributor

5-Year Warranty Somfy warranty on every part

30-Day Returns 35% restocking fee

Expert Support Call 859-414-6872

Ships in 1-2 business days. US shipping $15 flat.

Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy

Not sure this fits? Ask our tech team

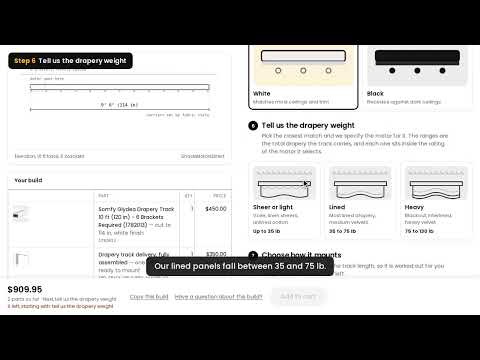

See… Somfy Irismo 45 WireFree RTS Drapery Motor (1002353) in action

★★★★★

“Smooth, quiet, and reliable. Our customers love the upgrade.”

Eastern Shades Dallas TX

★★★★★

“The perfect motorized system for our drapery installs.”

TheBlindGuy Raleigh NC

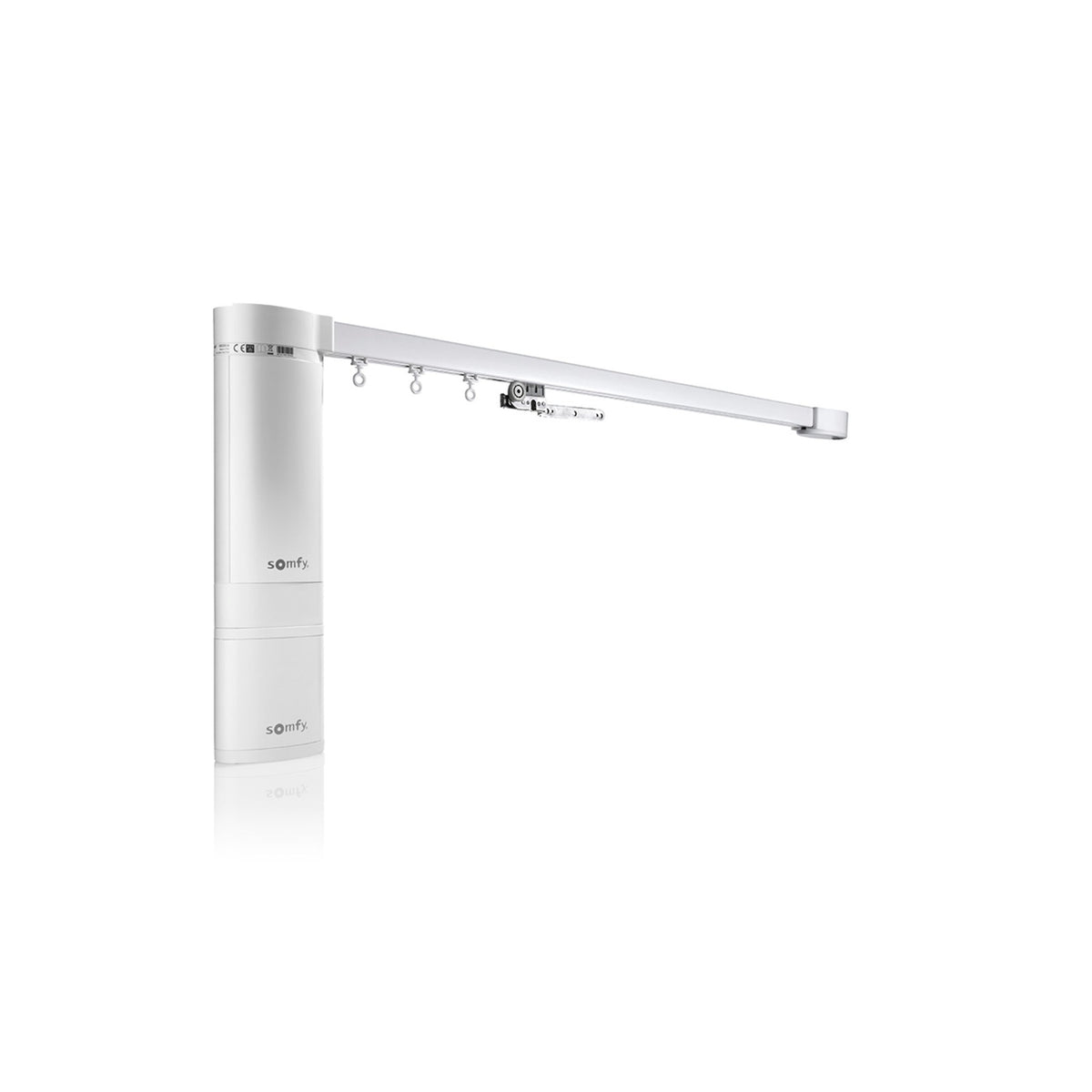

Irismo 45 WireFree RTS -- rechargeable battery drapery motor for drapes up to 99 lb

Irismo 45 WireFree RTS is Somfy's compact battery-operated drapery motor, motorizing draperies with no wiring at all. The included 25.9V rechargeable lithium-ion pack runs up to 9 months per charge, and the motor mounts on either end of the track, concealed above, left, or right.

Benefits

Fully battery operated: no wiring, no electrician, no damage to walls
Rechargeable 25.9V Li-ion pack included, runs up to 9 months per charge
Motorizes pinch pleat, RippleFold, and Accordia draperies up to 99 lb (45 kg)
Touch Motion opens or closes drapes with a gentle pull on the fabric
Quiet belt-drive design with manual override when needed
Compatible with all Somfy RTS controls; add TaHoma for app and voice control
Backed by Somfy's 5-year warranty

Specifications

Max drapery weight	99 lb (45 kg), side or center opening
Torque / Speed	0.8 Nm / 87.5 rpm
Power	25.9V rechargeable Li-ion battery pack (included), up to 9 months per charge
Radio Frequency	433.420 MHz
Control	Radio Technology Somfy (RTS), built-in receiver
Max track length	33 ft (10 m)
Noise level	39 dB
Limit type	Electronic, adjustable
Warranty	5 years

Compatible with: Somfy Irismo/Glydea drapery track hardware; charger 1003080 and replacement battery 9026476

Official Somfy documentation

Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.

Common questions

What is the Irismo 45 WireFree RTS drapery motor?

Part 1002353 is Somfy's battery-powered drapery motor with a built-in RTS receiver. It runs on an included 25.9 V rechargeable Li-ion battery, so it needs no wiring, and it mounts above, left or right of the track to stay out of sight.

Which drapery styles and hardware does it work with?

Somfy designed the Irismo 45 WireFree for pinch pleat, RippleFold and Accordia draperies. It works with Somfy drapery track hardware, including the One Touch Ceiling Bracket (1780907), the Drive Pulley (1780945), RippleFold carriers and the Heavy Duty Master Carrier (1781344).

What are its torque, speed and noise ratings?

Somfy rates the Irismo 45 WireFree RTS at 0.8 Nm of torque and 87.5 rpm, with a noise level of 39 dB. It draws 45 W while running and 0.33 W on standby, and Somfy rates it IP 30 for interior use.

How do I charge or replace the battery?

Use the Somfy Battery Charger for Irismo 45 WireFree RTS (1003080) to recharge the 25.9 V Li-ion pack. When the pack reaches the end of its life, the Replacement 25.9V Rechargeable Li-ion Battery (9026476) swaps in.

Which controls work with it?

Any Somfy RTS transmitter pairs with it, including Situo and Telis RTS remotes and DecoFlex RTS wall switches. The motor stores 12 channels, and Somfy rates RTS range at 656.2 ft in open field. Add a TaHoma Switch hub (1871037) for app and voice control.

Can I open the drapery by hand?

Yes. Touch Motion lets a gentle pull on the fabric start the motor, and manual override lets you move the drapery by hand when you prefer. Both features come standard on the Irismo 45 WireFree RTS.

Shade Motors Direct Spec Library Product specs, manuals and technical documents

How this motor compares

Verified Somfy specs for this motor and its closest alternatives.

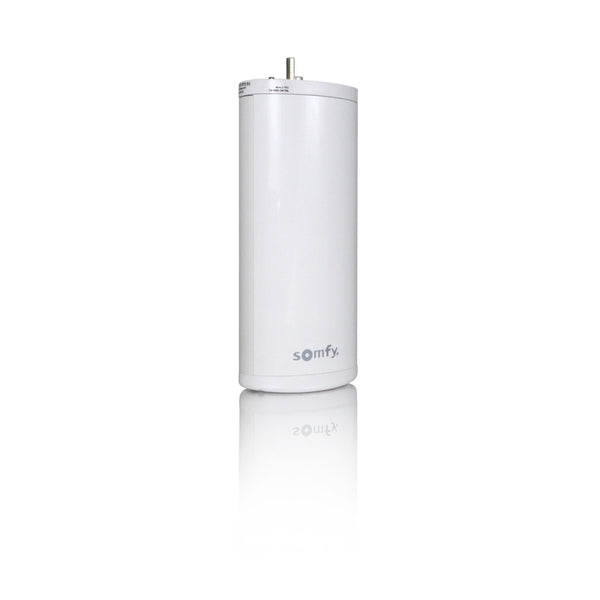

Specification	You're viewing Somfy Irismo 45 WireFree RTS Drapery Motor (1002353)	Somfy Irismo 35 Mini DC RTS Drapery Motor (1003004)	Somfy Glydea Ultra 60 RTS Drapery Motor (1246118)	Somfy Glydea Ultra 35 RTS Drapery Motor (1246116)
Price	$541.95	$532.95	$639.84	$532.93
Torque (Nm)	0.8	—	1.0	0.6
Speed (rpm)	—	—	105	105
Max load (lb)	99	77	132	77
Control	RTS radio	RTS radio	RTS radio	RTS radio
Power	25.9V Li-ion battery	24V DC plug-in	100-240V AC	100-240V AC
Motor family	Irismo 45	Irismo 35	Glydea Ultra 60	Glydea Ultra 35
What's different	The product on this page	Holds 77 lb instead of 99	Holds 132 lb instead of 99	Holds 77 lb instead of 99
Buy	Currently viewing	View details	View details	View details
