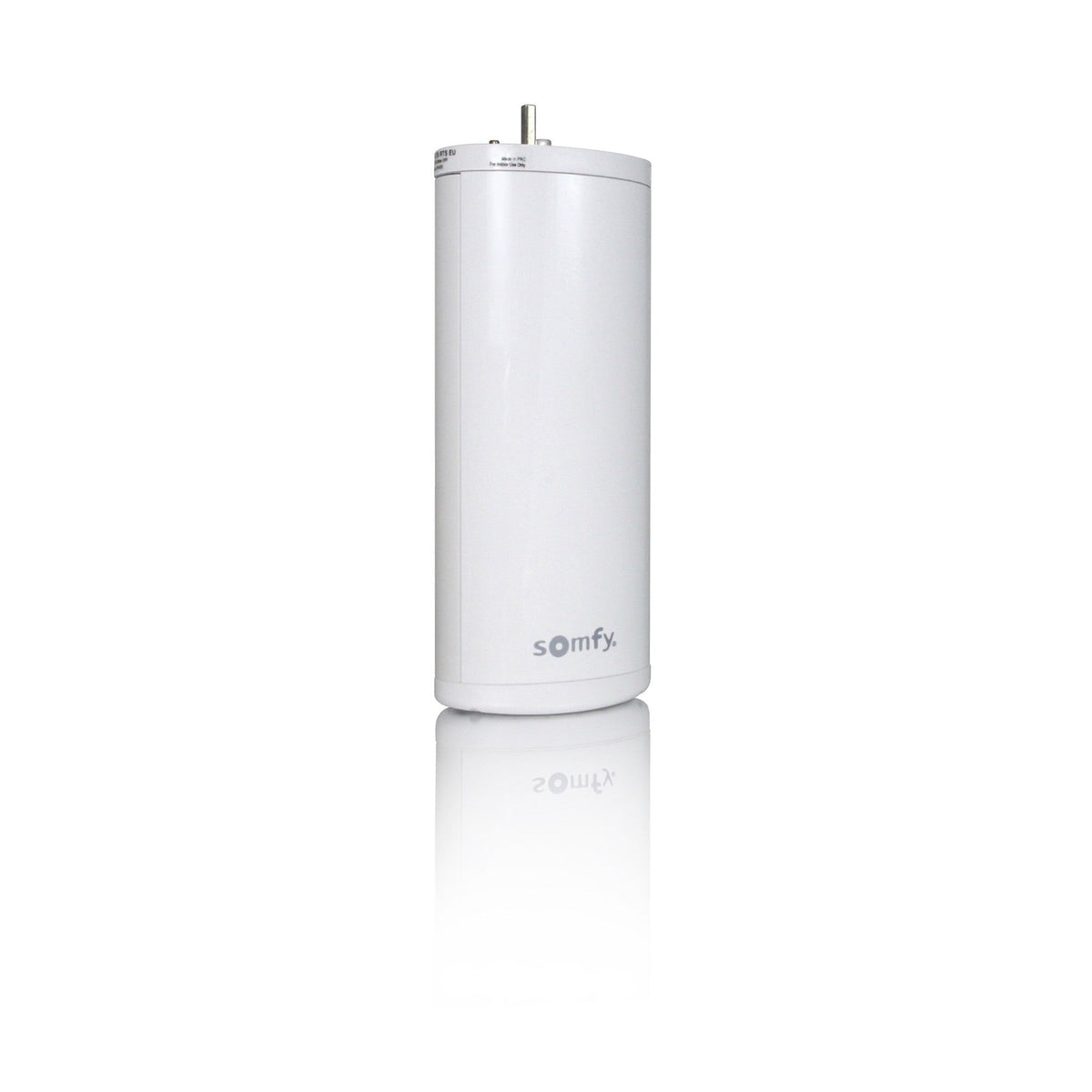

Somfy Irismo 35 Mini DC RTS Drapery Motor (1003004)

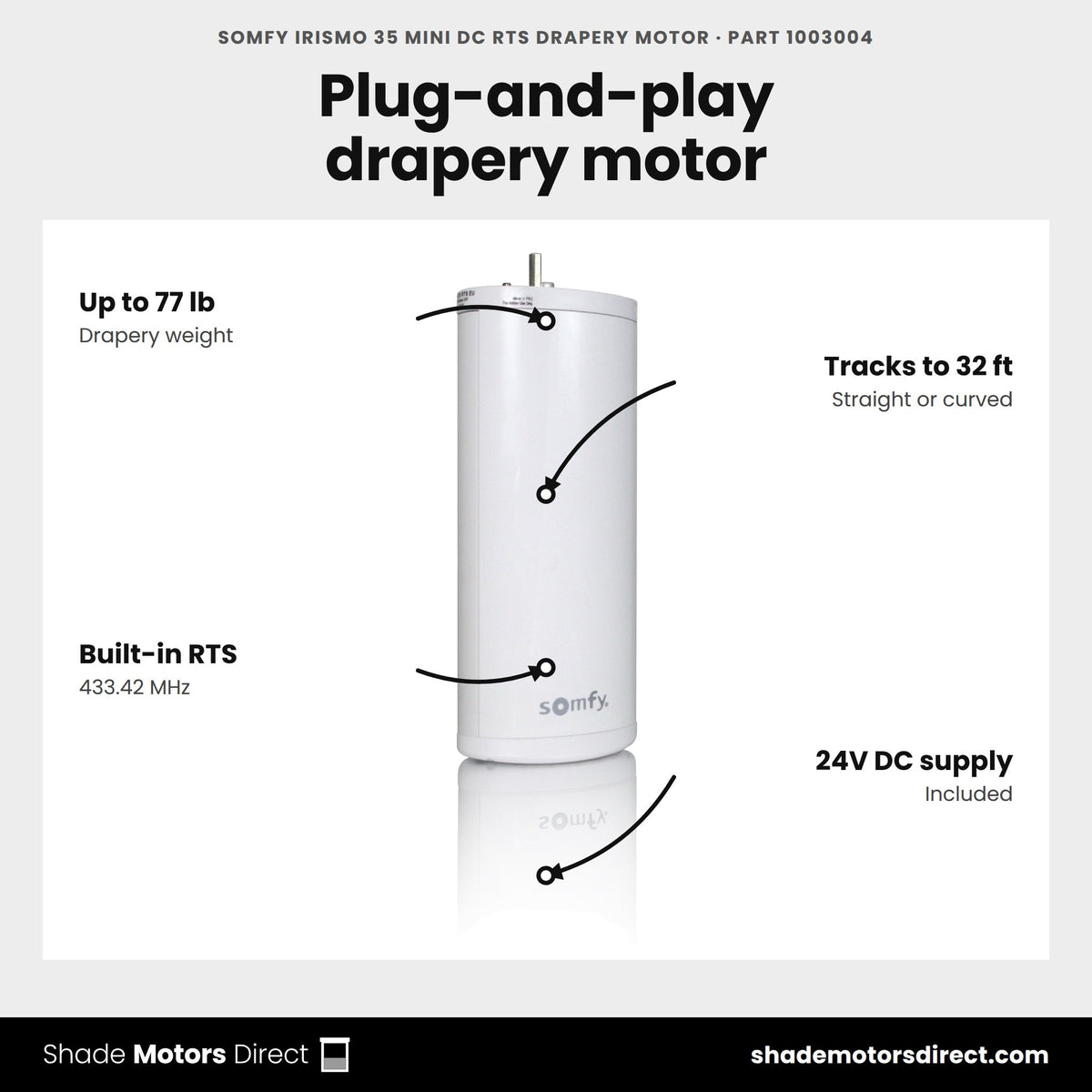

Somfy Irismo 35 Mini DC RTS Drapery Motor, part 1003004, features: built-in RTS drapery motor for up to 77 lb on straight or curved tracks up to 32 ft with a 24V DC supply included

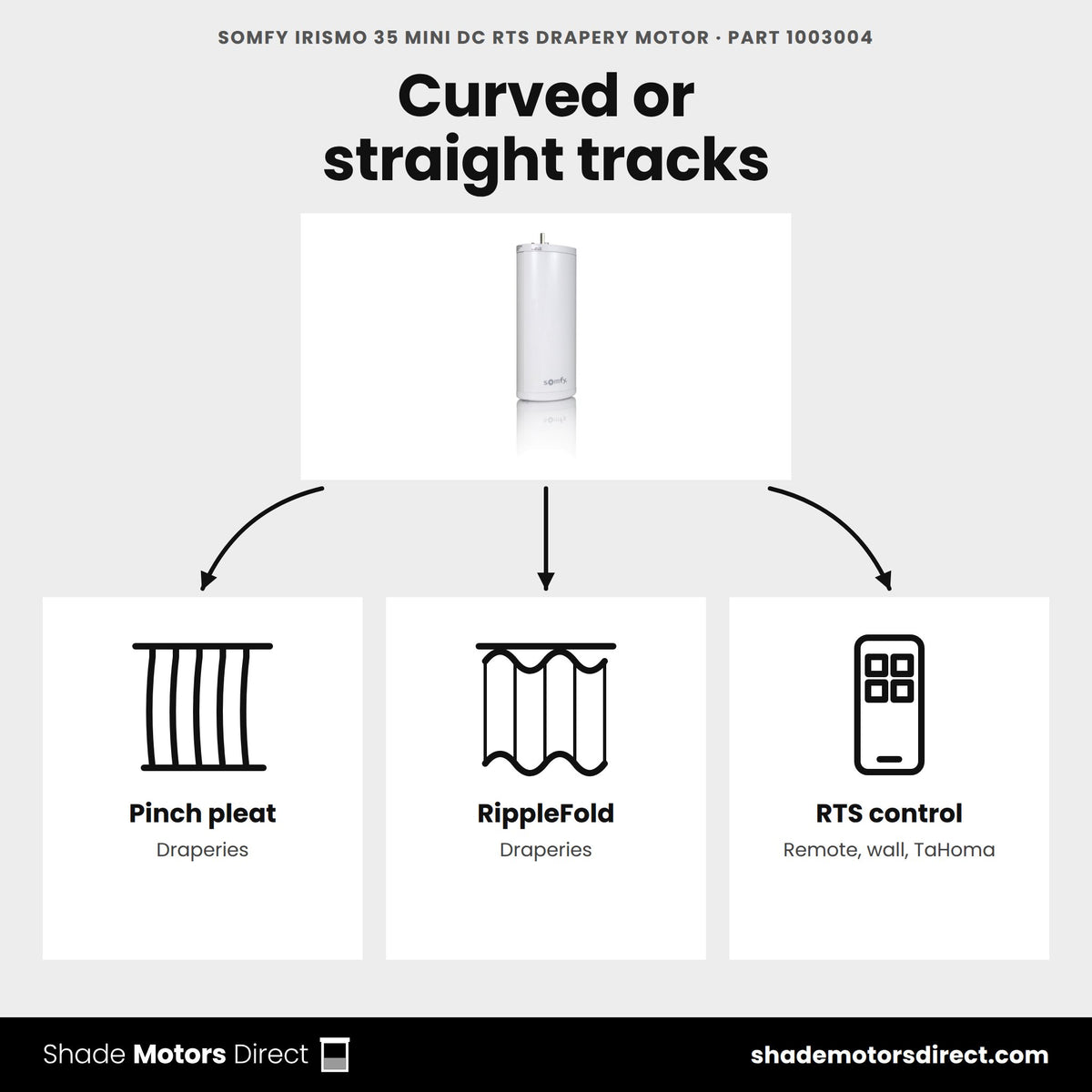

Somfy Irismo 35 Mini DC RTS drapery motor 1003004 uses: plug-and-play drapery motorization on straight, bent or curved tracks

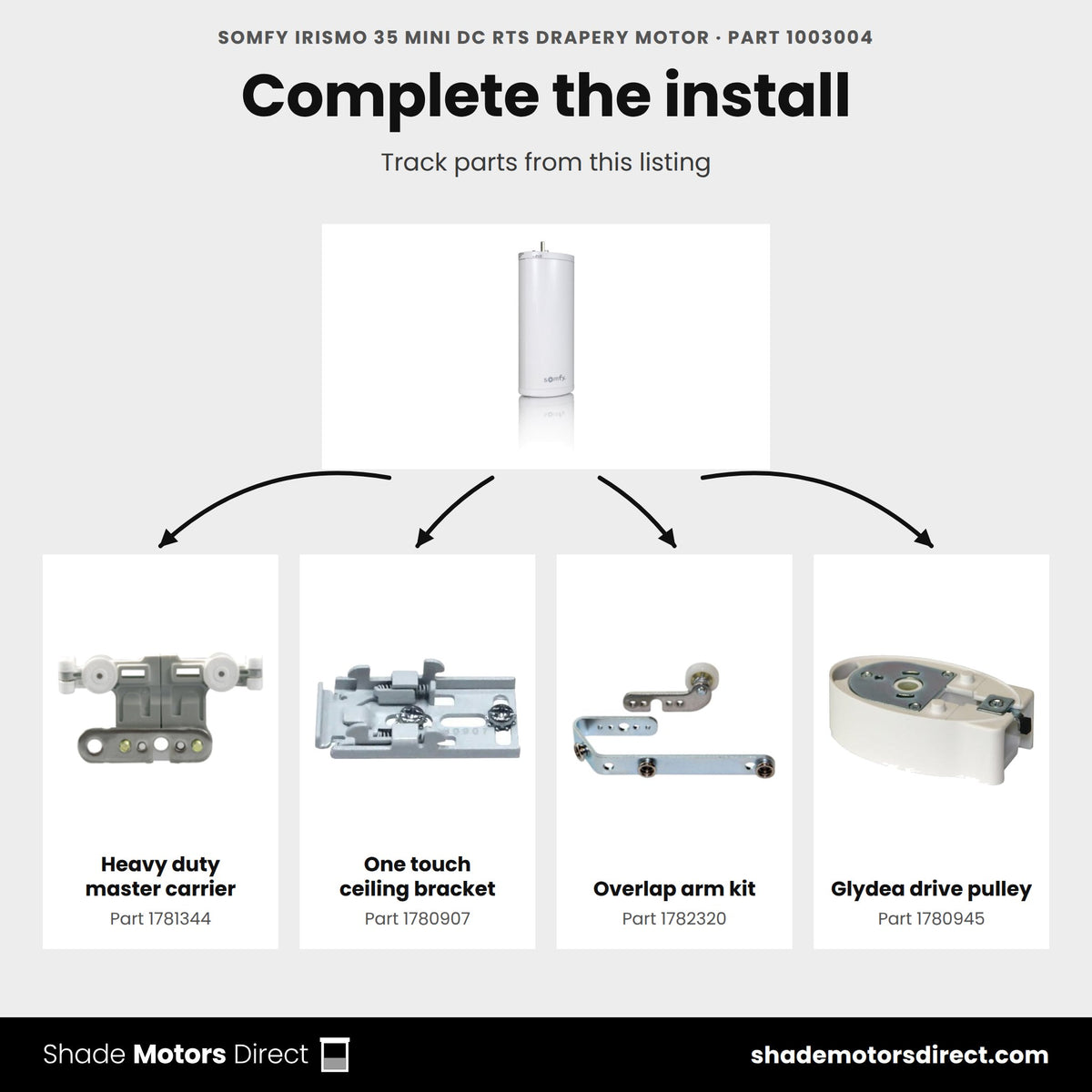

Parts that work with the Somfy Irismo 35 Mini DC RTS drapery motor 1003004: Heavy duty master carrier 1781344, One touch ceiling bracket 1780907, Overlap arm kit 1782320, Glydea drive pulley 1780945

Somfy Irismo 35 Mini DC RTS drapery motor 1003004 compared: Irismo 45 WireFree RTS 1002353, Glydea ULTRA 35 RTS 1246116

Buy the Somfy Irismo 35 Mini DC RTS Drapery Motor, part 1003004, genuine new with 5-year warranty, from ShadeMotorsDirect

Somfy Irismo 35 Mini DC RTS Drapery Motor (1003004)

SKU: 1003004

$532.95

Shipping calculated at checkout.

Customize a track with this motor

This listing is the motor on its own. Build the complete system and we cut the track to your width, work out the brackets and list every part before you pay.

Secure checkout with

Genuine Somfy Authorized distributor

5-Year Warranty Somfy warranty on every part

30-Day Returns 35% restocking fee

Expert Support Call 859-414-6872

Ships in 1-2 business days. US shipping $15 flat.

Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy

Not sure this fits? Ask our tech team

See… Somfy Irismo 35 Mini DC RTS Drapery Motor (1003004) in action

★★★★★

“Smooth, quiet, and reliable. Our customers love the upgrade.”

Eastern Shades Dallas TX

★★★★★

“The perfect motorized system for our drapery installs.”

TheBlindGuy Raleigh NC

Irismo 35 (Mini DC) RTS with 24V DC Power Supply -- plug-and-play drapery motorization up to 77 lbs

The Irismo 35 Mini DC is a low-voltage, plug-and-play drapery motor that moves pinch pleat and RippleFold drapes up to 77 lbs on straight, bent, or curved tracks up to 32 ft. The included 24V DC power supply plugs into a standard outlet -- no hardwiring -- and Touch Motion starts the drapery with a gentle pull on the fabric.

Benefits

Moves drapes up to 77 lbs (35 kg) on tracks up to 32 ft, including curved and custom-bend tracks
Plug-and-play: 24V DC power supply included, plugs into a standard 110V outlet
Touch Motion -- a slight pull on the drapery activates the motor
Manual override lets you hand-draw the drapery during a power outage
Quiet belt-drive design; motor mounts left or right of the track, easily concealed
Built-in RTS: control by remote, DecoFlex wall switch, TaHoma app and voice

Specifications

Radio Frequency	433.420 MHz
Control	Radio Technology Somfy (RTS), built-in receiver
Drapery capacity	77 lbs (35 kg)
Max track length	32 ft (9.7 m); straight, bent, or curved
Power	24V DC, plug-in supply included
Radio	RTS, 433.42 MHz
Override	Manual hand-draw during outage
Warranty	5 years

Compatible with: Somfy drapery track and RippleFold/pinch pleat hardware, all Somfy RTS controls, TaHoma

Official Somfy documentation

Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.

Common questions

What is the Irismo 35 Mini DC RTS built for?

Part 1003004 is a plug-and-play Somfy drapery motor for pinch pleat and RippleFold drapes. It moves drapes up to 77 lbs on straight, bent or curved tracks up to 32 ft, and a built-in RTS receiver handles wireless control.

How is it powered?

The motor comes with a 24V DC power supply that plugs into a standard outlet, so no hardwiring is needed. Somfy lists a rated current of 2 A, 30 W in operation and a cable length of 13.12 ft.

How fast and quiet is it?

Somfy rates the Irismo 35 at 0.6 Nm of torque and 87.5 rpm, with a noise level of 39 dB. It carries an IP 24 rating, operates from 32 °F to 140 °F and has a 5-year warranty.

Can I still open the drapes by hand?

Yes. Touch Motion starts the motor when you give the drapery a gentle pull. During a power outage, the manual override lets you draw the drapes by hand, so the window stays usable.

Which controls work with it?

Any Somfy RTS transmitter, including the Situo 5 RTS Pure remote (1870575), the Telis 16 RTS Pure (1811081) and DecoFlex RTS wall switches (1810813, 1810897). It stores 12 channels with 656.2 ft of open-field range. A TaHoma Switch (1871037) adds app and voice control.

Which track parts fit?

Somfy drapery hardware pairs with it, including the One Touch Ceiling Bracket (1780907), the Straight Arm Kit for center opening tracks (1782321), RippleFold 80% and 120% carriers (1780903, 1780901) and the Heavy Duty Master Carrier (1781344).

Shade Motors Direct Spec Library Product specs, manuals and technical documents

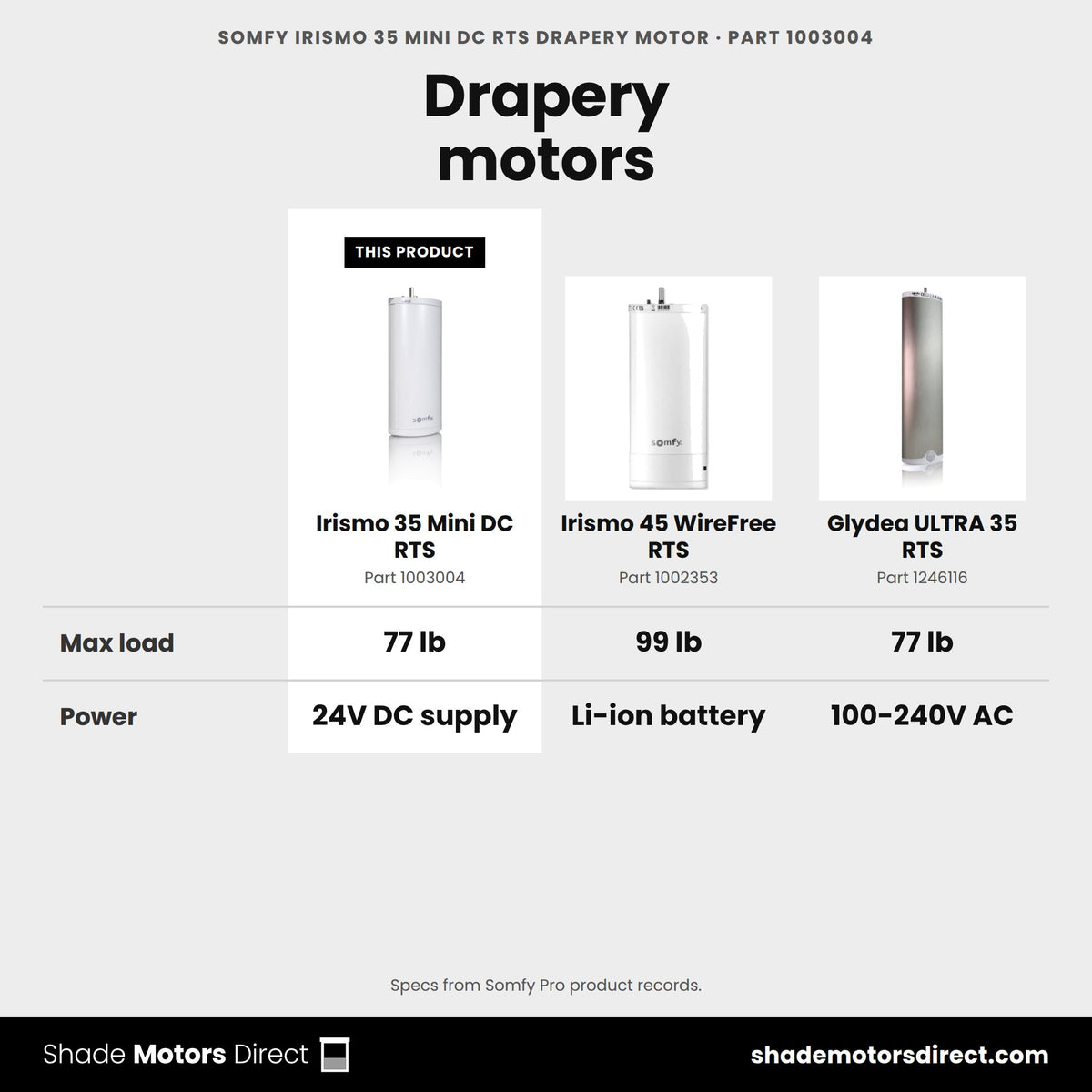

How this motor compares

Verified Somfy specs for this motor and its closest alternatives.

Specification	You're viewing Somfy Irismo 35 Mini DC RTS Drapery Motor (1003004)	Somfy Irismo 45 WireFree RTS Drapery Motor (1002353)	Somfy Glydea Ultra 35 RTS Drapery Motor (1246116)	Somfy Glydea Ultra 60 RTS Drapery Motor (1246118)
Price	$532.95	$541.95	$532.93	$639.84
Torque (Nm)	—	0.8	0.6	1.0
Speed (rpm)	—	—	105	105
Max load (lb)	77	99	77	132
Control	RTS radio	RTS radio	RTS radio	RTS radio
Power	24V DC plug-in	25.9V Li-ion battery	100-240V AC	100-240V AC
Motor family	Irismo 35	Irismo 45	Glydea Ultra 35	Glydea Ultra 60
What's different	The product on this page	Holds 99 lb instead of 77	Close alternative	Holds 132 lb instead of 77
Buy	Currently viewing	View details	View details	View details
