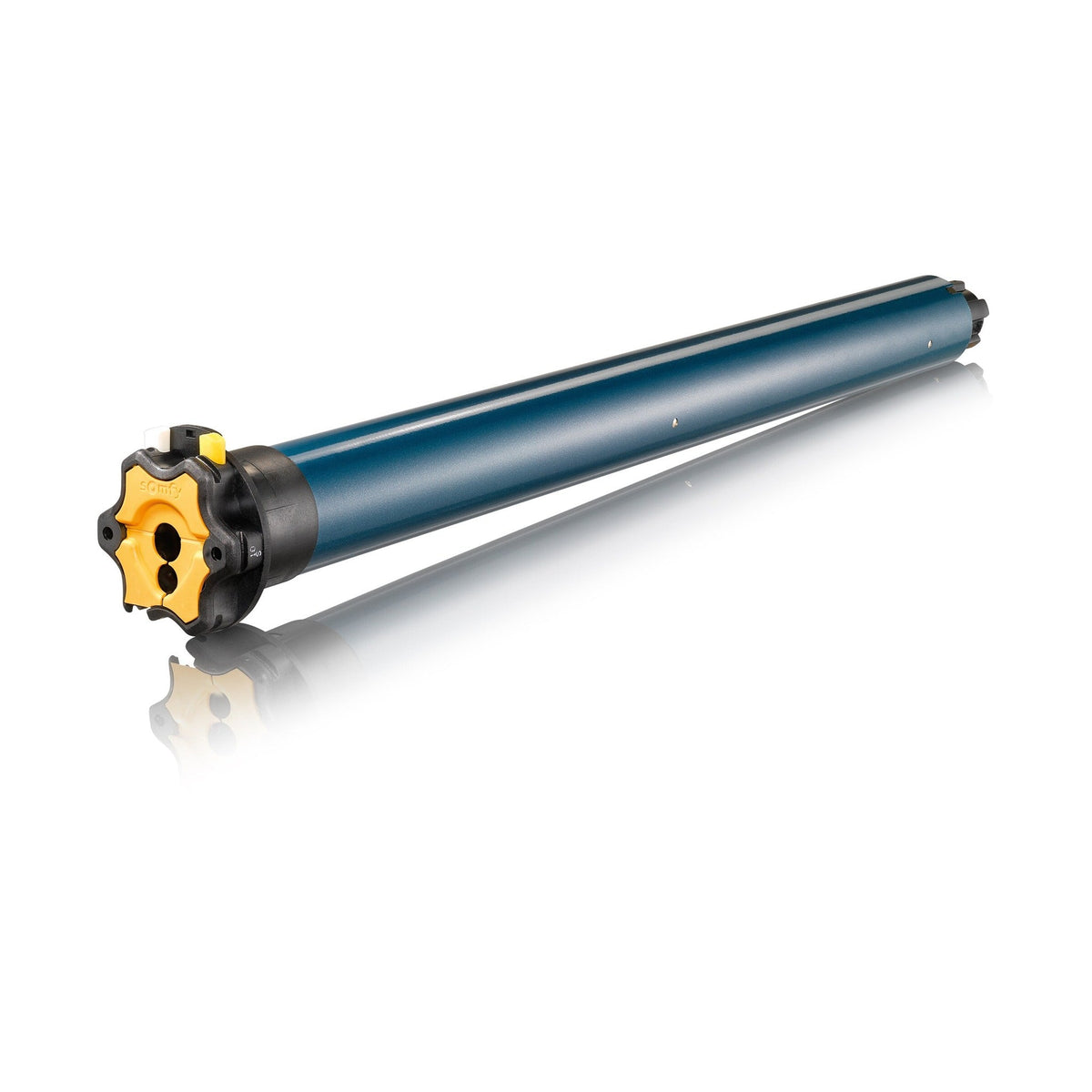

Somfy LT50 510S2 120V 4-Wire Motor -- standard exterior tubular motor
The Somfy LT50 510S2 is a 120V AC standard 4-wire star head motor built for exterior solar screens and interior window coverings. It delivers 10Nm (88" lb) of torque at 38 rpm, wired for control from a switch or third-party relay rather than radio.
Benefits

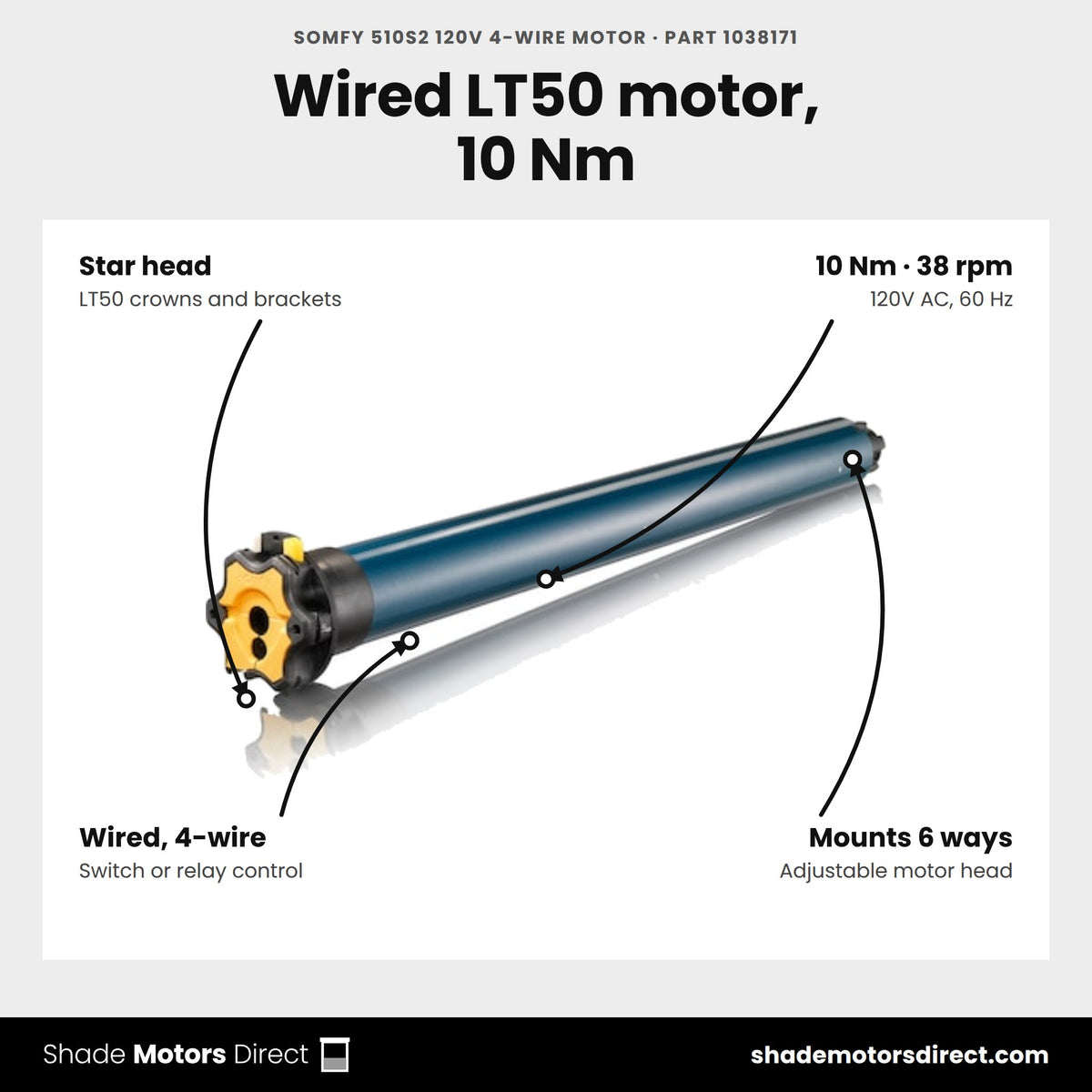

- Standard 4-wire star head motor -- ideal for pre-construction wiring while walls are open
- Adjustable motorhead orientation installs in 6 different positions
- Detachable power cable at the motor head for quick replacement or length management
- Snap-on drive wheels for quick assembly; rapid push-button limit setting
- Eco-designed -- draws no power in standby mode
- 5-year Somfy warranty
Specifications
| Torque / Speed | 10 Nm (88 in-lb) / 38 rpm |
| Control | Standard 4-wire (wired switch or relay) |
| Power supply | 120V AC, 60Hz |
| Head type | Star head |
| Warranty | 5 years |

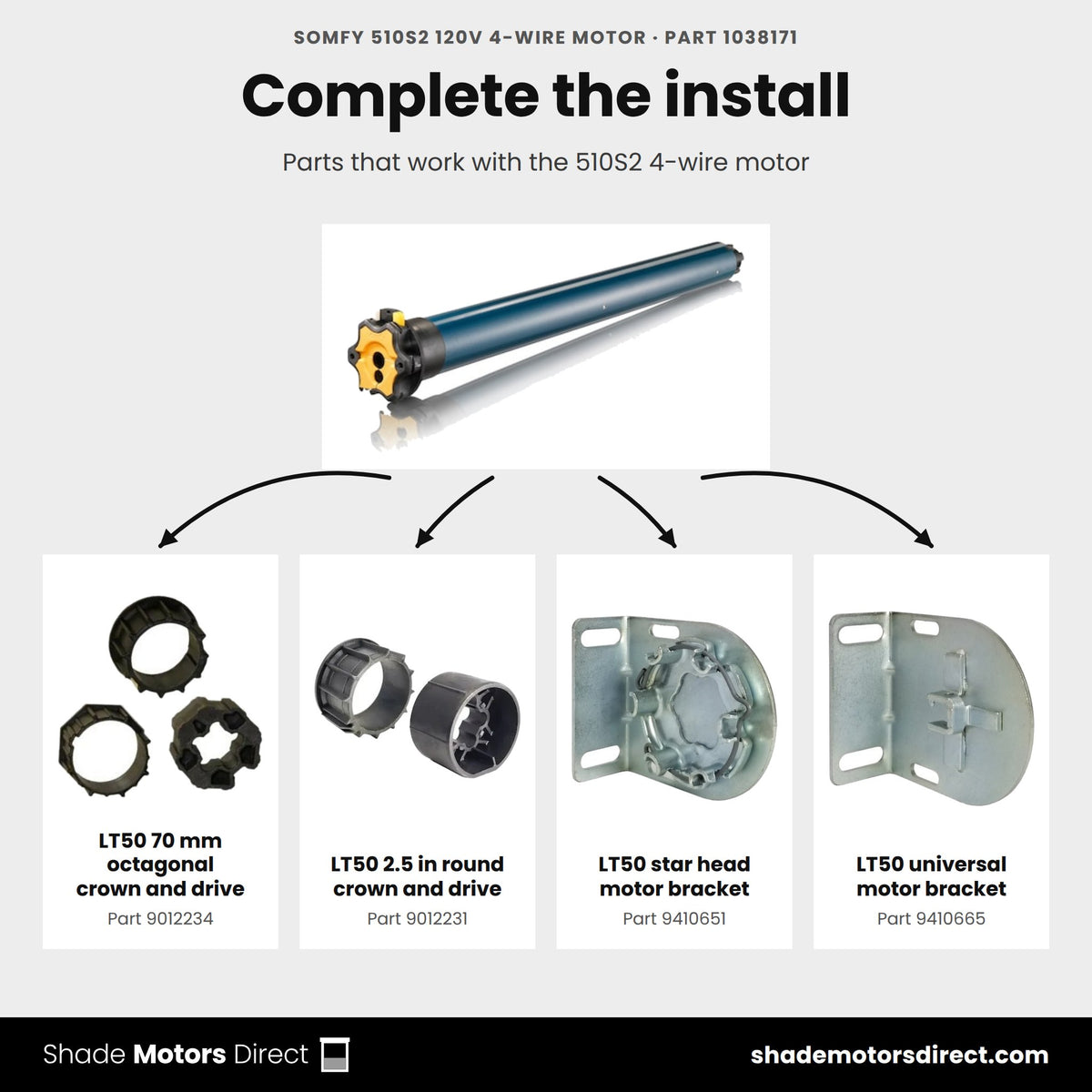

Compatible with: LT50 crown and drive sets, LT50 motor brackets
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What is the 510S2 4-wire motor?
Part 1038171 is a Somfy LT50 standard 120V motor with a star head. Somfy lists it for exterior solar screens, interior shades and retractable insect screens. It suits projects wired for switch control during construction.
What torque and speed does it deliver?
Somfy's 510S2 10/38 rating gives this motor 10 Nm of torque at 38 rpm. Somfy lists a noise level of 60 dB and an IP 44 rating.
How is it wired and powered?
It runs on 120V/60Hz through a 4-conductor SJTW cable and draws 150 W in operation. Somfy lists 0 W on standby. A wired switch or relay controls the motor, with no radio receiver inside.
Which switches control it?
Use a 120V wired switch, such as the Somfy Maintained Rocker Switch Kit (1800342) or the Maintained Toggle Switch (1800380). Somfy notes wired switches can run one shade or a group.
Can I add remote or app control later?
Yes. The Somfy Universal RTS Receiver (1810627) adds RTS radio control to 110V AC motors like this one. RTS remotes, wall switches and a TaHoma hub can then operate the shade.
Is there a version with a built-in radio?
Yes. The Altus RTS 510S2 (1038165) delivers the same 10 Nm and 38 rpm with an RTS receiver built in, so no control wiring runs to the motor.
Couldn't load pickup availability

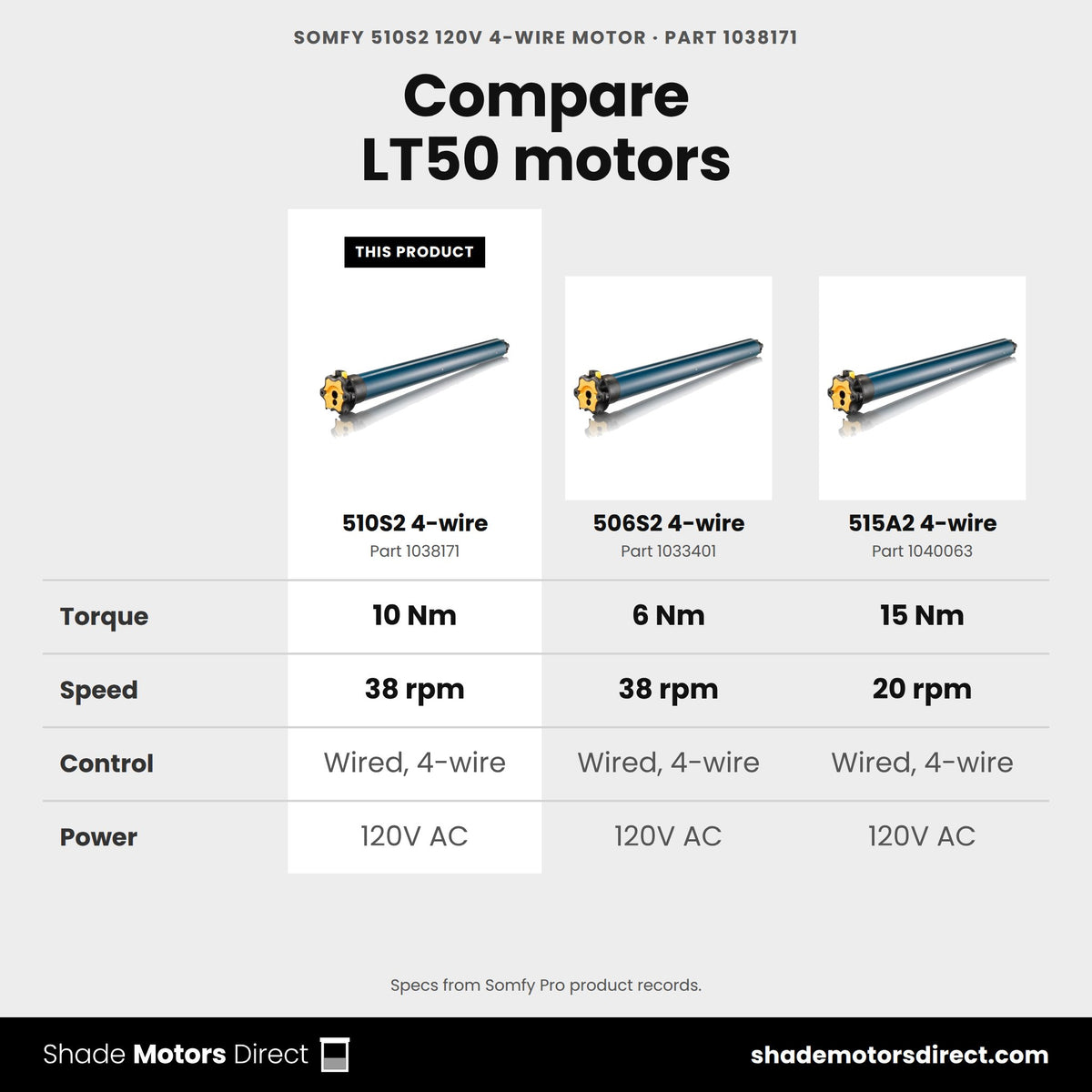

How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy 510S2 120V 4-Wire Motor (1038171)
|
Somfy 510S2 Altus RTS 120V 3-Wire Motor (1038165)
|
Somfy 506S2 120V 4-Wire Motor (1033401)
|
Somfy 515A2 120V 4-Wire Motor (1040063)
|
|---|---|---|---|---|
| Price | ||||
| Torque (Nm) | 10.0 | 10.0 | 6.0 | 15.0 |
| Speed (rpm) | 38 | 38 | 38 | 20 |
| Control | Wired 4-wire | RTS radio | Wired 4-wire | Wired 4-wire |
| Power | 120V AC | 120V AC | 120V AC | 120V AC |
| Motor family | LT50 | LT50 | LT50 | LT50 |
| What's different | The product on this page | Same size, RTS radio control | 6.0 Nm instead of 10.0 | 15.0 Nm instead of 10.0 |
| Buy | Currently viewing | View details | View details | View details |
