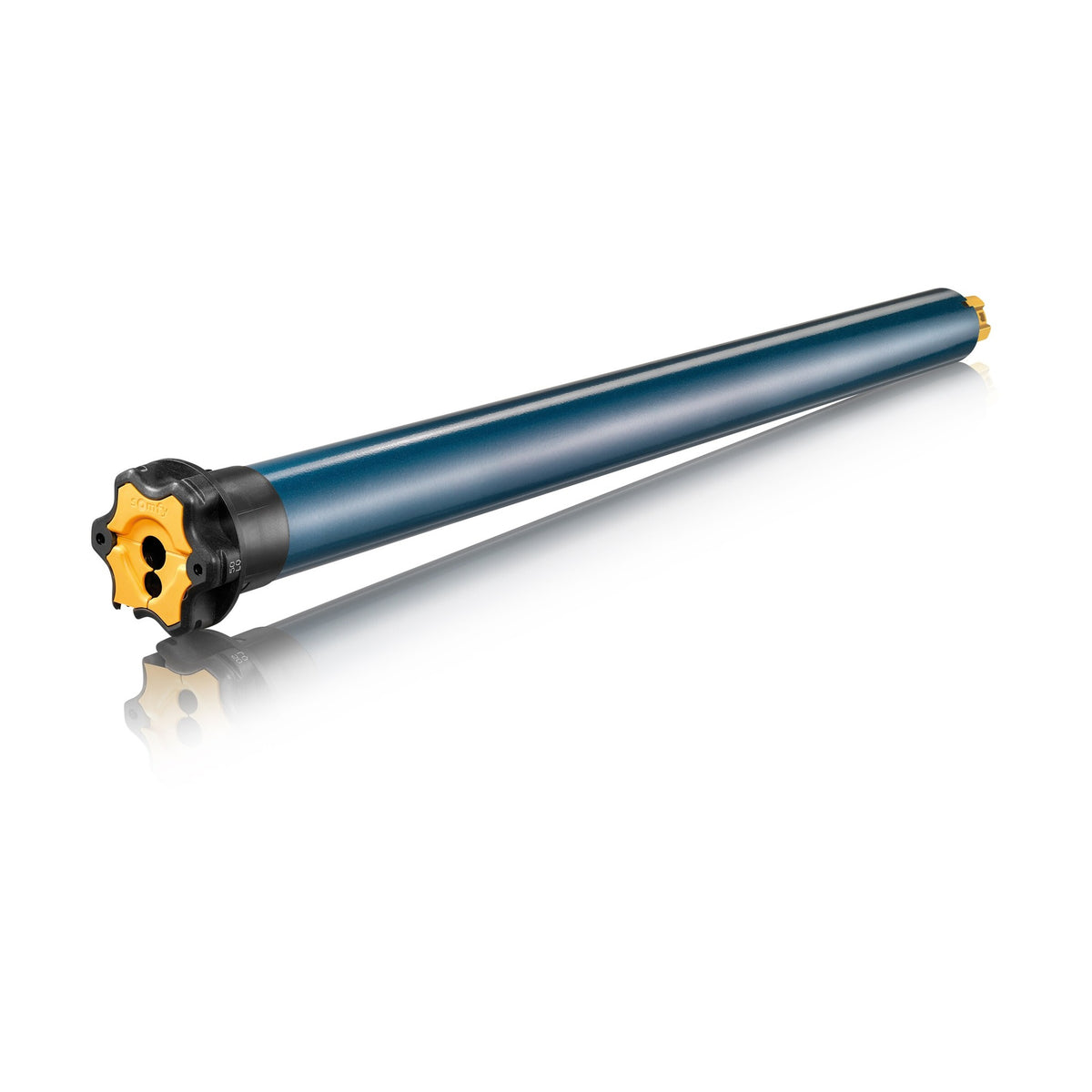

Somfy Sonesse ULTRA 506A2 RS485 SDN Motor -- star head, wired two-way control
The Sonesse ULTRA 506A2 RS485 is Somfy's quietest wired motor platform at 38 dB, delivering 6 Nm at 24 rpm for interior shading with RS485 communication for the Somfy Digital Network. It uses a star head and electronic limits with a 250-turn capacity.
Benefits
- Among the quietest motors Somfy builds, rated 38 dB
- Two-way RS485 communication for SDN and animeo IP building-management integration
- Single Sonesse ULTRA can multi-band up to six shades
- Electronic limit switch with 250-turn capacity
- 5-year Somfy warranty
Specifications
| Torque / Speed | 6 Nm (53 in-lb) / 24 rpm |
| Control | RS485 (Somfy Digital Network) |
| Power supply | 120V AC, 60Hz (108-132V), 0.95 A rated current |
| Limit switch | Electronic, 250-turn capacity |
| Power cable | SJTW 3-wire, 9.84 ft, white |
| Noise level | 38 dB |
| Protection index | IP 31 |
| Head type | Star head |
| Minimum tube internal diameter | 1.85 in |
| Operating temperature | 32 to 140 °F |
| Warranty | 5 years |
Compatible with: LT50 crown and drive sets, LT50 drive wheels, star-head motor brackets, SDN RS485 commissioning tools
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What is the Sonesse ULTRA 506A2 RS485?
Somfy part 1002566 is a 120V star head motor with RS485 control for the Somfy Digital Network. It delivers 6 Nm of torque at 24 rpm and runs at 38 dB, which places it among the quietest motors Somfy builds.
How is this motor controlled?
It talks over RS485, the wired two-way protocol of the Somfy Digital Network. That link lets SDN keypads, interfaces and animeo IP building systems send commands and read the motor's position.
What power does it need?
The motor runs on 120V AC at 60Hz, with a range of 108 to 132V, and draws 0.95 A. Somfy ships it with a 9.84 ft white SJTW 3-wire power cable.
How are the limits set?
Somfy fits this motor with electronic limits and a 250-turn capacity. You set the upper and lower stops through the SDN setup tools, such as the RS485 Setting Tool (9017142).
Which hardware fits it?

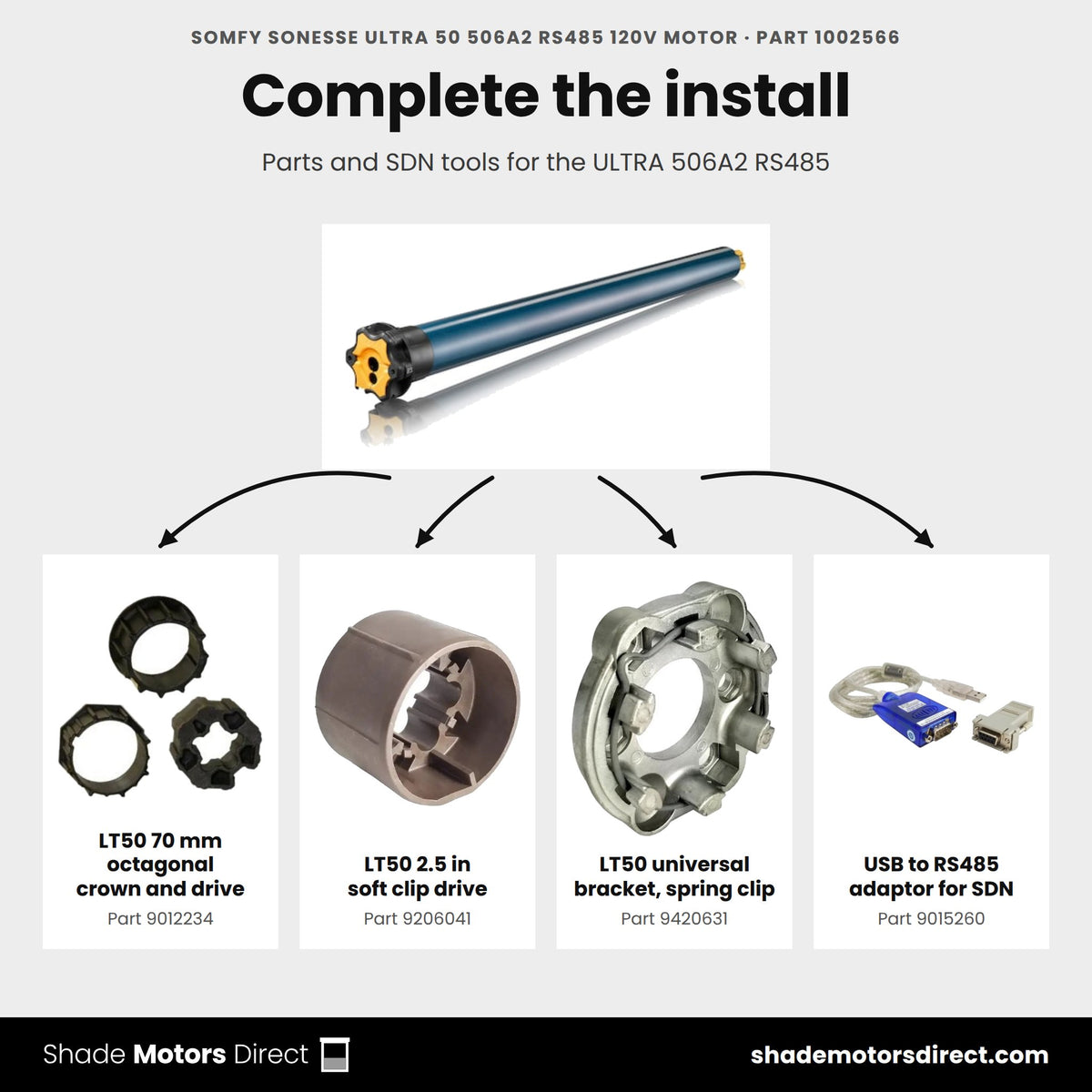

It has a star head and needs a tube with at least a 1.85 in inside diameter. Compatible parts in our store include the LT50 70mm octagonal crown and drive set (9012234), the LT50 SM65 drive (9751002) and the LT50 universal bracket (9420631).
Where can I install it?

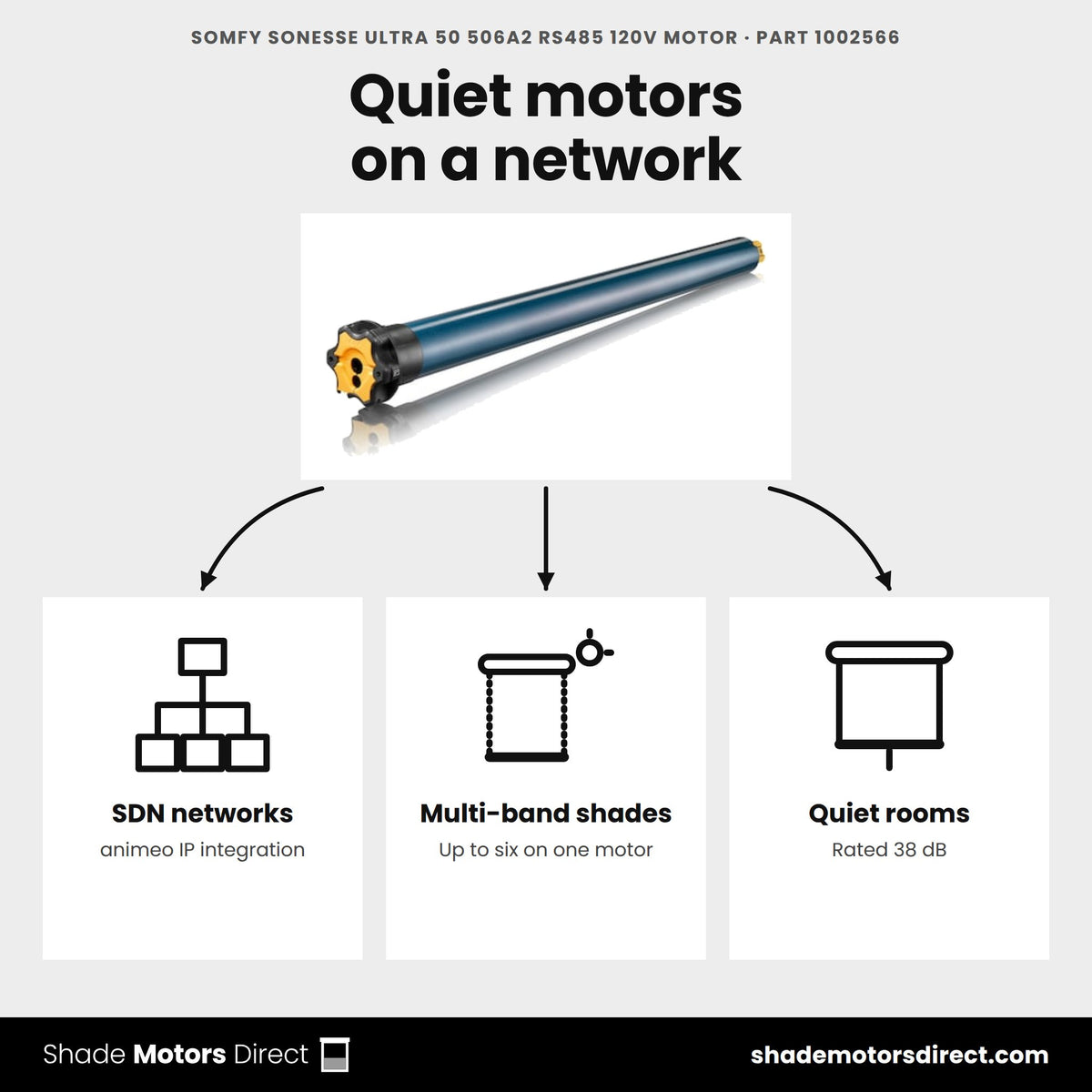

Somfy rates the motor IP 31 with an operating range of 32 to 140 °F, so it suits interior shades. One Sonesse ULTRA can multi-band up to six shades on a shared drive.
Couldn't load pickup availability
Replace a Sonesse 50 motor or build a new shade around it.
Replacing? Your fabric stays on the tube. Building new? Every part below is Somfy-matched to part 1002566.
12- 1Motor head Mounts to the bracket at the motor end.
- 2Drive end Turns the tube.
Replacing a motor
-
1
Take the shade down
Cut power and lift the roller out of its brackets.
-
2
Pull the old motor
Slide it out of the tube. The fabric stays wrapped on the tube.
-
3
Fit crown and drive
Fit the crown and drive wheel for your tube, then slide the new motor in.
-
4
Connect to SDN
Plug in the RS485 data cable and address the motor on your Somfy Digital Network.
Not sure of your tube size or head type? Send us a photo of the label on your old motor. We'll confirm the part before you order. Ask us
Building a new shade
-
1
Measure the tube
Measure across the outside of the tube end and note its shape. That sets the crown and drive.
-
2
Pick the parts
Add the crown and drive, the motor bracket and a remote or switch from the list below.
-
3
Mount and fit
Fit the crown and drive, slide the motor into the tube and seat the head in its bracket.
-
4
Connect to SDN
Plug in the RS485 data cable and address the motor on your Somfy Digital Network.
Planning a new shade? Send us the size and tube. We'll build the parts list with you. Ask us
Find your crown, drive and bracket.
1Measure the tube end, outside edge to outside edge.
If a row lists a wall thickness, match that too.
2Pick the bracket that matches how your shade mounts.
Every bracket here fits this motor's head.
Not sure? Send us a photo of the tube end and the motor end. Ask us
What the Sonesse Ultra 50 506A2 RS485 120V Motor needs to run
Somfy lists every part below as compatible with part 1002566. Pick one from each row.
1Tube fit
Match the crown and drive to your tube size and profile.
2Mounting
Holds the motor head and the idle end in place.
3Network
Data and network parts for wired control.
Somfy backs the Sonesse Ultra 50 506A2 RS485 120V Motor for 5 years. We handle the claim.
Somfy warranty on the Sonesse Ultra 50 506A2 RS485 120V Motor, part 1002566.
- What Somfy covers
- Defects in materials and workmanship, for 5 years from purchase.
- If it fails
- Email us your order number. We arrange the replacement with Somfy.
- Where it comes from
- ShadeMotorsDirect is an authorized Somfy distributor. You get the US version, new in Somfy packaging.
- Returns
- Unopened items in original packaging. Ask us for an RA number before you ship.
- Questions
- Call or chat, 8:00 AM - 7:30 PM ET.
- Somfy documents
- 500 Series -- Databook (PDF)

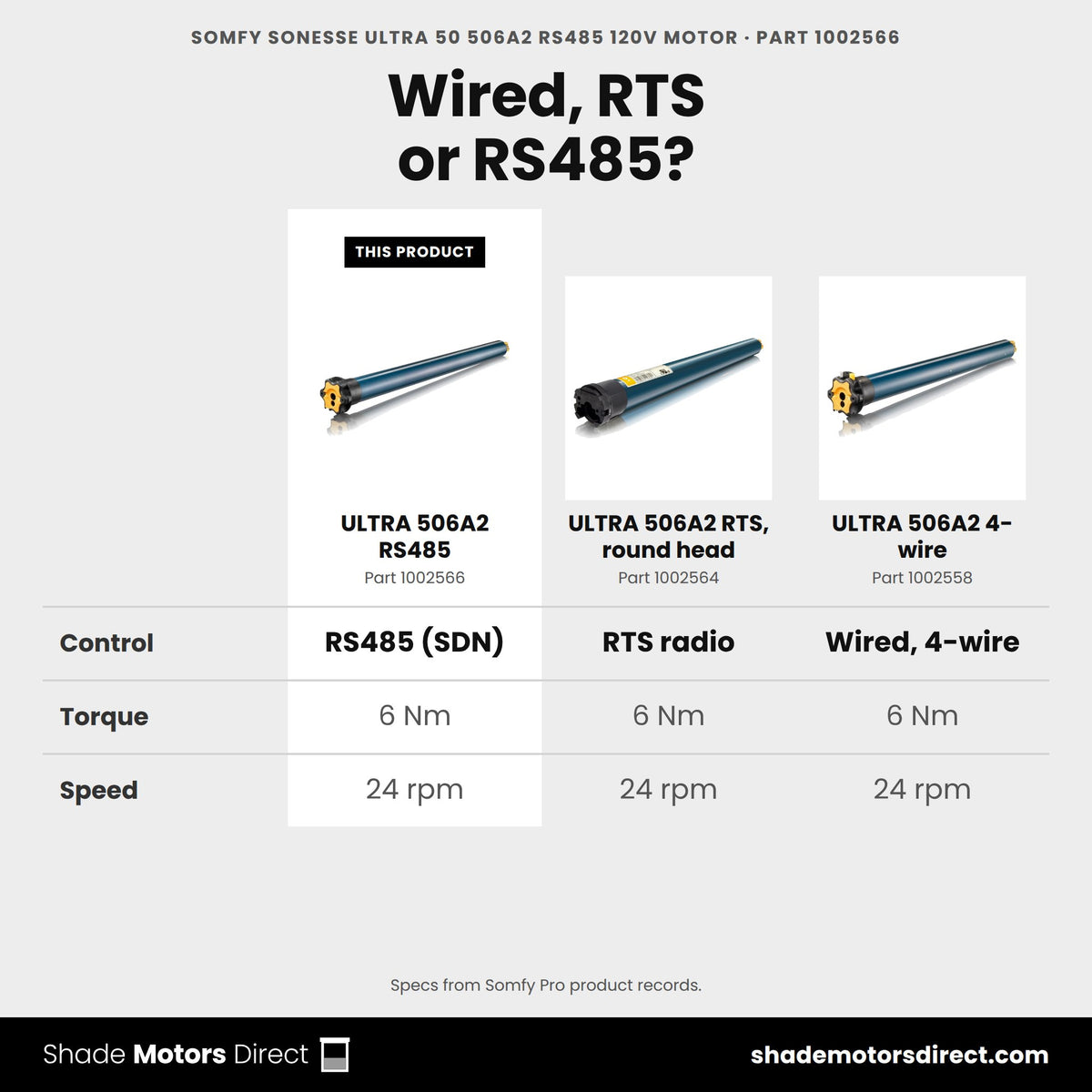

How this motor compares
