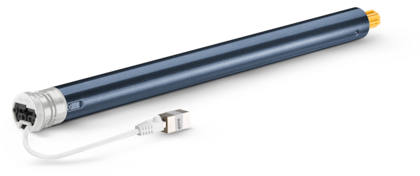

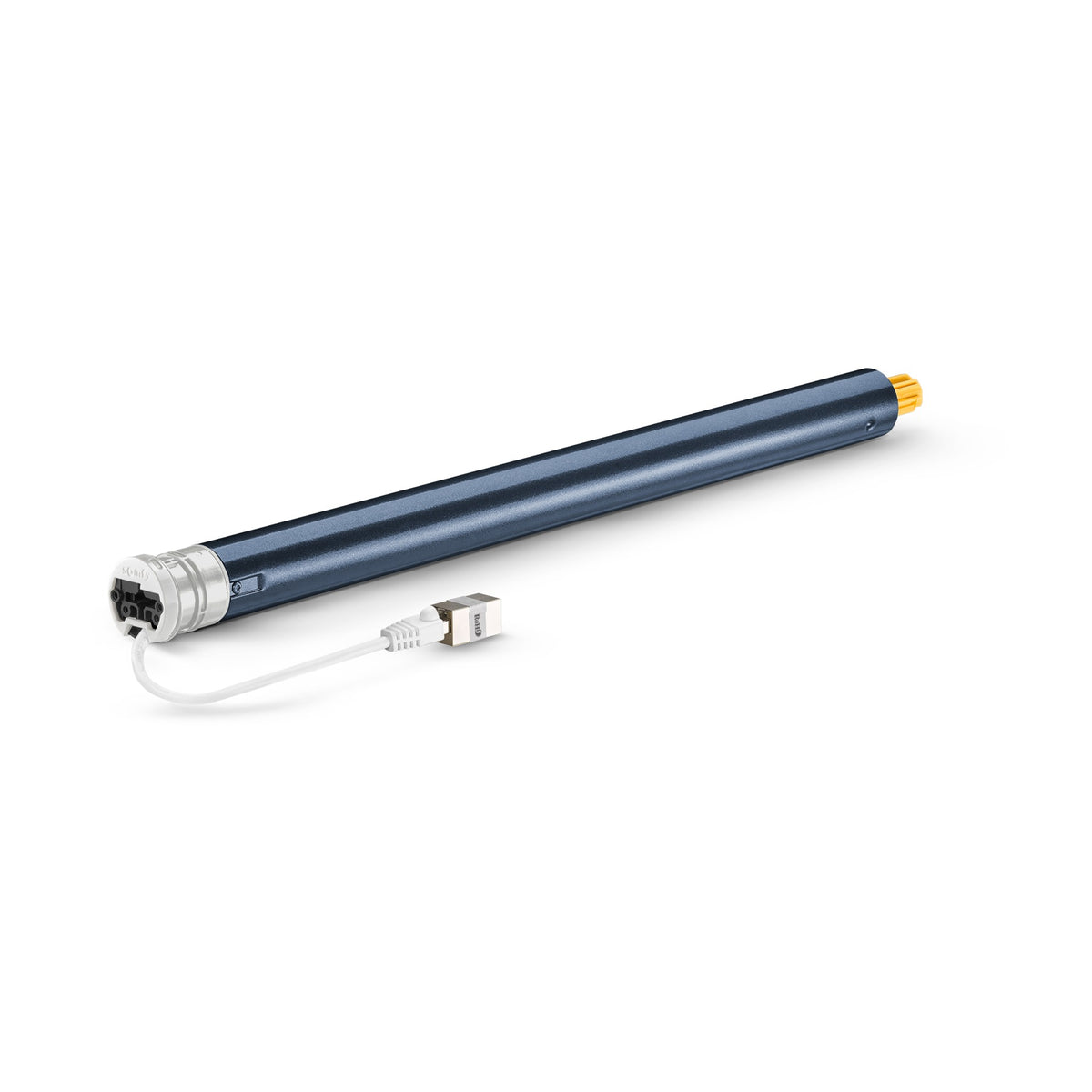

Somfy Sonesse 40 PoE bt 6/25 Type 4 (75W) Motor (6Nm, 10-28rpm) (1241428)
Somfy Sonesse 40 PoE bt 6/25 Type 4 (75W) Motor (6Nm, 10-28rpm) (1241428)
Ships in 1-2 business days. US shipping $15 flat.
Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy
Not sure this fits? Ask our tech team
Your case has been assigned to Colin. He'll be in touch shortly via email.

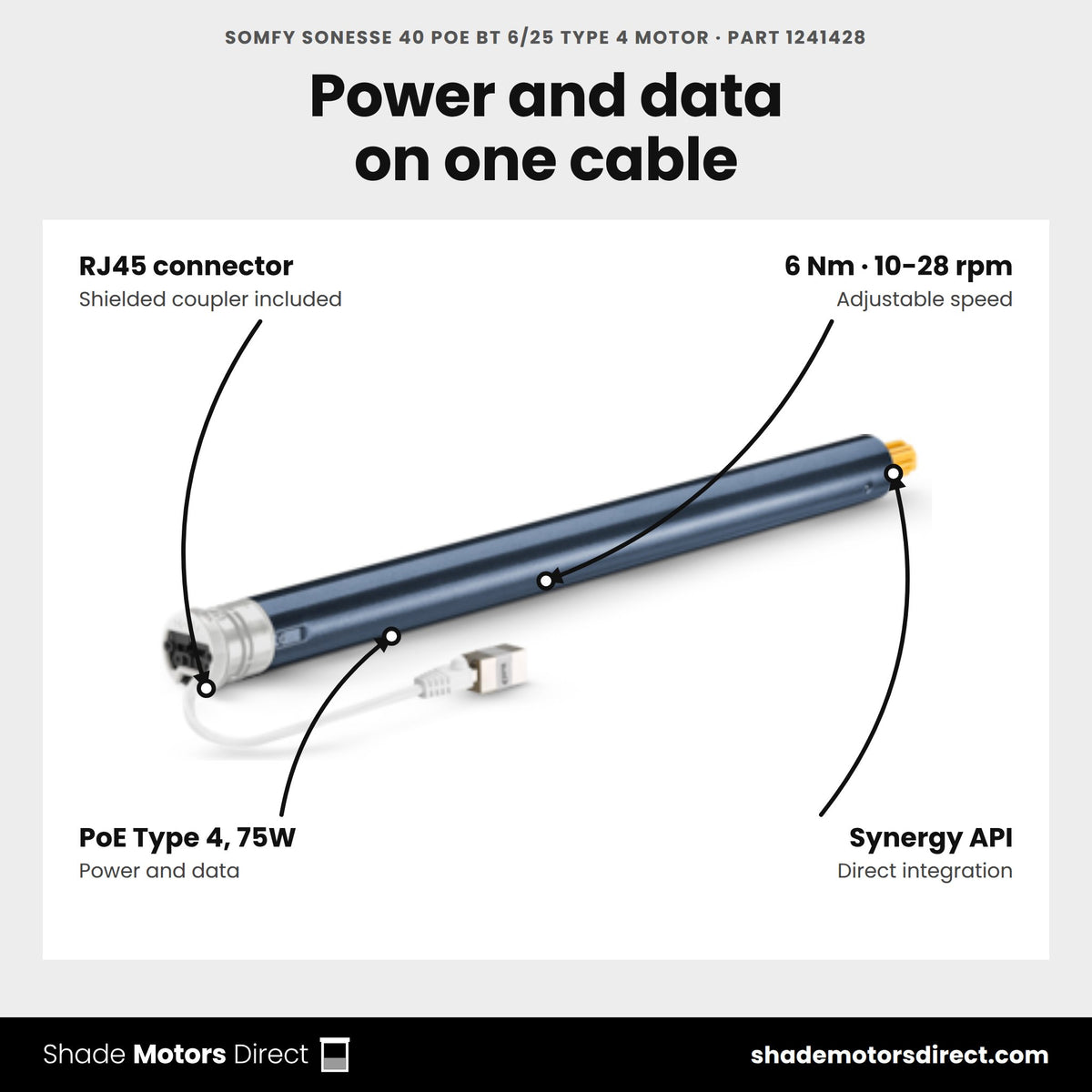

Somfy Sonesse 40 PoE Type 4 SDN Motor -- single-cable power and data over Ethernet
The Sonesse 40 PoE bt 6/25 Type 4 motor is the highest-torque PoE option in the Sonesse 40 line, drawing both power and control data from a single network cable for heavier interior shades in fully networked commercial buildings.
Benefits
- Single CAT5e/CAT6 Ethernet cable delivers both power (75W, PoE Type 4) and data -- no separate line-power run needed
- Direct third-party integration via the Somfy Synergy API, no added control hardware required
- Fits tubes with 38mm (1.46") or larger internal diameter
- Thin round head available in white, black, or grey to match hardware
- Shielded RJ45 female coupler included for high-ESD applications (dual-roll, zebra shades)

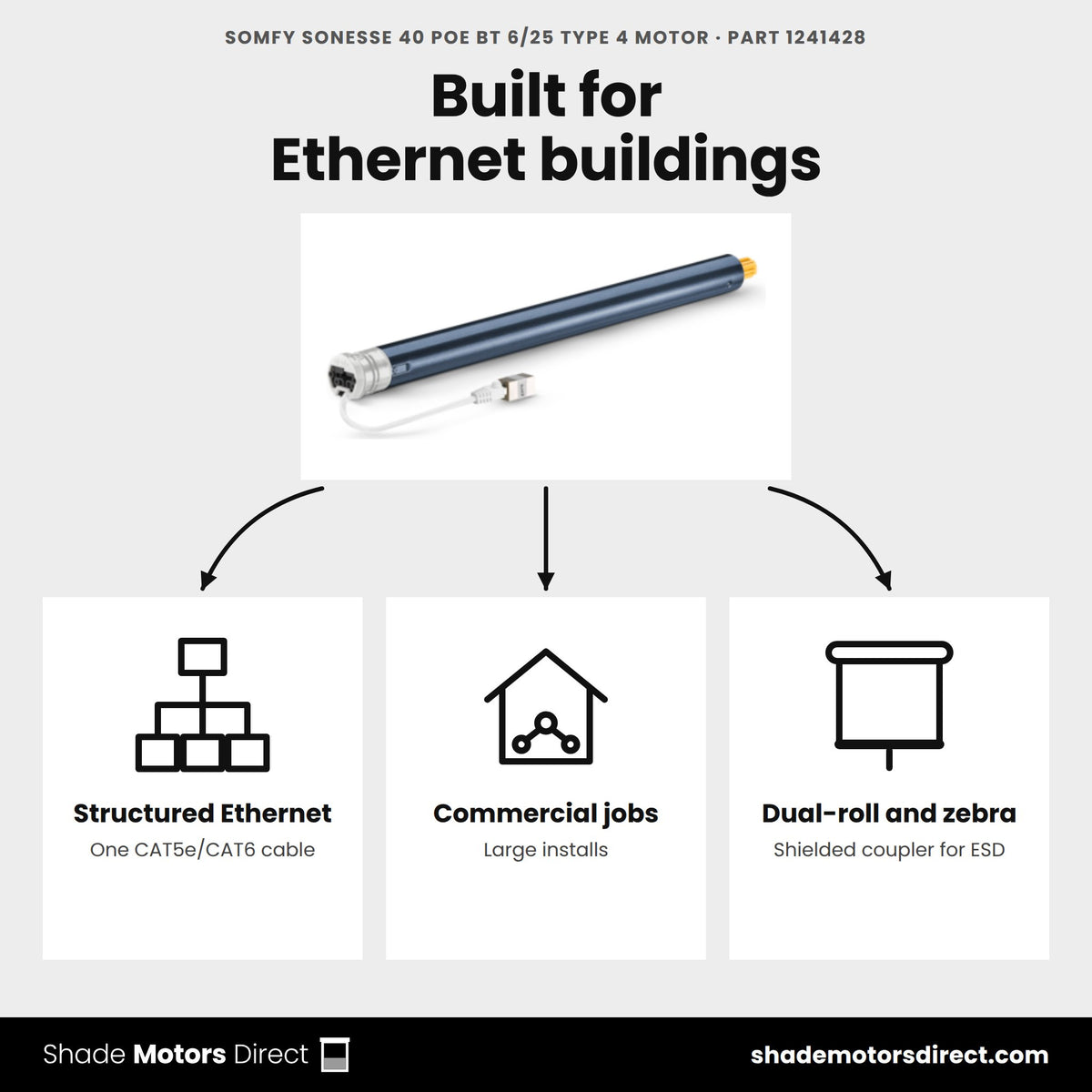

- Ideal for large commercial installs already wired for structured Ethernet
Specifications
| Torque / Speed | 6 Nm / 10-28 rpm (adjustable) |
| Control | PoE (IEEE 802.3bt Type 4) |
| Power supply | Power over Ethernet, 75W budget |
| Min. tube diameter | 38mm (1.46") |
| Connector | RJ45, shielded coupler included (9028957) |
| Warranty | 5 years |
Compatible with: 40mm octagonal and round roller tubes, 400 Series crown and drive sets
Official Somfy documentation
- Somfy PoE -- Brochure (PDF)
- 400 Series -- Databook (PDF)
- Sonesse 40 PoE Type 4 -- Somfy Pro Product Page
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What is the Sonesse 40 PoE bt 6/25 Type 4 motor?
It is Somfy's 6 Nm Sonesse 40 tubular motor that runs on Power over Ethernet. One CAT-5e or higher cable carries both power and control data, so interior shades and projection screens need no separate line-voltage run at the window.
What torque and speed does part 1241428 deliver?
Somfy rates part 1241428 at 6 Nm of torque and 25 rpm. It draws 62 W in operation and 1 W on standby, and Somfy lists a noise level of 43 dB.
What roller tube does it fit?

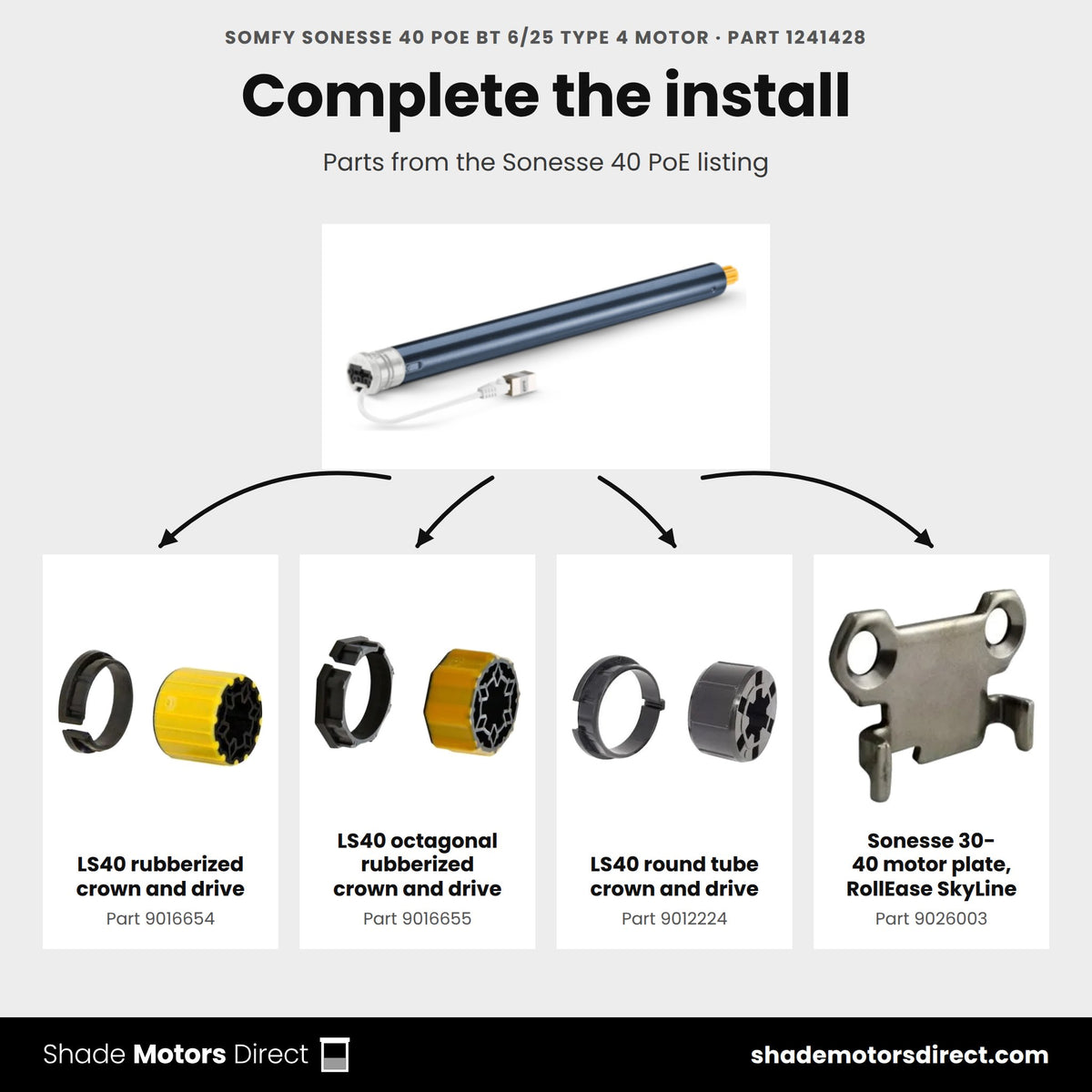

Somfy lists a minimum tube inside diameter of 38 mm (1.46 in) and an outside motor diameter of 1.39 in. For 40 mm tubes, pair it with the 40mm Octagonal Tube (1781154) and an LS40 crown and drive set such as 9016654 or 9016655.
What network hardware do I need to power it?
Plan for a PoE switch or injector port that supplies Type 4 (802.3bt) power over a CAT-5e or higher cable. Somfy lists an input range of 42.5V to 57V at the motor, with a rated current of 1.1 A.
How does it connect to a control system?
The motor carries the Somfy Synergy API, which lets a third-party control system talk to it with no added Somfy interface. Somfy names Control4, Crestron, ELAN, Clare, URC, RTI and Josh.ai, and secures traffic with a certificate, PIN code and AES-128 encryption.
Is there a PoE model with less torque for lighter shades?
Yes. The Sonesse 40 PoE 4/25 Type 3 (1241427) delivers 4 Nm, and the 2/25 Type 2 (1241426) delivers 2 Nm. Both share this motor's 25 rpm speed and single-cable design, and they draw less power from the switch.
Couldn't load pickup availability
How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy Sonesse 40 PoE bt 6/25 Type 4 (75W) Motor (6Nm, 10-28rpm) (1241428)
|
Somfy Sonesse 40 406A2 RS485 SDN Motor (6Nm, 24rpm) (1240563)
|

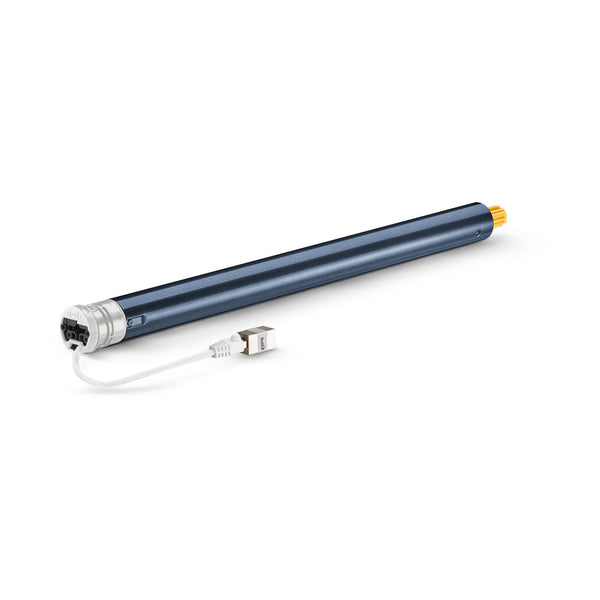

Somfy Sonesse 40 PoE bt 4/25 Type 3 (60W) Motor (4Nm, 10-28rpm) (1241427)
|
Somfy Sonesse 40 406A2 WT 120V 4-Wire Motor (fast connect) (1240378)
|
|---|---|---|---|---|
| Price | ||||
| Torque (Nm) | 6.0 | 6.0 | 4.0 | 6.0 |
| Speed (rpm) | — | 24 | — | 24 |
| Control | PoE | RS485 (SDN) | PoE | Wired 4-wire |
| Power | Power over Ethernet | 120V AC | Power over Ethernet | 120V AC |
| Motor family | Sonesse 40 | Sonesse 40 | Sonesse 40 | Sonesse 40 |
| What's different | The product on this page | Same size, RS485 (SDN) control | 4.0 Nm instead of 6.0 | Same size, Wired 4-wire control |
| Buy | Currently viewing | View details | View details | View details |
