Somfy Situo 5 Variation RTS Pure II Remote (1811612)
Somfy Situo 5 Variation RTS Pure II Remote (1811612)
Ships in 1-2 business days. US shipping $15 flat.
Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy
Not sure this fits? Ask our tech team
Your case has been assigned to Colin. He'll be in touch shortly via email.

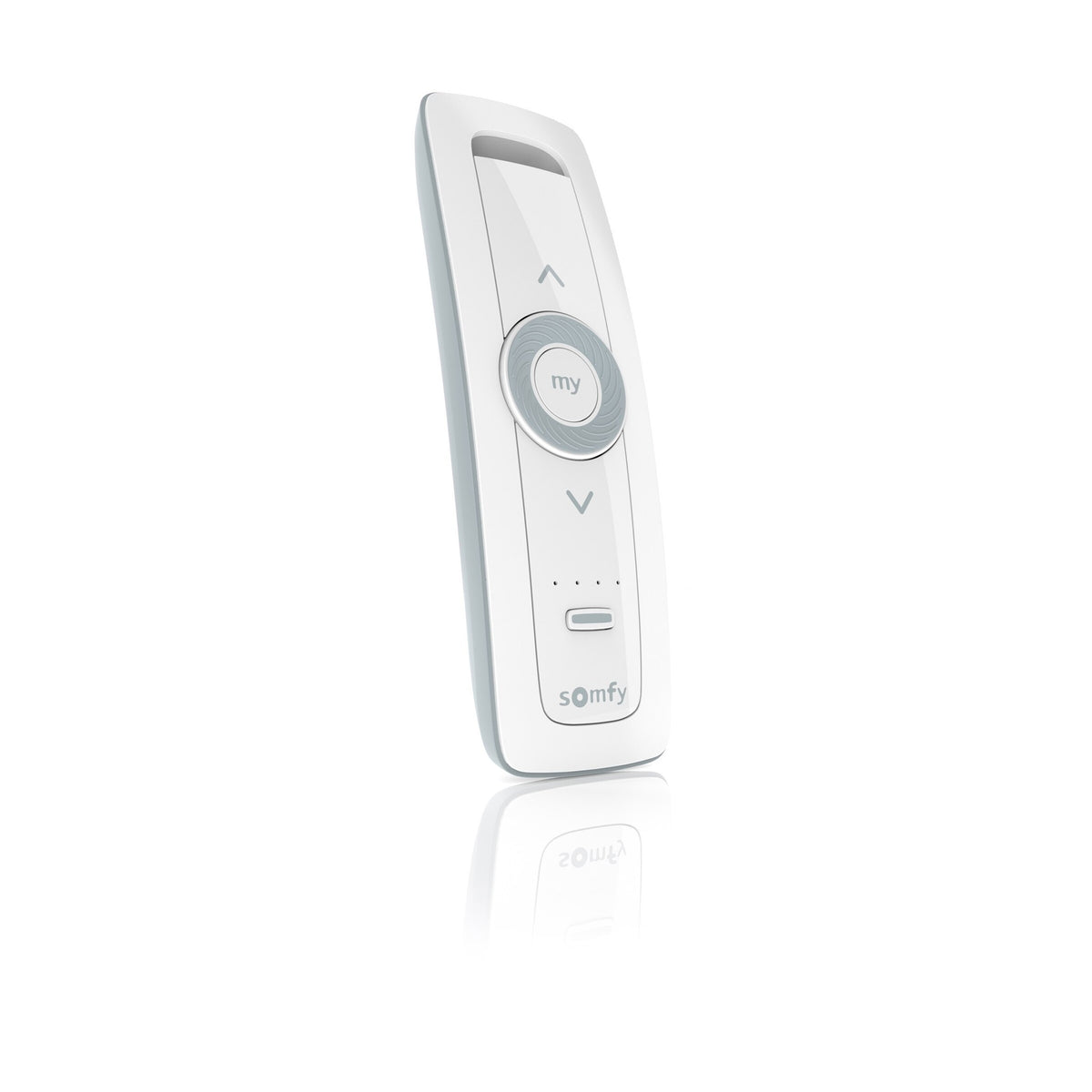

Somfy Situo 5 Variation RTS Pure II Remote

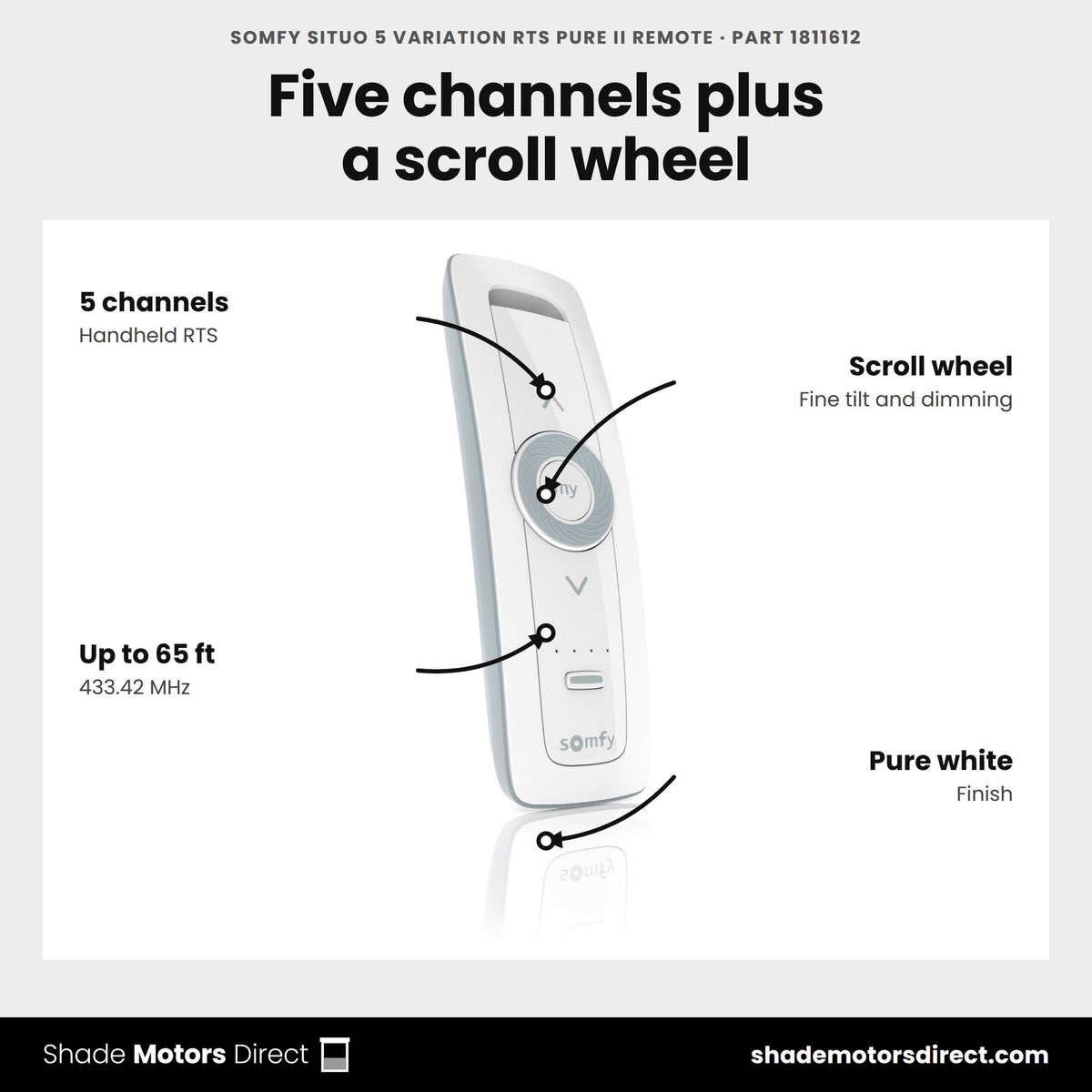

A five-channel handheld RTS remote with a scroll wheel for precision control -- incrementally tilting blind slats and sheer vanes, or dimming compatible RTS LED lights, in addition to standard up/down/stop control. Controls 5 individual products or 5 groups of products, up to 65 ft, omni-directional (no need to aim at the product).
Specifications
| Part type | Handheld RTS remote, 5-channel with scroll-wheel variation control |
| Range | Up to 65 ft, 433.42 MHz, omni-directional |
| Finish | Pure white |
| Includes | Wall holder |
| Genuine part | Yes -- Somfy 1811612 |
Compatible with: Any Somfy RTS motorized shade, blind, drapery, or RTS-dimmable LED lighting product
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What is the Situo 5 Variation RTS Pure II remote?
Part 1811612 is a five-channel Somfy RTS handheld remote with a scroll wheel. Each channel controls one window covering or one group. The wheel gives fine control over tilt and lighting. It includes a wall holder and carries a 5-year Somfy warranty.
What does the scroll wheel do?

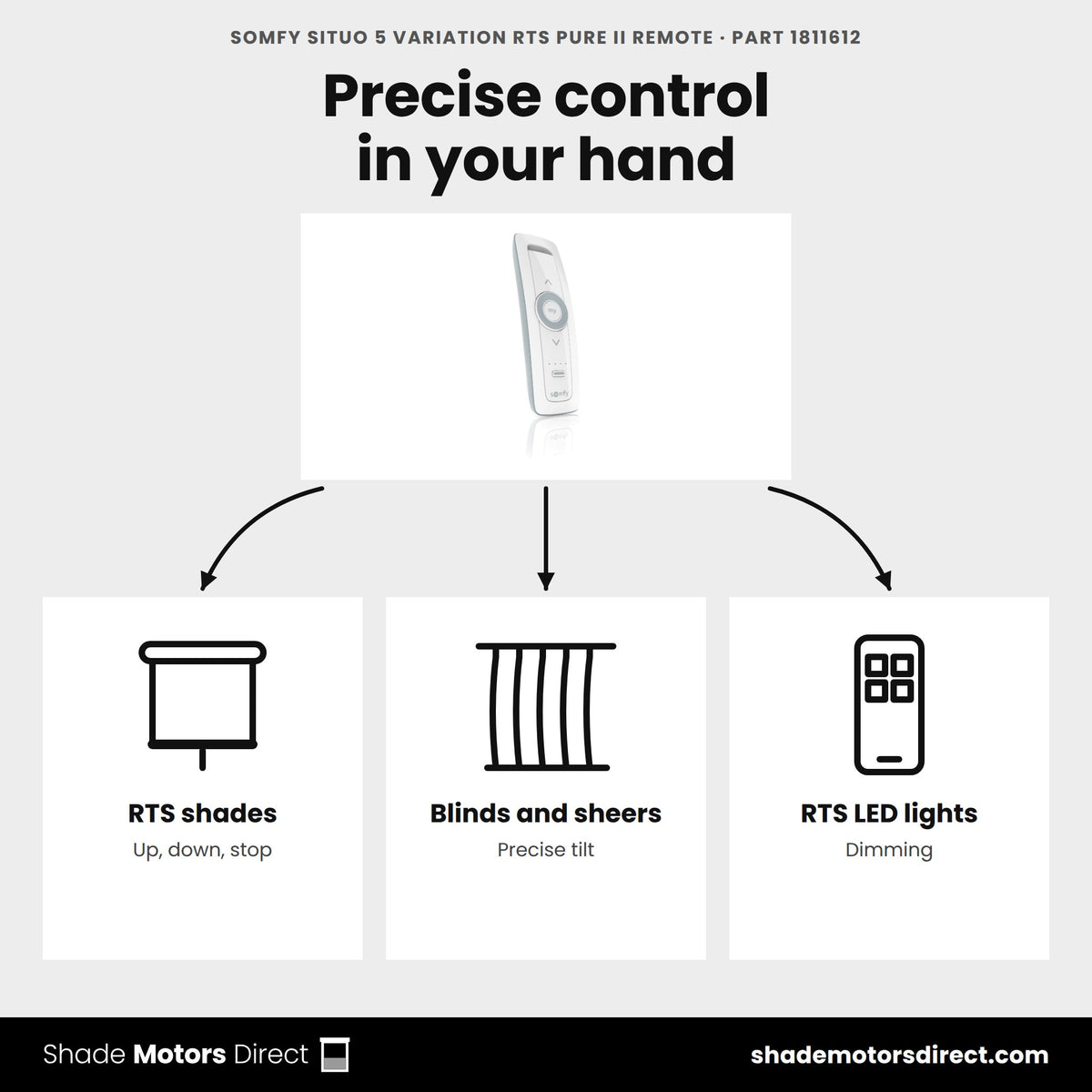

The scroll wheel tilts blind slats and sheer vanes in small steps, and it adjusts compatible RTS LED lights. Use it when up, down and stop are not precise enough, such as setting slats at a half-open angle.
What is the range?
Somfy rates the range at 492.15 ft in open field on 433.420 MHz. RTS is omni-directional, so you do not need to aim the remote at the shade. Walls shorten the range indoors.
What battery does it use?
It takes 1 CR2430 battery. Somfy rates battery life at 5 years. The remote measures 5.51 in by 1.77 in by 0.79 in and is rated IP 20 for indoor use.

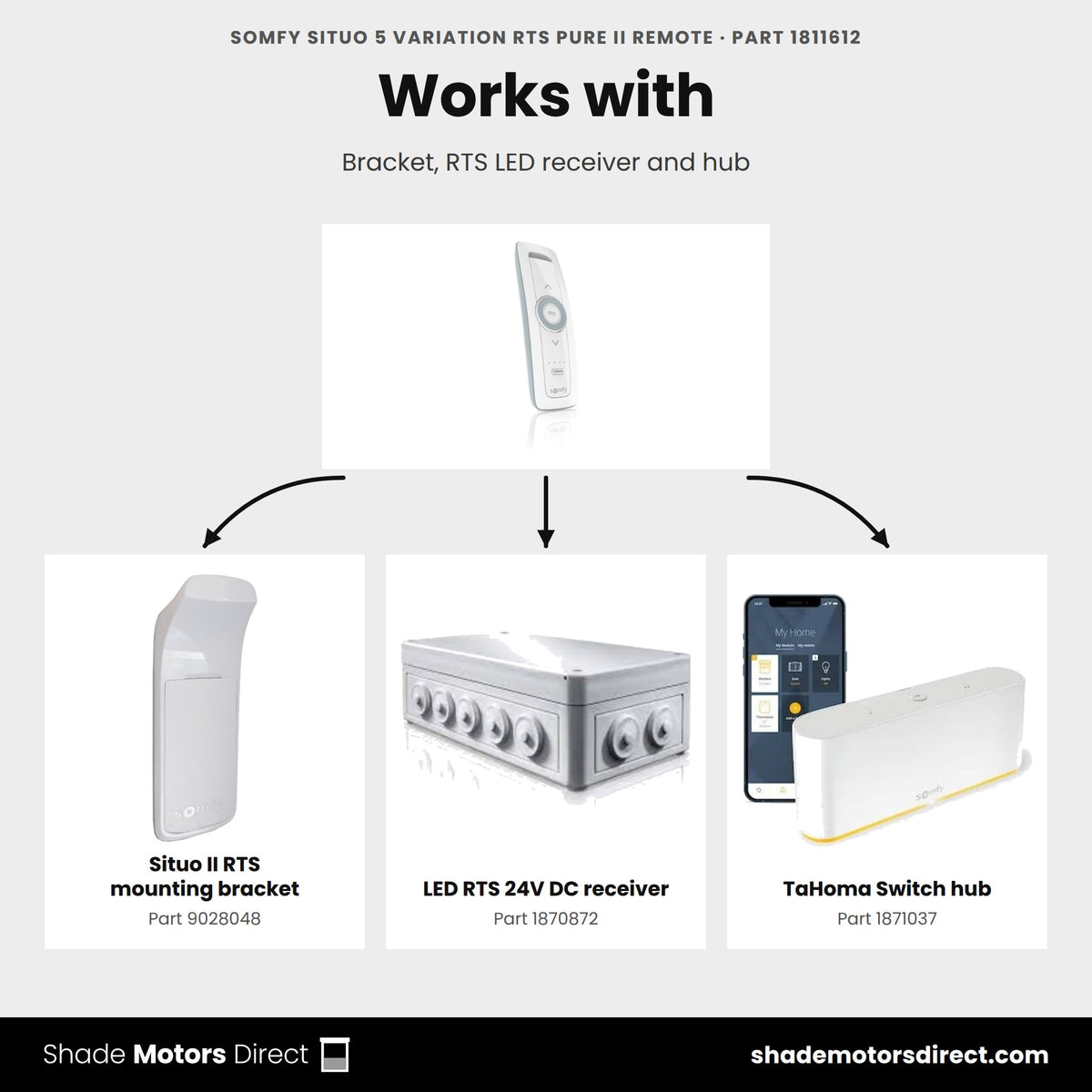

Which products does it work with?
It controls Somfy RTS motors on awnings, exterior solar screens, interior blinds, draperies, shades, pergolas and rolling shutters. For tilt control, pair it with an RTS tilt motor such as the Tilt 50 WireFree Through-Shaft RTS (1240276).

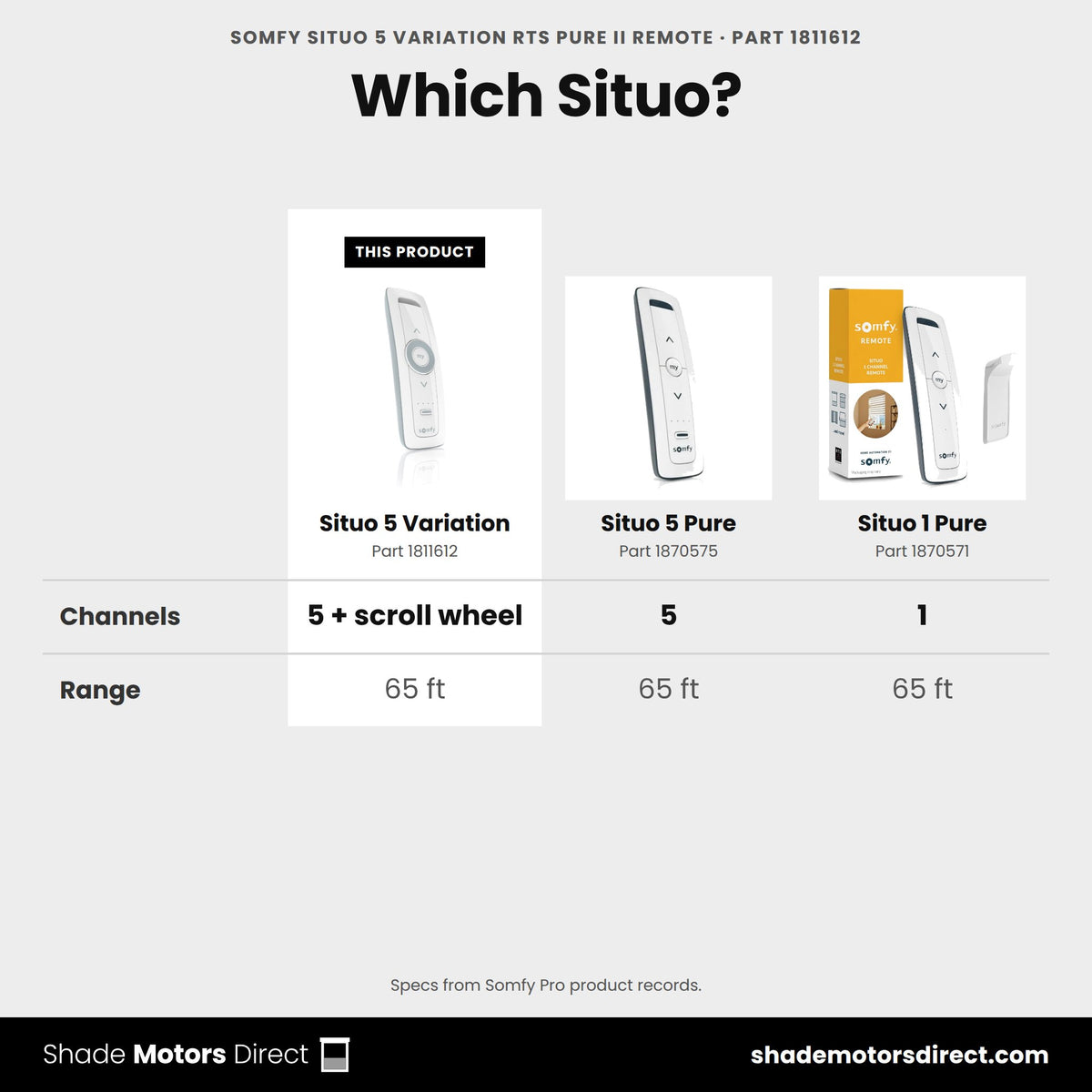

How does it differ from the standard Situo 5 remote?
The Situo 5 RTS Pure II (1870575) has five channels with up, down, stop and my buttons. The Variation model adds the scroll wheel for tilt and light adjustment. Both include the my button, which saves a favorite position.
Couldn't load pickup availability
Lost your remote, or need one for a new motor? The Situo 5 Variation RTS Pure II Remote pairs in minutes.
Replacing one? Copy a working remote in 3 steps. New motor? Pair it in 3 steps. No tools either way.
123- 1Up and down Raise or lower the shade with one press.
- 2my button Stops the shade. Hold it to go to your favorite position.
- 3Channel lights Shows which channel you are on.
Lost or broken remote
-
1
Pick the motor
Use your current remote to select the shade you want to add.
-
2
Hold PROG
Hold PROG on the current remote until the shade jogs up and down.
-
3
Tap PROG on the new one
Briefly press PROG on the Situo 5 Variation RTS Pure II Remote. The shade jogs again. Done.
No working remote? Send us your motor's part number. We'll walk you through the reset. Ask us
First remote for a new motor
-
1
Power the motor
Plug in or switch on the motor.
-
2
Press Up and Down
Press Up and Down together on the Situo 5 Variation RTS Pure II Remote until the shade jogs.
-
3
Set limits and save
Set the top and bottom limits, then press PROG until the shade jogs again.
Not sure your motor is RTS? Send us its part number. We'll confirm before you order. Ask us
Motors the Situo 5 Variation RTS Pure II Remote controls
These Somfy motors work with part 1811612.
More Somfy motors work with it too. Ask us if yours isn't listed.
Somfy backs the Situo 5 Variation RTS Pure II Remote for 5 years. We handle the claim.
Somfy warranty on the Situo 5 Variation RTS Pure II Remote, part 1811612.
- What Somfy covers
- Defects in materials and workmanship, for 5 years from purchase.
- If it fails
- Email us your order number. We arrange the replacement with Somfy.
- Where it comes from
- ShadeMotorsDirect is an authorized Somfy distributor. You get the US version, new in Somfy packaging.
- Returns
- Unopened items in original packaging. Ask us for an RA number before you ship.
- Questions
- Call or chat, 8:00 AM - 7:30 PM ET.
How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy Situo 5 Variation RTS Pure II Remote (1811612)
|
Somfy Telis 4 RTS Multi-Channel Patio Remote (1810645)
|
Somfy Telis 16 Channel RTS Pure Hand Held Remote (1811081)
|
Somfy Simu Hz Mobile Transmitter, 5 channel, white (2008806)
|
|---|---|---|---|---|
| Price | ||||
| Control | RTS radio | RTS radio | RTS radio | Hz radio |
| Power | — | — | Battery (2x AAA) | — |
| What's different | The product on this page | Close alternative | Close alternative | Same size, Hz radio control |
| Buy | Currently viewing | View details | View details | View details |
