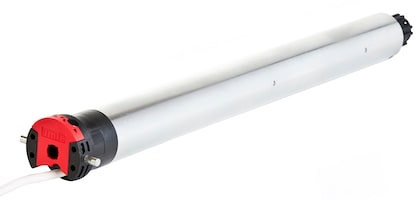

Somfy Simu T5 40Nm 12rpm 120V (2000652)
Somfy Simu T5 40Nm 12rpm 120V (2000652)
Not sure this fits? Ask our tech team
Your case has been assigned to Colin. He'll be in touch shortly via email.
T5 40Nm 12rpm 120V -- wired operator motor for rolling shutters and awnings
The Simu T5 40Nm 12rpm 120V (2000652) is a wired tubular motor that drives rolling shutters, awnings and exterior screens with 40 Nm of torque at 12 rpm. It runs on 120V/60Hz AC and draws 1.8 A. Mechanical limit switches cover up to 30 turns of travel. Use it to replace a worn Simu T5 operator or to motorize a new shutter on a wired switch.
Benefits
- 40 Nm of torque at 12 rpm on standard 120V/60Hz power
- Mechanical limit switches with a 30-turn capacity
- Round head with pins seats in Simu T5 operator brackets
- IP 44 protection and Class I insulation for exterior shutter and awning boxes
- 5-year Somfy warranty
Specifications
| Torque / Speed | 40 Nm / 12 rpm |
| Power supply | 120V/60Hz AC |
| Rated current | 1.8 A |
| Power consumption | 210 W running, 0 W standby |
| Control | Wired |
| Limit switches | Mechanical, 30 turns |
| Head type | Round with pins |
| Cable | 8.2 ft |
| Protection | IP 44, Class I insulation |
| Operating temperature | -4°F to 140°F |
| Noise level | 55 dB |
| Warranty | 5 years |
| Applications | Rolling shutters, awnings, exterior solar screens |
| Part number | 2000652 |
Compatible with: Simu T5 operator brackets such as the 80mm x 80mm square bracket (9520049); T5/T6 aluminum drives (9012950 60mm round, 9011878 70mm octagonal, 9420300 85mm Simbac); the LT50-style crowns and drives Somfy lists for the T5, including 60mm octagonal and 2.5 in round sets. Wired switch control only; no built-in radio receiver.
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What torque and speed does the Simu 2000652 deliver?
The Simu T5 40Nm 12rpm 120V (2000652) delivers 40 Nm of torque at 12 rpm on 120V/60Hz AC power. Somfy rates it at 1.8 A and 210 W running. Size the motor to the weight of the shutter curtain or awning fabric, and step up in torque for large or heavy shutters.
Does the Simu 2000652 have a radio receiver?
No. Somfy lists the T5 2000652 as a wired motor with an 8.2 ft cable, so it has no built-in Hz or RTS receiver. You run it from a wired up/down switch. Choose a Simu T5 Hz model when you want handheld radio control.
How do I set the limits on the 2000652?
The T5 2000652 uses mechanical limit switches with a 30-turn capacity. Simu builds the T5 range around a progressive end-limit system for wired motors. Set both the up and down stops before the shutter or awning goes into regular service, then run a full cycle to confirm them.
Which brackets and drives fit the Simu T5 2000652?
The 2000652 has a round head with pins. Somfy lists the T5 Operator Bracket 80mm x 80mm square (9520049) and T5/T6 aluminum drives such as 9012950 (60mm round) and 9011878 (70mm octagonal) among its accessories. Match the crown and drive to your roller tube profile.
Is the 2000652 rated for outdoor shutter boxes?
Somfy rates the Simu T5 2000652 at IP 44 with Class I insulation and an operating range of -4°F to 140°F. Mount it inside the shutter or awning tube where the head stays protected from direct water. Somfy backs the motor with a 5-year warranty.
