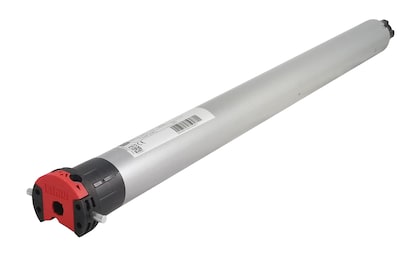

Somfy Simu T5 35Nm 7rpm 24V DC (2004497)
Somfy Simu T5 35Nm 7rpm 24V DC (2004497)
Not sure this fits? Ask our tech team
Your case has been assigned to Colin. He'll be in touch shortly via email.
Simu T5 35Nm 7rpm 24V DC -- 35 Nm 24V DC tubular motor
The Simu T5 DC 2004497 is a 24V DC tubular motor rated at 35 Nm and 7 rpm. It uses mechanical limit switches and a 4-wire cable, so it suits low-voltage and off-grid shading projects. Somfy lists it for awnings, exterior solar screens, interior shades and rolling shutters.
Benefits
- 35 Nm of torque at 7 rpm on 24V DC
- Wide input range of 18V to 30V DC
- Mechanical limit switches with a 28-turn capacity
- Class III low-voltage insulation and IP 44 protection
- 5-year Somfy warranty
Specifications
| Torque / Speed | 35 Nm / 7 rpm |
| Power supply | 24V DC (18V to 30V) |
| Rated current | 2.3 A |
| Power consumption | 55 W operating |
| Control | Wired, 4-wire |
| Limit switches | Mechanical, 28 turns |
| Head type | Round with pins |
| Cable | 8.2 ft, 4-wire, white |
| Motor diameter | 1.77 in (head 1.97 in) |
| Minimum tube inside diameter | 1.64 in |
| Protection | IP 44, Class III insulation |
| Operating temperature | -4°F to 140°F |
| Warranty | 5 years |
Compatible with: Simu T5 50 mm motor class with a round head with pins. Somfy lists T5 operator brackets (80 x 80 mm, 100 x 100 mm, 48 mm and pin mounts), T5/T6 aluminum drives, LT50 crowns and drives from 2 in to DS 85 mm, and drive stops as accessories. Runs from a 24V DC supply or switch; no radio receiver is built in.
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
How strong and fast is the Simu T5 DC 2004497?
Simu rates the 2004497 at 35 Nm of torque and 7 rpm on 24V DC. That puts it in the T5 DC range used for low-voltage rolling shutters, awnings and exterior screens where a 120V circuit is not available.
What power does the 2004497 need?
The Simu T5 DC 2004497 runs on 24V DC and accepts 18V to 30V. Somfy rates it at 2.3 A and 55 W while operating, with 0 W standby draw. Size your power supply or battery for that current with headroom for start-up.
How are the limits set?
The 2004497 uses mechanical limit switches with a 28-turn capacity. You set the upper and lower stops at the motor head during installation. The Simu T3.5DC, T5 12V and T5 24V installation guide shows the wiring and the limit adjustment steps.
Can it be used outdoors?
Yes. Somfy lists the 2004497 for awnings, exterior solar screens, rolling shutters and interior shades. It carries an IP 44 rating, Class III low-voltage insulation and an operating range of -4°F to 140°F, with a 5-year Somfy warranty.
Which crowns, drives and brackets fit?
The 2004497 is a 50 mm class T5 motor. Somfy lists T5 operator brackets such as the 80 x 80 mm square bracket (9520049), plus T5/T6 aluminum drives and LT50 crowns and drives sized to round and octagonal tubes.
