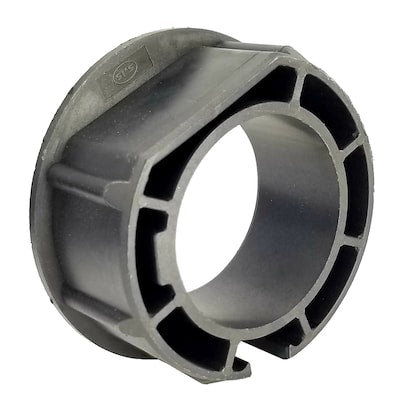

Somfy Simu 4.0" Round Crown (9420370)
Somfy Simu 4.0" Round Crown (9420370)
Ships in 1-2 business days. US shipping $15 flat.
Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy
Not sure this fits? Ask our tech team
Your case has been assigned to Colin. He'll be in touch shortly via email.
4.0" Round Crown -- centered crown for 100mm and 102mm round tubes
This 4.0 in round crown centers an LT60 tubular motor in a Mischler 100mm tube or a 102 x 2mm round tube. Somfy rates it to 120 Nm, pairs it with drive wheel 9420304 and lists nine compatible LT60 motors, from the 660R2 to the 6100R2 in wired, CMO and Altus RTS versions.
Benefits
- Centered design for 100mm Mischler and 102 x 2mm round tubes
- Rated to 120 Nm maximum torque
- Pairs with the 4.0 in round drive wheel 9420304
- Fits nine LT60 motors on Somfy's list
- Backed by Somfy's 5-year warranty
Specifications
| Tube | Mischler 100mm and 102 x 2mm round |
| Fit | Centered |
| Maximum torque | 120 Nm |
| Matching drive | 9420304 |
| Factory designation | CROWN LT60-TUBE 102*2 |
| Application | Awning |
| Warranty | 5 years |
Compatible with: Somfy LT60 660R2, 680R2 and 6100R2 motors in standard 4-wire, CMO and Altus RTS versions, plus the 4.0 in round drive 9420304.
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What tubes does crown 9420370 fit?
Somfy designs the 9420370 crown for Mischler 100mm tube and 102 x 2mm round tube. It is a centered crown, so it keeps the motor concentric inside the tube. Somfy rates it to 120 Nm, lists awnings as its application and covers it with a 5-year warranty.
Which drive goes with this crown?
Somfy states crown 9420370 can be used with wheel 9420304, the 4.0 in round drive for 102 x 2mm tube. ShadeMotorsDirect carries that drive, so you can complete the set in one order. Somfy rates both parts to 120 Nm.
Which motors does the crown fit?
Somfy lists nine LT60 motors for crown 9420370: the 660R2, 680R2 and 6100R2 in standard wired, CMO and Altus RTS versions. Each needs the crown and a matching drive to turn the tube. Somfy rates the crown to 120 Nm.
What torque is the crown rated for?
Somfy rates crown 9420370 for a 120 Nm maximum torque, which covers the 100 Nm 6100R2 at the top of its compatible list. Somfy backs the part with a 5-year warranty. Pair it with drive 9420304.
Couldn't load pickup availability
Replace a worn crown or drive, or order the right set for a new roller.
Match the set to your motor head and your tube size.
12- 1Crown Grips the inside of the tube.
- 2Center opening Slides over the motor.
Replacing one
-
1
Take the shade down
Cut power and lift the roller out of its brackets.
-
2
Pull the motor
Slide the motor out of the tube.
-
3
Swap the part
Pull off the worn crown or drive and fit the Simu 4.0" Round Crown.
-
4
Slide it back
Insert the motor drive end first and rehang the shade.
Not sure of your tube? Send us a photo of the tube end and your motor label. We'll confirm before you order. Ask us
Starting new
-
1
Check your tube
Measure across the outside of the tube end and note the shape: round, octagonal or a brand profile.
-
2
Fit the crown
Slide the crown onto the motor until it seats against the head.
-
3
Fit the drive
Push the drive onto the output shaft until it locks.
-
4
Slide the motor in
Insert the motor into the tube, drive end first.
Planning a new install? Send us the window size and a photo. We'll build the parts list with you. Ask us
Parts that go with the Simu 4.0" Round Crown
Somfy lists these parts for use with part 9420370.
1Tube fit
Match the crown and drive to your tube size and profile.
Somfy backs the Simu 4.0" Round Crown for 5 years. We handle the claim.
Somfy warranty on the Simu 4.0" Round Crown, part 9420370.
- What Somfy covers
- Defects in materials and workmanship, for 5 years from purchase.
- If it fails
- Email us your order number. We arrange the replacement with Somfy.
- Where it comes from
- ShadeMotorsDirect is an authorized Somfy distributor. You get the US version, new in Somfy packaging.
- Returns
- Unopened items in original packaging. Ask us for an RA number before you ship.
- Questions
- Call or chat, 8:00 AM - 7:30 PM ET.
