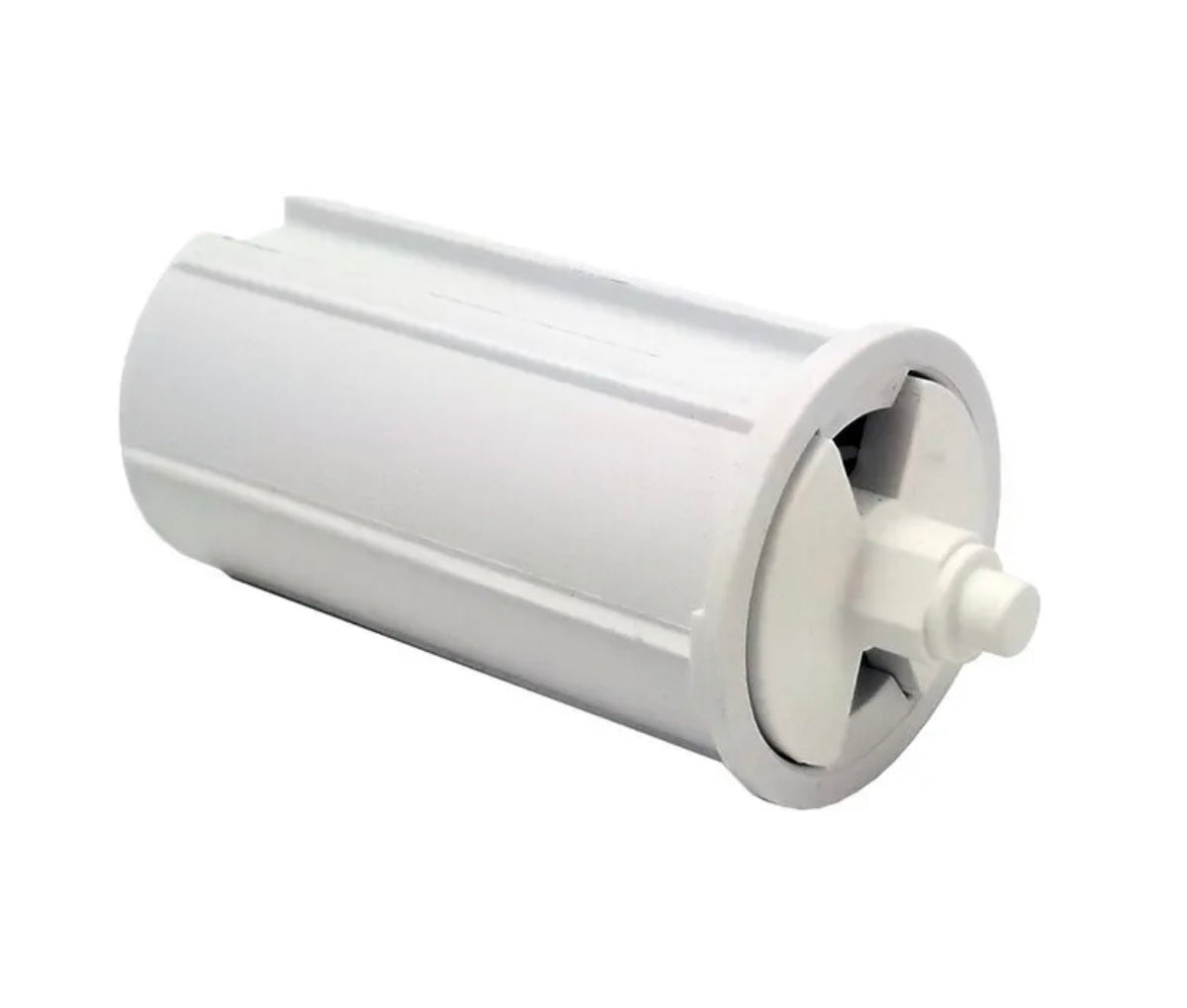

Somfy RollEase Heavy Duty Spring Idler End Pin 1.5" Tube (9017912)
Somfy RollEase Heavy Duty Spring Idler End Pin 1.5" Tube (9017912)
Ships in 1-2 business days. US shipping $15 flat.
Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy
Not sure this fits? Ask our tech team
Your case has been assigned to Colin. He'll be in touch shortly via email.
RollEase Heavy Duty Spring Idler End Pin (1.5" Tube) -- the idler end of a motorized RollEase shade
This genuine Somfy idler end pin carries the free end of a 1.5" RollEase roller tube, opposite the motor. The spring-loaded pin compresses so the assembled tube drops into a pair of SkyLine brackets without shimming, then holds tension to keep the shade square and rolling straight. The heavy duty version handles larger and wider shades where a standard idler would flex.
Benefits
- Spring-loaded pin lets one person load the tube into the brackets
- Heavy duty build suits wide and tall shades that load the idler end
- Keeps the tube square so the fabric tracks straight through full travel
- Drops into the same RollEase SkyLine brackets used for the motor end
- Genuine Somfy part, matched to the 1.5" RollEase tube profile
Specifications
| Part type | Spring idler end pin, heavy duty |
| Fits | RollEase 1.5" roller tube |
| Quantity needed | 1 per shade |
| Genuine part | Yes, Somfy reference 9017912 |
Compatible with: RollEase 1.5" roller tube, RollEase SkyLine brackets (9017910), and Somfy WireFree motors installed with the RollEase 1.5" crown and drive (9020674) and motor adaptor plate (9016378)
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What does this idler end pin do?
It supports the free end of a 1.5 in RollEase roller tube, opposite the motor. The spring-loaded pin compresses so the tube drops into its brackets, then pushes back to hold the shade in place.
Which roller tube does it fit?
Part 9017912 fits a 1.5 in RollEase roller tube. Pair it with the RollEase 1.5 in Crown and Drive (9020674) at the motor end so both ends of the tube match.
Which Somfy motors can I use with it?
Somfy lists it for Sonesse ULTRA 30 WireFree, Sonesse 28 WireFree, Sonesse 30 and Roll Up 28 and 30 WireFree motors. In this store that includes the Sonesse Ultra 30 WireFree 12V Li-ion RTS Motor (1003310) and the Sonesse 30 RTS 24V DC Motor (1241142).
Which brackets does it mount into?
It drops into RollEase SkyLine brackets, such as the SkyLine Bracket Set with 2 in projection (9017910). The same brackets hold the motor end once you add the Motor Bracket Adapter Plate (9016378).
When should I choose the heavy duty version?
Choose it for larger and wider shades, where the idler end carries more weight. The pin keeps the tube square, so the fabric rolls straight through full travel.
What warranty does it carry?
Somfy covers part 9017912 with a 5-year warranty. Somfy sells it through its network of professional dealers and installers for motorized shade builds.
Couldn't load pickup availability
Replace a cracked bracket or mount a new shade.
12- 1Tube plug Fits inside the 1.5 inch tube.
- 2Spring pin Pushes in to fit the bracket.
Replacing one
-
1
Support the shade
Cut power and lift the roller out of the old bracket.
-
2
Swap the bracket
Unscrew the old bracket and mount the RollEase Heavy Duty Spring Idler End Pin 1.5" Tube in the same spot.
-
3
Seat the shade
Clip or pin the motor head and idle end back in.
Not sure it fits? Send us a photo of the label on your old part or motor. We'll confirm before you order. Ask us
Starting new
-
1
Check the motor head
Match the bracket to your motor head: star, round or a brand fitting.
-
2
Mount it
Screw the bracket to the wall, ceiling or headrail.
-
3
Seat the shade
Clip or pin the motor head and idle end into their brackets.
Planning a new install? Send us the window size and a photo. We'll build the parts list with you. Ask us
Parts that go with the RollEase Heavy Duty Spring Idler End Pin 1.5" Tube
Somfy lists these parts for use with part 9017912.
1Tube fit
Match the crown and drive to your tube size and profile.
2Power
Cables, chargers and power made for this motor.
3Mounting
Holds the motor head and the idle end in place.
Somfy backs the RollEase Heavy Duty Spring Idler End Pin 1.5" Tube for 5 years. We handle the claim.
Somfy warranty on the RollEase Heavy Duty Spring Idler End Pin 1.5" Tube, part 9017912.
- What Somfy covers
- Defects in materials and workmanship, for 5 years from purchase.
- If it fails
- Email us your order number. We arrange the replacement with Somfy.
- Where it comes from
- ShadeMotorsDirect is an authorized Somfy distributor. You get the US version, new in Somfy packaging.
- Returns
- Unopened items in original packaging. Ask us for an RA number before you ship.
- Questions
- Call or chat, 8:00 AM - 7:30 PM ET.
- Somfy documents
- WireFree Databook (PDF)
