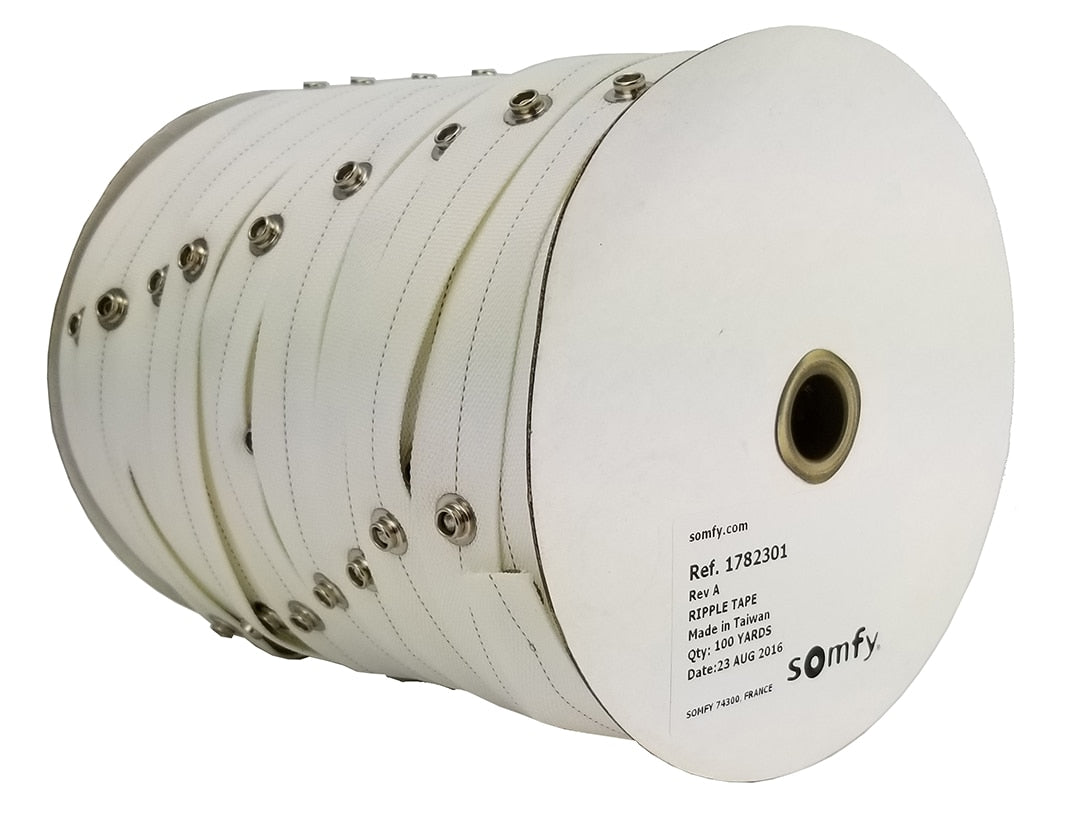

Ripple Snap Tape, 100-Yard Roll -- the current Somfy part for RippleFold drapery headers
This 4-1/4 in snap tape sews into the drapery header and snaps onto RippleFold carriers on a Somfy Glydea or Irismo motorized track, giving the panel an even, repeating wave. Somfy ships it as one full 100-yard (91.4 m) roll, and it replaces the per-yard part 1782542 with the same tape under a new part number. Workrooms and fabricators buying for multiple projects get the full roll at Somfy's list price.
Benefits
- Current Somfy part number for ripple snap tape, replacing 1782542
- Full 100-yard roll covers several drapery projects
- 4-1/4 in tape width, matching the tape Somfy sold per yard before
- Snaps to Somfy RippleFold carriers (1780901 / 1780902 / 1780903) for consistent wave spacing
- Somfy lists it as compatible with Glydea ULTRA 35, 50 and 60 and Irismo 35 and 45 motors
- Backed by Somfy's 5-year warranty
Specifications
| Part type | Ripple snap tape (RIPPLE TAPE 4 1/4) |
| Width | 4-1/4 in |
| Length | 100 yards (91.4 m), full roll |
| Replaces | 1782542 (Ripple Snap Tape, sold per yard) |
| Fits | Somfy RippleFold carriers on Glydea and Irismo drapery tracks |
| Warranty | 5 years |
| Genuine part | Somfy 1782301 |
Compatible with: Somfy RippleFold carriers, Glydea ULTRA 35 / 50 / 60 and Irismo 35 / 45 drapery systems
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What is Somfy ripple snap tape used for?
Ripple snap tape sews into the header of a drapery panel. Its snaps attach to Somfy RippleFold carriers on a motorized track, which gives the fabric an even, repeating wave. Part 1782301 is the full roll for workrooms and fabricators.
How wide and how long is this roll?
Somfy lists part 1782301 as a 100-yard roll of 4 1/4 in ripple tape. That length covers many drapery panels, so one roll can supply several projects from the same stock.
Which carriers does the tape snap onto?
The tape pairs with Somfy RippleFold carriers. Choose 1780903 for 80% fullness, 1780902 for 100% fullness or 1780901 for 120% fullness. The carrier you pick sets how deep each wave looks once the panel hangs on the track.
Which Somfy drapery motors work with this tape?
Somfy lists the tape as compatible with Glydea ULTRA motors and with Irismo 35 and Irismo 45 motors. Examples in this store include the Glydea Ultra 60 RTS (1246118), the Glydea Ultra 35 RTS (1246116) and the Irismo 45 WireFree RTS (1002353).
Can I buy the tape by the yard instead?
Yes. Somfy also offers ripple snap tape sold per yard as part 1782542, which suits a single panel or a repair. The 100-yard roll fits workrooms that sew drapery headers week after week.
What warranty does Somfy give on the tape?
Somfy covers part 1782301 with a 5-year warranty. It is a genuine Somfy part matched to RippleFold carriers and Glydea tracks, so the tape, carriers and motor all come from one system.
