Somfy Glydea Drapery Track 24 ft (288 in) - 13 Brackets Required (1782024)
Somfy Glydea Drapery Track 24 ft (288 in) - 13 Brackets Required (1782024)
Regular price
Sale price
Regular price
Shipping calculated at checkout.
Secure checkout with
Genuine Somfy
Authorized distributor
5-Year Warranty
Somfy warranty on every part
30-Day Returns
35% restocking fee
Expert Support
Call 859-414-6872
Ships in 1-2 business days. US shipping $15 flat.
Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy
Not sure this fits? Ask our tech team
Your case has been assigned to Colin. He'll be in touch shortly via email.
See… Somfy Glydea Drapery Track 24 ft (288 in) - 13 Brackets Required (1782024) in action
★★★★★
“The perfect motorized system for our drapery installs.”
TheBlindGuy Raleigh NC

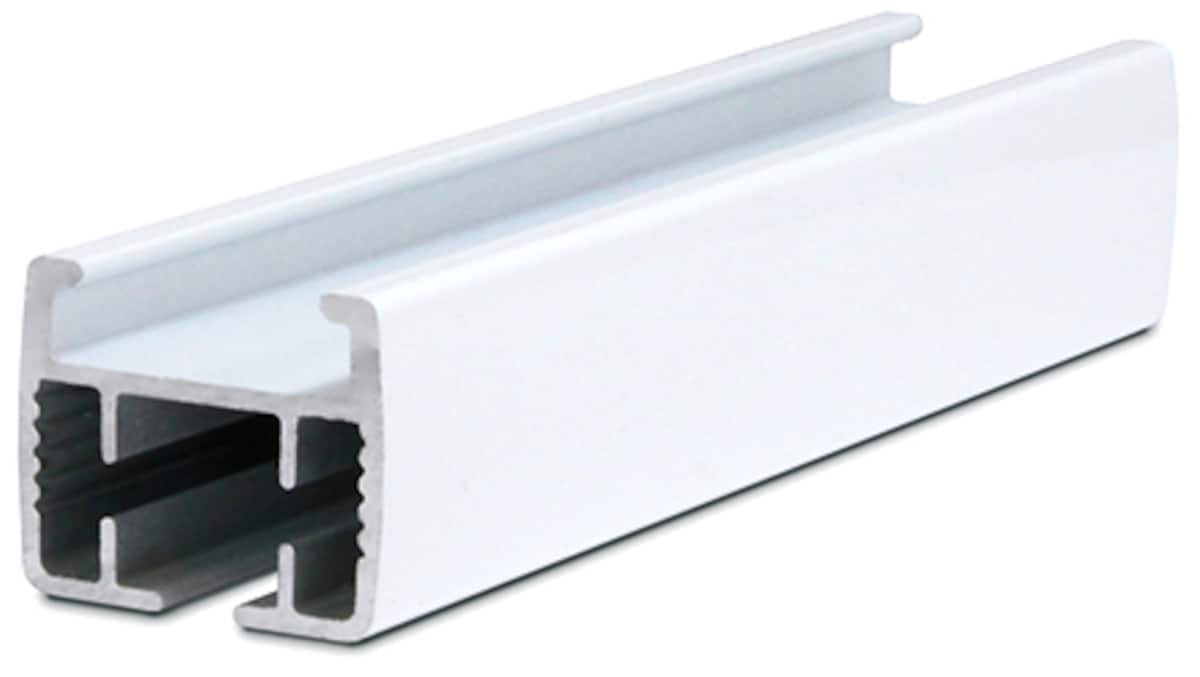

Somfy Glydea motorized drapery track hardware, cut to 24 ft (288")

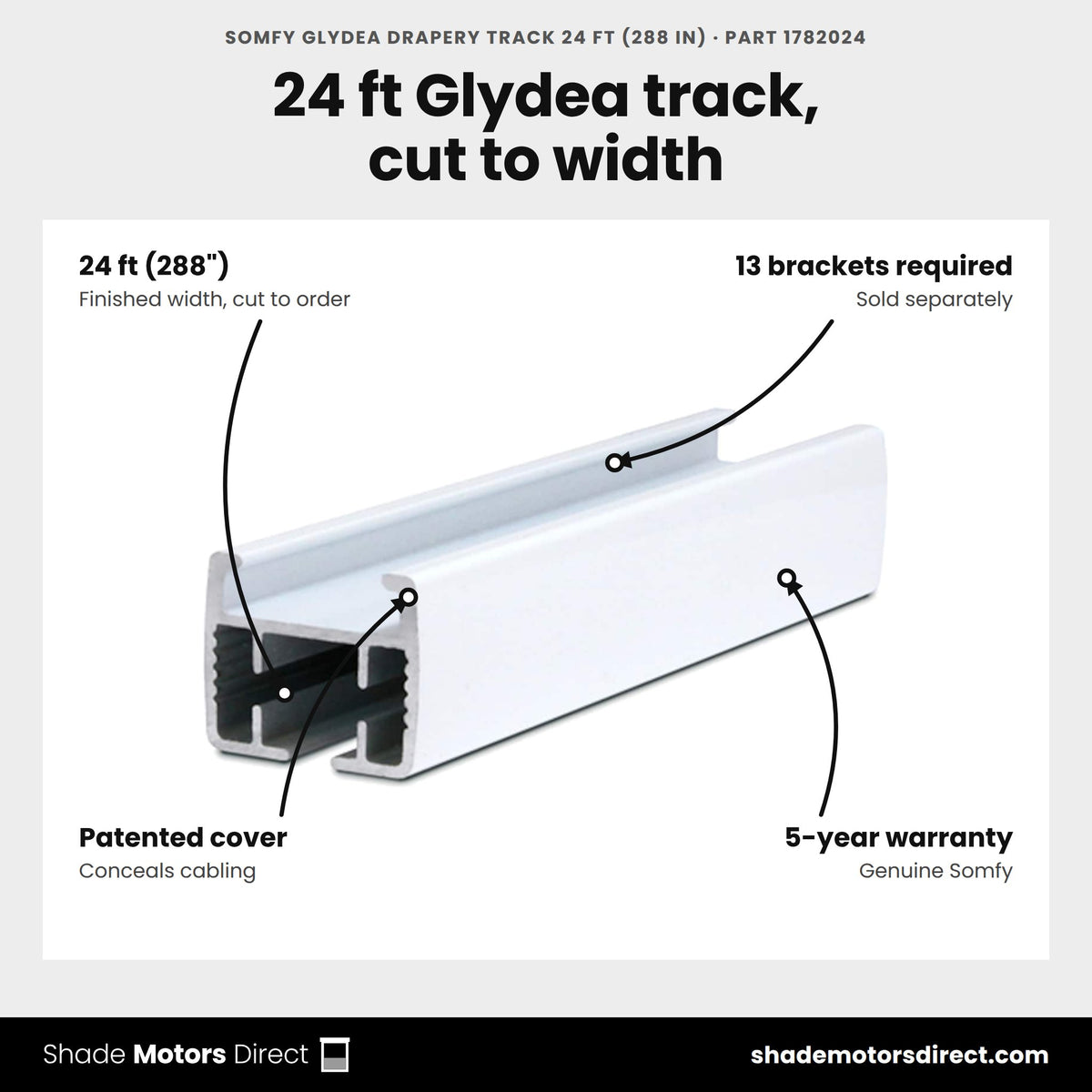

This is the 24 ft (288" finished width) track section of Somfy's Glydea motorized drapery rail system, mounted with 13 Glydea ceiling brackets or wall-mount bracket kits (sold separately). It's built to the exact width you order and pairs with a Glydea 35 or 60e motor (sold separately) to motorize pinch pleat or RippleFold draperies.
Benefits
- Cut to the exact finished width you order -- no field trimming
- Compatible with pinch pleat and RippleFold (60/80/100/120% fullness) draperies
- Ceiling or wall mount with Glydea brackets, sold separately (one wall-mount kit covers up to 10 brackets)
- Patented cover design conceals cabling and protects motor connectors
- Track and swivel ceiling bracket design minimize the light gap between panels
Specifications

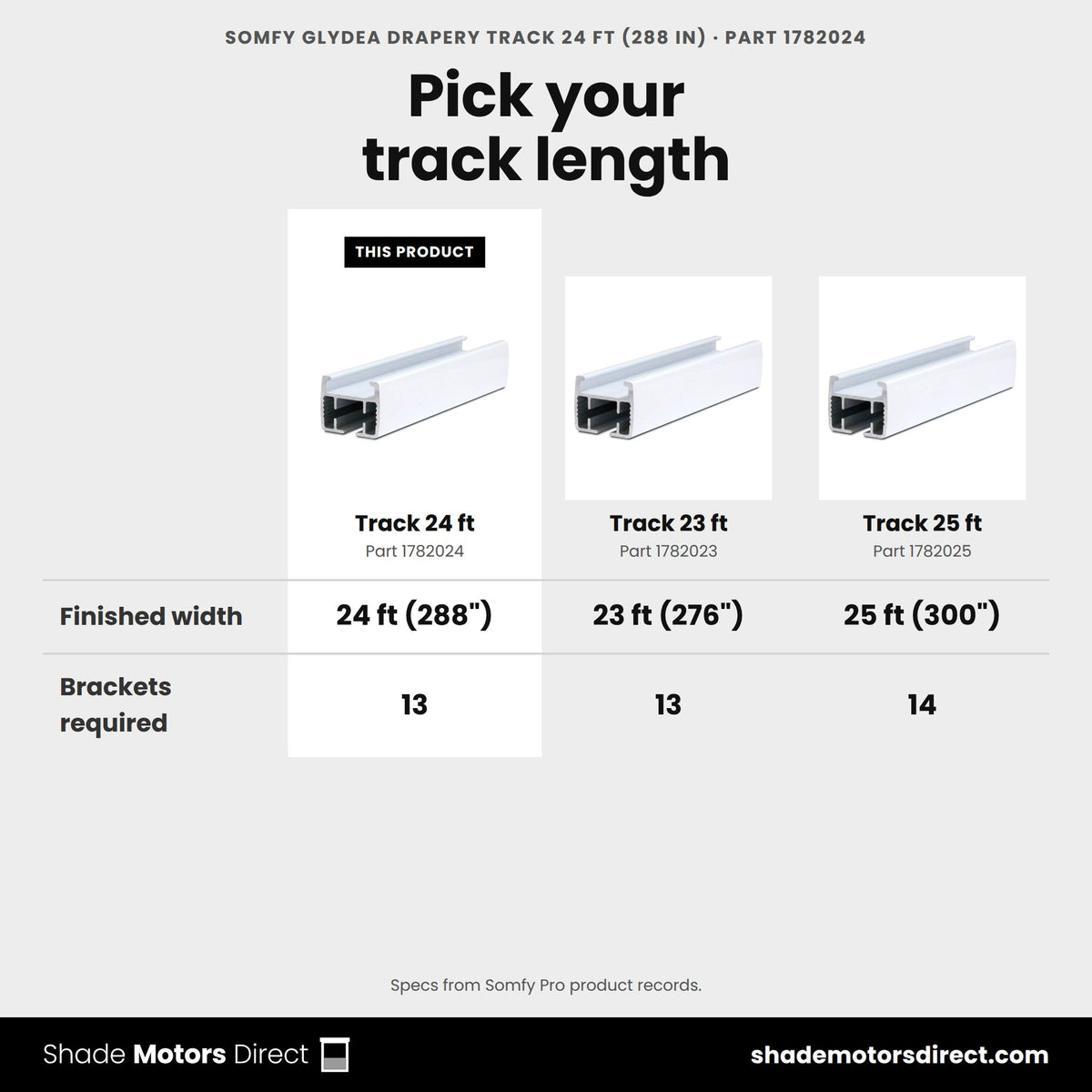

| Finished width | 24 ft (288") |
| Brackets required | 13, sold separately |
| Compatible motors | Glydea 35 (max 32 ft / 77 lb), Glydea 60e (max 36 ft / 132 lb), Glydea ULTRA 50 WireFree Zigbee (max 36 ft / 110 lb) |
| Compatible controls | RTS, RS485, Zigbee, dry contact, infrared |
| Warranty | 5 years |
Compatible with: Glydea 35, Glydea 60e and Glydea ULTRA 50 WireFree Zigbee drapery motors (sold separately)
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What is the Glydea Drapery Track 24 ft?
Part 1782024 is a 24 ft (288 in) finished-width section of the Somfy Glydea motorized drapery rail. It arrives cut to that width, so there is no trimming on site, and it pairs with a Glydea motor to move pinch pleat or RippleFold draperies.

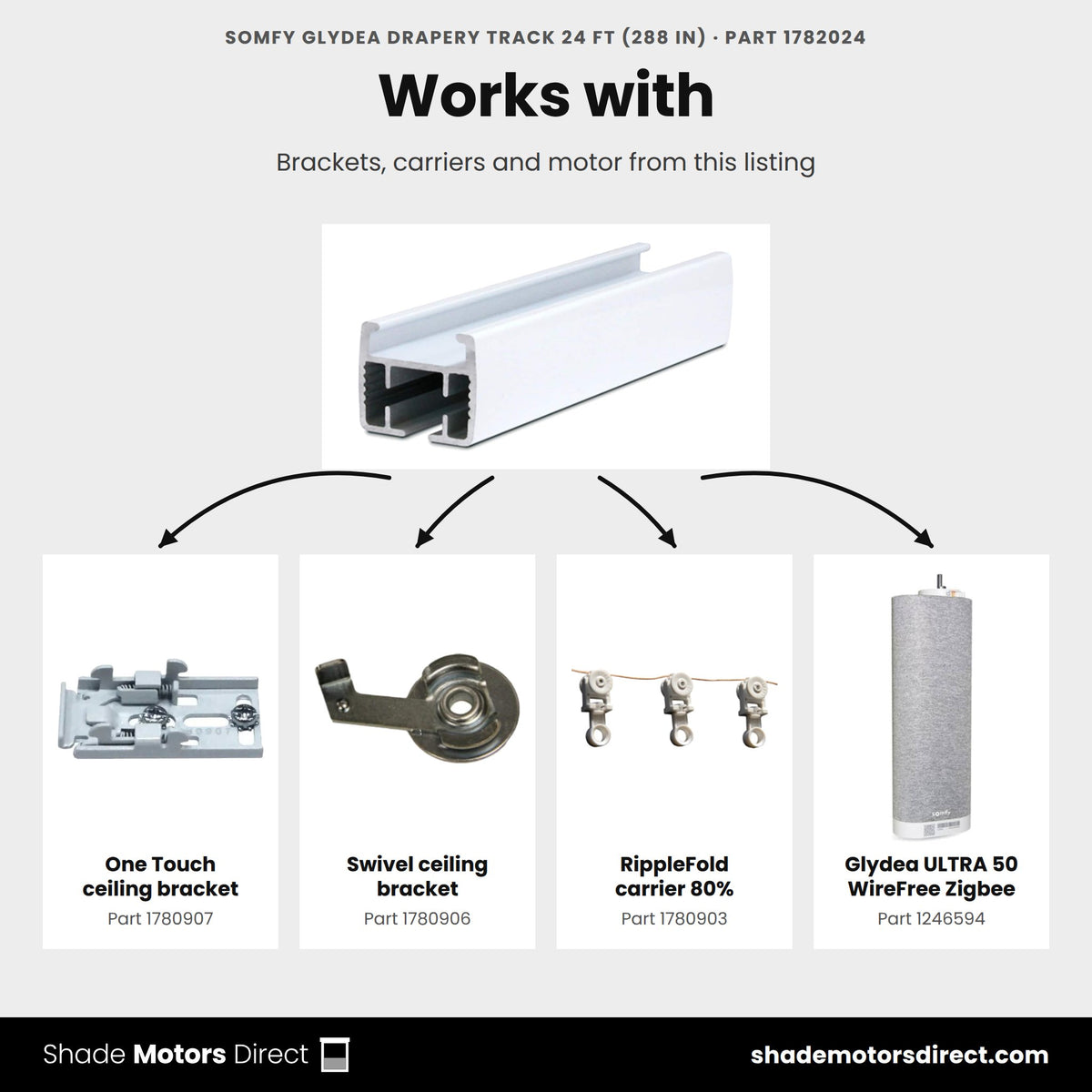

How many brackets do I need, and which ones fit?
This 24 ft track needs 13 brackets, each sold on its own. Ceiling options include the Glydea One Touch Ceiling Bracket (1780907) and the Glydea Swivel Ceiling Bracket (1780906). For wall mounting, use the 4.5"-6.25" Adjustable Wall Mount Bracket (1780909) or the 8.75"-10.25" Double Adjustable Wall Mount Bracket (9025622).
Which motors drive this track?
Pair it with a Somfy Glydea motor, such as the Glydea Ultra 35 RTS (1246116), the Glydea Ultra 60 RTS (1246118) or the Glydea ULTRA 50 WireFree Zigbee (1246594). Match the motor to your drapery weight, since the 60 handles heavier fabric than the 35.

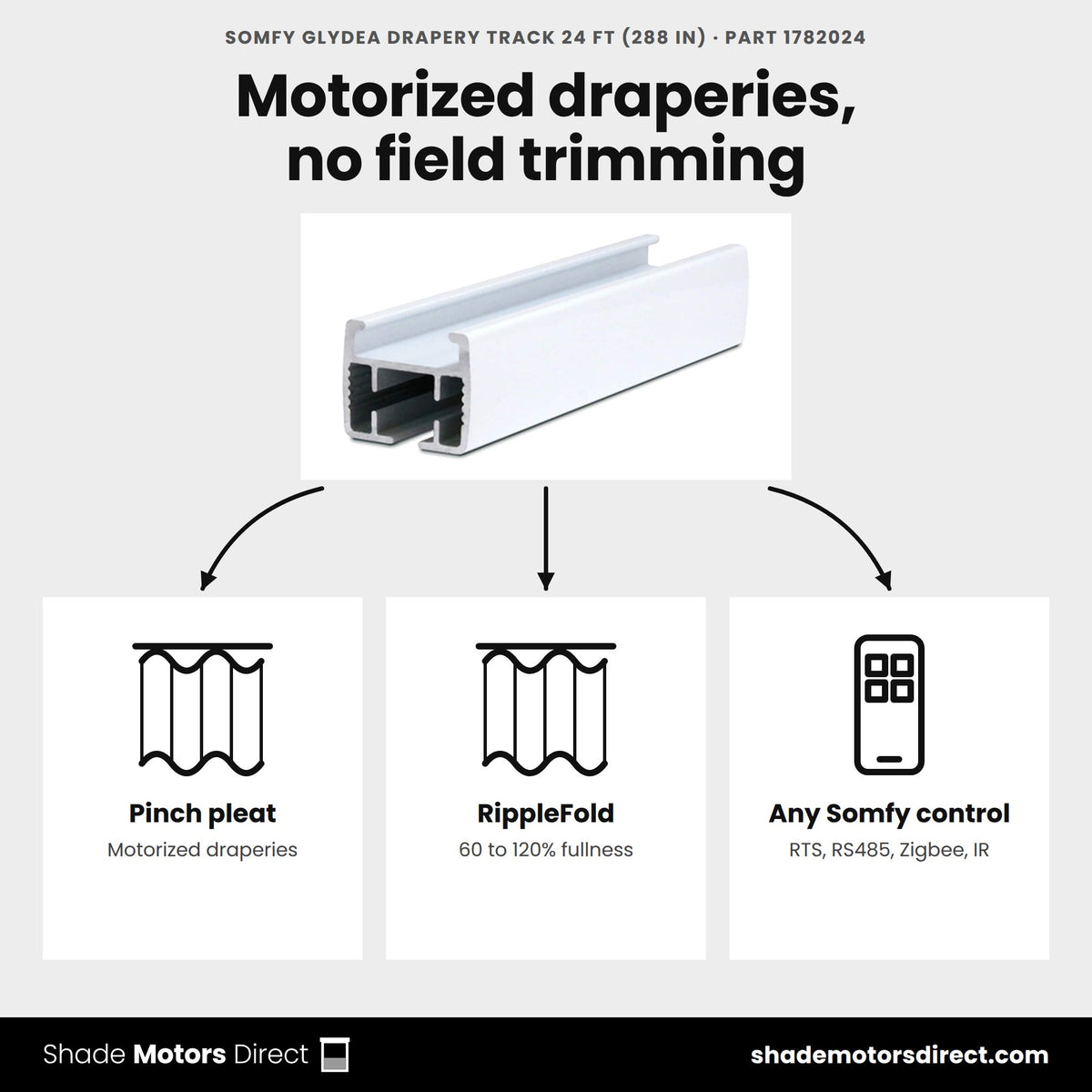

What drapery styles does it support?
The track runs pinch pleat and RippleFold draperies at 60, 80, 100 and 120% fullness. For RippleFold, add carriers such as Somfy RippleFold 80% (1780903), 100% (1780902) or 120% (1780901), plus Ripple Snap Tape (1782542) for the fabric.
How do I control the draperies once they are motorized?
Control depends on the motor you choose. Glydea motors come in RTS, RS485, Zigbee, dry contact and infrared versions. An RTS or Zigbee Glydea motor can join the Somfy TaHoma Switch (1871037) for app, voice and scheduled control.
Is the cabling hidden, and what warranty applies?
Yes. The Glydea track uses a patented cover design that conceals cabling and protects the motor connectors, and the track and swivel bracket design keeps the light gap between panels small. The track carries a 5-year Somfy warranty.
