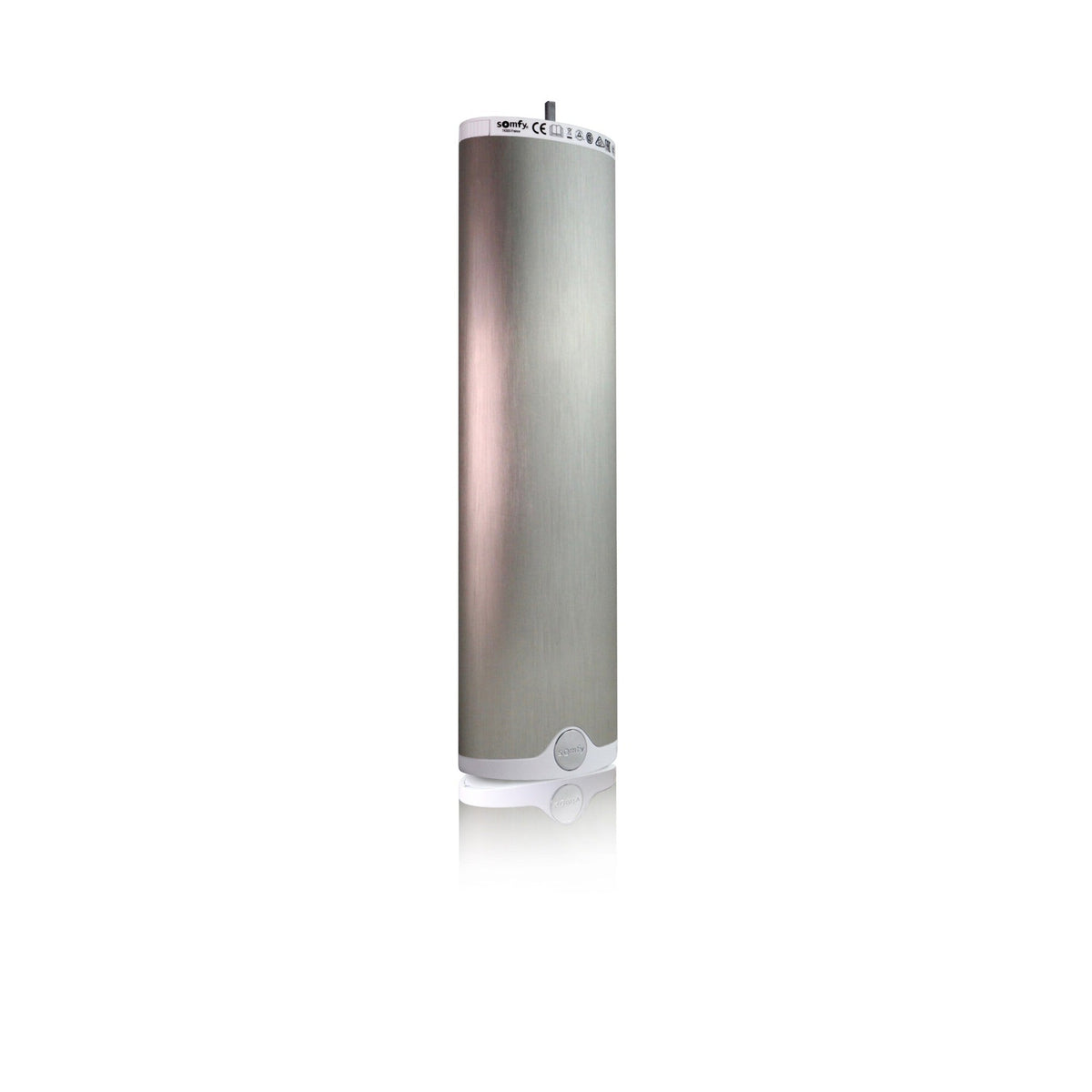

Somfy Glydea Ultra 35 Wired Drapery Motor, No Plug (1003153)

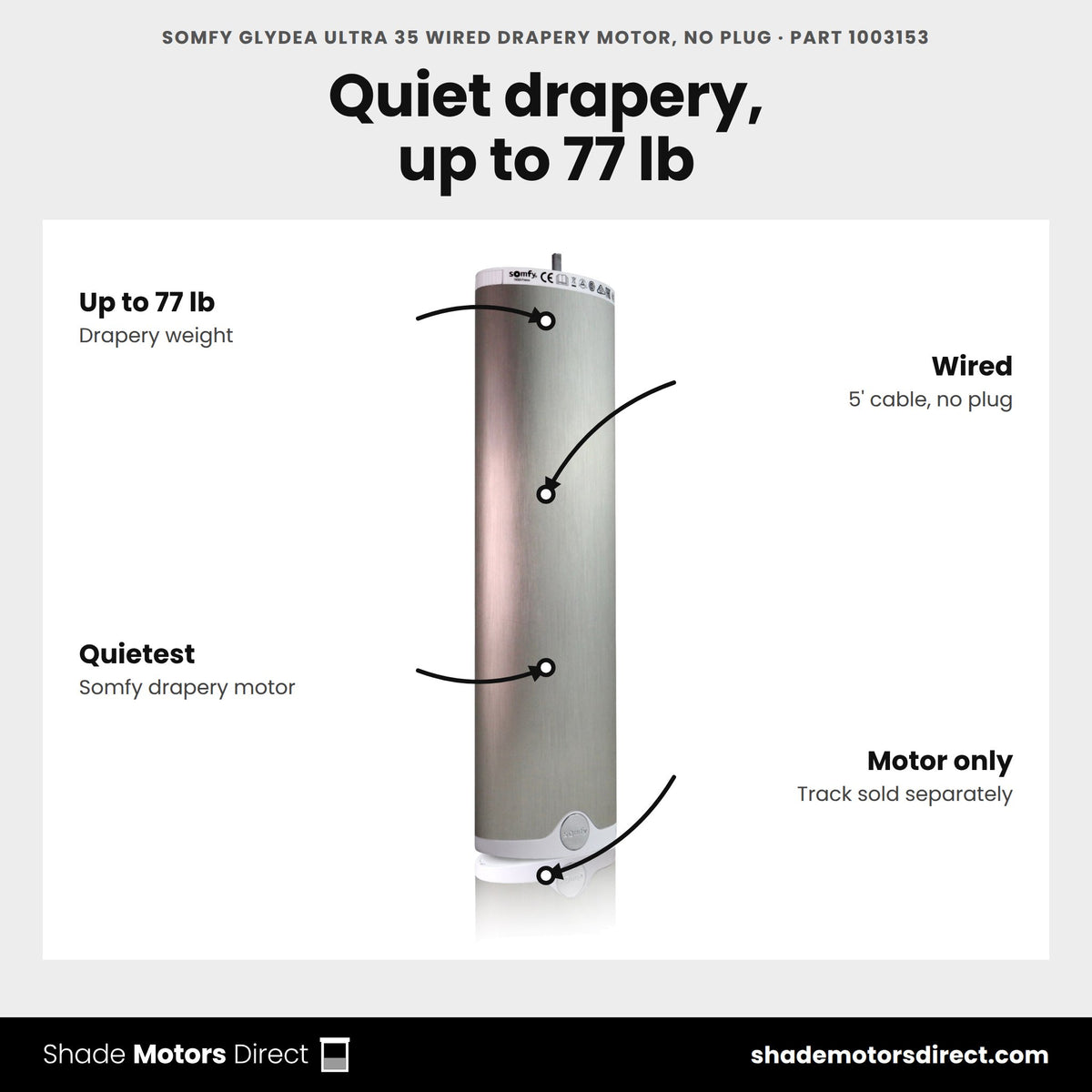

Somfy Glydea Ultra 35 Wired Drapery Motor, No Plug, part 1003153, features: Glydea ULTRA 35 motor with wired for draperies up to 77 lb, sold without track

Somfy Glydea ULTRA 35 Wired drapery motor 1003153 uses: quiet motorized drapery tracks for draperies up to 77 lb

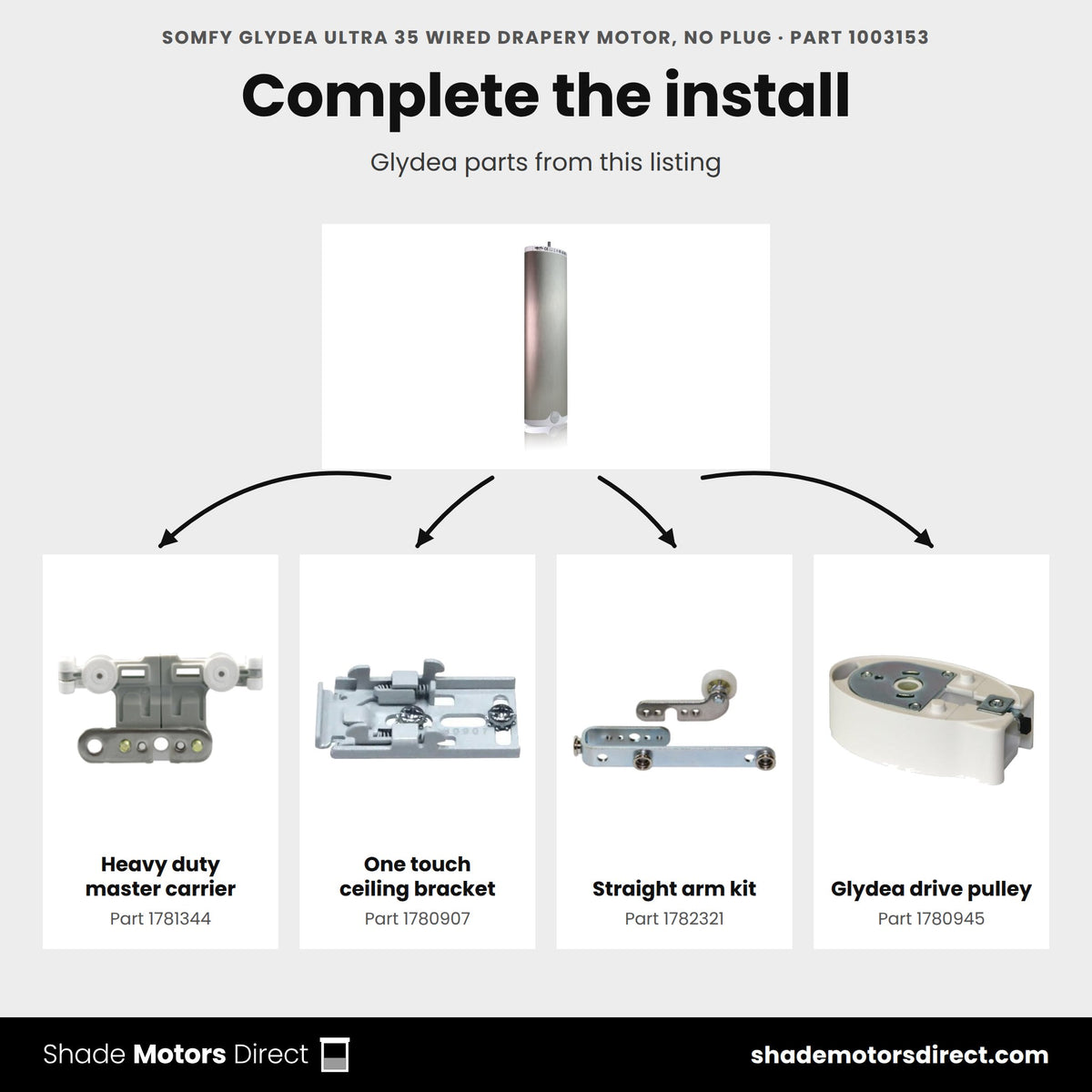

Parts that work with the Somfy Glydea ULTRA 35 Wired drapery motor 1003153: Heavy duty master carrier 1781344, One touch ceiling bracket 1780907, Straight arm kit 1782321, Glydea drive pulley 1780945

Somfy Glydea ULTRA 35 Wired drapery motor 1003153 compared: ULTRA 35 RTS 1246116, ULTRA 35 DCT 1246115

Buy the Somfy Glydea Ultra 35 Wired Drapery Motor, No Plug, part 1003153, genuine new with 5-year warranty, from ShadeMotorsDirect

Somfy Glydea Ultra 35 Wired Drapery Motor, No Plug (1003153)

SKU: 1003153

$420.25

Shipping calculated at checkout.

Customize a track with this motor

This listing is the motor on its own. Build the complete system and we cut the track to your width, work out the brackets and list every part before you pay.

Secure checkout with

Genuine Somfy Authorized distributor

5-Year Warranty Somfy warranty on every part

30-Day Returns 35% restocking fee

Expert Support Call 859-414-6872

Ships in 1-2 business days. US shipping $15 flat.

Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy

Not sure this fits? Ask our tech team

See… Somfy Glydea Ultra 35 Wired Drapery Motor, No Plug (1003153) in action

★★★★★

“Smooth, quiet, and reliable. Our customers love the upgrade.”

Eastern Shades Dallas TX

★★★★★

“The perfect motorized system for our drapery installs.”

TheBlindGuy Raleigh NC

Somfy Glydea ULTRA 35 Wired Motor Only -- premium drapery track motor

The Glydea ULTRA 35 Wired Motor is a reliable, adaptable, and discreet drapery-track motor sold without a plug for direct wiring, offering the quietest curtain motorization available with a traversing capacity up to 35kg (77 lb) of fabric.

Benefits

Quietest drapery motor solution available for glare reduction and privacy
Traversing capacity up to 35kg (77 lb) of drapery
Compatible with multiple control technologies (Wired, DCT, RTS, RS485 via module, Zigbee via module)
Add TaHoma for scheduling, voice control, and automatic UV protection
5-year Somfy warranty

Specifications

Application	Motorized drapery/curtain track
Control	Wired (5' cable, no plug)
Max fabric load	35kg (77 lb)
Warranty	5 years

Compatible with: Glydea ULTRA drapery track hardware, carriers, and wall/ceiling mount brackets

Official Somfy documentation

Glydea ULTRA 35 Wired Motor (No Plug) -- Somfy Pro Product Page

Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.

Common questions

What is the Glydea ULTRA 35 Wired Motor?

Part 1003153 is a Somfy drapery track motor sold without a plug, for direct wiring into the building. The 35 model moves up to 77 lb (35 kg) of fabric, and Somfy rates it at 38 dB.

How is it powered?

It accepts 90-240V AC at 50-60 Hz and draws 30 W in operation and 0.5 W on standby. With no plug on the cable, an electrician connects it to the building supply.

Which track parts work with it?

The compatible parts on this page include RippleFold carriers (1780903, 1780902, 1780901), RippleFold Silent Runners (9027592, 9027593, 9027594), the Glydea Drive Pulley (1780945), Heavy Duty Master Carrier (1781344) and One Touch Ceiling Bracket (1780907).

How do I set the end limits?

Somfy makes a Limit Setting Tool (9014599) for use with Glydea ULTRA motors, and this store lists it as a match. The tool lets the installer set limits during commissioning.

Is there a plug-in version?

Yes. The Glydea ULTRA 35 DCT (1246115) ships on a 10 ft cable with a plug and accepts Somfy Zigbee and RS485 modules. For heavier draperies, the Glydea ULTRA 60 Wired Motor, No Plug (1003160) handles larger loads.

Can I automate it with TaHoma?

Somfy lists the Glydea ULTRA 35 Wired Motor as compatible with the TaHoma automation system for scheduling. Somfy builds the motor to its Designed for Silence standard and backs it with a 5-year warranty.

Shade Motors Direct Spec Library Product specs, manuals and technical documents

How this motor compares

Verified Somfy specs for this motor and its closest alternatives.

Specification	You're viewing Somfy Glydea Ultra 35 Wired Drapery Motor, No Plug (1003153)	Somfy Glydea Ultra 35 DCT Drapery Motor (1246115)	Somfy Glydea Ultra 60 Wired Drapery Motor, No Plug (1003160)	Somfy Glydea Ultra 35 RTS Drapery Motor (1246116)
Price	$420.25	$455.21	$624.91	$532.93
Torque (Nm)	—	—	1.0	0.6
Speed (rpm)	—	—	105	105
Max load (lb)	77	77	132	77
Control	Wired, no plug	Dry contact (DCT)	Wired, no plug	RTS radio
Power	—	—	100-240V AC	100-240V AC
Motor family	Glydea Ultra 35	Glydea Ultra 35	Glydea Ultra 60	Glydea Ultra 35
What's different	The product on this page	Same size, Dry contact (DCT) control	Holds 132 lb instead of 77	Same size, RTS radio control
Buy	Currently viewing	View details	View details	View details
