“Smooth, quiet, and reliable. Our customers love the upgrade.”
Eastern Shades Dallas TX
Somfy Glydea Ultra 60 Wired Drapery Motor, No Plug (1003160)
Somfy Glydea Ultra 60 Wired Drapery Motor, No Plug (1003160)
Regular price
Sale price
Regular price
Shipping calculated at checkout.
Secure checkout with
Genuine Somfy
Authorized distributor
5-Year Warranty
Somfy warranty on every part
30-Day Returns
35% restocking fee
Expert Support
Call 859-414-6872
Ships in 1-2 business days. US shipping $15 flat.
Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy
Not sure this fits? Ask our tech team
Your case has been assigned to Colin. He'll be in touch shortly via email.

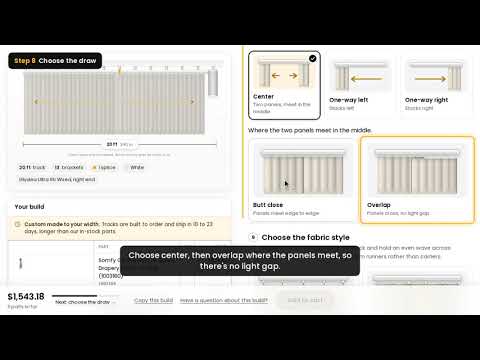

See… Somfy Glydea Ultra 60 Wired Drapery Motor, No Plug (1003160) in action
★★★★★
“The perfect motorized system for our drapery installs.”
TheBlindGuy Raleigh NC

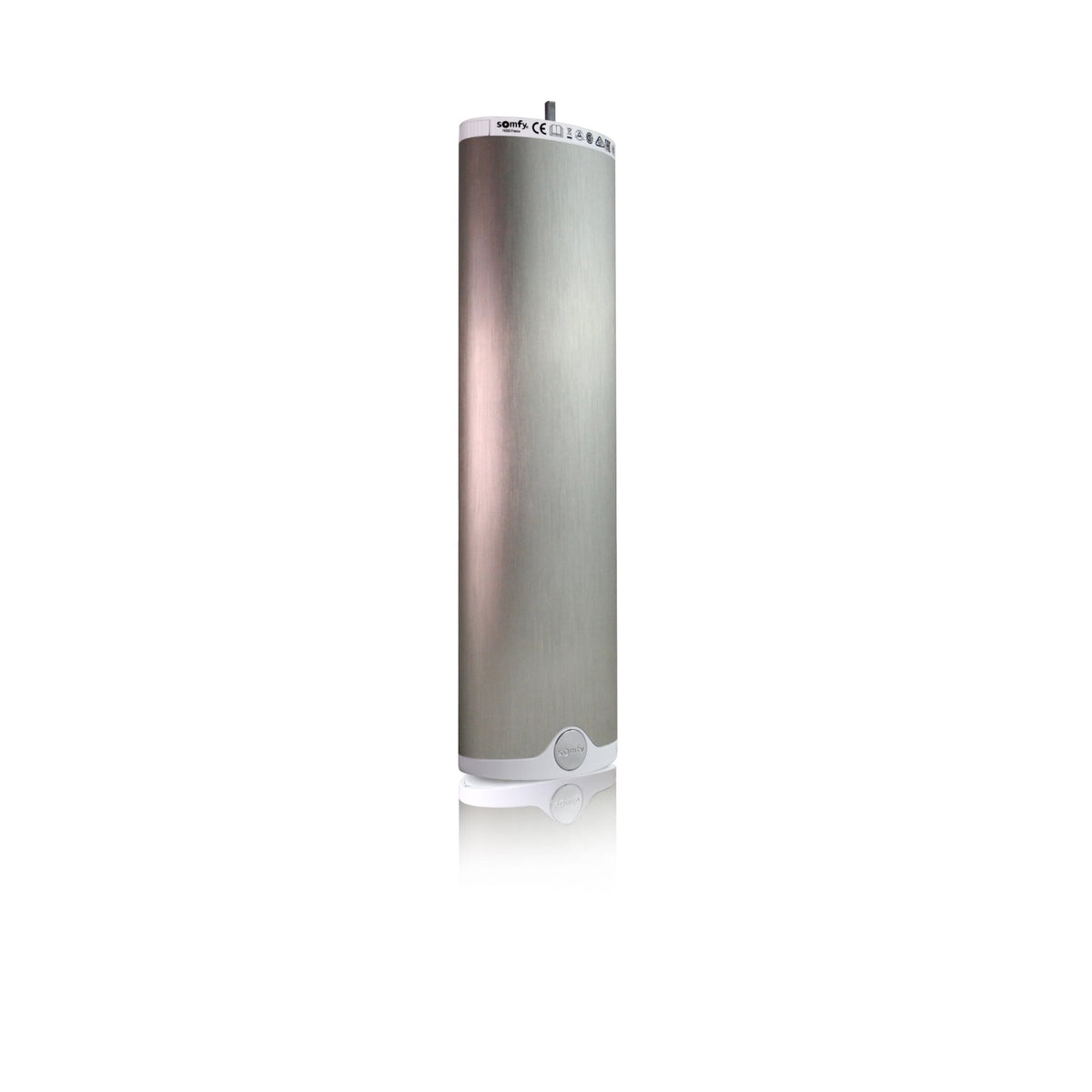

Glydea ULTRA 60 Wired (WT) curtain motor -- whisper-quiet motorization for draperies up to 132 lb (60 kg)
This listing is the motor unit on its own (sold without a track), for building or servicing a Somfy Glydea motorized drapery track. Glydea ULTRA 60 is Somfy's premium drapery motor for residential and commercial curtains, traversing draperies up to 132 lb (60 kg) at under 38 dBA in silent mode. This Wired (WT) version has a 5 ft cable without plug for hardwired installations controlled by automation systems or a wall switch.

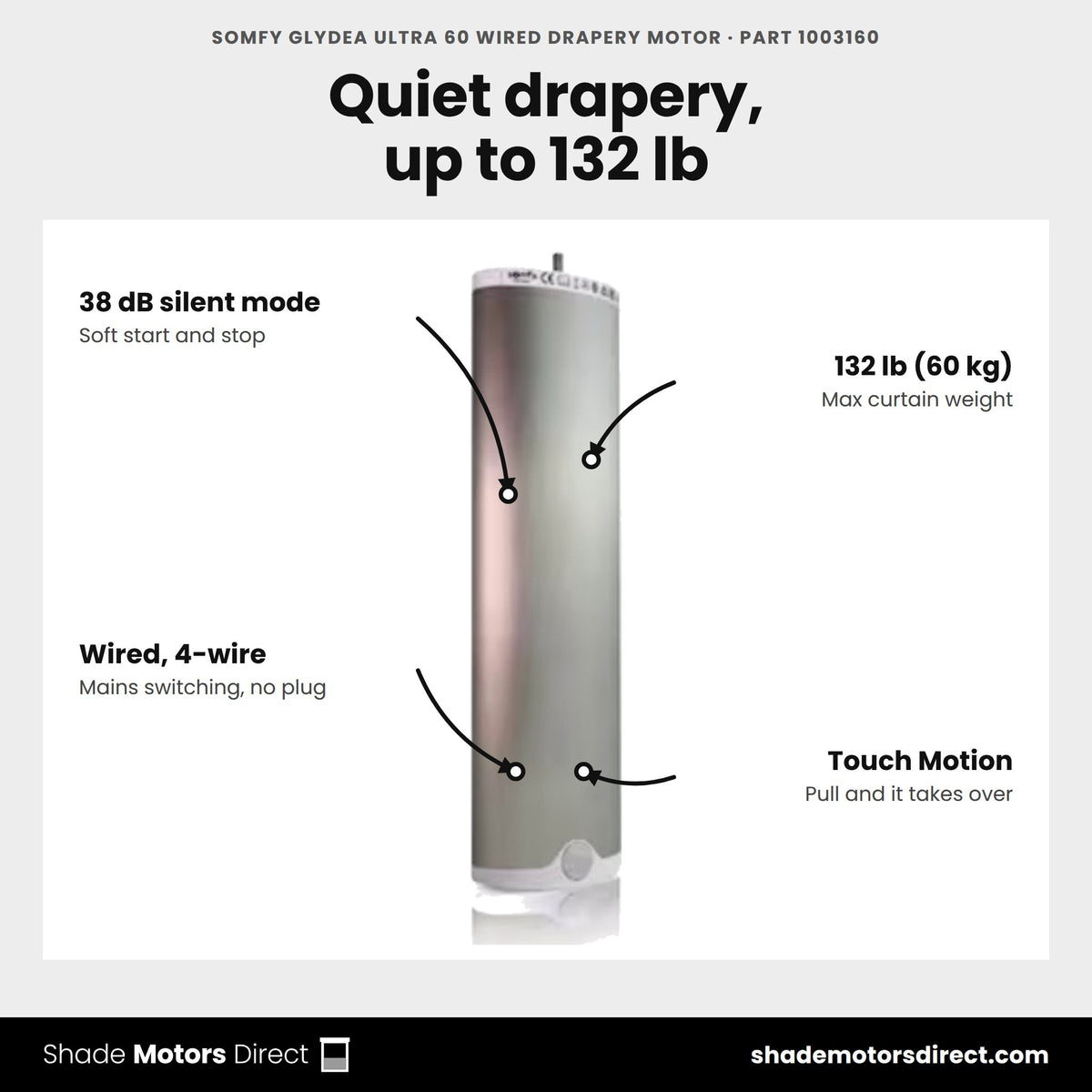

Benefits
- One of the quietest curtain motor platforms available, under 38 dBA in silent mode
- Soft start and soft stop for smooth, gentle drapery movement
- Touch Motion: pull the fabric gently and the motor takes over
- Manual operation still possible if power is lost
- Automatic end limits with fine adjustment, plus adjustable speed

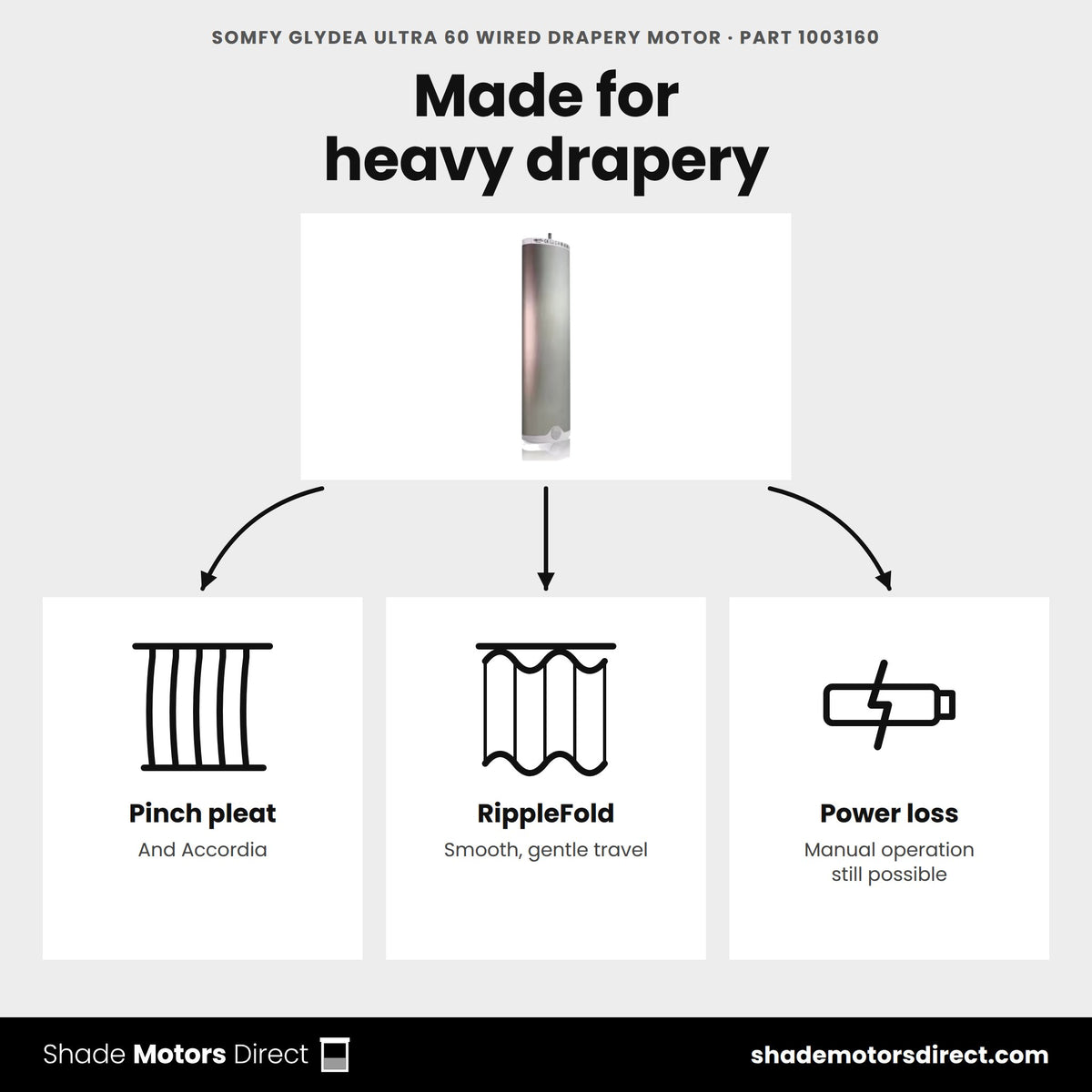

- Drives pinch pleat, RippleFold, and Accordia drapery styles
- Backed by Somfy's 5-year warranty
Specifications
| Max curtain weight | 132 lb (60 kg) |
| Drive torque / Speed | 1 Nm / 105 rpm, speed adjustable |
| Control | Wired (WT), 4-wire mains switching, no plug |
| Power | 100-240V AC, 50/60 Hz |
| Power consumption | 60 W |
| Noise level | 38 dB (silent mode) |
| Limit type | Electronic, adjustable |
| Warranty | 5 years |

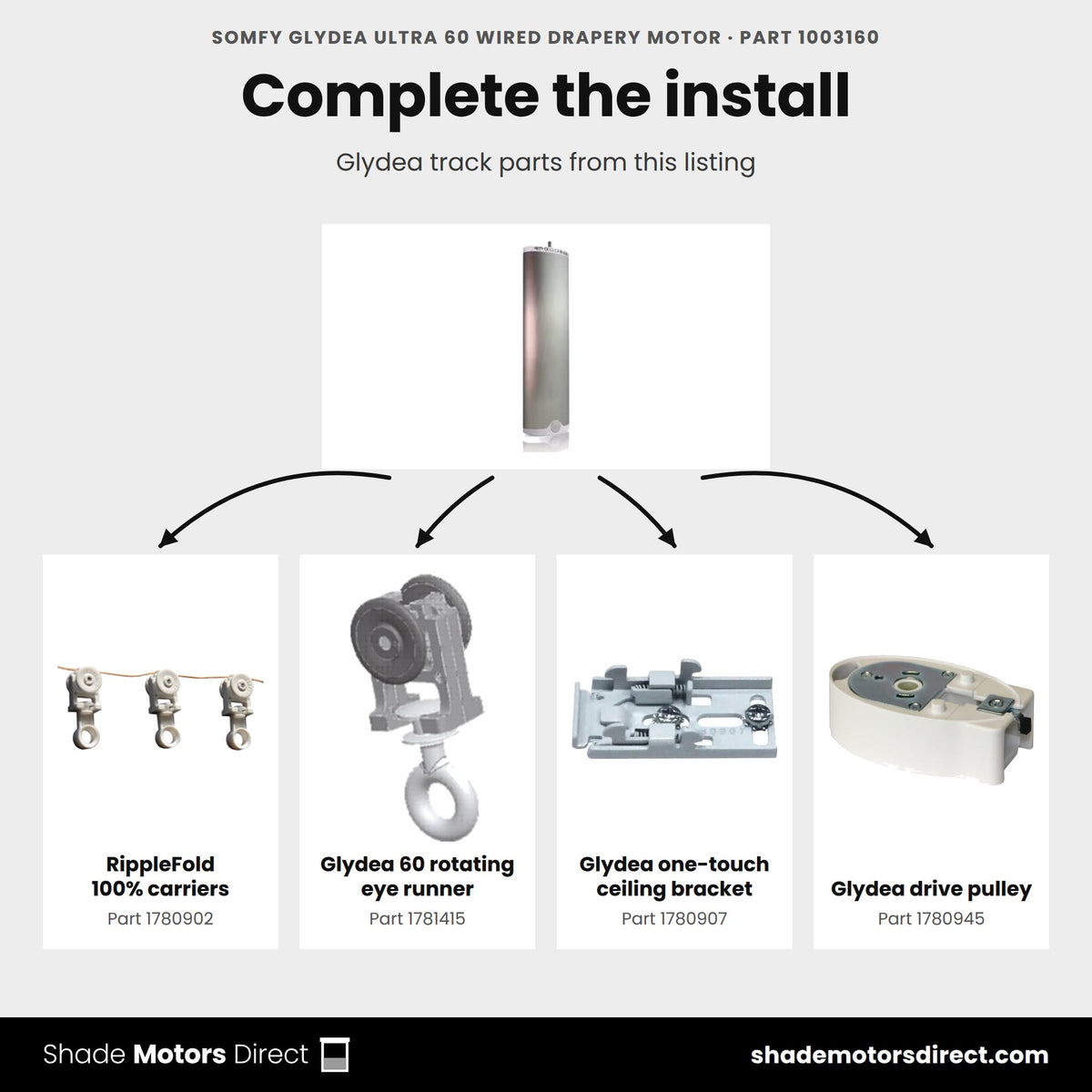

Compatible with: Somfy Glydea ULTRA drapery track, pulleys, carriers, master carriers, and mounting brackets
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What does this listing include?
This is the Glydea ULTRA 60 Wired motor unit on its own, sold without a track. Use it to build or service a Somfy Glydea ULTRA motorized drapery track where a wall switch or automation system controls the drapes.
How heavy a drapery can it move?
The Glydea ULTRA 60 traverses draperies up to 132 lb (60 kg). Somfy rates the drive at 1.1 Nm and 105 rpm, with adjustable speed and electronic limits. It drives pinch pleat, RippleFold and Accordia styles.
How is it wired?
It has a 4.92 ft white 4-wire VVF cable with stripped ends and no plug, made for hardwired installs with 4-wire mains switching. It accepts 100 to 240V AC at 50/60 Hz and draws 1 A.
How quiet is it?
Somfy rates the Glydea ULTRA 60 at 38 dB in silent mode. Soft start and soft stop give each opening and closing a gentle start and finish, a good fit for bedrooms, media rooms and offices.
How does it differ from the Glydea ULTRA 60 RTS?
Both run at 105 rpm with a 38 dB rating. The Glydea ULTRA 60 RTS (1246118) has a built-in radio receiver and a 9.84 ft cable with a NEMA plug for remote control. This Wired model takes its commands through hardwired switching.
Can I open the drapes by hand?
Yes. With Touch Motion, a gentle pull on the fabric starts the motor and it finishes the run for you. You can still move the draperies by hand if the power goes out.
Couldn't load pickup availability
Swap a Glydea motor or build a new track around it.
Replacing? Your track and curtains stay up. Building new? Our track builder counts every part.
Starting from scratch? Build a complete track with this motor.
Drive shaftSeats in the drive pulley at the end of the track.
Motor bodyRuns quietly at the end of the track.
Setup buttonUsed to program the motor.
123- 1Drive shaft Seats in the drive pulley at the end of the track.
- 2Motor body Runs quietly at the end of the track.
- 3Setup button Used to program the motor.
Replacing a motor
-
1
Cut power
Unplug the old motor or turn off its circuit before you touch the track.
-
2
Release it from the pulley
Take the old motor off the drive pulley at the end of the track.
-
3
Seat the new motor
Set it on the Glydea drive pulley. The track, belt and carriers stay put.
-
4
Wire it up
Have an electrician connect power and controls. The motor finds its own end limits.
Track from another brand, or an older Glydea? Send us a photo of the drive end. We'll tell you what fits before you order. Ask us
Building a new track
-
1
Measure the window
Measure the width the curtains need to cover.
-
2
Build it online
Enter the width and mounting style in the track builder. It counts the brackets and carriers.
-
3
Mount the track
Space the brackets, clip in the track and seat the motor at the drive end.
-
4
Wire it up
Have an electrician connect power and controls. The motor finds its own end limits.
Not sure how to measure? Send us a photo of the window. We'll size the track with you. Ask us
No track yet? Build the whole system around this motor.
Enter your window width and choose how it mounts. We cut the track to size, count the brackets and price every part before you pay. Tracks run up to 30 ft.
Build a track with this motorWhat the Glydea Ultra 60 Wired Drapery Motor, No Plug needs to run
Somfy lists every part below as compatible with part 1003160. Pick one from each row.
1Track parts
Glydea track parts Somfy lists for this motor. Replace worn ones or build out a new track.
2Also fits
Other parts Somfy lists with this product.
Somfy backs the Glydea Ultra 60 Wired Drapery Motor, No Plug for 5 years. We handle the claim.
5years
Somfy warranty on the Glydea Ultra 60 Wired Drapery Motor, No Plug, part 1003160.
- What Somfy covers
- Defects in materials and workmanship, for 5 years from purchase.
- If it fails
- Email us your order number. We arrange the replacement with Somfy.
- Where it comes from
- ShadeMotorsDirect is an authorized Somfy distributor. You get the US version, new in Somfy packaging.
- Returns
- Unopened items in original packaging. Ask us for an RA number before you ship.
- Questions
- Call or chat, 8:00 AM - 7:30 PM ET.
- Somfy documents
- Glydea ULTRA 60 Spec Sheet (PDF)Drapery Databook (PDF)

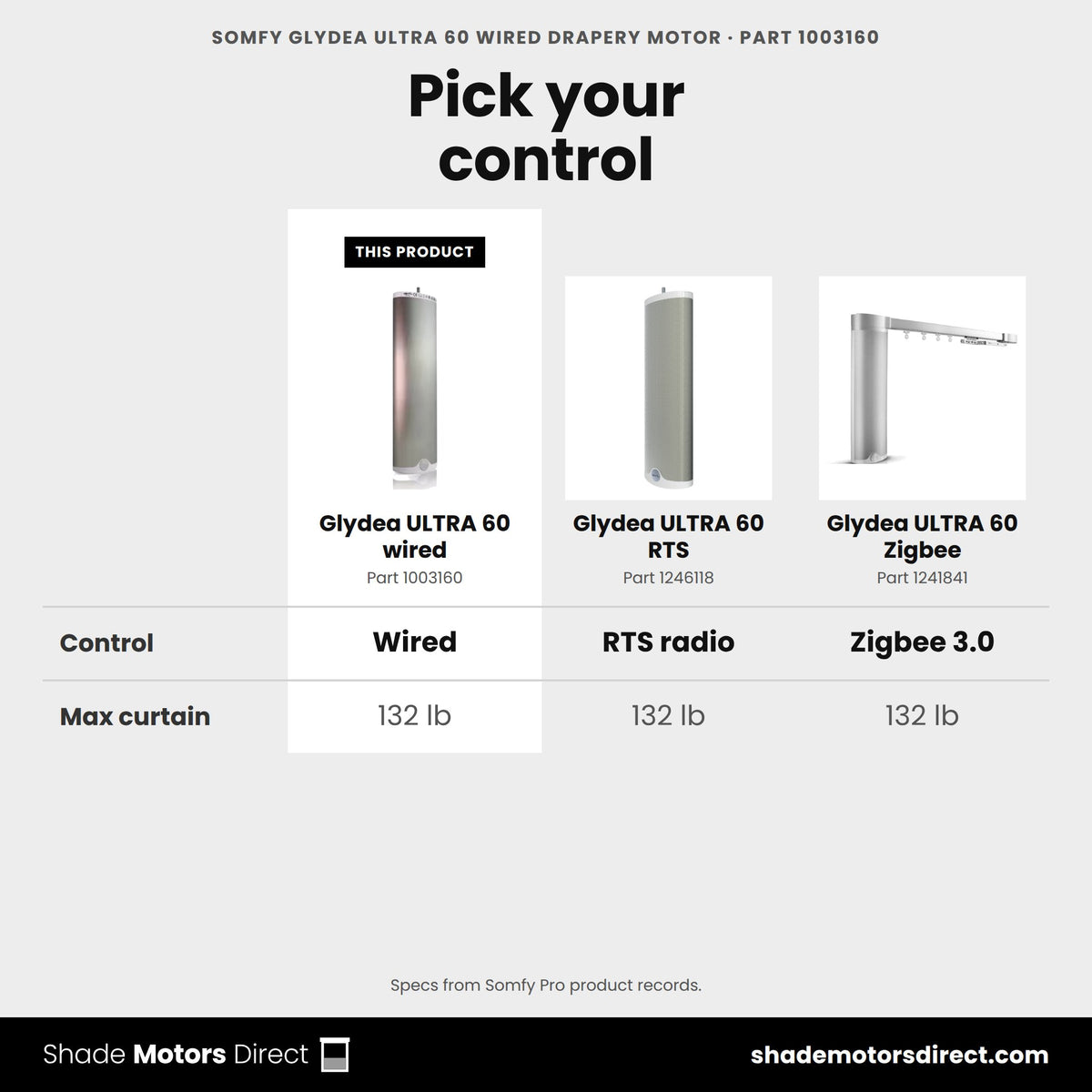

How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy Glydea Ultra 60 Wired Drapery Motor, No Plug (1003160)
|
Somfy Glydea Ultra 60 DCT Drapery Motor (1246117)
|
Somfy Glydea Ultra 35 Wired Drapery Motor, No Plug (1003153)
|
Somfy Glydea Ultra 60 RTS Drapery Motor (1246118)
|
|---|---|---|---|---|
| Price | ||||
| Torque (Nm) | 1.0 | 1.0 | — | 1.0 |
| Speed (rpm) | 105 | 105 | — | 105 |
| Max load (lb) | 132 | 132 | 77 | 132 |
| Control | Wired, no plug | Dry contact (DCT) | Wired, no plug | RTS radio |
| Power | 100-240V AC | 100-240V AC | — | 100-240V AC |
| Motor family | Glydea Ultra 60 | Glydea Ultra 60 | Glydea Ultra 35 | Glydea Ultra 60 |
| What's different | The product on this page | Same size, Dry contact (DCT) control | Holds 77 lb instead of 132 | Same size, RTS radio control |
| Buy | Currently viewing | View details | View details | View details |
Guides for this product

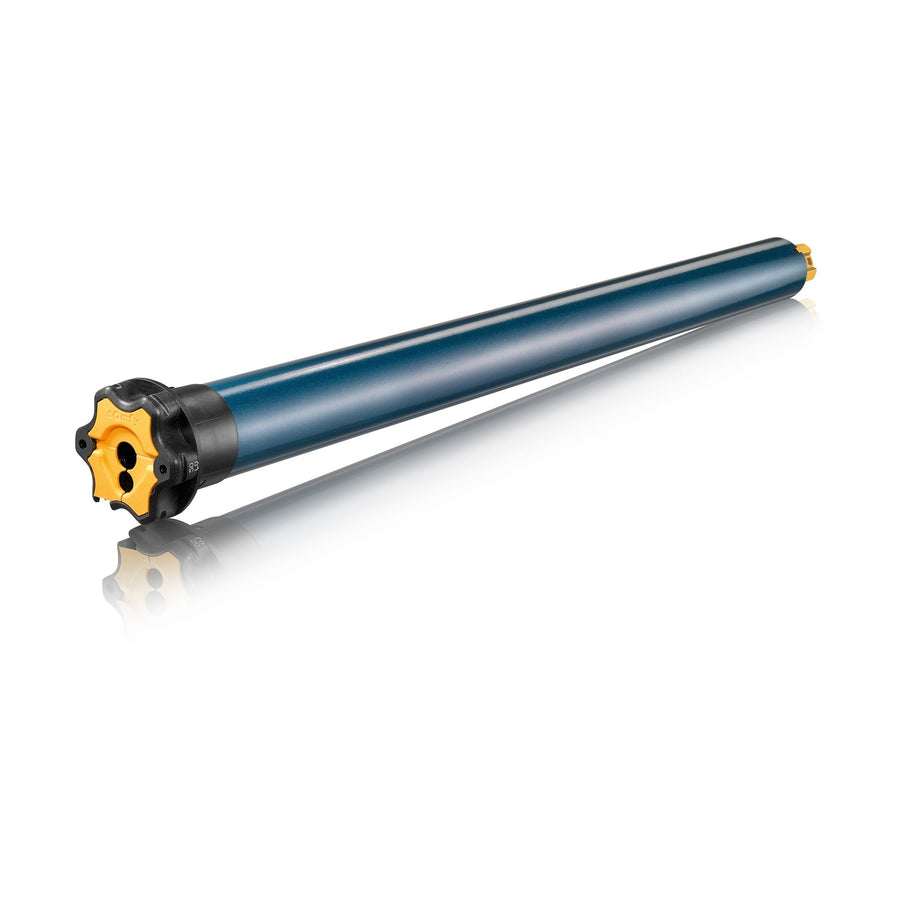

Somfy 120V Motors Compared by Torque, Tube Size and Control
