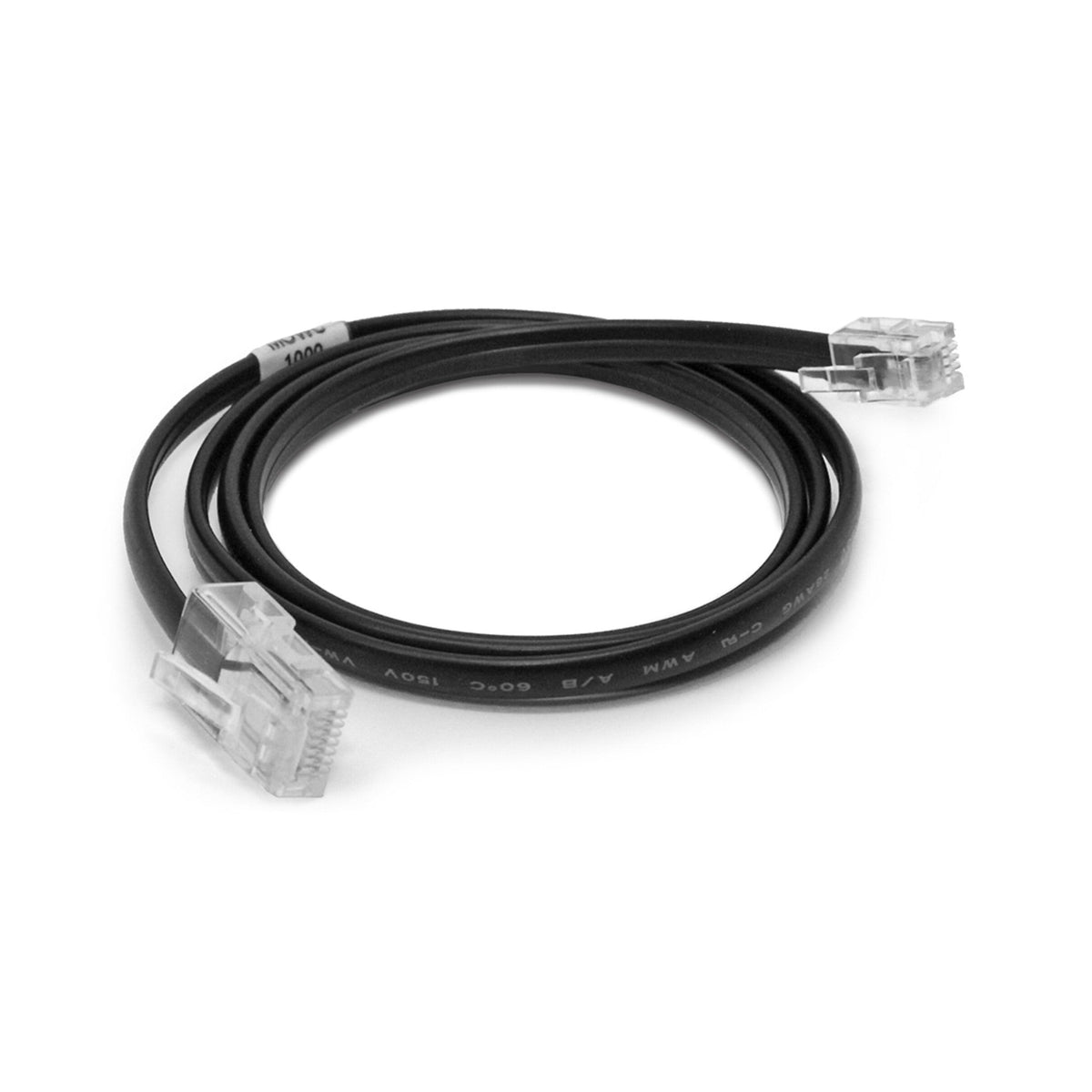

Somfy 4-Conductor 26 AWG Modular Cable, RJ9 to RJ45, 2.5 ft (Data Only, Black)

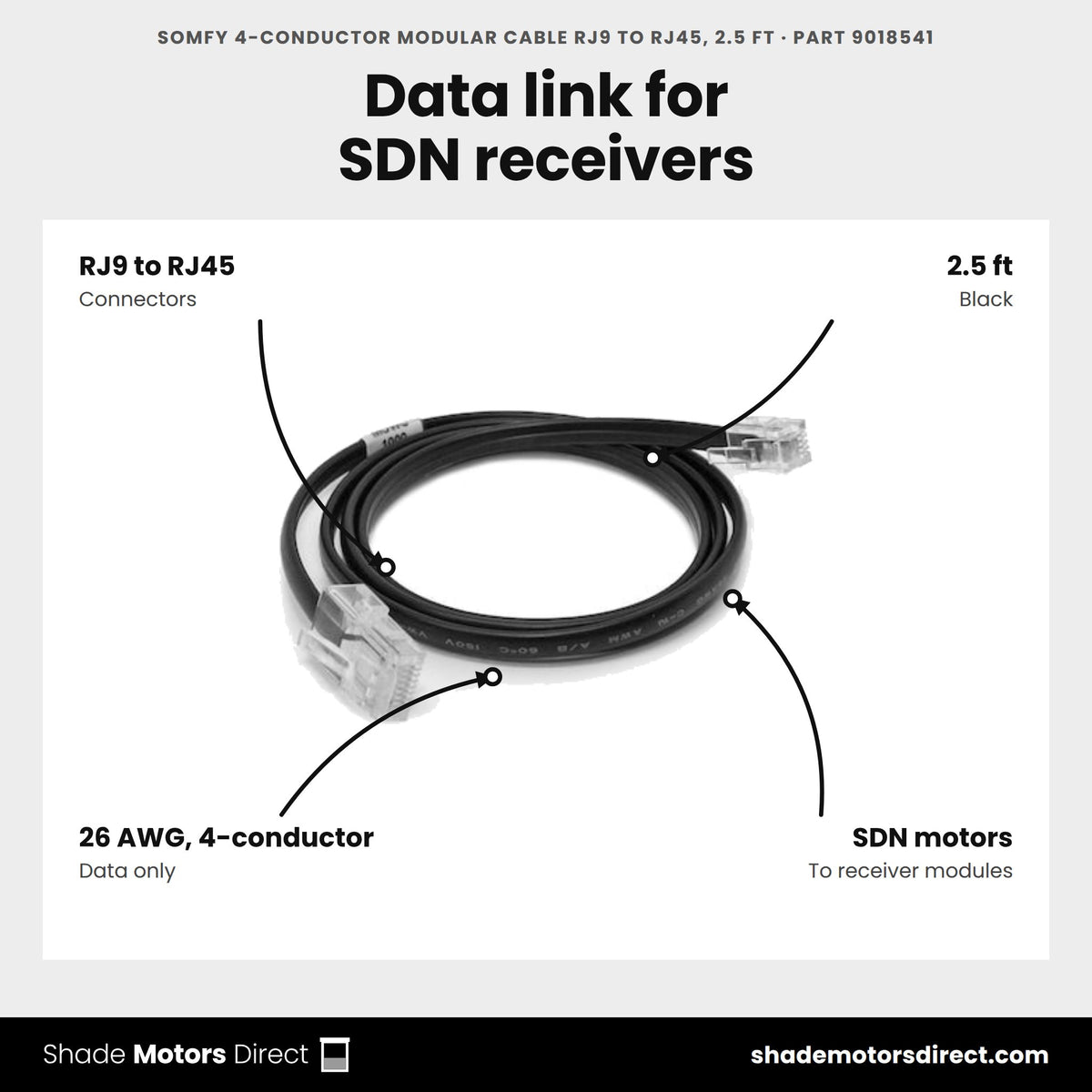

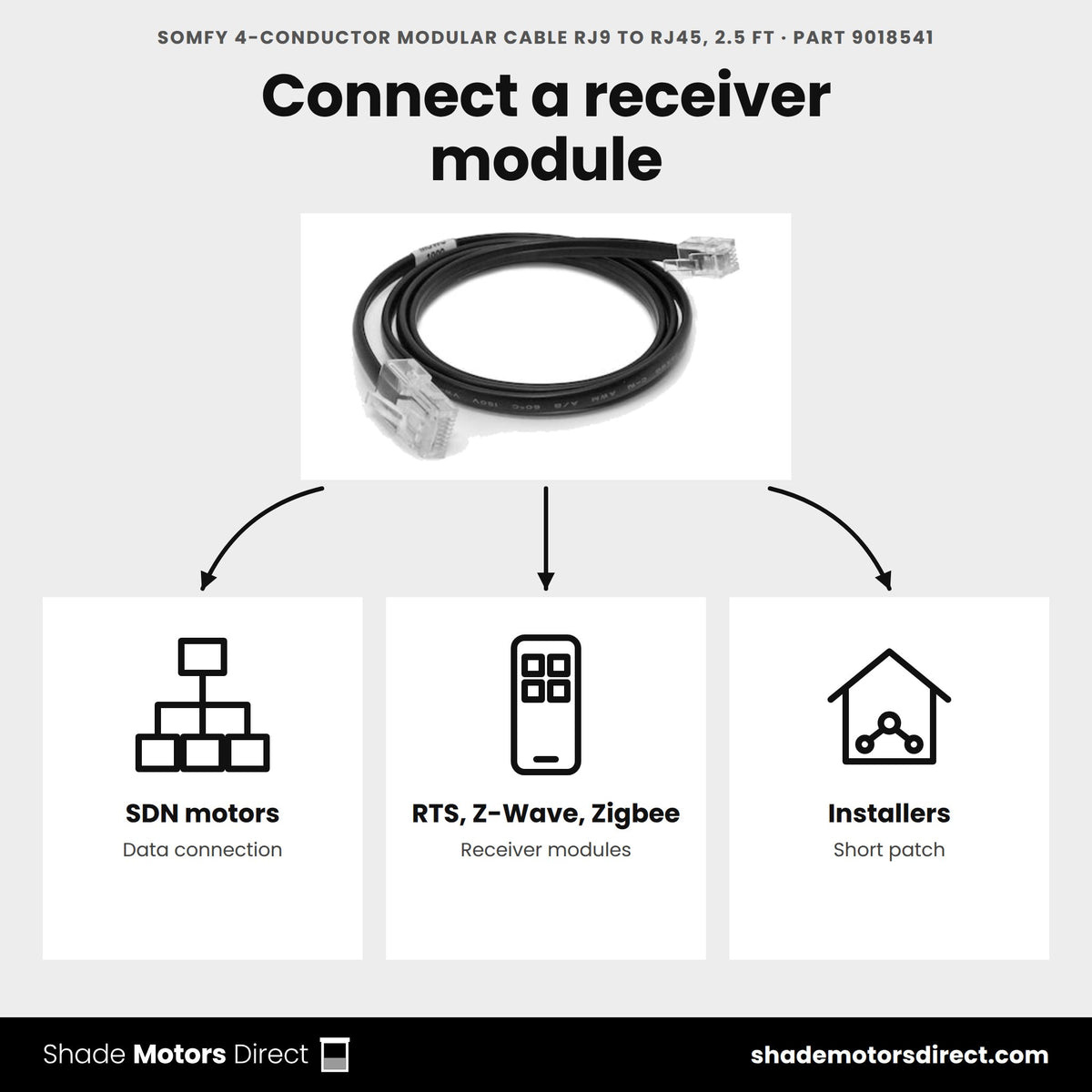

26 AWG, 4-conductor modular cable with RJ9 to RJ45 connectors, used for data-only connections between SDN motors and RTS, Z-Wave, or Zigbee receiver modules.
Specifications
| Part type | 4-conductor 26 AWG modular data cable |
| Length | 2.5 ft |
| Connectors | RJ9 to RJ45 |
| Wiring | Data only |
| Color | Black |
| Genuine part | Yes -- Somfy 9018541 |
Compatible with: RTS, Z-Wave, and Zigbee receiver modules on SDN motors
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What is the 2.5 ft cable used for?
It links Somfy RS485 motors to an RS485 digital network with a short, ready-made patch. Somfy builds it with an RJ9 connector on one end and an RJ45 connector on the other.

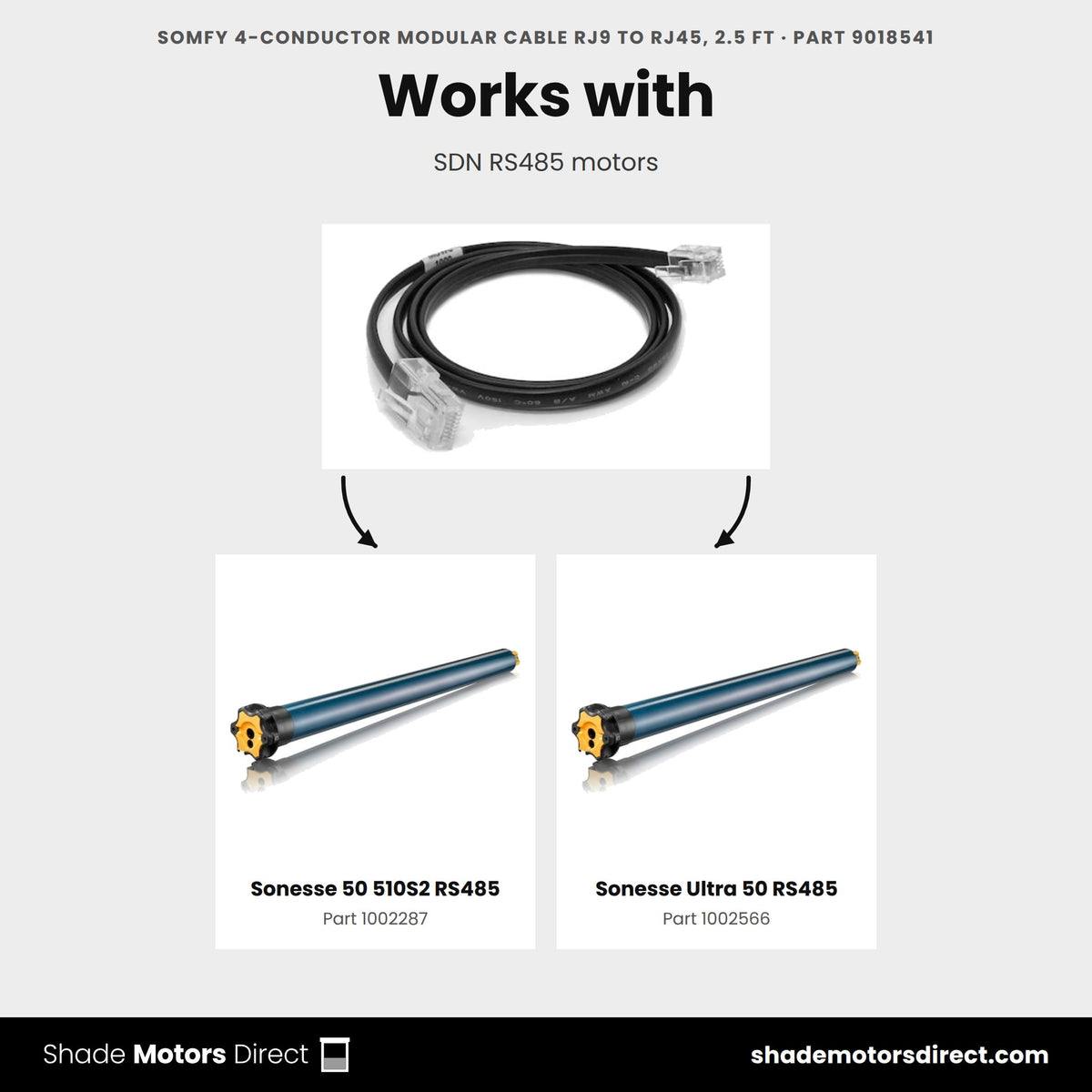

Which motors is it listed for?
Somfy lists cable 9018541 for its RS485 motors, including the Sonesse 506S2 RS485 (1002286), Sonesse 510S2 RS485 (1002287), 515S2 RS485 (1002427) and 535A2 RS485 (1002288). Each of these motors is available on this site.
Does this cable carry power?
No. Somfy rates part 9018541 as a data cable without power. When a connection needs power and data on one line, choose the grey 2.5 ft power and data version (9018545).
What are the cable specs?
Somfy lists 4 conductors at 26 AWG, a 2.5 ft length, a black jacket and RJ9 to RJ45 connectors. The black jacket marks it apart from the grey power and data cables in the range.

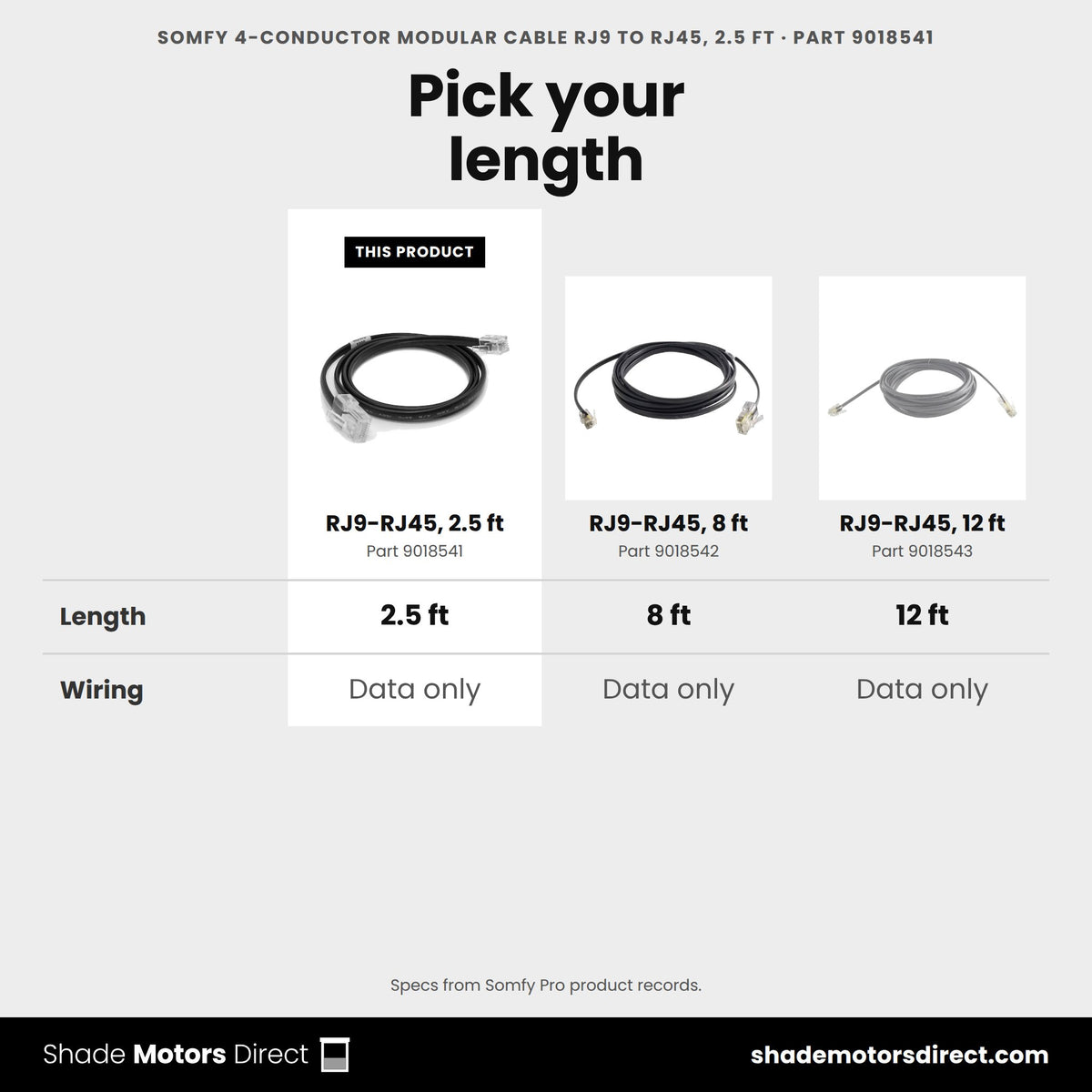

What if 2.5 ft is too short?
The same data-only cable comes in 8 ft (9018542) and 12 ft (9018543) lengths. The 2.5 ft size suits connections where the motor and network hardware sit close together and a longer cable would leave slack to manage.
What warranty does it have?
Somfy backs cable 9018541 with a 5 year warranty. It is a genuine Somfy part made for the RS485 network that Somfy RS485 motors connect to.
