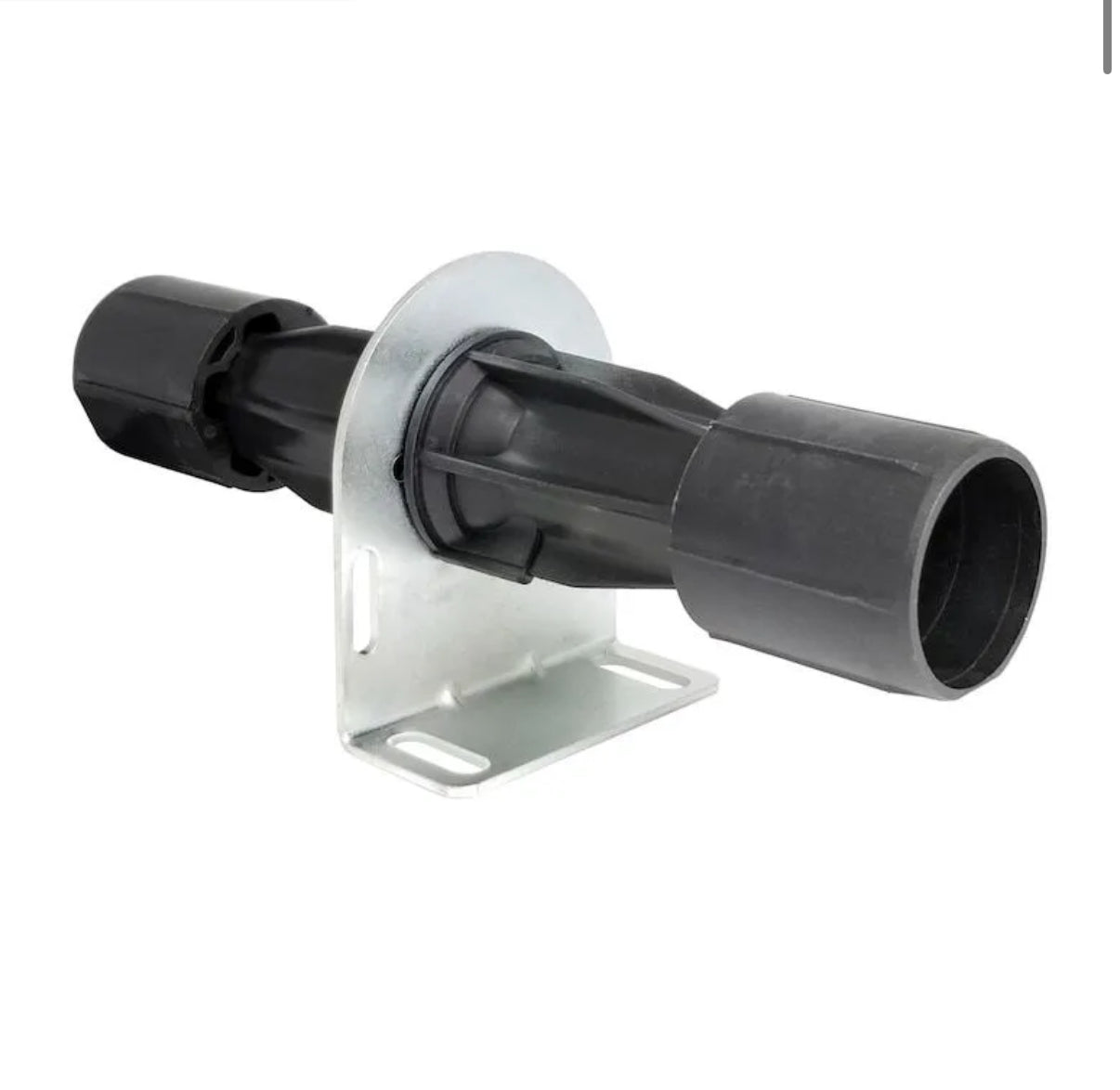

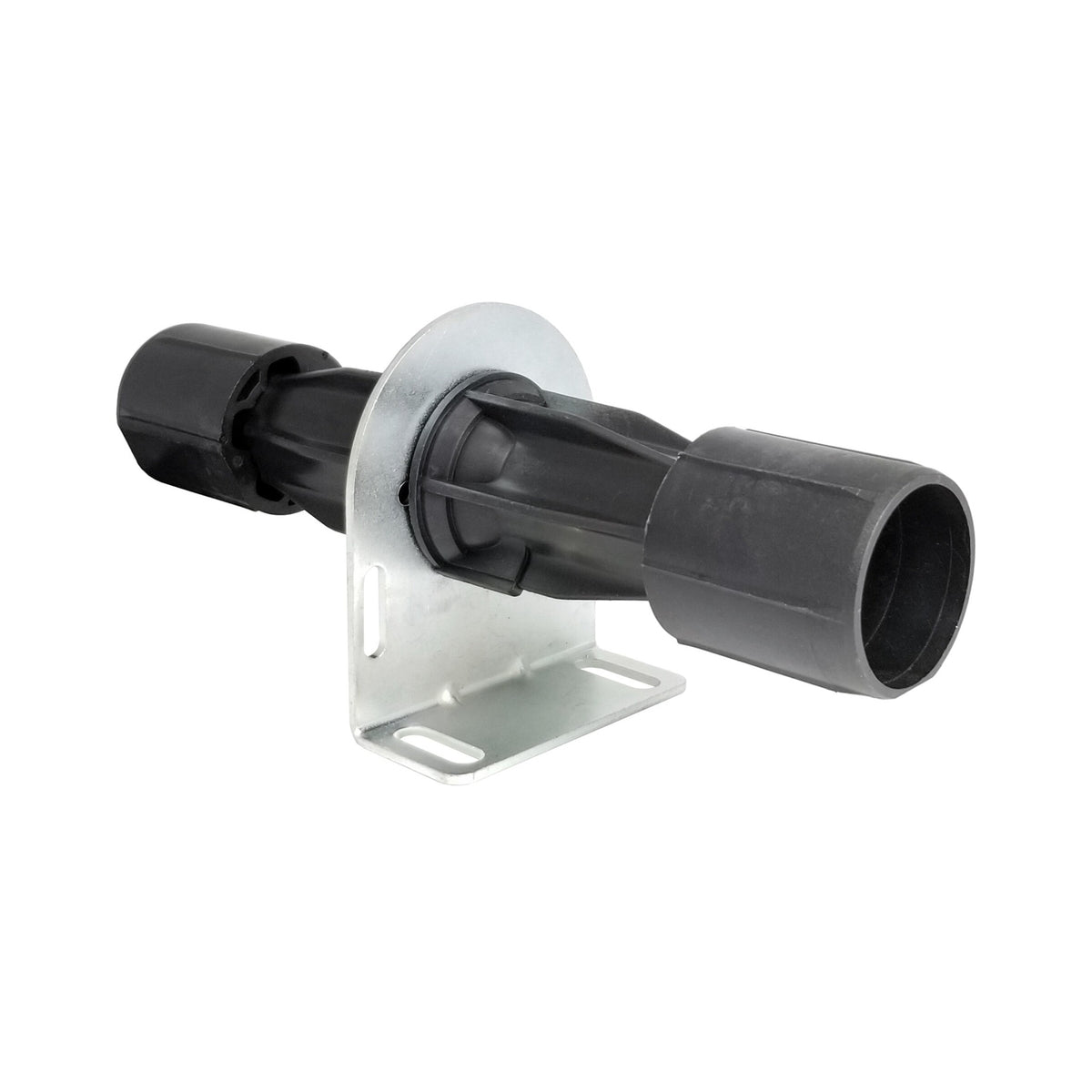

LT50 2" Universal Intermediate Bracket Kit -- drive wider shades from one LT50 motor
This universal intermediate bracket kit lets a single Somfy LT50 motor drive a wider shade by splitting a 2" roller tube into two connected sections, reducing the number of motors and brackets a wide-width installation needs.
Benefits

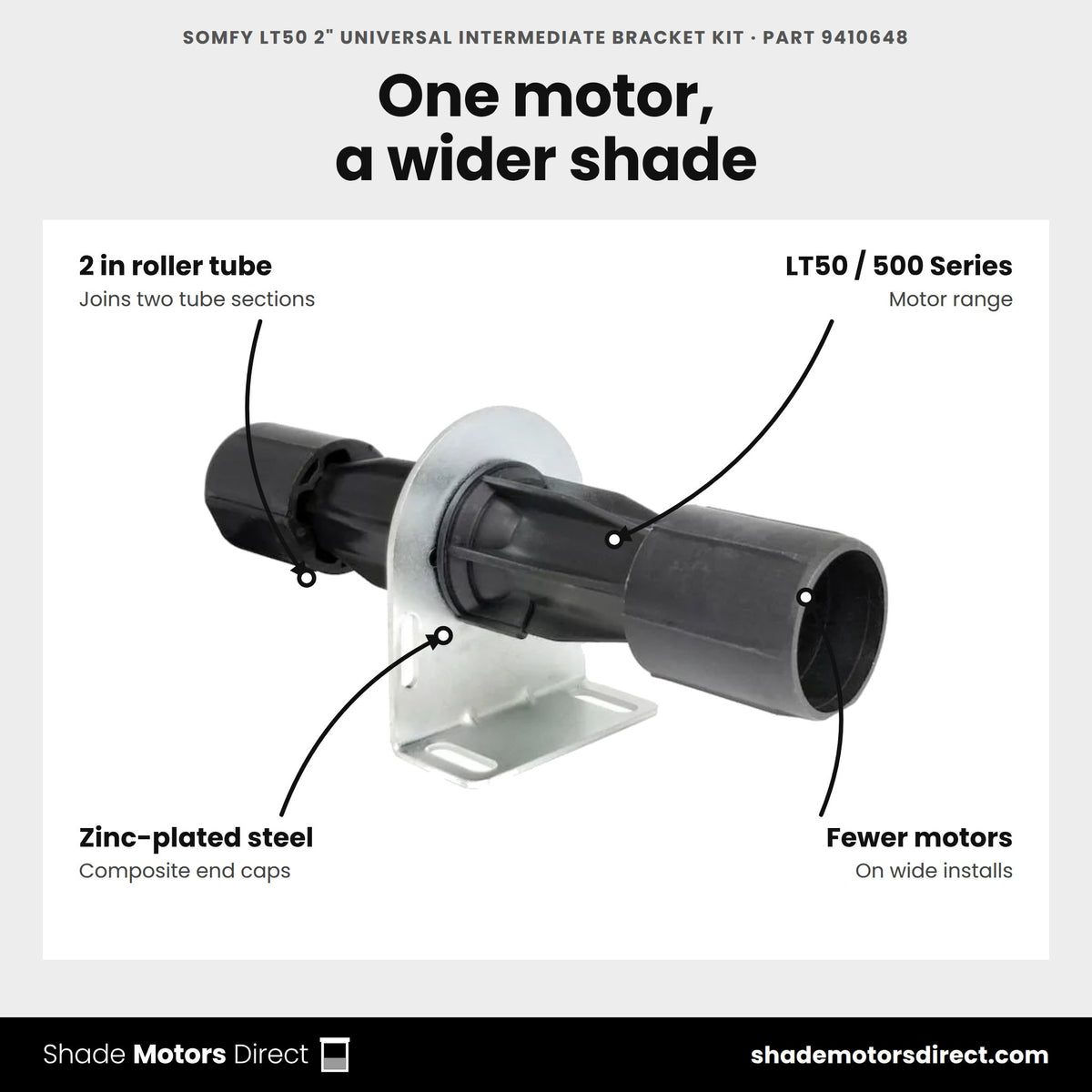

- One LT50 motor operates a wider shade by joining two tube sections
- Zinc-plated steel bracket with composite end caps for durability
- Reduces motor and bracket count on wide installations
- Genuine Somfy engineering for aligned, quiet rotation
Specifications
| Tube | 2" roller tube |
| For motors | Somfy LT50 / 500 Series |
| Construction | Zinc-plated steel, composite end caps |
Compatible with: Somfy 50mm-class (500 Series / LT50) motors including LT50, LT50 CMO, Altus RTS, Sonesse 50, and DMI5 ranges
Official Somfy documentation
- LT50 / 500 Series – Databook (PDF)
- LT50 2" Universal Intermediate Bracket Kit – Somfy Pro Product Page
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What does the intermediate bracket kit do?
It adds a support point partway along a 2 in roller tube, so one LT50 motor can drive two joined tube sections. That lowers the number of motors a wide installation needs.
How much torque can the kit handle?
Somfy rates the kit for a maximum motor torque of 15 Nm. Choose an LT50 motor at or below that rating, such as a 6 Nm or 10 Nm model, when you plan a split-tube installation.

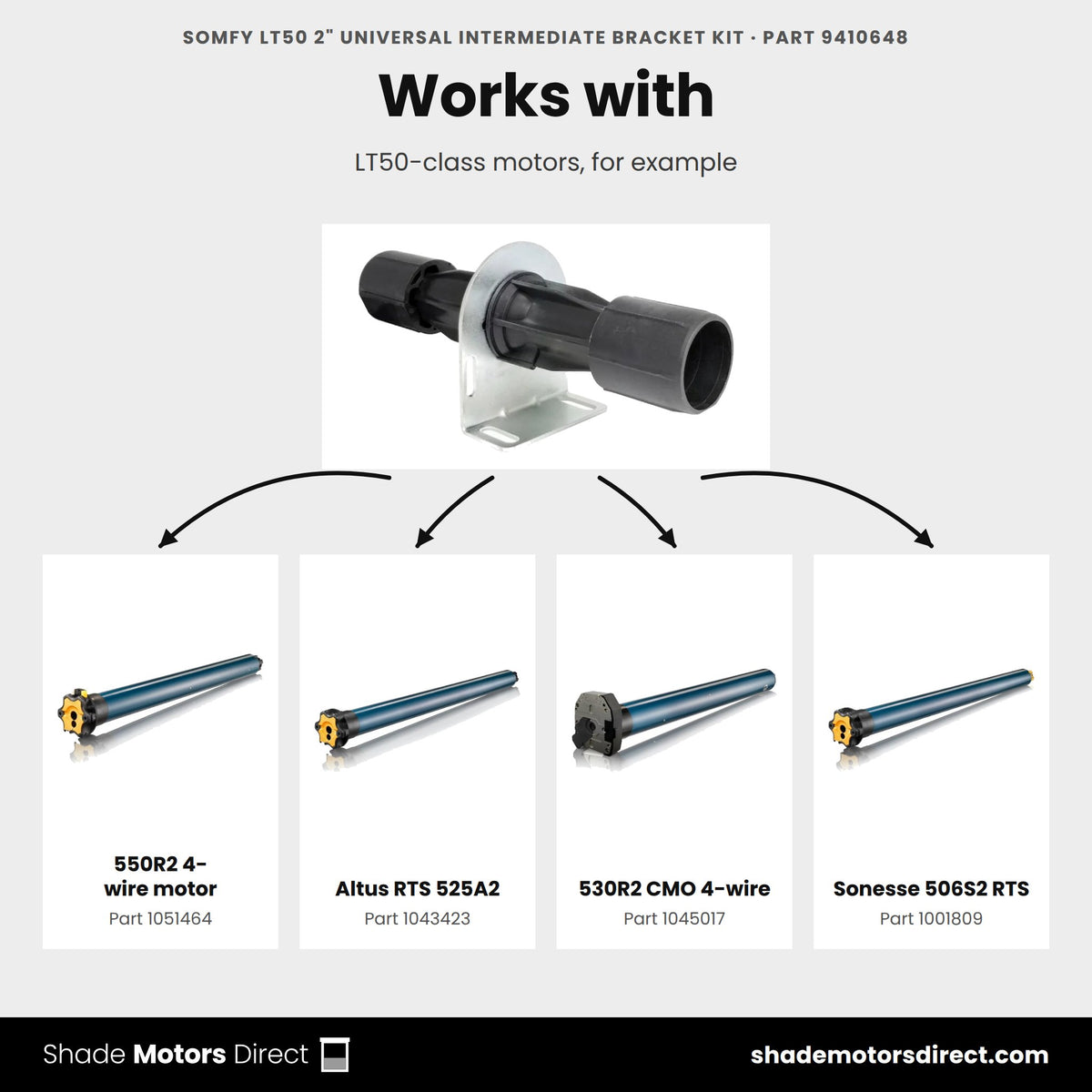

Which motors does it pair with?
Somfy lists LT50-class Altus RTS, Sonesse, Maestria RTS, Oximo RTS, Orea RTS and 4-wire motors. Within the 15 Nm limit, options here include the Sonesse 506S2 RTS 120V (1001809) and the Sonesse 510S2 RTS 120V (1001807).
What is the kit made of?
The bracket is zinc-plated steel with composite end caps. Somfy describes the kit as a plug end bearing intermediate bracket kit for LT50 motors on 2 in tube.

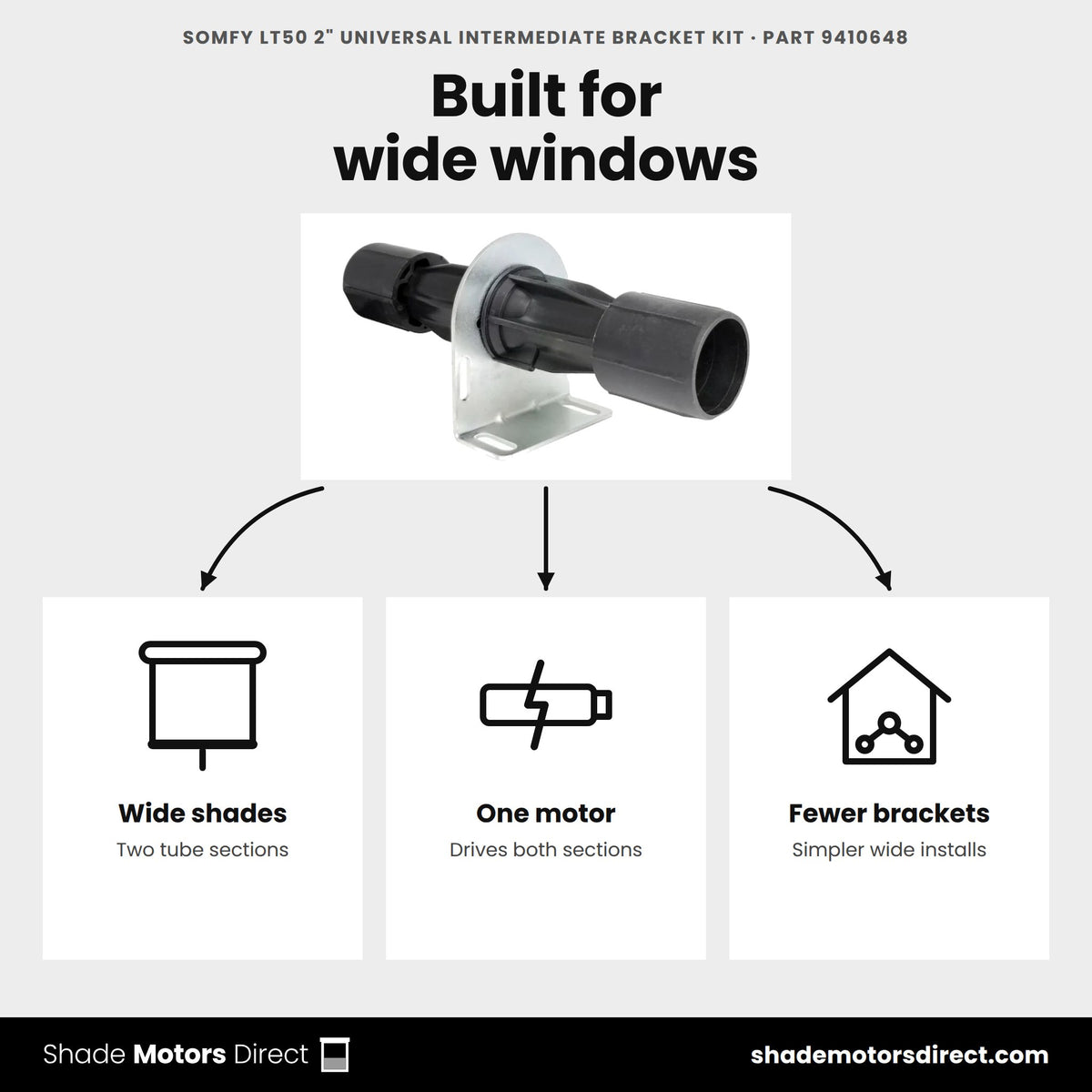

What applications is it used for?
Somfy lists the kit for rolling shutters. It suits wide openings where two tube sections share one LT50 motor on 2 in tube, and it carries a 5-year Somfy warranty.
Which drive goes with it?
Match the drive to the same 2 in tube, such as the LT50 2 in Hard Clip Drive (9206088). The drive locks the motor to the tube so both joined sections turn together.
