Module 1 of 5
What the versions share
The figures every wired Sonesse 30 has in common. After this module you know when a Sonesse 30 fits the shade at all.
2 lessons, then a scenario check.
Shade Motors School · Pick the Motor · 201
Somfy Sonesse 30: Pick the RTS, Zigbee, DCT, RS485 or WireFree Version
The Sonesse 30 is Somfy's small 24V DC shade motor, built in several control versions plus a battery model. Learn what the versions share, how they differ, how to power them, the WireFree option, and the tube parts that fit.
You will be able to: Choose the right Sonesse 30 version and its power supply for a small-tube shade.
Inside this course
5 modules, one idea at a time
- What the versions shareThe figures every wired Sonesse 30 has in common. After this module you know when a Sonesse 30 fits the shade at all.2 lessons · scenario check
- Pick by controlHow the four wired versions differ. After this module you can match the version to the control system on site.3 lessons · scenario check
- Power the wired versionsThe supplies Somfy lists for 24V DC motors. After this module you can power one motor or a whole room.3 lessons · scenario check
- The WireFree optionThe battery Sonesse in the same size. After this module you can offer a no-wire Sonesse 30.3 lessons · scenario check
- Tube parts that fitThe crowns, drives and plates Somfy lists for the Sonesse 30 by tube and bracket system. After this module you can complete the parts list so the motor drops into the tube on install day.2 lessons · scenario check
- Final quiz10 real job scenarios, one per screen, each with a hint if you need it. Score 80% to pass and get your certificate.
What the versions share
Same motor body
Somfy lists the RTS, Zigbee, DCT and RS485 versions at 2 Nm and 25 rpm, 24V DC, with a 1.13 in minimum tube inside diameter, a round head and 47 dB.
On the jobSize the shade on 2 Nm first. The control version does not add lift.
What the versions share
The RTS version

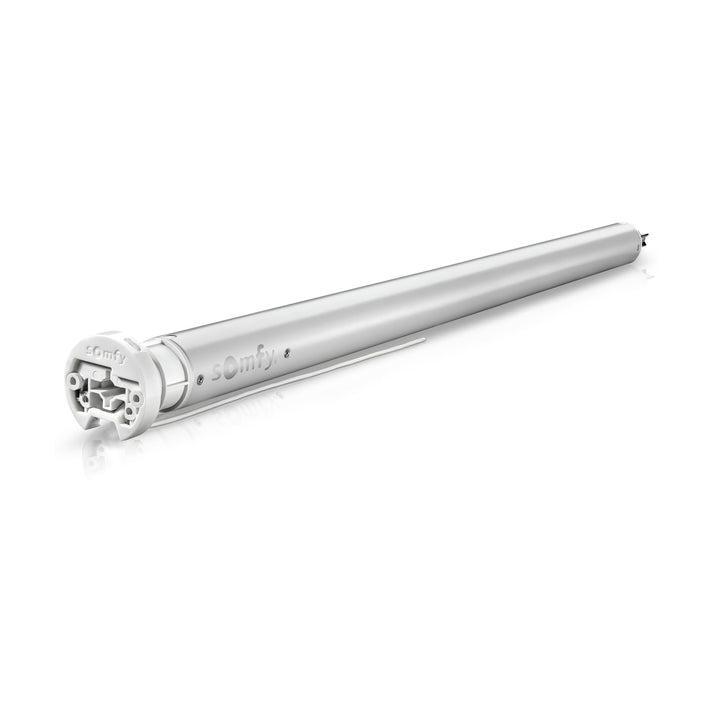

The Sonesse 30 RTS 24V DC (1241142) has a built-in RTS receiver with 12 channels and 656.2 ft open-field range.
ExampleA small kitchen shade that needs a remote and nothing more takes the RTS version.
Check yourself
A shade needs 3 Nm on a 1.25 in tube. Does a Sonesse 30 fit?
Hint: Check the torque.
No. Somfy lists every wired Sonesse 30 at 2 Nm.
Module 2 of 5
Pick by control
How the four wired versions differ. After this module you can match the version to the control system on site.
3 lessons, then a scenario check.
Pick by control
Four control versions
RTS takes radio remotes. Zigbee joins TaHoma and acts as a mesh router. DCT takes dry contacts. RS485 runs on SDN and is set up with RS485 tools.
Watch forOrder the version that matches the control system, not the cheapest one.
Pick by control
Zigbee routes the mesh

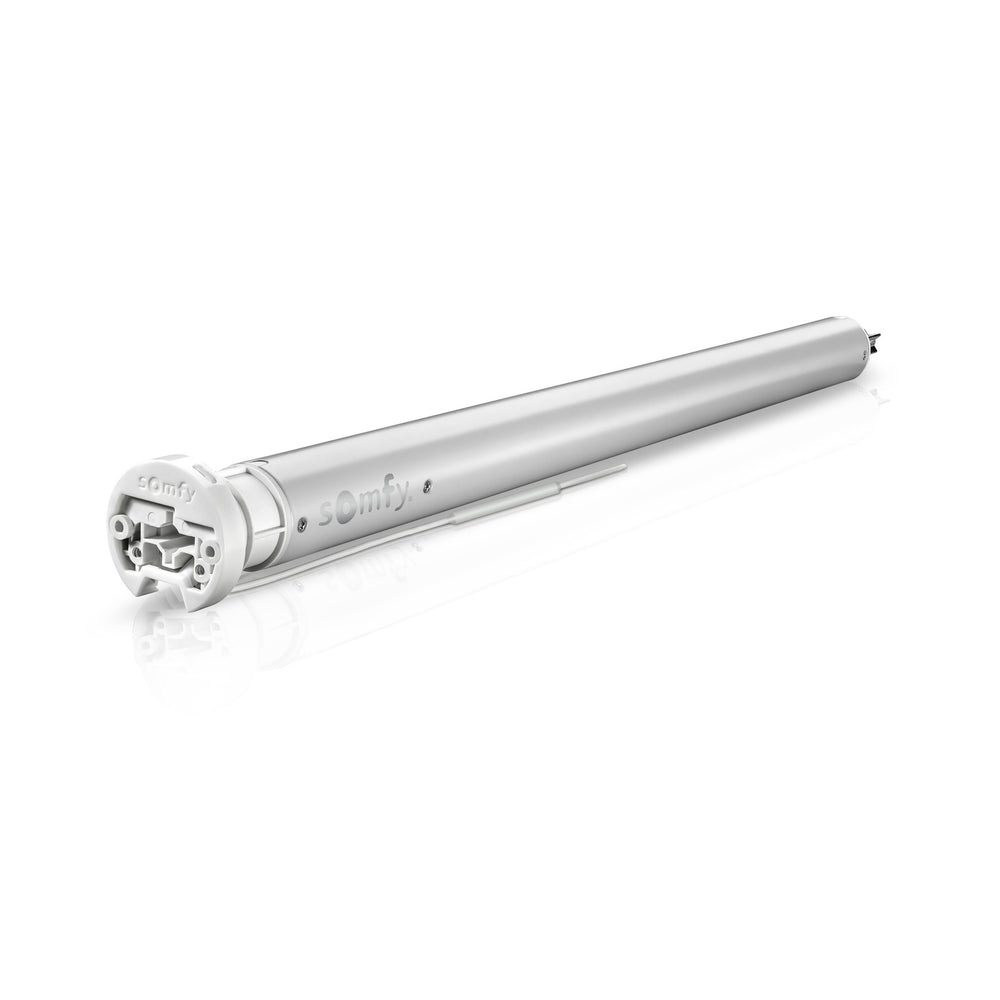

Somfy says the Sonesse 30 Zigbee 24V DC (1241970) acts as a Zigbee mesh router to extend radio range. It lists 492.15 ft open field.
ExampleA powered Zigbee shade can carry the signal to battery shades further away.
Pick by control
DCT and RS485 setup

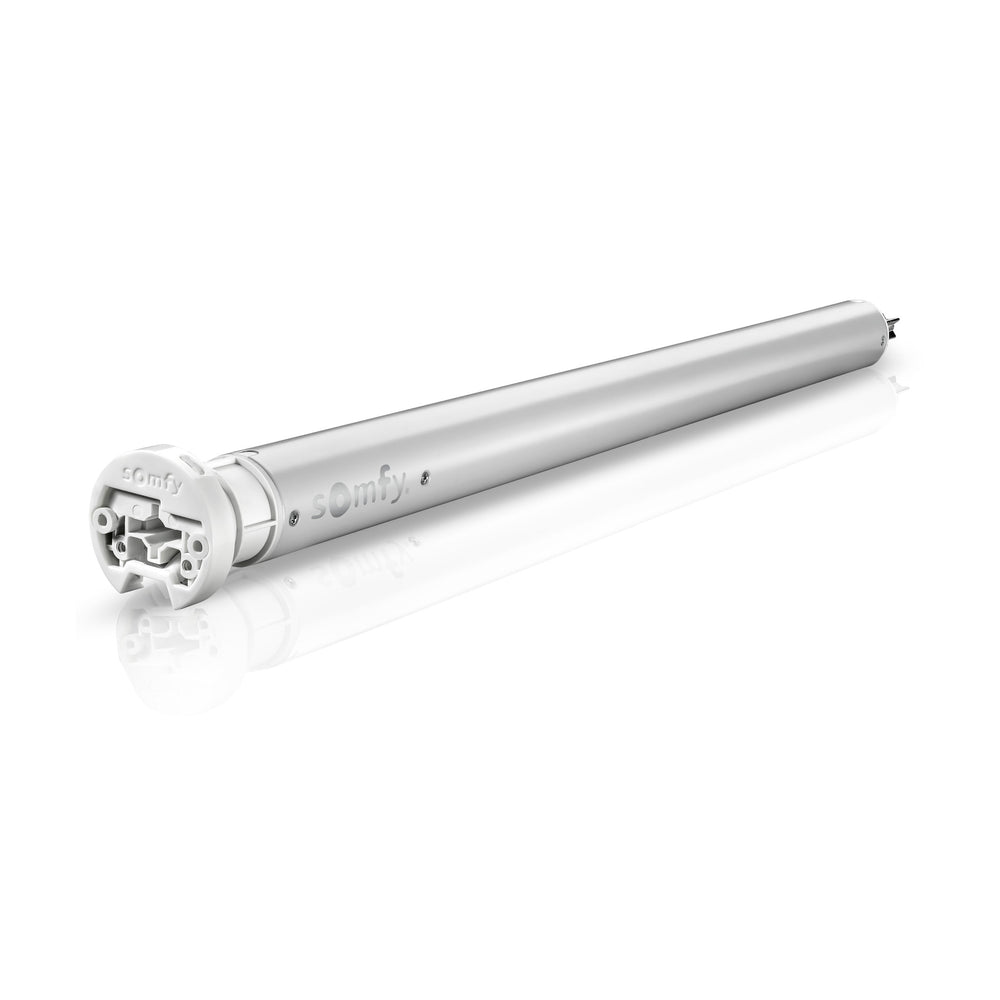

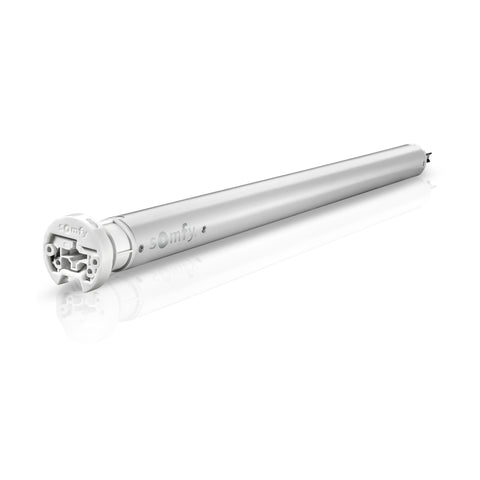

The DCT version (1241146) sets limits through its dry contact connections, and Somfy lists the 9014599 tool for it. The RS485 version (1241144) is set up with RS485 software tools.
On the jobBring the right setting tool. DCT and RS485 do not program from an RTS remote.
Check yourself
A building runs SDN. Which Sonesse 30?
Hint: SDN is RS485.
The RS485 version 1241144, which runs on SDN.
Module 3 of 5
Power the wired versions
The supplies Somfy lists for 24V DC motors. After this module you can power one motor or a whole room.
3 lessons, then a scenario check.
Power the wired versions
One motor

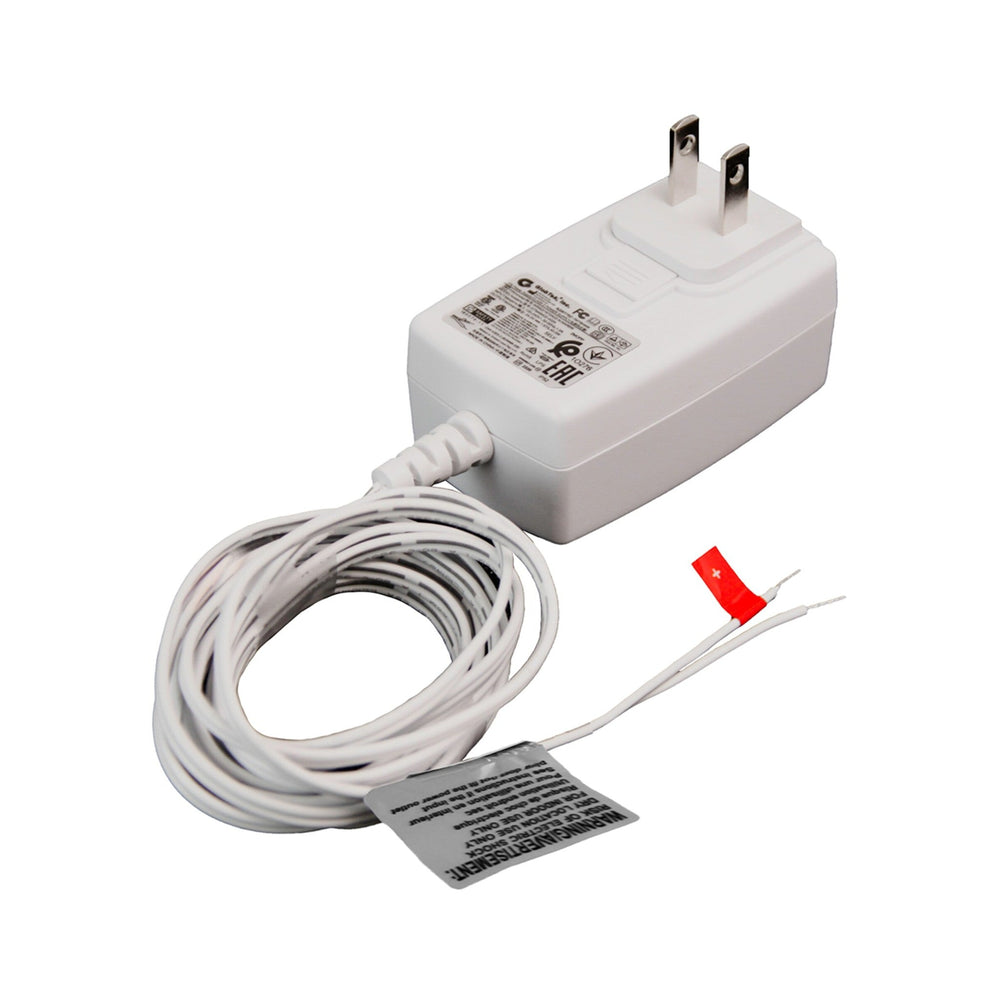

Somfy lists the 24V DC 1.67A wall-mount power supply (1822209) as compatible with the Sonesse 30 RTS, Zigbee, DCT and RS485 24V DC motors.
ExampleA single shade by an outlet runs from one plug-in supply.
Power the wired versions
Many motors

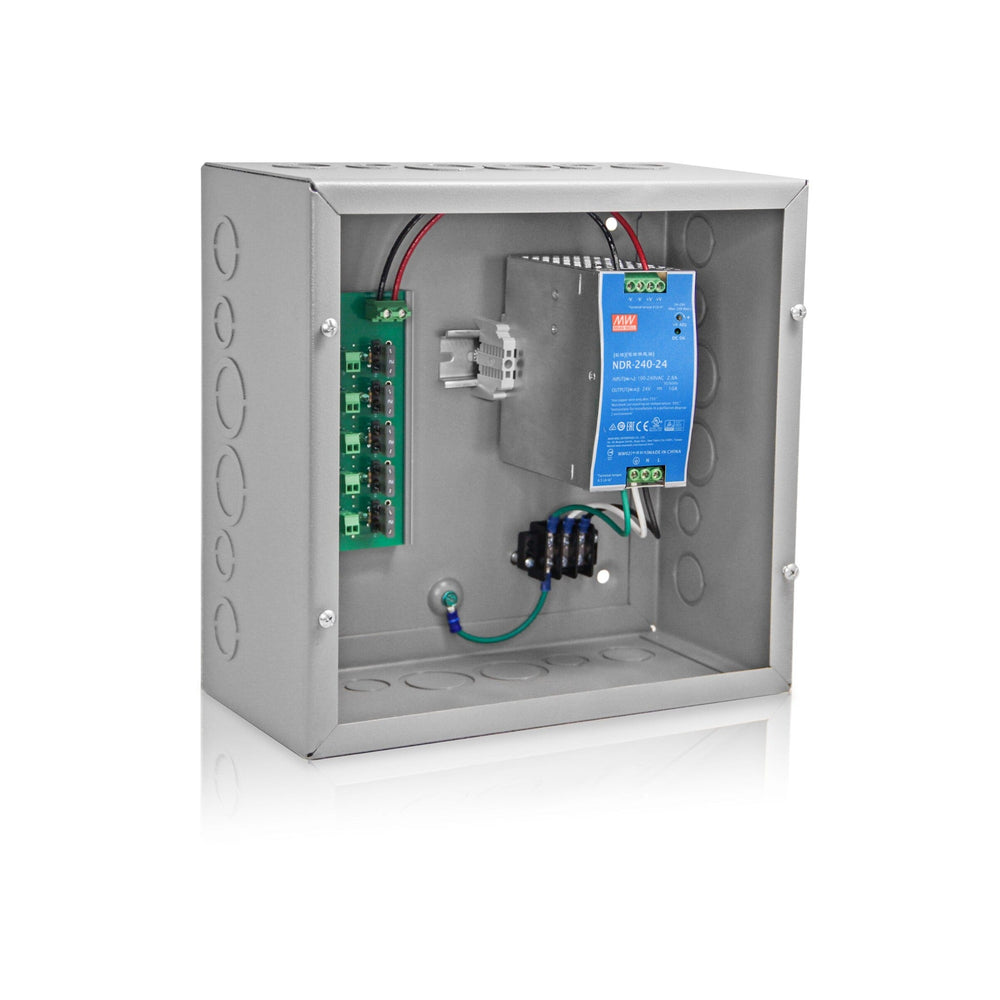

Power Distribution Enclosure Kits feed up to 5, 10, 15 or 20 24V DC motors from a 120V AC input, with a fused output and LED for each motor.
On the jobPick the next kit size up so a room can grow.
Power the wired versions
Kit sizes
Somfy lists the kits as 1870196 for 5 motors, 1870192 for 10, 1870197 for 15 and 1870198 for 20.
Watch forThe enclosure takes a 120V AC input. A licensed electrician makes that connection.
Check yourself
Eight Sonesse 30 shades share a room. Which power part?
Hint: Next size up from eight.
A Power Distribution Enclosure Kit for 10 motors, 1870192.
Module 4 of 5
The WireFree option
The battery Sonesse in the same size. After this module you can offer a no-wire Sonesse 30.
3 lessons, then a scenario check.
The WireFree option
Sonesse ULTRA 30 WireFree RTS
Somfy lists the Sonesse ULTRA 30 WireFree RTS (1003310) at 2 Nm and 20 rpm, with a built-in 12V Li-ion battery, 42 dB and a 4 min thermal time.
ExampleA bedroom with no outlet near the window takes the WireFree version.
The WireFree option
The current part number
Somfy marks the earlier Sonesse 30 WireFree RTS (1003128) as replaced by the ULTRA 30 WireFree RTS (1003310).
On the jobQuote 1003310 on new work.
The WireFree option
Charging parts
Somfy lists the Lithium-ion Charger (V2 Head) 9025166 and the solar kit 9027294 for the ULTRA 30 WireFree RTS. It is rated at one cycle a day.
Watch forA shade run many times a day suits a wired version better.
Check yourself
A client wants a Sonesse 30 with no wiring. Which part do you quote?
Hint: Somfy names the current part.
The Sonesse ULTRA 30 WireFree RTS 1003310.
Module 5 of 5
Tube parts that fit
The crowns, drives and plates Somfy lists for the Sonesse 30 by tube and bracket system. After this module you can complete the parts list so the motor drops into the tube on install day.
2 lessons, then a scenario check.
Tube parts that fit
Crown and drive by tube

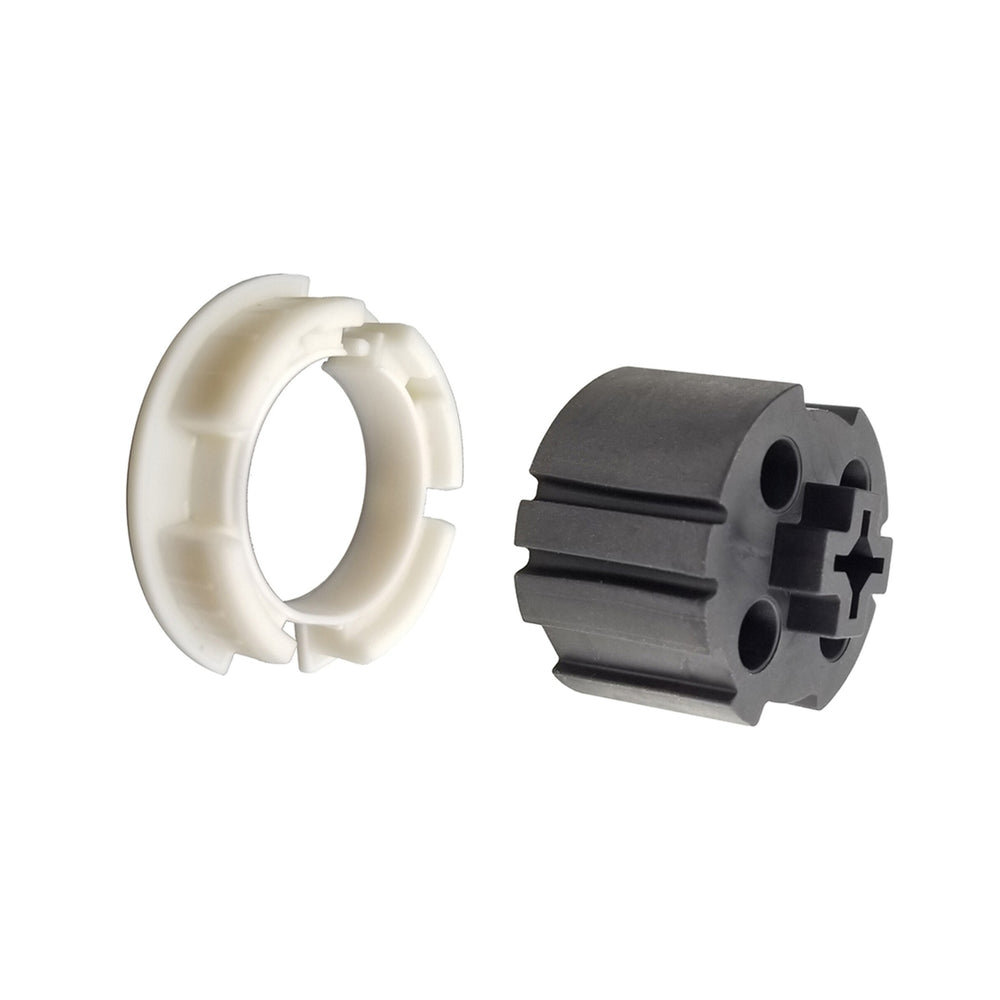

Somfy lists crown and drive sets for the Sonesse 30 by tube system, such as the RollEase 1.5 in set 9020674.
ExampleA RollEase 1.5 in tube takes the 9020674 set.
Tube parts that fit
Brackets and plates
Somfy lists motor plates and adaptors for other bracket systems, such as the RollEase SkyLine and ZMC XL adaptor plate 9016378.
On the jobConfirm the bracket system on site, then pick the plate that matches.
Check yourself
A Sonesse 30 goes into a RollEase 1.5 in tube. Which crown and drive?
Hint: Match the tube system.
The RollEase 1.5 in crown and drive 9020674.
Final quiz
10 questions. Score 80% to pass.
Each question is a real job scenario, one per screen. Stuck? Tap the hint. You see the right answer and why right after you choose. Pass and you get a printable certificate, plus a 10% code for your first ShadeMotorsDirect order.
Question 1 of 10
On the job: A shade needs 1.8 Nm on a 1.25 in tube.
Does a wired Sonesse 30 fit on torque?
Hint: Check the shared torque.
Somfy lists 2 Nm and a 1.13 in minimum tube ID.
Question 2 of 10
On the job: You need the head type for a bracket.
What does Somfy list?
Hint: Same body.
All four list a round head.
Question 3 of 10
On the job: The house runs TaHoma and Zigbee.
Which version?
Hint: Match the radio.
The Zigbee version joins TaHoma.
Question 4 of 10
On the job: A control processor has relay outputs only.
Which version?
Hint: Contacts.
DCT takes dry contacts.
Question 5 of 10
On the job: You need a powered Zigbee shade that extends range.
What does Somfy say about 1241970?
Hint: Router.
Somfy says it extends radio range.
Question 6 of 10
On the job: One Sonesse 30 sits by an outlet.
Which supply?
Hint: One motor.
Somfy lists 1822209 for all four.
Question 7 of 10
On the job: Fourteen motors share a room.
Which enclosure kit?
Hint: Next size up.
The 15-motor kit covers fourteen.
Question 8 of 10
On the job: You quote a no-wire Sonesse 30 RTS.
Which part?
Hint: The current part.
Somfy lists 1003128 as replaced by 1003310.
Question 9 of 10
On the job: A WireFree shade will run many times a day.
What do you check?
Hint: Read the cycles.
Somfy rates the ULTRA 30 WireFree at one cycle a day.
Question 10 of 10
On the job: A Sonesse 30 goes into a RollEase 1.5 in tube.
Which crown and drive?
Hint: Match the tube.
Somfy lists 9020674 for RollEase 1.5 in.
