Somfy Tilt 50 Low Profile Headrail Adaptor for Through-Shaft, 38 x 57 mm -- genuine Somfy accessory for the Tilt 50 WireFree system

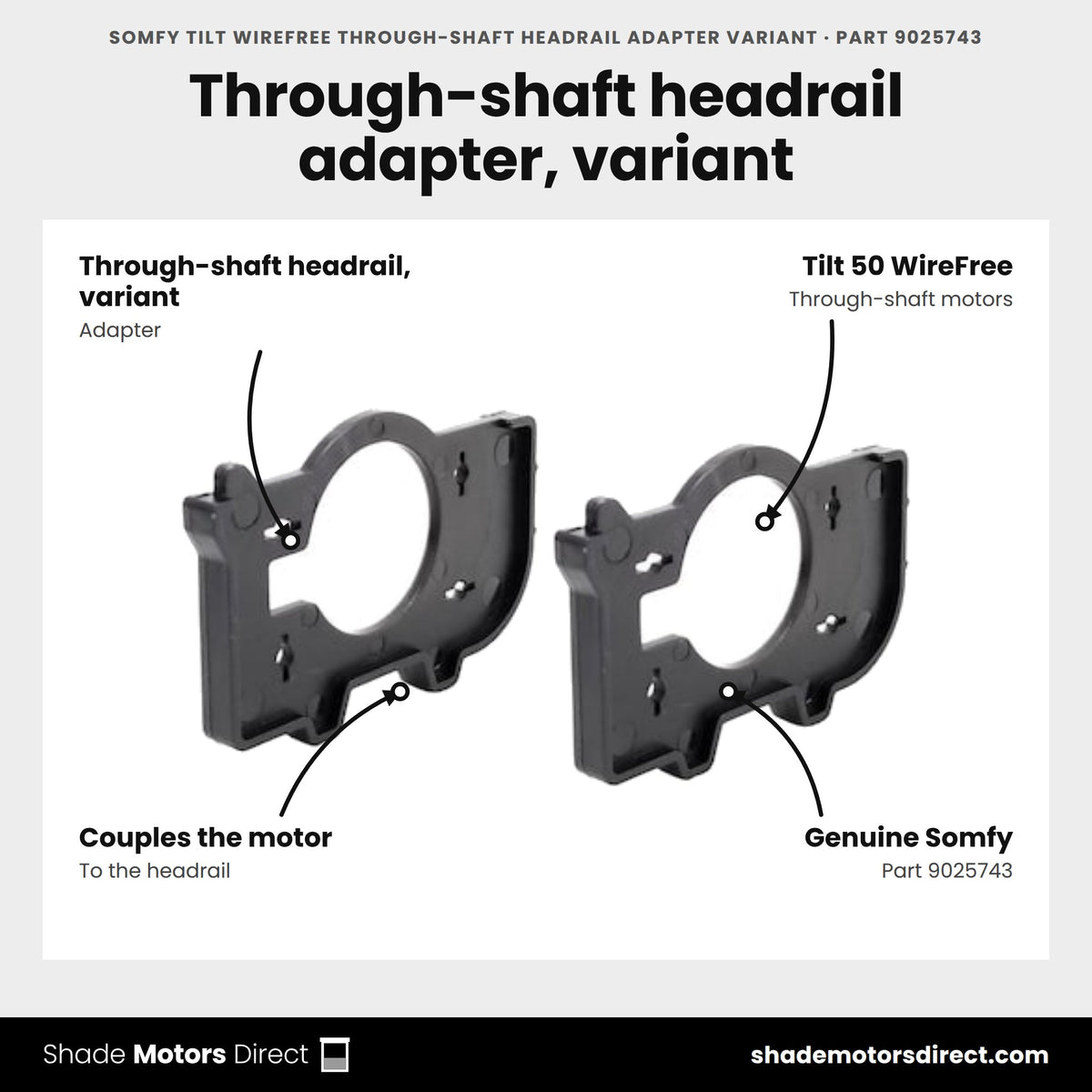

The low profile headrail adaptor (38 x 57 mm) that mounts the Tilt 50 WireFree Through-Shaft motor (RTS 1240276 or Zigbee 1241783) in low profile headrails. Genuine Somfy part 9025743, matched to the Tilt 50 WireFree range so replacements and new installs use the exact hardware the system was engineered around.
Benefits
- Genuine Somfy part (9025743) -- exact fit, no adaptation needed
- Purpose-made for Somfy Tilt 50 WireFree through-shaft tilt motors
- Matches the factory hardware used across the Tilt 50 WireFree family
- Direct replacement for worn or missing installation hardware
- Backed by Somfy documentation for correct installation
Specifications
| Part type | Low Profile headrail adaptor, plastic |
| Headrail size | 38 x 57 mm |
| Fits | Somfy Tilt 50 WireFree through-shaft tilt motors |
| Genuine part | Somfy 9025743 |
Compatible with: Somfy Tilt 50 WireFree Through-Shaft RTS (1240276) and Zigbee (1241783) motors.
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What does this headrail adaptor do?
It fits a Somfy Tilt 50 WireFree through-shaft motor into a low-profile headrail. Somfy names part 9025743 the Low Profile Headrail Adaptor for Through-Shaft and sizes it for a 38 x 57 mm headrail.

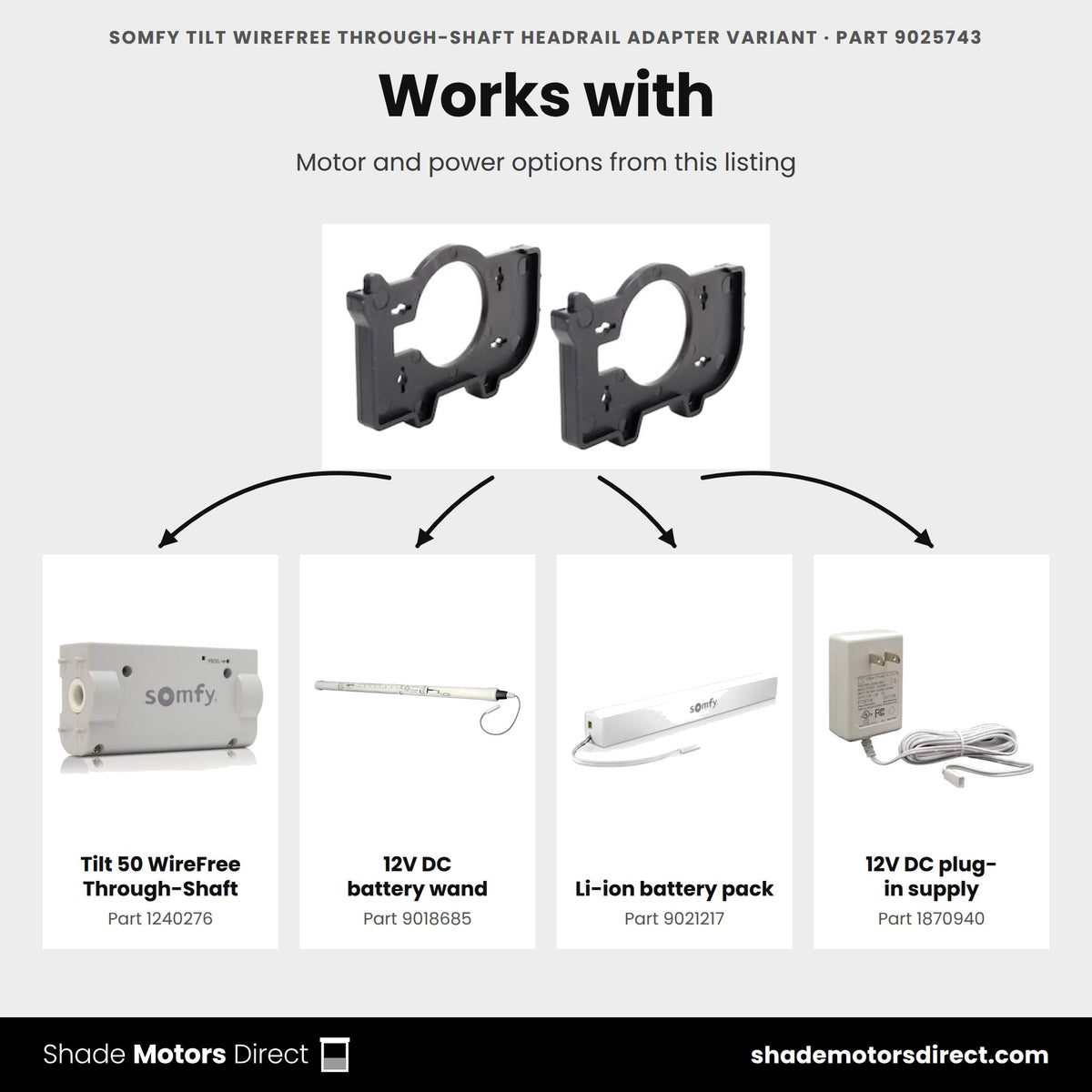

Which Somfy motors does it work with?
Somfy lists two motors: the Tilt 50 WireFree Through-Shaft RTS (1240276) and the Tilt 50 WireFree Through-Shaft Zigbee (External Battery), sold here as the Zigbee Tilt 50 Shaft Thru 12V Motor (1241783).

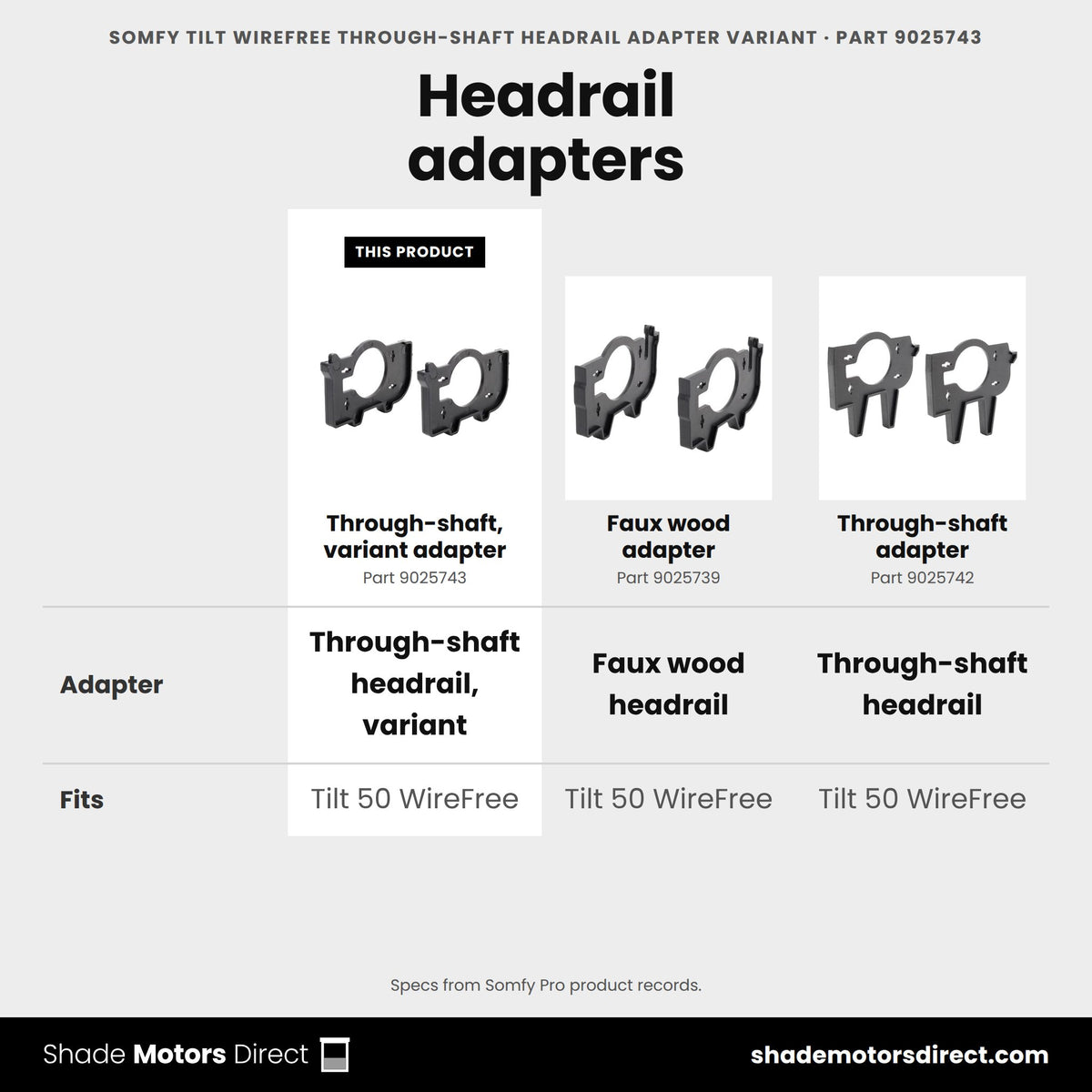

How do I choose between this and the gutter adaptor?
Match the adaptor to your headrail. This low-profile part fits a 38 x 57 mm headrail. For a 51 x 57 mm gutter headrail, choose the Gutter Headrail Adaptor for Through-Shaft (9025742), also sold here.
Which shaft adaptor goes with it?
The through-shaft motor meets the tilt rod through a Tilt 50 shaft adaptor sized to the rod, such as the 6mm Hexagonal Through-Shaft Adaptor (9025928). Match the adaptor to your rod shape and size.
Can the blinds run from an app or by voice?
Yes, through the motor. The Zigbee version (1241783) and the RTS version (1240276) both work with the TaHoma Switch RTS and Zigbee Smart Hub (1871037) for app control, schedules and voice commands.
What warranty does it carry?
Somfy covers part 9025743 with a 5-year warranty. It is a Somfy part made for Tilt 50 WireFree through-shaft motors, and Somfy sells it through professional dealers and installers.
Couldn't load pickup availability

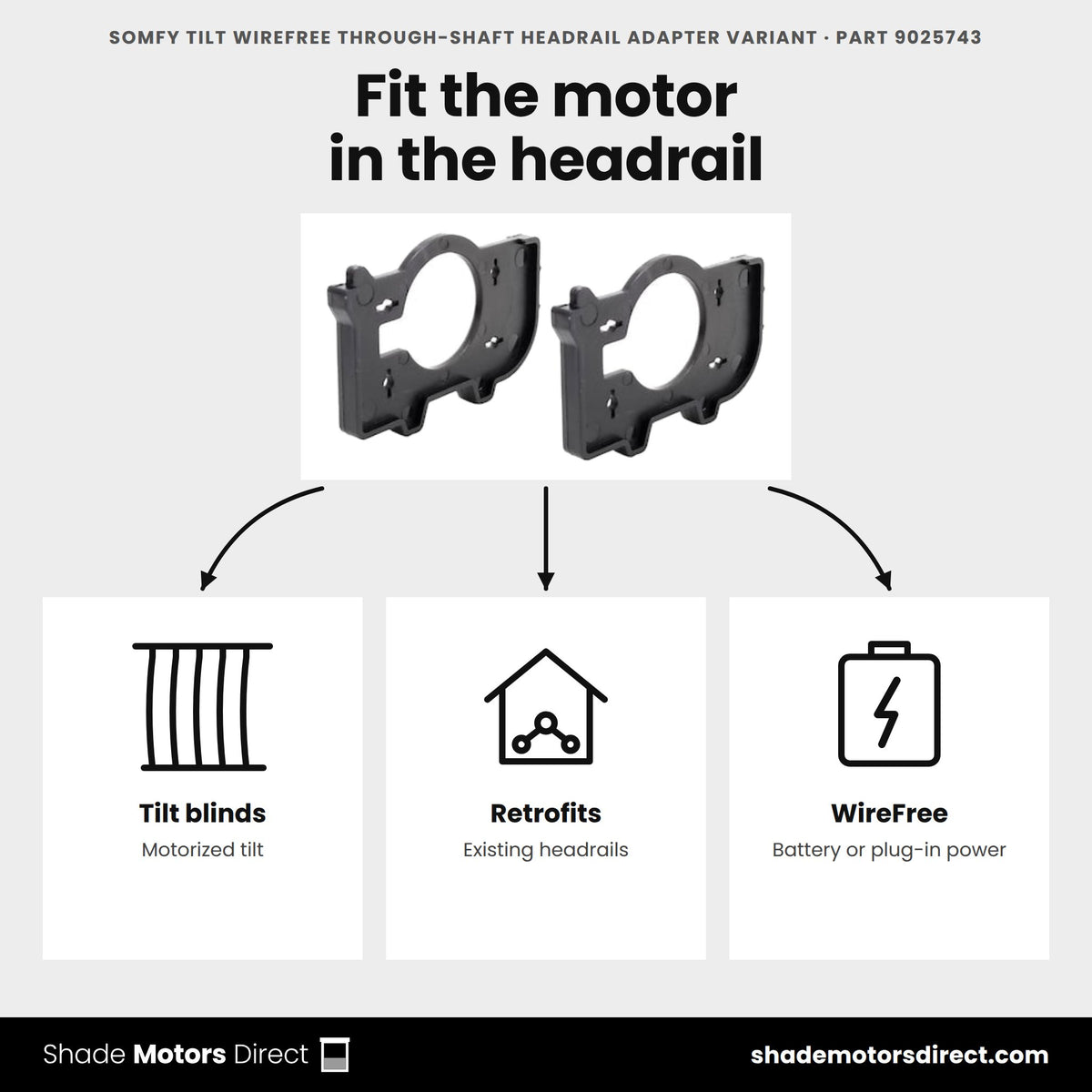

Replace a worn tilt adapter or motorize a blind for the first time.
Replacing one
-
1
Take the blind down
Lift the headrail out of its brackets.
-
2
Swap the adapter
Slide off the worn adapter and fit the Tilt 50 Low Profile Headrail Adaptor for Through-Shaft, 38 x 57 mm.
-
3
Test
Rehang the blind and run the tilt.
Tell us your rod shape and size. We'll match the adapter. Ask us
Motorizing a blind
-
1
Measure your blind
Note the tilt rod shape and the headrail size.
-
2
Fit the adapter
Slide the Tilt 50 Low Profile Headrail Adaptor for Through-Shaft, 38 x 57 mm into place.
-
3
Seat the motor
Set the motor in the headrail and test the tilt.
Planning a new install? Send us the window size and a photo. We'll build the parts list with you. Ask us
Motors the Tilt 50 Low Profile Headrail Adaptor for Through-Shaft, 38 x 57 mm works with
Somfy lists these motors as compatible with part 9025743.
Somfy backs the Tilt 50 Low Profile Headrail Adaptor for Through-Shaft, 38 x 57 mm for 5 years. We handle the claim.
Somfy warranty on the Tilt 50 Low Profile Headrail Adaptor for Through-Shaft, 38 x 57 mm, part 9025743.
- What Somfy covers
- Defects in materials and workmanship, for 5 years from purchase.
- If it fails
- Email us your order number. We arrange the replacement with Somfy.
- Where it comes from
- ShadeMotorsDirect is an authorized Somfy distributor. You get the US version, new in Somfy packaging.
- Returns
- Unopened items in original packaging. Ask us for an RA number before you ship.
- Questions
- Call or chat, 8:00 AM - 7:30 PM ET.
- Somfy documents
- WireFree Databook (PDF)
