T3.5 6Nm 18rpm 24V DC Motor -- 6 Nm wired tubular motor for 24V DC shade systems

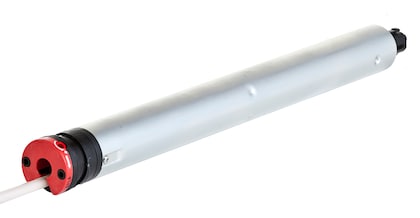

The Simu T3.5 6Nm 18rpm 24V is a 6 Nm tubular motor that runs on 24V DC and turns at 18 rpm. It uses mechanical limits with 40 turns of travel and a round head sized for 40 mm class tubes. Somfy lists it for interior shades and exterior solar screens, and it suits installers who power shades from a low-voltage DC supply.
Benefits
- 6 Nm of torque at 18 rpm for interior shades and exterior solar screens
- Runs on 24V DC within its 18-30V operating range, drawing 26 W under load and 0 W at rest
- Mechanical limit switch with 40 turns of travel, set once at install
- Two-wire VVF cable, 8.2 ft long with stripped ends, for simple low-voltage wiring
- IP 44 rating and Class III insulation, backed by a 5-year Somfy warranty
Specifications
| Torque / Speed | 6 Nm / 18 rpm |
| Power supply | 24V DC (18-30V range) |
| Rated current | 1.05 A |
| Power consumption | 26 W running, 0 W standby |
| Control | Wired, 2-wire DC |
| Limit switch | Mechanical, 40 turns |
| Head type | Round |
| External diameter | 1.39 in |
| Minimum tube inner diameter | 1.34 in |
| Length | 19.13 in |
| Cable | VVF, 2 wires, white, 8.2 ft, stripped ends |
| Protection | IP 44, Class III insulation |
| Operating temperature | -4°F to 140°F |
| Noise level | 70 dB |
| Warranty | 5 years (Somfy) |
Compatible with: Simu T3.5 40 mm class tubes (minimum inner diameter 1.34 in), including 40x1 and 40x1.5 round and 40 mm octagonal tube with matching Somfy T3.5 crowns and drives, the R8 adaptor plate (9012258), T3.5 pin-mount and flat-mount brackets, and a regulated 24V DC power supply with a wired control.
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What torque and speed does the Simu T3.5 6Nm 18rpm 24V (2006976) deliver?
Somfy rates part 2006976 at 6 Nm of torque and 18 rpm. The motor runs on 24V DC within its 18-30V range and draws 26 W while running. Somfy lists it for exterior solar screens and interior shades, so size it to the weight of your fabric and tube.
Does this motor have a built-in radio receiver?
No. Somfy lists the T3.5 6Nm 18rpm 24V as a wired motor with a two-wire VVF cable. You control it through a DC switch or a separate control that reverses the supply. For radio control without wiring to a switch, look at the Simu T3.5 ESP Hz 12V DC motors instead.
How are the end limits set?
The T3.5 6Nm 18rpm 24V uses a mechanical limit switch with a capacity of 40 turns, according to Somfy. You set the up and down positions on the motor head during installation. Check that your shade drop fits within those 40 turns of the tube before you order.
What tube does the T3.5 motor fit?
Somfy lists a 1.34 in minimum inner tube diameter for part 2006976. The accessory list includes crowns and drives for 40x1 and 40x1.5 round tube and 40 mm octagonal tube, plus the T3.5 38 mm round tube (9001495) and the R8 adaptor plate (9012258).
What warranty and protection rating does it carry?
Somfy covers the T3.5 6Nm 18rpm 24V with a 5-year warranty. The motor carries an IP 44 rating and Class III insulation, which suits low-voltage DC installs on interior shades and protected exterior solar screens. Keep the cable connections dry and use a regulated 24V DC supply.
