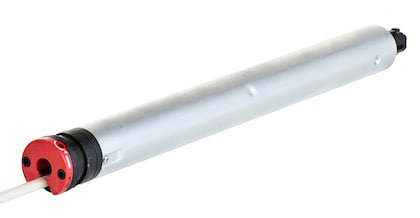

Somfy Simu T3.5 3Nm 23rpm 24V DC Motor (2006974)
Somfy Simu T3.5 3Nm 23rpm 24V DC Motor (2006974)
Ships in 1-2 business days. US shipping $15 flat.
Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy
Not sure this fits? Ask our tech team
Your case has been assigned to Colin. He'll be in touch shortly via email.
T3.5 3Nm 23rpm 24V DC Motor -- 3 Nm wired tubular motor for 24V DC shade systems
The Simu T3.5 3Nm 23rpm 24V is a 3 Nm tubular motor that runs on 24V DC and turns at 23 rpm. It uses mechanical limits with 40 turns of travel and a round head sized for 40 mm class tubes. Somfy lists it for interior shades and exterior solar screens, and it suits installers who power shades from a low-voltage DC supply.
Benefits
- 3 Nm of torque at 23 rpm for interior shades and exterior solar screens
- Runs on 24V DC within its 18-30V operating range, drawing 22 W under load and 0 W at rest
- Mechanical limit switch with 40 turns of travel, set once at install
- Two-wire VVF cable, 8.2 ft long with stripped ends, for simple low-voltage wiring
- IP 44 rating and Class III insulation, backed by a 5-year Somfy warranty
Specifications
| Torque / Speed | 3 Nm / 23 rpm nominal (28 rpm rated) |
| Model designation | T3.5 03/28 24V C2,5M WHITE/1 |
| Power supply | 24V DC (18-30V range), sold separately (draws 22 W in operation per Somfy) |
| Rated current | 0.9 A |
| Power consumption | 22 W running, 0 W standby |
| Control | Wired, 2-wire DC |
| Limit switch | Mechanical, 40 turns |
| Head type | Round |
| External diameter | 1.39 in |
| Minimum tube inside diameter | 1.34 in |
| Cable | VVF, 2 wires, white, 8.2 ft, stripped ends |
| Protection | IP 44, Class III insulation |
| Noise level | 68 dB |
| Warranty | 5 years (Somfy) |
Compatible with: Simu T3.5 40 mm class tubes (minimum inner diameter 1.34 in), including 40x1 and 40x1.5 round and 40 mm octagonal tube with matching Somfy T3.5 crowns and drives, the R8 adaptor plate (9012258), T3.5 pin-mount and flat-mount brackets, and a regulated 24V DC power supply with a wired control.
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What torque and speed does the Simu T3.5 3Nm 23rpm 24V (2006974) deliver?
Somfy rates part 2006974 at 3 Nm of torque and 23 rpm. The motor runs on 24V DC within its 18-30V range and draws 22 W while running. Somfy lists it for exterior solar screens and interior shades, so size it to the weight of your fabric and tube.
Does this motor have a built-in radio receiver?
No. Somfy lists the T3.5 3Nm 23rpm 24V as a wired motor with a two-wire VVF cable. You control it through a DC switch or a separate control that reverses the supply. For radio control without wiring to a switch, look at the Simu T3.5 ESP Hz 12V DC motors instead.
How are the end limits set?
The T3.5 3Nm 23rpm 24V uses a mechanical limit switch with a capacity of 40 turns, according to Somfy. You set the up and down positions on the motor head during installation. Check that your shade drop fits within those 40 turns of the tube before you order.
What tube does the T3.5 motor fit?
Somfy lists a 1.34 in minimum inner tube diameter for part 2006974. The accessory list includes crowns and drives for 40x1 and 40x1.5 round tube and 40 mm octagonal tube, plus the T3.5 38 mm round tube (9001495) and the R8 adaptor plate (9012258).
What warranty and protection rating does it carry?
Somfy covers the T3.5 3Nm 23rpm 24V with a 5-year warranty. The motor carries an IP 44 rating and Class III insulation, which suits low-voltage DC installs on interior shades and protected exterior solar screens. Keep the cable connections dry and use a regulated 24V DC supply.
Couldn't load pickup availability
Replace a Simu T3.5 motor or build a small new shade or awning.
Replacing? Your fabric stays on the tube. Building new? Every part below is Somfy-matched to part 2006974.
123- 1Motor head Mounts to the bracket at the motor end.
- 2Cable Carries power to the motor.
- 3Drive end Turns the tube.
Replacing a motor
-
1
Take the shade down
Cut power and lift the roller out of its brackets.
-
2
Pull the old motor
Slide it out of the tube. The fabric stays wrapped on the tube.
-
3
Fit crown and drive
Fit the T3.5 crown and drive for your tube, then slide the new motor in.
-
4
Wire it up
Connect the motor to its DC power supply and control, then set the limits.
Not sure of your tube size or head type? Send us a photo of the label on your old motor. We'll confirm the part before you order. Ask us
Building something new
-
1
Measure the tube
Measure across the outside of the tube end and note its shape. That sets the crown and drive.
-
2
Pick the parts
Add the crown and drive, the motor bracket and a remote or switch from the list below.
-
3
Mount and fit
Fit the crown and drive, slide the motor into the tube and seat the head in its bracket.
-
4
Wire it up
Connect the motor to its DC power supply and control, then set the limits.
Planning a new shade or awning? Send us the size and tube. We'll build the parts list with you. Ask us
Find your crown, drive and bracket.
1Measure the tube end, outside edge to outside edge.
If a row lists a wall thickness, match that too.
2Pick the bracket that matches how your shade mounts.
Every bracket here fits this motor's head.
Not sure? Send us a photo of the tube end and the motor end. Ask us
What the Simu T3.5 3Nm 23rpm 24V DC Motor needs to run
Somfy lists every part below as compatible with part 2006974. Pick one from each row.
1Tube fit
Match the crown and drive to your tube size and profile.
2Mounting
Holds the motor head and the idle end in place.
3Also fits
Other parts Somfy lists with this product.
Somfy backs the Simu T3.5 3Nm 23rpm 24V DC Motor for 5 years. We handle the claim.
Somfy warranty on the Simu T3.5 3Nm 23rpm 24V DC Motor, part 2006974.
- What Somfy covers
- Defects in materials and workmanship, for 5 years from purchase.
- If it fails
- Email us your order number. We arrange the replacement with Somfy.
- Where it comes from
- ShadeMotorsDirect is an authorized Somfy distributor. You get the US version, new in Somfy packaging.
- Returns
- Unopened items in original packaging. Ask us for an RA number before you ship.
- Questions
- Call or chat, 8:00 AM - 7:30 PM ET.
