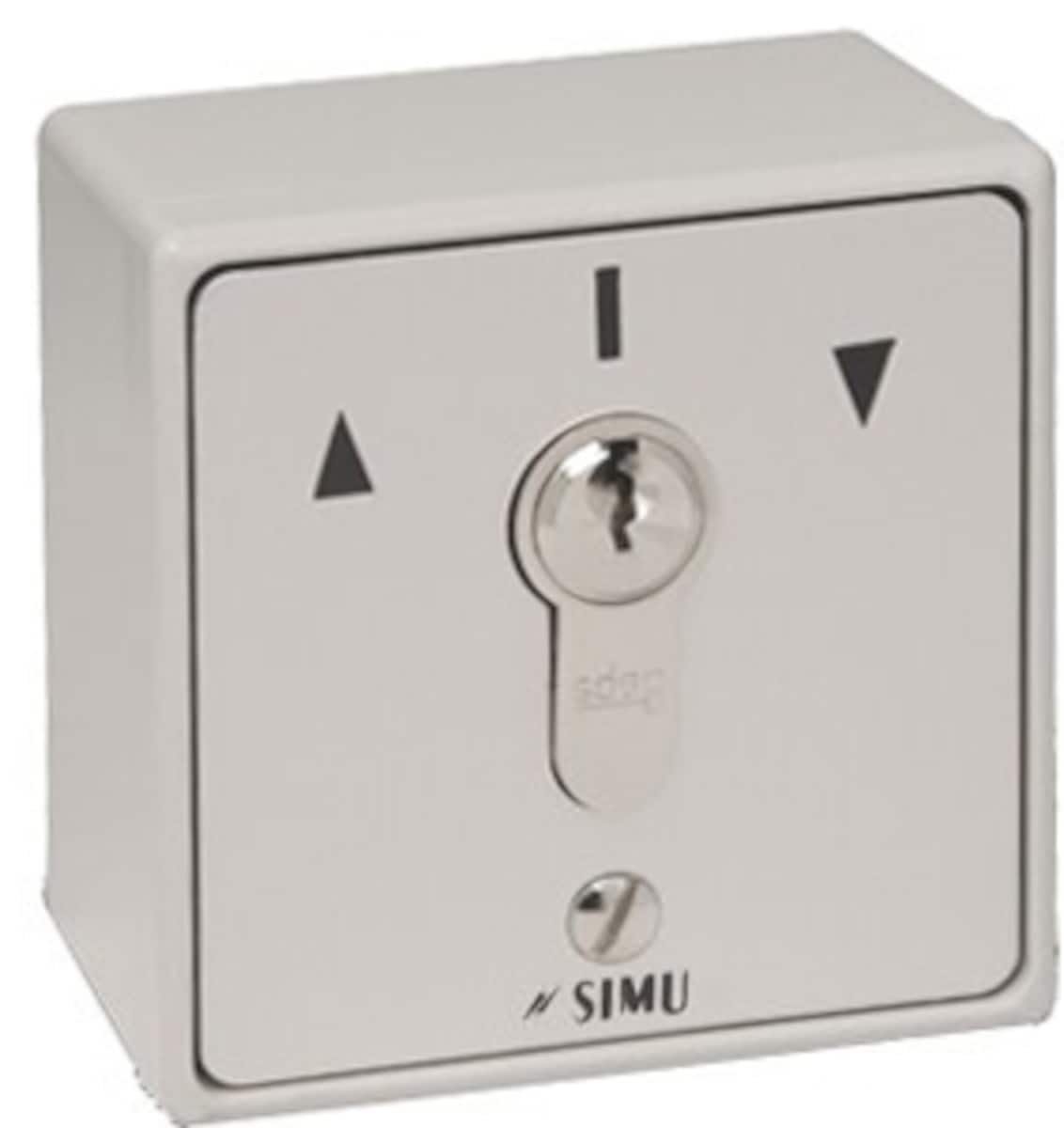

Momentary Surface Mount Key Switch -- keyed wired control for rolling shutters
The Momentary Surface Mount Key Switch (2001548) gives a rolling shutter keyed, wired control. It mounts on the wall surface, carries an IP54 rating and comes in white. Dealers fit it where only key holders should open or close the shutter, such as storefronts and service doors.
Benefits
- Limits shutter operation to key holders
- Momentary action: the shutter runs while the key is held
- Surface mounting, no recessed box required
- IP54 protection index for dust and splash resistance
- Measures 2.89 x 1.77 x 2.89 in
- Carries a 5-year Somfy warranty
Specifications
| Type | Momentary key switch, surface mount |
| Control | Wired |
| Protection index | IP54 |
| Insulation class | Class I |
| Color | White |
| Dimensions (L x W x H) | 2.89 x 1.77 x 2.89 in |
| Application | Rolling shutters |
| Warranty | 5 years |
Compatible with: Wired rolling shutter controls. Somfy lists it for rolling shutter applications with wired technology.
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What is the Momentary Surface Mount Key Switch 2001548?
The 2001548 is a wired key switch that mounts on the wall surface. Somfy lists it for rolling shutter applications. Momentary action means the shutter runs only while the key stays turned, so the operator watches the shutter through its full travel.
Can I install the 2001548 outdoors?
Somfy rates the 2001548 key switch at IP54, which protects against dust and water splashes. That rating suits sheltered exterior walls next to a rolling shutter. For exposed spots that take direct rain, consult your installer about added shelter or a different control.
How big is the key switch?
Somfy lists the 2001548 at 2.89 in long, 1.77 in wide and 2.89 in high. It comes in white and mounts on the surface, so you do not need a recessed wall box. Plan for the wire run to reach the switch location.
Does the 2001548 work with radio motors?
Somfy lists the 2001548 under wired technology. It sends a direct switched signal, so it suits wired rolling shutter motors and controls. Radio-only motors need a radio transmitter instead. The switch carries a 5-year Somfy warranty.
Couldn't load pickup availability
Replace a worn wall switch or wire a new motor to the wall.
123- 1Key cylinder Only someone with the key can run it.
- 2Up and down Turn the key toward the direction you want.
- 3Surface box Mounts on the wall, no wall box needed.
Replacing one
-
1
Turn off power
Switch off the circuit at the breaker.
-
2
Move the wires
Move each wire from the old control to the same terminal on the Simu Momentary Surface Mount Key Switch.
-
3
Test it
Restore power and run the motor up and down.
Line-voltage wiring needs a licensed electrician. Questions on the wiring? Send us a photo. Ask us
Starting new
-
1
Turn off power
Switch off the circuit at the breaker.
-
2
Wire it
Connect the motor leads to the terminals as the wiring guide shows.
-
3
Test it
Restore power and run the motor up and down.
Line-voltage wiring needs a licensed electrician. Questions on the wiring? Send us a photo. Ask us
Somfy backs the Simu Momentary Surface Mount Key Switch for 5 years. We handle the claim.
Somfy warranty on the Simu Momentary Surface Mount Key Switch, part 2001548.
- What Somfy covers
- Defects in materials and workmanship, for 5 years from purchase.
- If it fails
- Email us your order number. We arrange the replacement with Somfy.
- Where it comes from
- ShadeMotorsDirect is an authorized Somfy distributor. You get the US version, new in Somfy packaging.
- Returns
- Unopened items in original packaging. Ask us for an RA number before you ship.
- Questions
- Call or chat, 8:00 AM - 7:30 PM ET.
- Somfy documents
- Simu Controls Product Catalog Page 56 (PDF)
