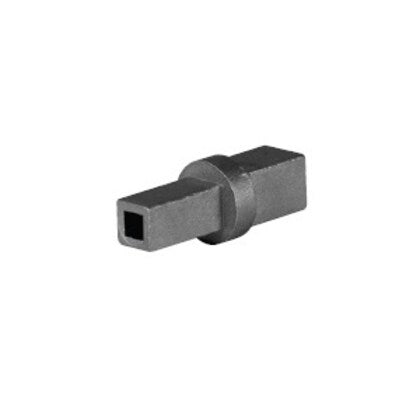

Gear Connector Square 13mm x 16mm -- square-to-square adapter for rolling shutter gear drives
This Simu gear connector adapts a 13mm square drive to a 16mm square fitting. Somfy lists it for rolling shutters and carries it under the factory code CORE C16 C13 D.12 C7. Installers use it when a gear output and the shutter axle use different square sizes.
Benefits
- Joins a 13mm square drive to a 16mm square fitting
- Lets you pair gear and axle hardware of different square sizes
- Genuine Somfy group part for Simu rolling shutter systems
- Backed by Somfy's 5-year warranty
Specifications
| Connection | 13mm square x 16mm square |
| Factory code | CORE C16 C13 D.12 C7 |
| Application | Rolling shutter |
| Warranty | 5 years |
Compatible with: Rolling shutter gear drives that need a 13mm square to 16mm square transition.
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What sizes does the 2002392 connector join?
Somfy names part 2002392 the Gear Connector Square 13mm x 16mm. One end takes a 13mm square and the other a 16mm square, so it bridges rolling shutter hardware that uses different square drive sizes.
Where is this connector used?
Somfy lists rolling shutters as the application for the 2002392 gear connector. It links a gear or drive component to an axle fitting when the two square sizes do not match. Measure both squares before you order.
Is the 2002392 a genuine Somfy part?
Yes. Simu is a Somfy group brand, and Somfy Pro catalogs the gear connector under reference 2002392 with the factory code CORE C16 C13 D.12 C7. ShadeMotorsDirect sells genuine Somfy parts only. Somfy backs the connector with a 5-year warranty for rolling shutter use.
What warranty applies?
Somfy covers the Simu gear connector 2002392 with a 5-year warranty. Keep your order confirmation from ShadeMotorsDirect, since the warranty runs from the purchase of the genuine part. Somfy lists rolling shutters as the application for this connector, and the warranty covers that use.
Couldn't load pickup availability
Replace worn exterior hardware or build a new exterior system.
12- 1Square socket Slides over a square shaft.
- 2Square end Fits the other square size.
Replacing one
-
1
Support the system
Cut power and support the awning or shutter.
-
2
Swap the part
Remove the worn part and fit the Simu Gear Connector Square 13mm x 16mm.
-
3
Test
Run the system through a full cycle.
Not sure it fits? Send us a photo of the label on your old part or motor. We'll confirm before you order. Ask us
Starting new
-
1
Check the fit
Match the size and fitting to your motor and gear.
-
2
Install it
Fit the Simu Gear Connector Square 13mm x 16mm as the system guide shows.
-
3
Test it
Run the system through a full cycle.
Planning a new install? Send us the window size and a photo. We'll build the parts list with you. Ask us
Somfy backs the Simu Gear Connector Square 13mm x 16mm for 5 years. We handle the claim.
Somfy warranty on the Simu Gear Connector Square 13mm x 16mm, part 2002392.
- What Somfy covers
- Defects in materials and workmanship, for 5 years from purchase.
- If it fails
- Email us your order number. We arrange the replacement with Somfy.
- Where it comes from
- ShadeMotorsDirect is an authorized Somfy distributor. You get the US version, new in Somfy packaging.
- Returns
- Unopened items in original packaging. Ask us for an RA number before you ship.
