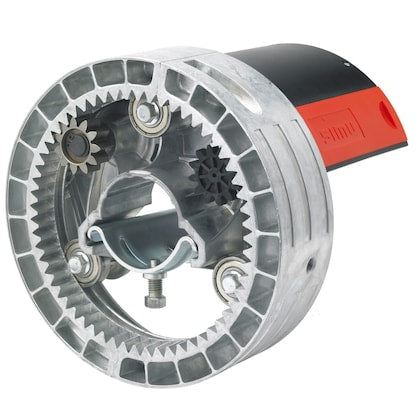

Centris 100Nm 60mm Pipe 220mm (8.66in) Drive -- 100 Nm axial tubular drive for industrial and commercial closures
The Simu Centris drive 2007123 is a 100 Nm, 12 rpm axial tubular operator for industrial and commercial closures. It runs on 120V 60Hz with a 4-wire cable, mounts on a 60mm pipe and has a 220mm (8.66 in) external diameter. Somfy rates it IPX4, Class I insulation and 10 cycles per day.
Benefits
- 100 Nm of torque at 12 rpm for heavy commercial doors
- 120V 60Hz power with a 4-wire wired cable
- Mounts on a 60mm pipe; Somfy adaptor sets cover 34, 42 and 48mm pipes
- IPX4 protection and Class I insulation
- Zero standby consumption
- Backed by Somfy's 5-year warranty
Specifications
| Torque / Speed | 100 Nm / 12 rpm |
| Power supply | 120V 60Hz AC |
| Maximum voltage | 132V |
| Cable | 4 wires |
| Control | Wired |
| Operator type | Axial tubular |
| Pipe (min. internal diameter) | 60mm (2.36 in) |
| External diameter | 220mm (8.66 in) |
| Unwrapped dimensions | 14.06 x 8.66 x 8.66 in |
| Cycles per day | 10 |
| Thermal time | 4 min |
| Protection | IPX4 |
| Insulation | Class I |
| Standby consumption | 0 W |
| Operating temperature | 41 to 104 °F |
| Application | Industrial and commercial closure |
| Warranty | 5 years |
Compatible with: 60mm pipe on industrial and commercial closures, wired switch control. Somfy lists adaptor sets for 34, 42 and 48mm pipes, Centris adaptor kits for 200 to 220mm and 220 to 240mm, a declutching kit, a classic handle and cable kit, and a 4-wire motor tester cable as accessories.
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What are the torque and speed of the Centris 2007123?
Somfy rates the Simu Centris 2007123 at 100 Nm and 12 rpm. It is an axial tubular operator built for industrial and commercial closures, running on 120V 60Hz with a 4-wire cable and a 132V maximum voltage.
What pipe does the 2007123 mount on?
The Centris 2007123 takes a 60mm pipe and has a 220mm (8.66 in) external diameter. Somfy lists adaptor sets for 34mm, 42mm and 48mm pipes as accessories when your door uses a smaller shaft. Somfy also lists Centris adaptor kits.
How often can the Centris drive cycle?
Somfy rates the Centris 2007123 for 10 cycles per day with a 4 minute thermal time. Operate it within 41 to 104 °F. Plan a heavier-duty operator if the door opens more often than that.
What protection and warranty does it carry?
Somfy lists IPX4 protection, Class I insulation and zero standby consumption for the 2007123. The drive carries a 5-year Somfy warranty, and ShadeMotorsDirect sells it as a genuine Somfy group product. Somfy lists industrial and commercial closures as its application.
Can I add a manual release to the 2007123?
Somfy lists a Declutching Kit with Pistol Handle (9015176) and the Classic Kit Handle plus Cable MC Simu (9017544) as accessories for the Centris 2007123. Contact ShadeMotorsDirect to source either kit with your drive. Somfy also lists a 4-wire motor tester cable.
