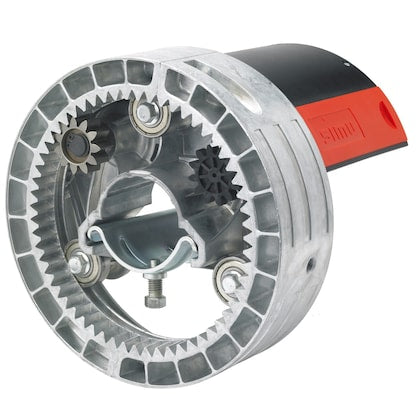

Somfy Simu Centris 100Nm 60mm Pipe 200mm (7.87in) Drive (2007119)
Somfy Simu Centris 100Nm 60mm Pipe 200mm (7.87in) Drive (2007119)
Ships in 1-2 business days. US shipping $15 flat.
Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy
Not sure this fits? Ask our tech team
Your case has been assigned to Colin. He'll be in touch shortly via email.
Centris 100Nm 60mm Pipe 200mm (7.87in) Drive -- 100 Nm axial tubular drive for industrial and commercial closures
The Simu Centris drive 2007119 is a 100 Nm, 12 rpm axial tubular operator for industrial and commercial closures. It runs on 120V 60Hz with a 4-wire cable, mounts on a 60mm pipe and has a 200mm (7.87 in) external diameter. Somfy rates it IPX4, Class I insulation and 10 cycles per day.
Benefits
- 100 Nm of torque at 12 rpm for heavy commercial doors
- 120V 60Hz power with a 4-wire wired cable
- Mounts on a 60mm pipe; Somfy adaptor sets cover 34, 42 and 48mm pipes
- IPX4 protection and Class I insulation
- Zero standby consumption
- Backed by Somfy's 5-year warranty
Specifications
| Torque / Speed | 100 Nm / 12 rpm |
| Power supply | 120V 60Hz AC |
| Maximum voltage | 132V |
| Cable | 4 wires |
| Control | Wired |
| Operator type | Axial tubular |
| Pipe (min. internal diameter) | 60mm (2.36 in) |
| External diameter | 200mm (7.87 in) |
| Cycles per day | 10 |
| Thermal time | 4 min |
| Protection | IPX4 |
| Insulation | Class I |
| Standby consumption | 0 W |
| Operating temperature | 41 to 104 °F |
| Application | Industrial and commercial closure |
| Warranty | 5 years |
Compatible with: 60mm pipe on industrial and commercial closures, wired switch control. Somfy lists adaptor sets for 34, 42 and 48mm pipes, Centris adaptor kits for 200 to 220mm and 220 to 240mm, a declutching kit, a classic handle and cable kit, and a 4-wire motor tester cable as accessories.
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What are the torque and speed of the Centris 2007119?
Somfy rates the Simu Centris 2007119 at 100 Nm and 12 rpm. It is an axial tubular operator built for industrial and commercial closures, running on 120V 60Hz with a 4-wire cable and a 132V maximum voltage.
What pipe does the 2007119 mount on?
The Centris 2007119 takes a 60mm pipe and has a 200mm (7.87 in) external diameter. Somfy lists adaptor sets for 34mm, 42mm and 48mm pipes as accessories when your door uses a smaller shaft. Somfy also lists Centris adaptor kits.
How often can the Centris drive cycle?
Somfy rates the Centris 2007119 for 10 cycles per day with a 4 minute thermal time. Operate it within 41 to 104 °F. Plan a heavier-duty operator if the door opens more often than that.
What protection and warranty does it carry?
Somfy lists IPX4 protection, Class I insulation and zero standby consumption for the 2007119. The drive carries a 5-year Somfy warranty, and ShadeMotorsDirect sells it as a genuine Somfy group product. Somfy lists industrial and commercial closures as its application.
Can I add a manual release to the 2007119?
Somfy lists a Declutching Kit with Pistol Handle (9015176) and the Classic Kit Handle plus Cable MC Simu (9017544) as accessories for the Centris 2007119. Contact ShadeMotorsDirect to source either kit with your drive. Somfy also lists a 4-wire motor tester cable.
Couldn't load pickup availability
Replace a worn crown or drive, or order the right set for a new roller.
Match the set to your motor head and your tube size.
Replacing one
-
1
Take the shade down
Cut power and lift the roller out of its brackets.
-
2
Pull the motor
Slide the motor out of the tube.
-
3
Swap the part
Pull off the worn crown or drive and fit the Simu Centris 100Nm 60mm Pipe 200mm.
-
4
Slide it back
Insert the motor drive end first and rehang the shade.
Not sure of your tube? Send us a photo of the tube end and your motor label. We'll confirm before you order. Ask us
Starting new
-
1
Check your tube
Measure across the outside of the tube end and note the shape: round, octagonal or a brand profile.
-
2
Fit the crown
Slide the crown onto the motor until it seats against the head.
-
3
Fit the drive
Push the drive onto the output shaft until it locks.
-
4
Slide the motor in
Insert the motor into the tube, drive end first.
Planning a new install? Send us the window size and a photo. We'll build the parts list with you. Ask us
Somfy backs the Simu Centris 100Nm 60mm Pipe 200mm for 5 years. We handle the claim.
Somfy warranty on the Simu Centris 100Nm 60mm Pipe 200mm, part 2007119.
- What Somfy covers
- Defects in materials and workmanship, for 5 years from purchase.
- If it fails
- Email us your order number. We arrange the replacement with Somfy.
- Where it comes from
- ShadeMotorsDirect is an authorized Somfy distributor. You get the US version, new in Somfy packaging.
- Returns
- Unopened items in original packaging. Ask us for an RA number before you ship.
- Questions
- Call or chat, 8:00 AM - 7:30 PM ET.
- Somfy documents
- Simu Centris Centris Motors Brochure (PDF)
