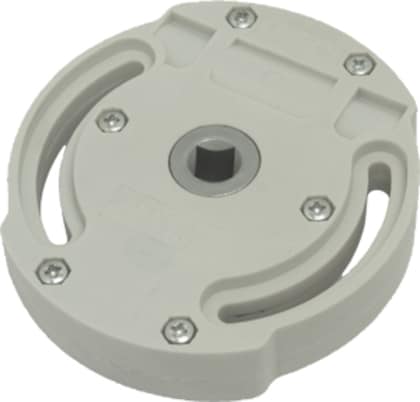

Somfy Simu 1424 Gear 11/1 Hex 7mm x Square 16mm (2002146)
Somfy Simu 1424 Gear 11/1 Hex 7mm x Square 16mm (2002146)
Ships in 1-2 business days. US shipping $15 flat.
Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy
Not sure this fits? Ask our tech team
Your case has been assigned to Colin. He'll be in touch shortly via email.
1424 Gear 11/1 Hex 7mm x Square 16mm -- 11:1 worm gear for manually operated rolling shutters
Simu's 1424 gear turns a 7mm hex crank input into a 16mm square output at an 11:1 ratio. Somfy builds it with a nylon composite casing around a hardened steel worm gear, and the factory designation includes an end limit device. Shutter installers use it to repair or build crank-driven rolling shutters.
Benefits
- 11:1 reduction makes a heavy shutter easier to crank by hand
- Hardened steel worm gear inside a nylon composite casing
- 7mm hex input matches standard Simu 7mm hex crank hardware
- 16mm square output drives the shutter axle directly
- Somfy factory designation includes an end limit device
- Backed by Somfy's 5-year warranty
Specifications
| Ratio | 11:1 |
| Input | 7mm hex |
| Output | 16mm square |
| Casing | Nylon composite |
| Internal gear | Hardened steel worm gear |
| Factory designation | 1424 11/1 H07-C16 with end limit device |
| Application | Rolling shutter |
| Warranty | 5 years |
Compatible with: Rolling shutters driven by a manual crank with a 7mm hex input and a 16mm square axle connection.
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What does the Simu 1424 gear 2002146 do?
It sits between the crank and the shutter axle of a manual rolling shutter. The 2002146 gear takes a 7mm hex crank input and delivers a 16mm square output, reducing effort at an 11:1 ratio. Somfy lists rolling shutters as its application.
What is the gear made of?
Somfy describes the 2002146 as a nylon composite outside casing with a hardened steel worm gear inside. The composite shell keeps weight down, and the steel worm gear carries the load when you crank the shutter up or down.
Does the 2002146 include a limit device?
Yes. Somfy's factory designation for part 2002146 reads 1424 11/1 H07-C16 with end limit device. Check the limit setting on your shutter after you install the gear so the curtain stops at the right open and closed positions.
What warranty covers this gear?
Somfy backs the Simu 1424 gear 2002146 with a 5-year warranty. ShadeMotorsDirect sells it as a genuine Somfy group part, and Somfy publishes the gear on page 63 of the Simu product catalog, linked in the documentation section above.
Couldn't load pickup availability
Replace worn exterior hardware or build a new exterior system.
12- 1Square socket Takes the 16mm square shaft.
- 2Mounting slots Let you set the gear angle when fixing it.
Replacing one
-
1
Support the system
Cut power and support the awning or shutter.
-
2
Swap the part
Remove the worn part and fit the Simu 1424 Gear 11/1 Hex 7mm x Square 16mm.
-
3
Test
Run the system through a full cycle.
Not sure it fits? Send us a photo of the label on your old part or motor. We'll confirm before you order. Ask us
Starting new
-
1
Check the fit
Match the size and fitting to your motor and gear.
-
2
Install it
Fit the Simu 1424 Gear 11/1 Hex 7mm x Square 16mm as the system guide shows.
-
3
Test it
Run the system through a full cycle.
Planning a new install? Send us the window size and a photo. We'll build the parts list with you. Ask us
Somfy backs the Simu 1424 Gear 11/1 Hex 7mm x Square 16mm for 5 years. We handle the claim.
Somfy warranty on the Simu 1424 Gear 11/1 Hex 7mm x Square 16mm, part 2002146.
- What Somfy covers
- Defects in materials and workmanship, for 5 years from purchase.
- If it fails
- Email us your order number. We arrange the replacement with Somfy.
- Where it comes from
- ShadeMotorsDirect is an authorized Somfy distributor. You get the US version, new in Somfy packaging.
- Returns
- Unopened items in original packaging. Ask us for an RA number before you ship.
- Questions
- Call or chat, 8:00 AM - 7:30 PM ET.
- Somfy documents
- Simu 1424 Gear Product Catalog Page 63 (PDF)
