Somfy RTS Receiver for animeo IP (1822447)
Somfy RTS Receiver for animeo IP (1822447)
Ships in 1-2 business days. US shipping $15 flat.
Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy
Not sure this fits? Ask our tech team
Your case has been assigned to Colin. He'll be in touch shortly via email.
Somfy RTS Receiver for animeo IP
The RTS Receiver for animeo IP lets Somfy RTS transmitters -- Situo, DecoFlex, or Telis -- control groups, facades, or single motors within an animeo IP building-management system, with a single SDN connection for both power and data. Somfy has since released a V2 of this receiver (ref. 1871498), which is the current part for new installations.
Specifications
| Part type | RTS-to-SDN receiver for animeo IP |
| RTS channels | Up to 5, any mix of Situo/DecoFlex/Telis |
| Power | 24V DC via SDN bus, 10mA |
| Material | ABS |
| Genuine part | Yes -- Somfy 1822447 |
Compatible with: Situo, DecoFlex, and Telis RTS transmitters; animeo IP systems
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What does the RTS Receiver for animeo IP do?
It lets Somfy RTS wall switches and handheld remotes send commands into an animeo IP building system. Motors on the SDN network can run one at a time, by group, by facade or across an entire building from those transmitters.
Which transmitters pair with it, and how many?
Somfy lists DecoFlex and Telis RTS transmitters for part 1822447. The receiver stores up to 5 paired transmitters, and pairing takes a short series of presses on its programming button.
How is the receiver powered?
It runs on 24V DC from the SDN bus and draws 10 mA. Somfy calls for a bus and sensor station power supply to feed it, and the wire run to the SDN bus should not exceed 200 ft.
What is the wireless range?
Somfy rates the range at a 65 ft radius under optimal conditions, on 433.42 MHz. Mount the receiver so the DecoFlex switches and Telis remotes that control it sit inside that radius.
How big is it, and how does it mount?
The receiver measures 3.88 in long, 2.08 in wide and 1.5 in high, in an ABS housing. Somfy includes a mounting bracket in the box. Place it where the wire run back to the SDN bus stays at 200 ft or less.
Is there a newer version of this receiver?
Yes. Somfy offers the RTS Receiver for animeo IP V2 (1871498), and this store carries it. Before you order, confirm with your system designer which version fits your animeo IP project.
Couldn't load pickup availability
Replace a failed SDN part or plan a new Somfy Digital Network.
Replacing one
-
1
Match the part
Confirm the part number and firmware with the old device.
-
2
Swap it on the bus
Disconnect the old device and connect the RTS Receiver for animeo IP in its place.
-
3
Restore settings
Set the same address and settings with Somfy's SDN setup tools.
Working on a project? Send us your parts list. We'll check every part number. Ask us
Starting new
-
1
Plan the network
Confirm the layout and addresses with your integrator.
-
2
Connect it
Wire it to the RS485 bus with Somfy data cables.
-
3
Configure
Address and set it up with Somfy's SDN setup tools.
Working on a project? Send us your parts list. We'll check every part number. Ask us
Somfy backs the RTS Receiver for animeo IP for 5 years. We handle the claim.
Somfy warranty on the RTS Receiver for animeo IP, part 1822447.
- What Somfy covers
- Defects in materials and workmanship, for 5 years from purchase.
- If it fails
- Email us your order number. We arrange the replacement with Somfy.
- Where it comes from
- ShadeMotorsDirect is an authorized Somfy distributor. You get the US version, new in Somfy packaging.
- Returns
- Unopened items in original packaging. Ask us for an RA number before you ship.
- Questions
- Call or chat, 8:00 AM - 7:30 PM ET.
- Somfy documents
- RTS Receiver for animeo IP -- Spec Sheet (PDF)
How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing Somfy RTS Receiver for animeo IP (1822447) |

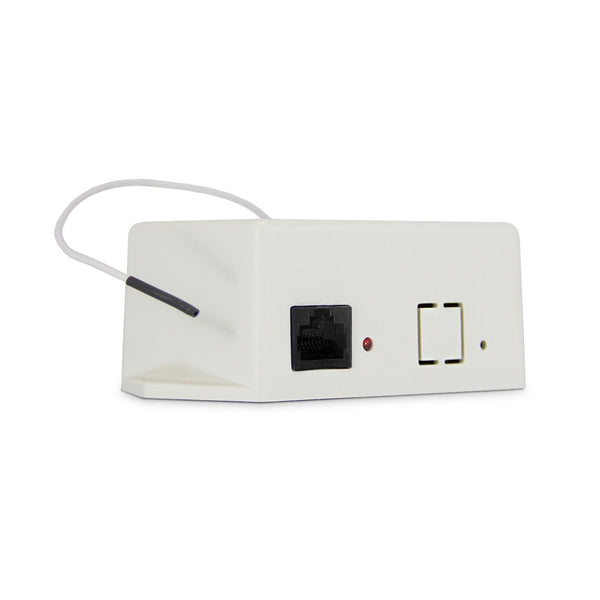

Somfy RTS Receiver for SDN (1871471)
|

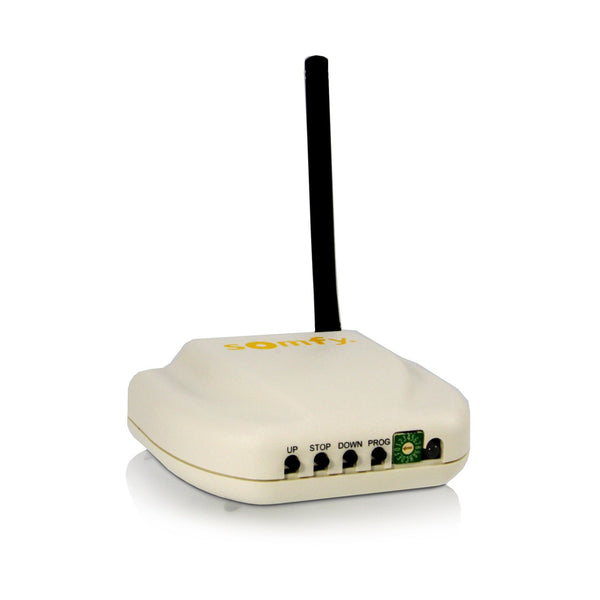

Somfy Universal RTS Interface II (URTSI II) 16 Channel (1810872)
|
Somfy Connect Universal Automation Interface (UAI) Plus (1870272)
|
|---|---|---|---|---|
| Price | ||||
| Control | RTS to SDN | RTS to SDN | RS232/RS485/IR to RTS | IP / SDN 2.0 |
| Power | 24V DC via SDN bus | 24V DC via SDN bus | — | 12-24V DC |
| What's different | The product on this page | Close alternative | Same size, RS232/RS485/IR to RTS control | Same size, IP / SDN 2.0 control |
| Buy | Currently viewing | View details | View details | View details |
