Somfy CTS Cone for 40mm Octagonal Tube -- Cord Take-Up System component
Somfy part 9162144 is the CTS 40/50 cone for 40mm octagonal tube, a component of the Somfy Cord Take-Up System. It ships as part of the CTS40 Kit for Gutter Rail (1781118) and is sold here on its own for replacements.
Benefits
- Genuine Somfy Cord Take-Up System (CTS) cone
- Made for 40mm octagonal tube
- Replacement part for the CTS40 gutter-rail kit
- 5-year Somfy warranty
Specifications

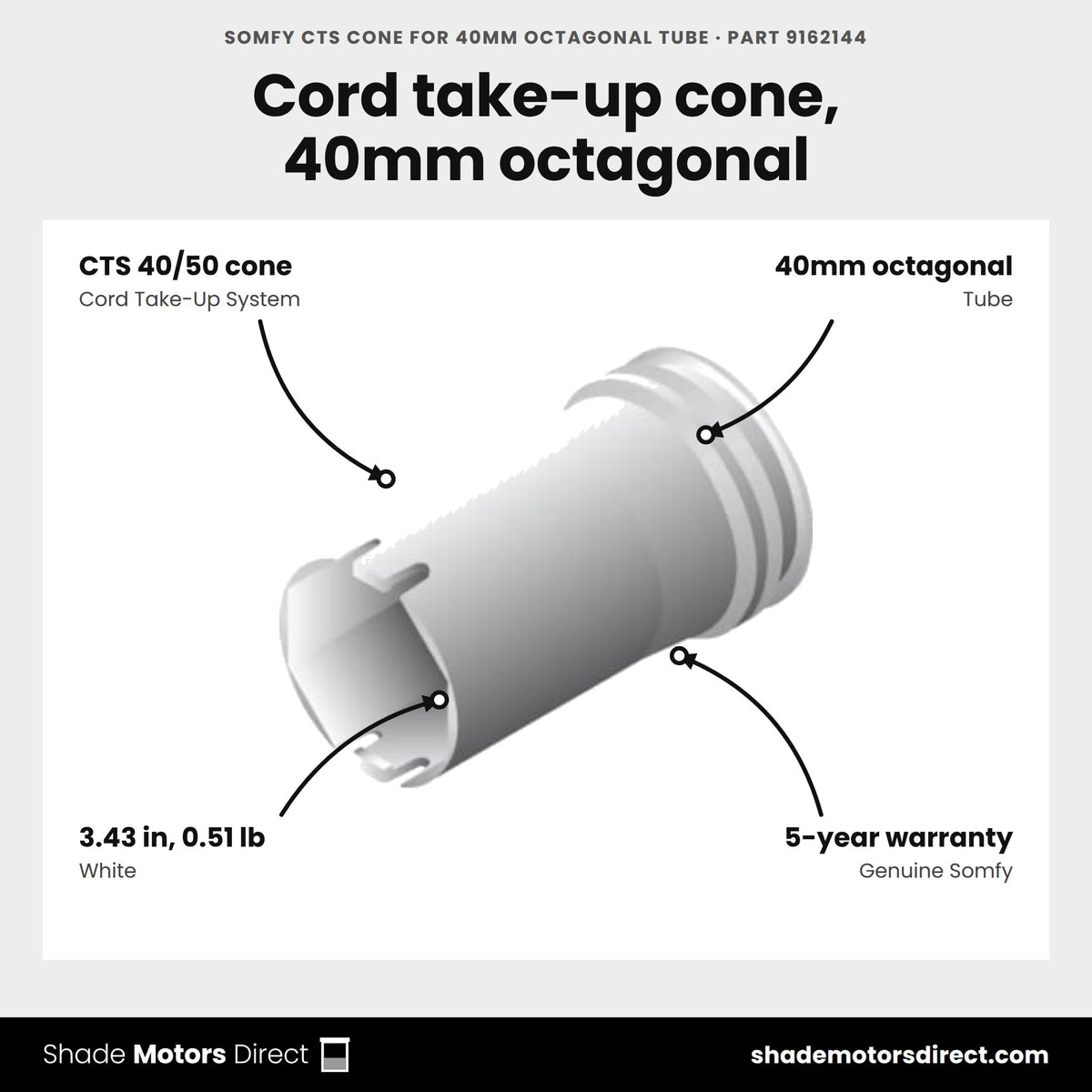

| Model | Cone CTS 40/50 |
| Tube | 40mm octagonal |
| Color | White |
| Length | 3.43 in |
| Weight | 0.51 lb |
| Warranty | 5 years |
Compatible with: 40mm octagonal tube and the Somfy CTS40 Kit for Gutter Rail (1781118)
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What is the 9162144 cone?
Somfy part 9162144 is the CTS 40/50 cone, a white component of the Somfy Cord Take-Up System. It fits 40mm octagonal tube, measures 3.43 in long and weighs 0.51 lb.
Is this cone part of a kit?
Yes. Somfy includes it in the CTS40 Kit for Gutter Rail (1781118), along with part 9162145. Order the cone on its own when you need a replacement.
Which tube does it fit?
It fits 40mm octagonal tube, the tube size used with Somfy 40mm motor systems. Our store sells Somfy 40mm octagonal tube by the foot (1781154) if you need tube as well.
Couldn't load pickup availability
Replace a worn crown or drive, or order the right set for a new roller.
Match the set to your motor head and your tube size.
Replacing one
-
1
Take the shade down
Cut power and lift the roller out of its brackets.
-
2
Pull the motor
Slide the motor out of the tube.
-
3
Swap the part
Pull off the worn crown or drive and fit the CTS Cone for 40mm Octagonal Tube.
-
4
Slide it back
Insert the motor drive end first and rehang the shade.
Not sure of your tube? Send us a photo of the tube end and your motor label. We'll confirm before you order. Ask us
Starting new
-
1
Check your tube
Measure across the outside of the tube end and note the shape: round, octagonal or a brand profile.
-
2
Fit the crown
Slide the crown onto the motor until it seats against the head.
-
3
Fit the drive
Push the drive onto the output shaft until it locks.
-
4
Slide the motor in
Insert the motor into the tube, drive end first.
Planning a new install? Send us the window size and a photo. We'll build the parts list with you. Ask us
Motors the CTS Cone for 40mm Octagonal Tube works with
Somfy lists these motors as compatible with part 9162144.
