Somfy 400 Series to 500 Series Crown and Drive Adaptor Kit (9012226)
Somfy 400 Series to 500 Series Crown and Drive Adaptor Kit (9012226)
Ships in 1-2 business days. US shipping $15 flat.
Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy
Not sure this fits? Ask our tech team
Your case has been assigned to Colin. He'll be in touch shortly via email.

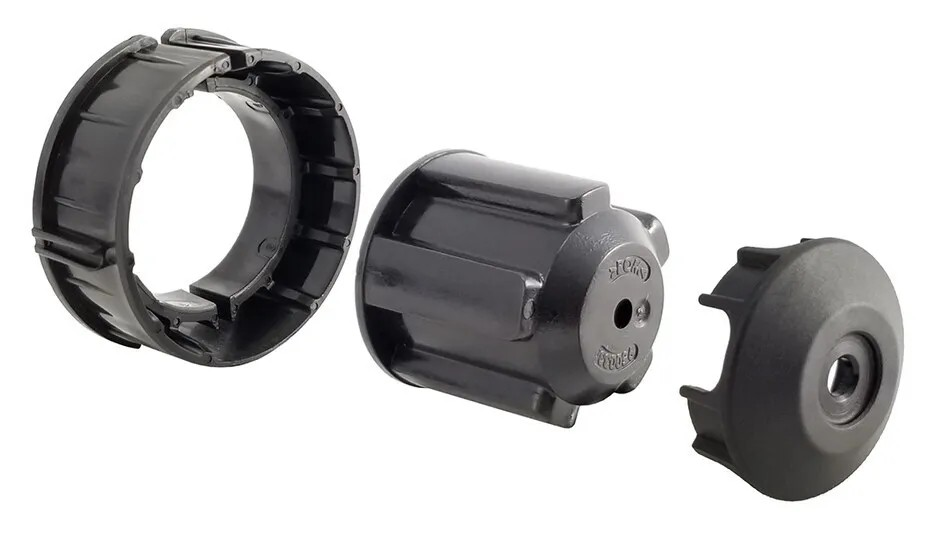

400 Series to 500 Series Crown & Drive Adaptor Kit -- run 40mm motors with 500 Series hardware
This Somfy adaptor kit bridges 400 Series (LS40, 40mm) motors to 500 Series (LT50-class) crown and drive hardware, letting installers reuse 500 Series tube interfaces or upsize systems without changing every component.
Benefits
- Bridges 400 Series (40mm) motors to 500 Series crowns and drives
- Reuse existing tube hardware across motor generations
- Correct genuine-part geometry keeps rotation concentric
- Simple slide-on assembly
Specifications
| From | 400 Series (LS40) motors |
| To | 500 Series (LT50-class) crown/drive hardware |
Compatible with: Somfy LS40/400 Series motors and 500 Series crown and drive components
Official Somfy documentation
- 400 Series Databook (PDF)
- LT50 / 500 Series – Databook (PDF)
- 400 Series to 500 Series Crown & Drive Adaptor Kit – Somfy Pro Product Page
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What does the 400 Series to 500 Series adaptor kit do?
It lets a Somfy 400 Series motor drive 500 Series crown and drive hardware. Part 9012226 bridges the 40mm LS40 motor interface to LT50 class components, so an installer can keep existing tube hardware when motor generations change.
Which motors does it fit?
Somfy 400 Series motors, the LS40 40mm family. The kit mates that motor to 500 Series crowns and drives. Confirm the head type and tube interface on your assembly before you order, because the kit changes the crown and drive side alone.
Which crowns and drives pair with it?
Somfy 500 Series crown and drive components. Compatible parts for this kit include the LT50 2.5 inch Crown 9707026, the LT50 2 inch Hard Clip Drive 9206088 and the Octagonal LT50 70mm Crown and Drive Set 9012234.
Which tubes work with this setup?
The tube follows the crown and drive you choose. Compatible tubes for this kit include the Somfy 2 inch Profiled Roller Tube 1781798, the 2.5 inch OD Aluminum Tube 1781343 and the 40mm Octagonal Tube 1781154.
Does the kit need power or wiring?
No. The kit is mechanical. It carries the drive connection between the motor head and the tube, and it takes no power feed or control wiring. The motor keeps its own supply and its own control method, whether that is RTS radio or a wired switch.
How does it go together?
The pieces slide on. The crown seats inside the tube and the drive seats on the motor head, which keeps rotation concentric. Dry fit the motor, crown, drive and tube before you cut the tube to final length.
Couldn't load pickup availability
Replace a worn crown or drive, or order the right set for a new roller.
Match the set to your motor head and your tube size.
12- 1Drive Turns the tube.
- 2Center hole Slides onto the motor.
Replacing one
-
1
Take the shade down
Cut power and lift the roller out of its brackets.
-
2
Pull the motor
Slide the motor out of the tube.
-
3
Swap the part
Pull off the worn crown or drive and fit the 400 Series to 500 Series Crown and Drive Adaptor Kit.
-
4
Slide it back
Insert the motor drive end first and rehang the shade.
Not sure of your tube? Send us a photo of the tube end and your motor label. We'll confirm before you order. Ask us
Starting new
-
1
Check your tube
Measure across the outside of the tube end and note the shape: round, octagonal or a brand profile.
-
2
Fit the crown
Slide the crown onto the motor until it seats against the head.
-
3
Fit the drive
Push the drive onto the output shaft until it locks.
-
4
Slide the motor in
Insert the motor into the tube, drive end first.
Planning a new install? Send us the window size and a photo. We'll build the parts list with you. Ask us
Motors the 400 Series to 500 Series Crown and Drive Adaptor Kit works with
Somfy lists these motors as compatible with part 9012226.
Somfy backs the 400 Series to 500 Series Crown and Drive Adaptor Kit for 5 years. We handle the claim.
Somfy warranty on the 400 Series to 500 Series Crown and Drive Adaptor Kit, part 9012226.
- What Somfy covers
- Defects in materials and workmanship, for 5 years from purchase.
- If it fails
- Email us your order number. We arrange the replacement with Somfy.
- Where it comes from
- ShadeMotorsDirect is an authorized Somfy distributor. You get the US version, new in Somfy packaging.
- Returns
- Unopened items in original packaging. Ask us for an RA number before you ship.
- Questions
- Call or chat, 8:00 AM - 7:30 PM ET.
- Somfy documents
- 400 Series Databook (PDF)LT50 / 500 Series Databook (PDF)
