Somfy ST30 24V Motor Rollease Motor Plate (9025996)
Somfy ST30 24V Motor Rollease Motor Plate (9025996)
Ships in 1-2 business days. US shipping $15 flat.
Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy
Not sure this fits? Ask our tech team
Your case has been assigned to Colin. He'll be in touch shortly via email.

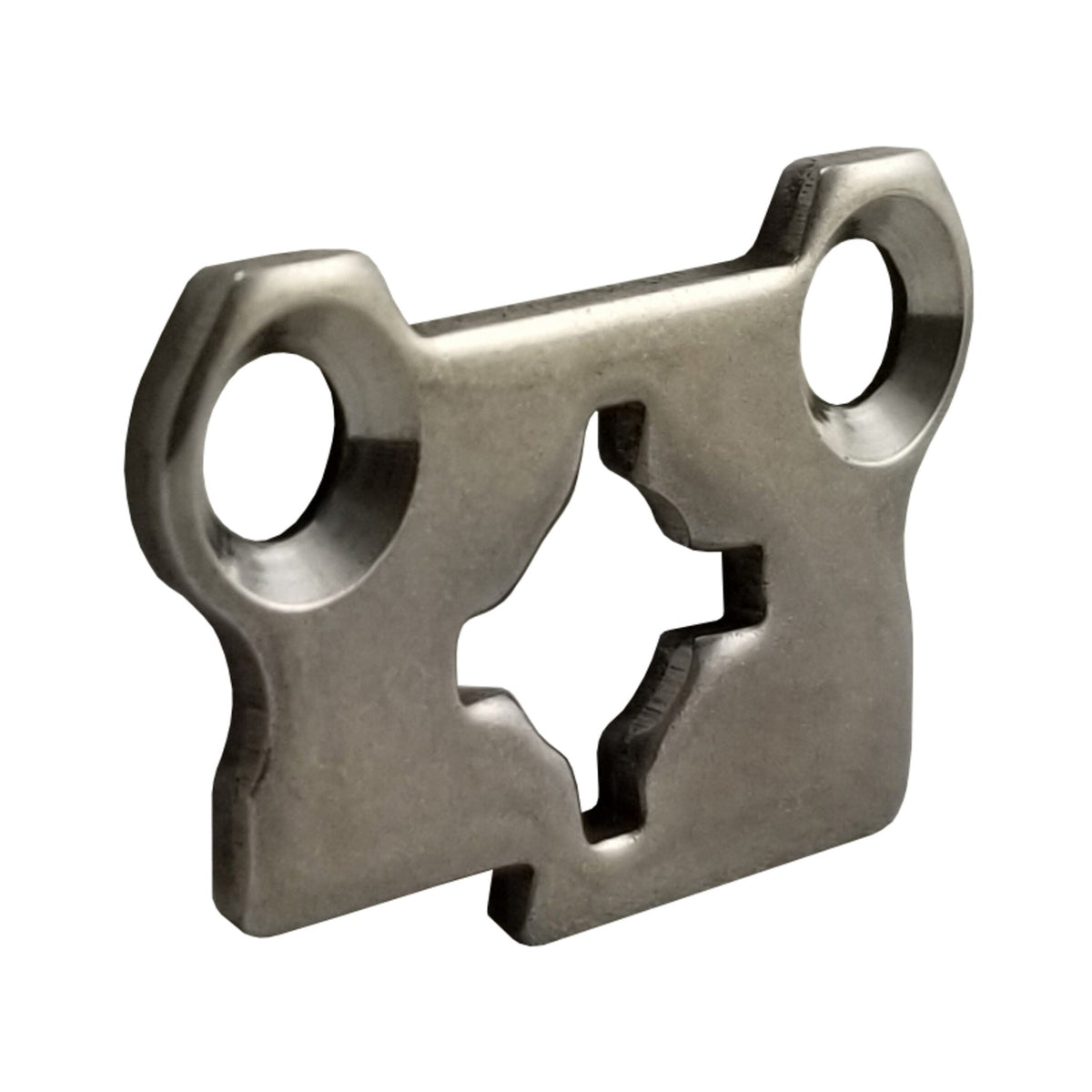

ST30 24V RollEase Motor Plate -- mount Sonesse 30 motors in RollEase brackets
This Somfy motor plate mounts a Sonesse 30 / ST30-family motor head into RollEase brackets, keeping the motor square and secure so fabricators can pair Somfy's quiet 30mm motors with RollEase hardware.
Benefits
- Adapts Somfy ST30 motor heads to RollEase brackets
- Keeps the motor square and secure for quiet, aligned operation
- Mounting screws included
- Genuine Somfy part for exact fit
Specifications
| For motors | Somfy Sonesse 30 / ST30 family |
| Brackets | RollEase |
Compatible with: Somfy Sonesse 30 / ST30 motors and RollEase bracket systems
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What does this motor plate do?
It mounts a Somfy Sonesse 30 or Sonesse 40 motor head into RollEase 360 R3 to R8 brackets. The plate holds the motor square in the bracket, and Somfy includes the screws.
Which motors does it fit?
Somfy lists 17 compatible motors. Examples on this store include the Sonesse 30 RTS 24V DC (1241142), Sonesse 30 Zigbee 24V DC (1241970), Sonesse 30 RS485 24V DC (1241144), Sonesse 30 DCT 24V DC (1241146) and Sonesse 30 PoE (1241147).
What pin size does it use?
Somfy specifies a 10mm x 1.8mm pin with a 6.8mm pin diameter. Check your RollEase bracket before you order, since the store also carries a Sonesse 30-40 RollEase plate with a 7mm pin diameter (9026001).

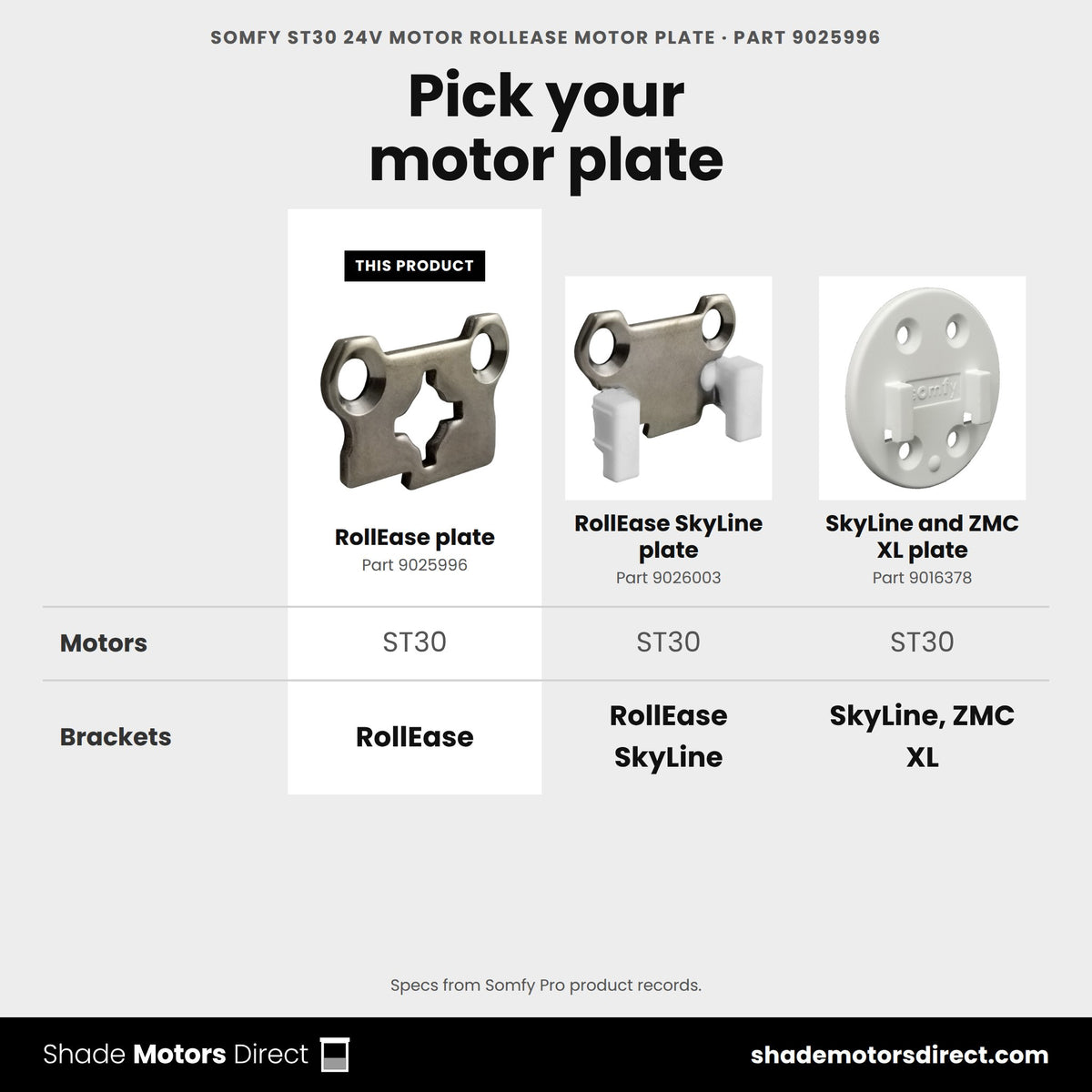

What if I have RollEase SkyLine or ZMC XL brackets?
Use the Motor Adaptor Plate for RollEase SkyLine and ZMC XL Series Brackets (9016378) for those bracket systems. This plate (9025996) suits RollEase 360 R3 to R8 brackets.
What warranty does it carry?
Somfy backs this motor plate with a 5-year warranty. For installation in your home, Somfy recommends working with a Somfy professional. Mounting screws come with the plate.
Couldn't load pickup availability
Replace a cracked bracket or mount a new shade.

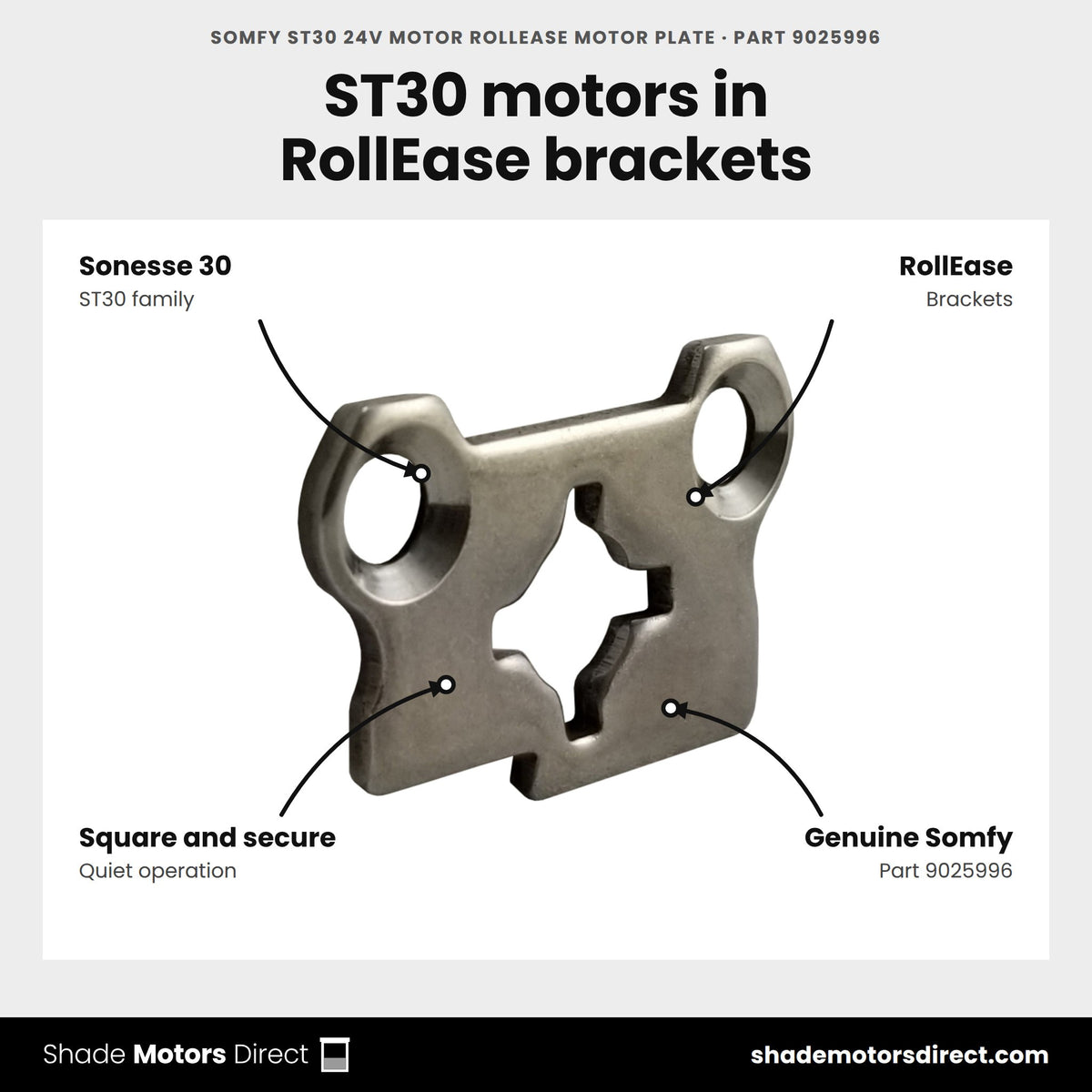

12- 1Screw holes Fasten the plate to the motor head.
- 2Center slot Locates the motor head.
Replacing one
-
1
Support the shade
Cut power and lift the roller out of the old bracket.
-
2
Swap the bracket
Unscrew the old bracket and mount the ST30 24V Motor Rollease Motor Plate in the same spot.
-
3
Seat the shade
Clip or pin the motor head and idle end back in.
Not sure it fits? Send us a photo of the label on your old part or motor. We'll confirm before you order. Ask us
Starting new
-
1
Check the motor head
Match the bracket to your motor head: star, round or a brand fitting.
-
2
Mount it
Screw the bracket to the wall, ceiling or headrail.
-
3
Seat the shade
Clip or pin the motor head and idle end into their brackets.
Planning a new install? Send us the window size and a photo. We'll build the parts list with you. Ask us

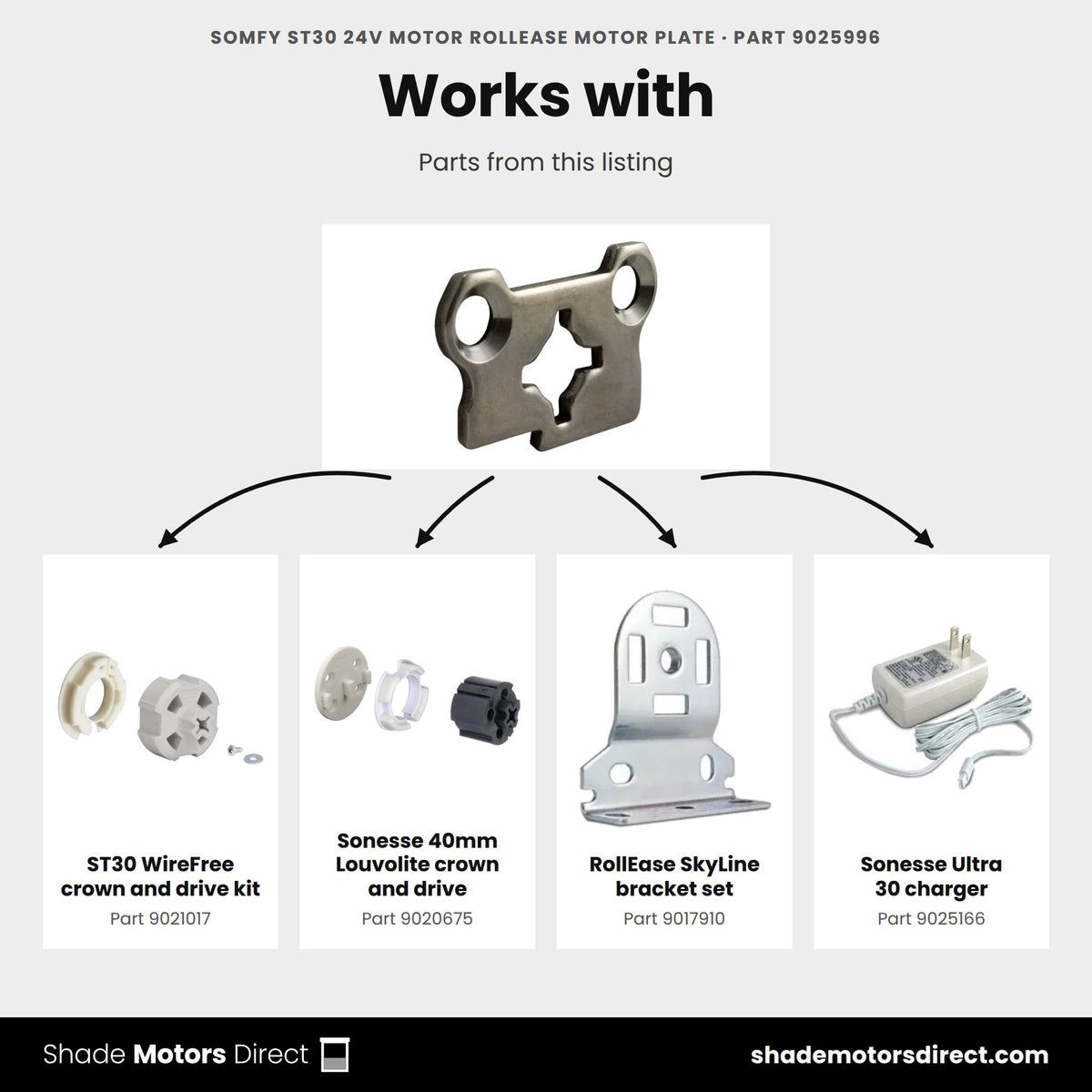

Parts that go with the ST30 24V Motor Rollease Motor Plate
Somfy lists these parts for use with part 9025996.
1Tube fit
Match the crown and drive to your tube size and profile.
2Power
Cables, chargers and power made for this motor.
3Mounting
Holds the motor head and the idle end in place.
Somfy backs the ST30 24V Motor Rollease Motor Plate for 5 years. We handle the claim.
Somfy warranty on the ST30 24V Motor Rollease Motor Plate, part 9025996.
- What Somfy covers
- Defects in materials and workmanship, for 5 years from purchase.
- If it fails
- Email us your order number. We arrange the replacement with Somfy.
- Where it comes from
- ShadeMotorsDirect is an authorized Somfy distributor. You get the US version, new in Somfy packaging.
- Returns
- Unopened items in original packaging. Ask us for an RA number before you ship.
- Questions
- Call or chat, 8:00 AM - 7:30 PM ET.
