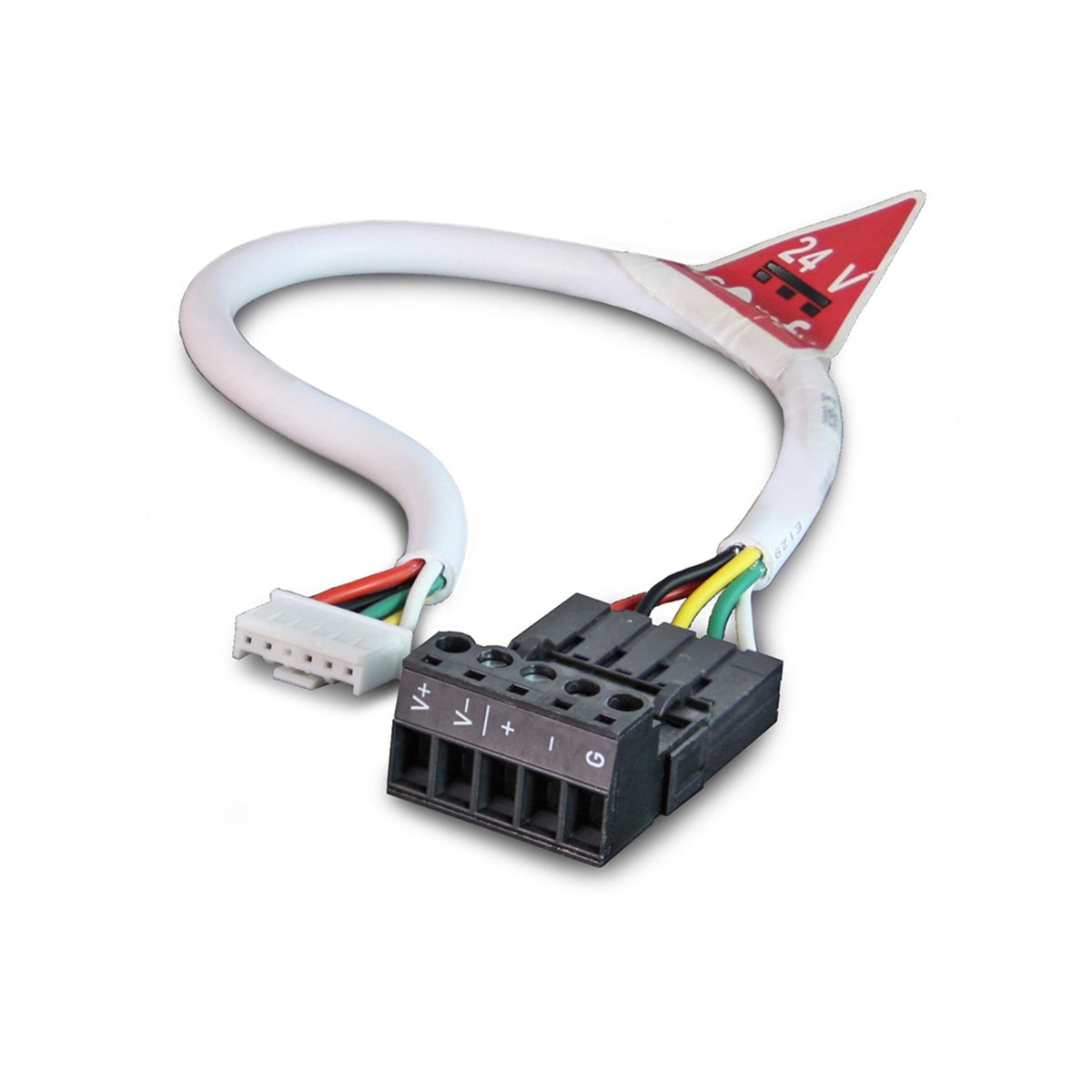

Somfy Sonesse ULTRA 50 DC RS485 Data and Power Pigtail Cable
A power-and-data pigtail cable for the Sonesse ULTRA 50 DC RS485 motor, used to connect the motor to the SDN Low-Voltage Motor Power and Data Cable run. Use only genuine Somfy power supplies with this cable to maintain UL listing and motor performance.
Specifications
| Part type | Motor pigtail cable, power + data |
| Fits | Sonesse ULTRA 50 DC RS485 motor (1134022) |
| Genuine part | Yes -- Somfy 9020004 |
Compatible with: Sonesse ULTRA 50 DC RS485 motor
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What is this pigtail cable?
It is the data and power pigtail for the Sonesse ULTRA 50 DC RS485 motor. It links the motor to the SDN low-voltage power and data cable run, so one connection brings the motor both 24V DC power and RS485 commands.
Which motor does it fit?
Somfy lists one compatible product: the Sonesse ULTRA 504 A8 DC RS485, sold here as part 1134022. Choose this pigtail when that motor needs a new data and power connection.
How long is the cable?
Somfy's Sonesse ULTRA 50 DC RS485 spec sheet lists the data and power cable length as 10 in. (250 mm). From there, the SDN power and data cable carries the run back to the panel or gateway.
Which cable runs back to the power source?

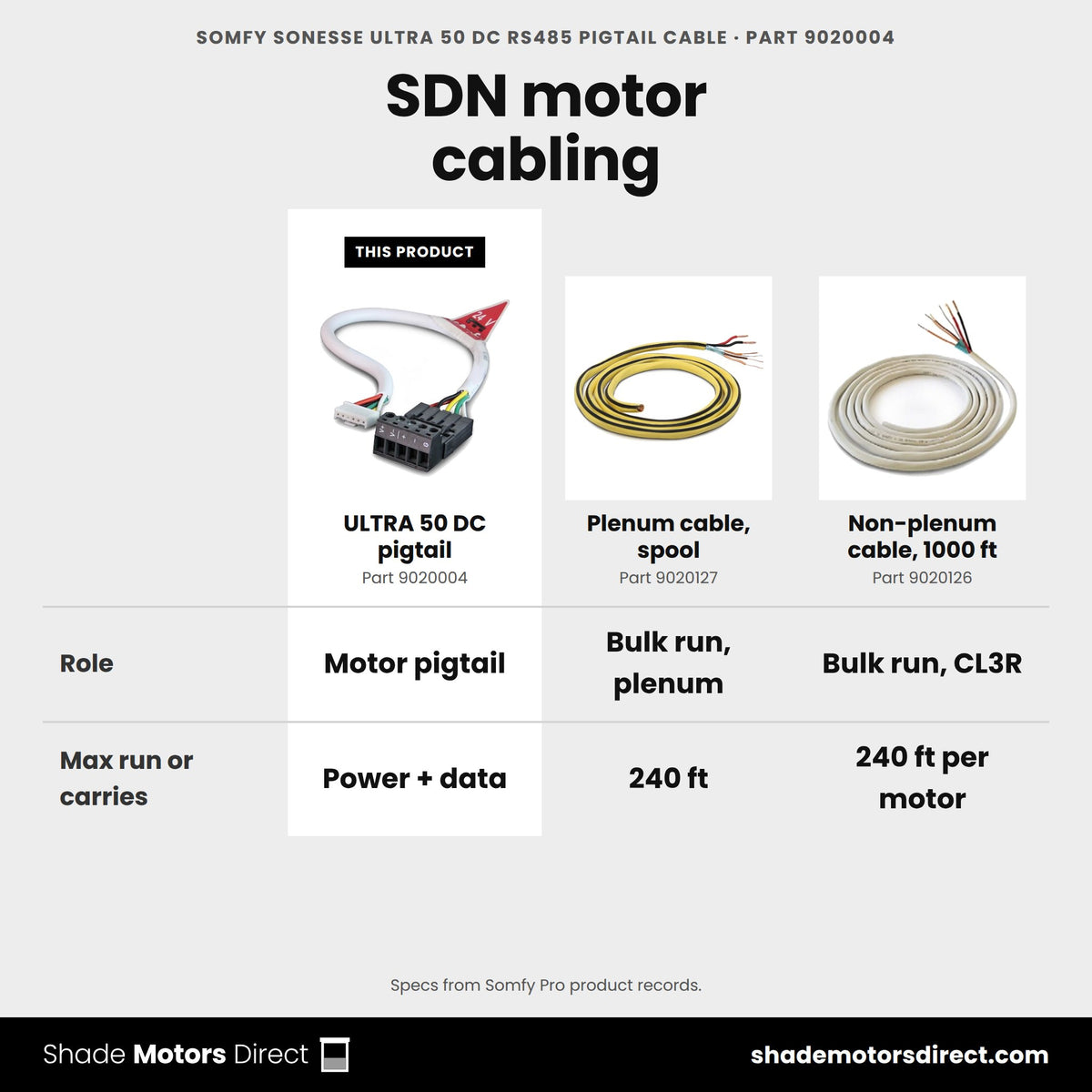

Use the Somfy SDN low-voltage motor power and data cable, in the non-plenum (9020126) or plenum-rated (9020127) version. Somfy rates its 14 AWG power conductors for runs up to 240 ft.
What power supply should I use?
Somfy requires its own power supplies with this cable to keep the UL listing in place and guarantee motor performance. The SDN PoE Gateway (1860326) is one Somfy head-end option for these low-voltage SDN motors.
What warranty applies to this cable?
It is a genuine Somfy part covered by Somfy's 5-year warranty. Installers use it on Somfy Digital Network projects built around the Sonesse ULTRA 50 DC RS485 motor.
Couldn't load pickup availability
Replace a damaged data cable or set up new networked motors.

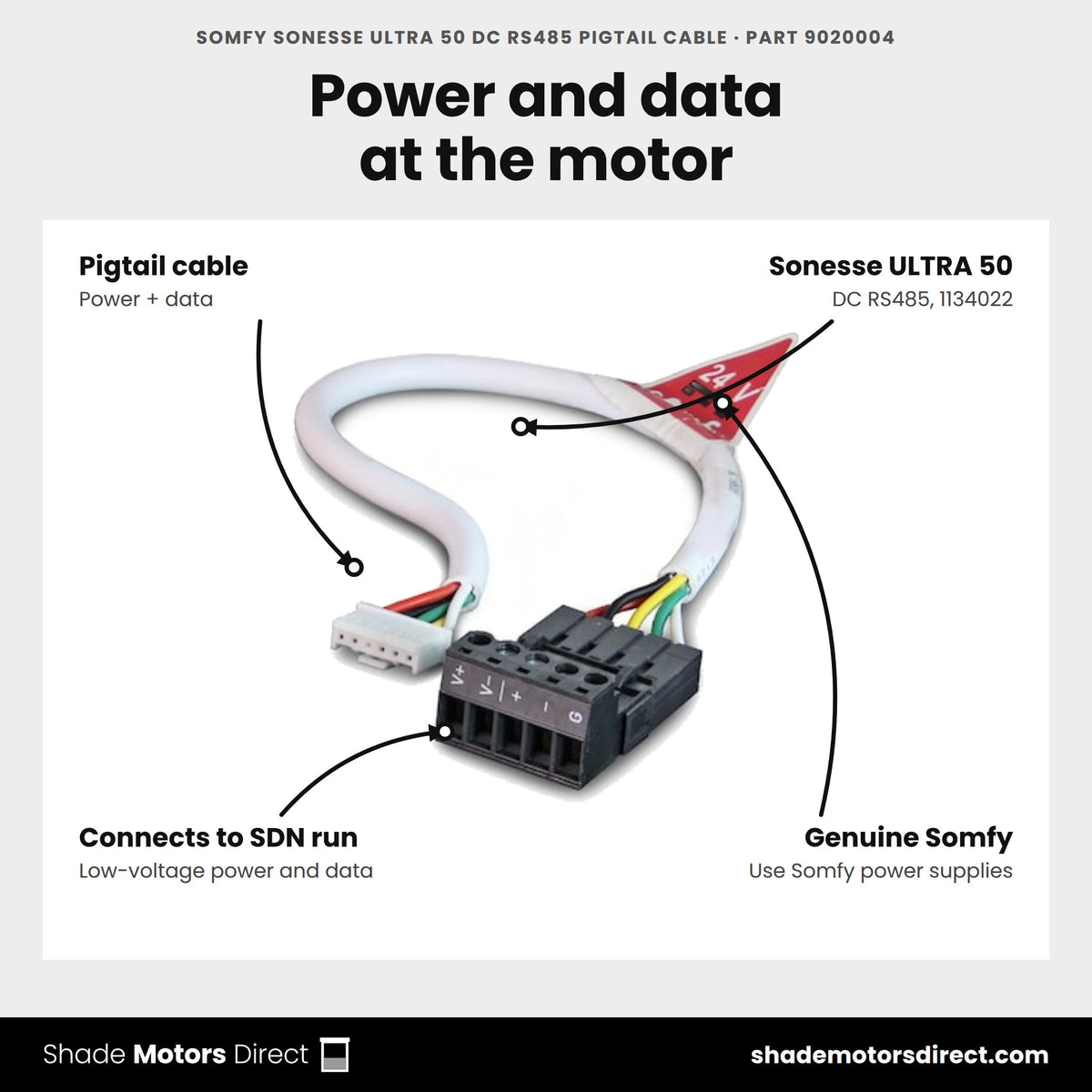

12- 1Terminal block Screw in the power and data wires.
- 224V label For 24V DC power.
Replacing one
-
1
Unplug
Disconnect the damaged cable at both ends.
-
2
Swap it
Connect the Sonesse ULTRA 50 DC RS485 Data and Power Pigtail Cable in its place.
-
3
Test
Run each motor on the line and check it responds.
Not sure it fits? Send us a photo of the label on your old part or motor. We'll confirm before you order. Ask us
Starting new
-
1
Match the connectors
Check the plug ends your motor and device use.
-
2
Run the cable
Connect the motor to the network or setting tool.
-
3
Configure
Address the motor and set its limits.
Planning a new install? Send us the window size and a photo. We'll build the parts list with you. Ask us

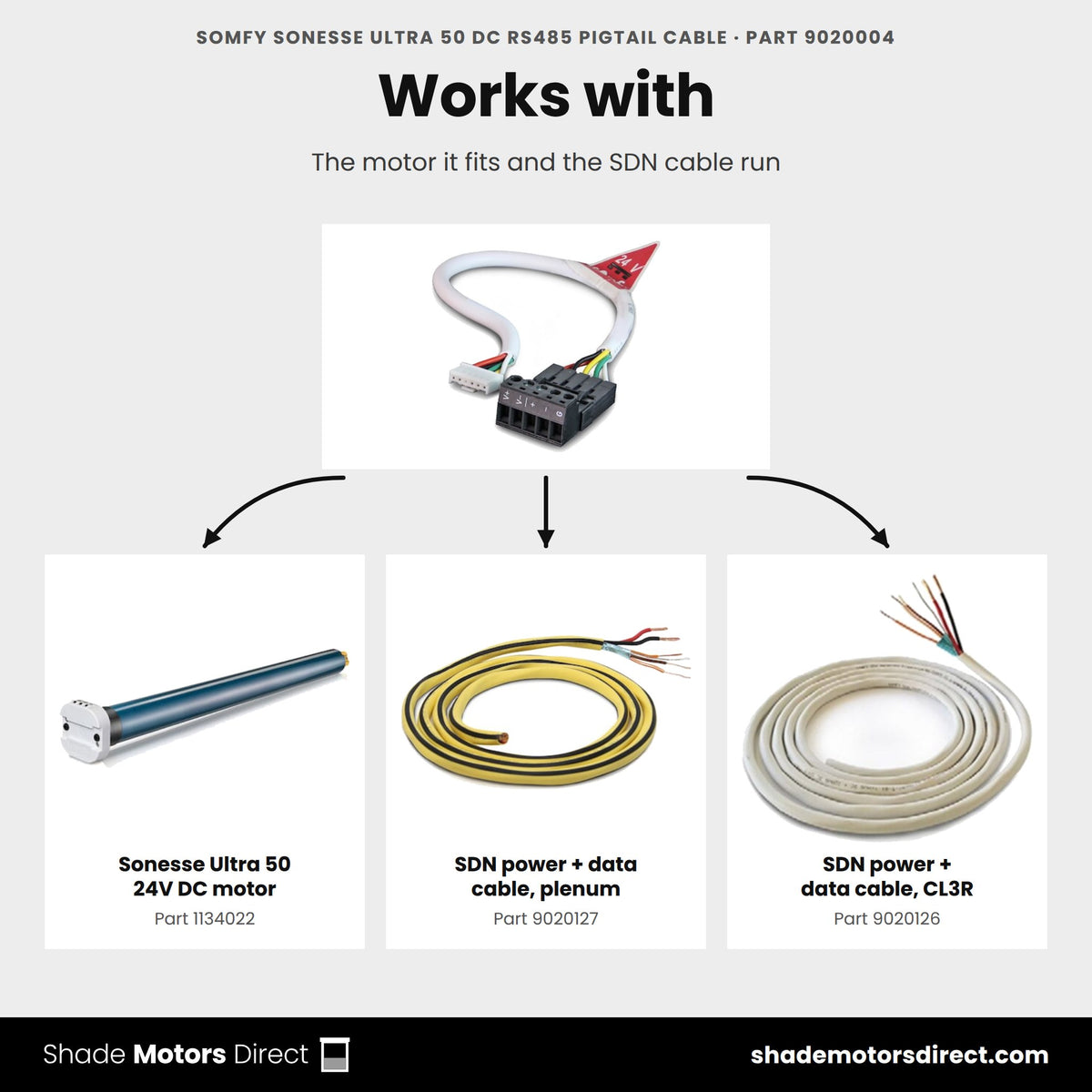

Motors the Sonesse ULTRA 50 DC RS485 Data and Power Pigtail Cable works with
Somfy lists these motors as compatible with part 9020004.
Somfy backs the Sonesse ULTRA 50 DC RS485 Data and Power Pigtail Cable for 5 years. We handle the claim.
