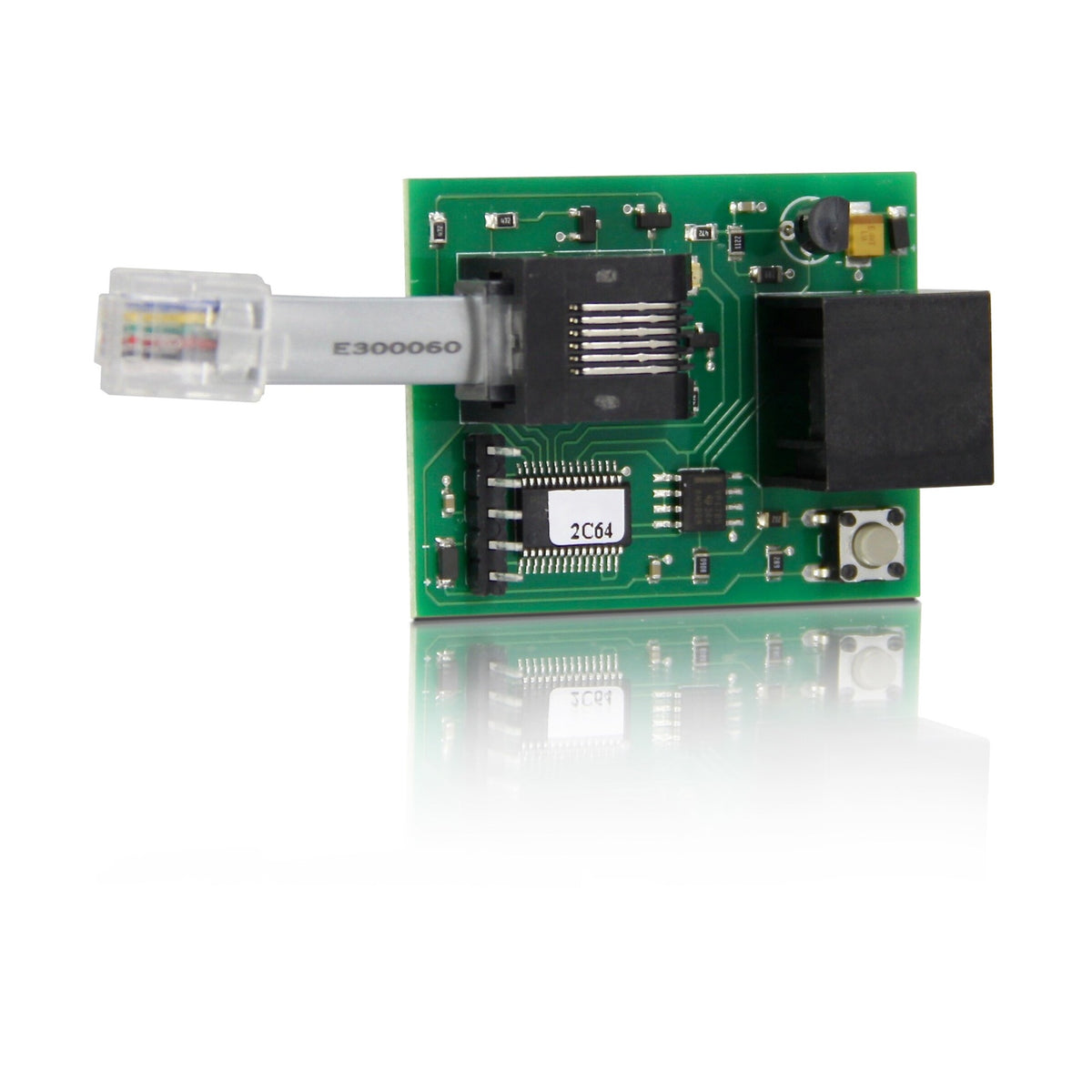

Somfy SDN RS485 Module for Irismo Motors -- DCT to RS485 upgrade

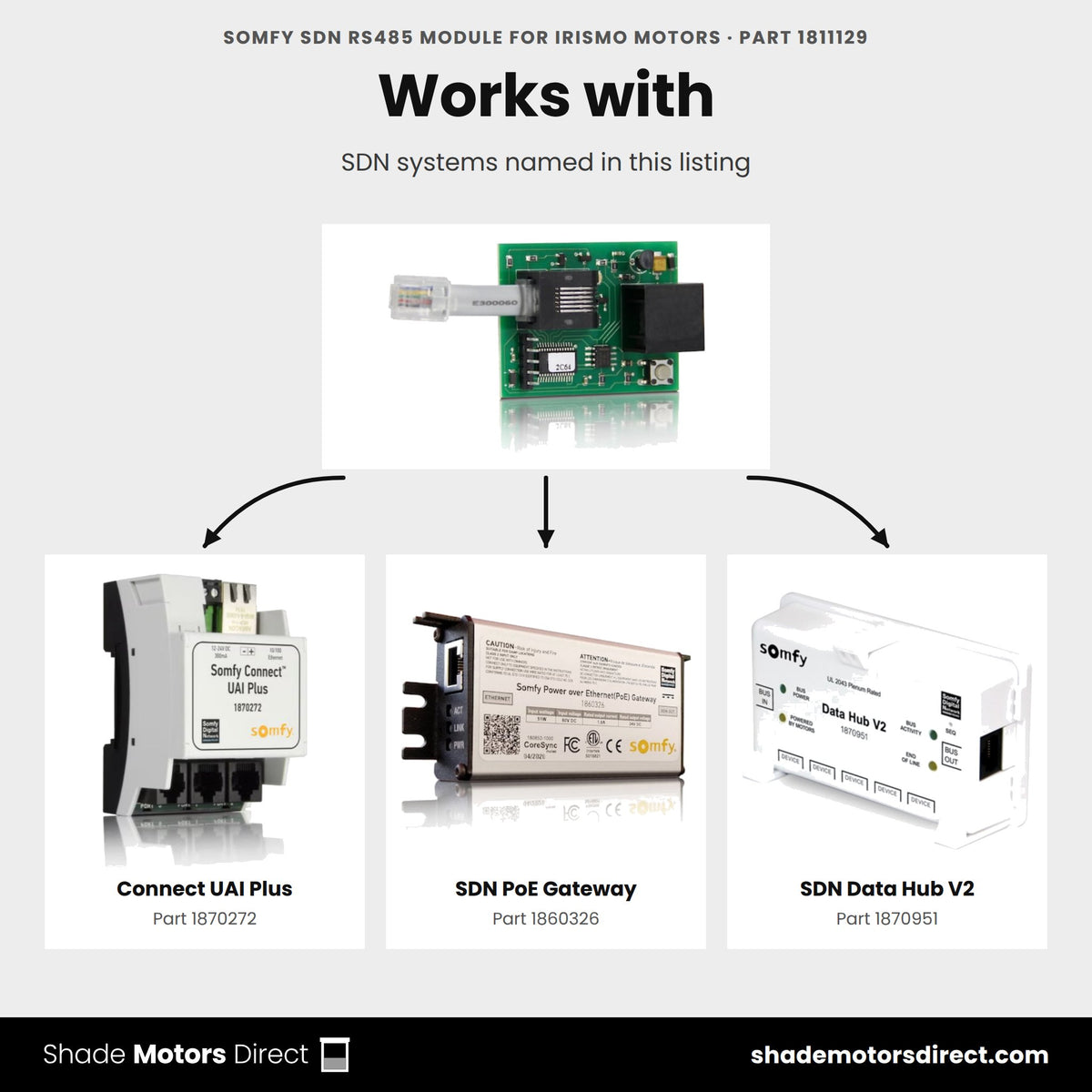

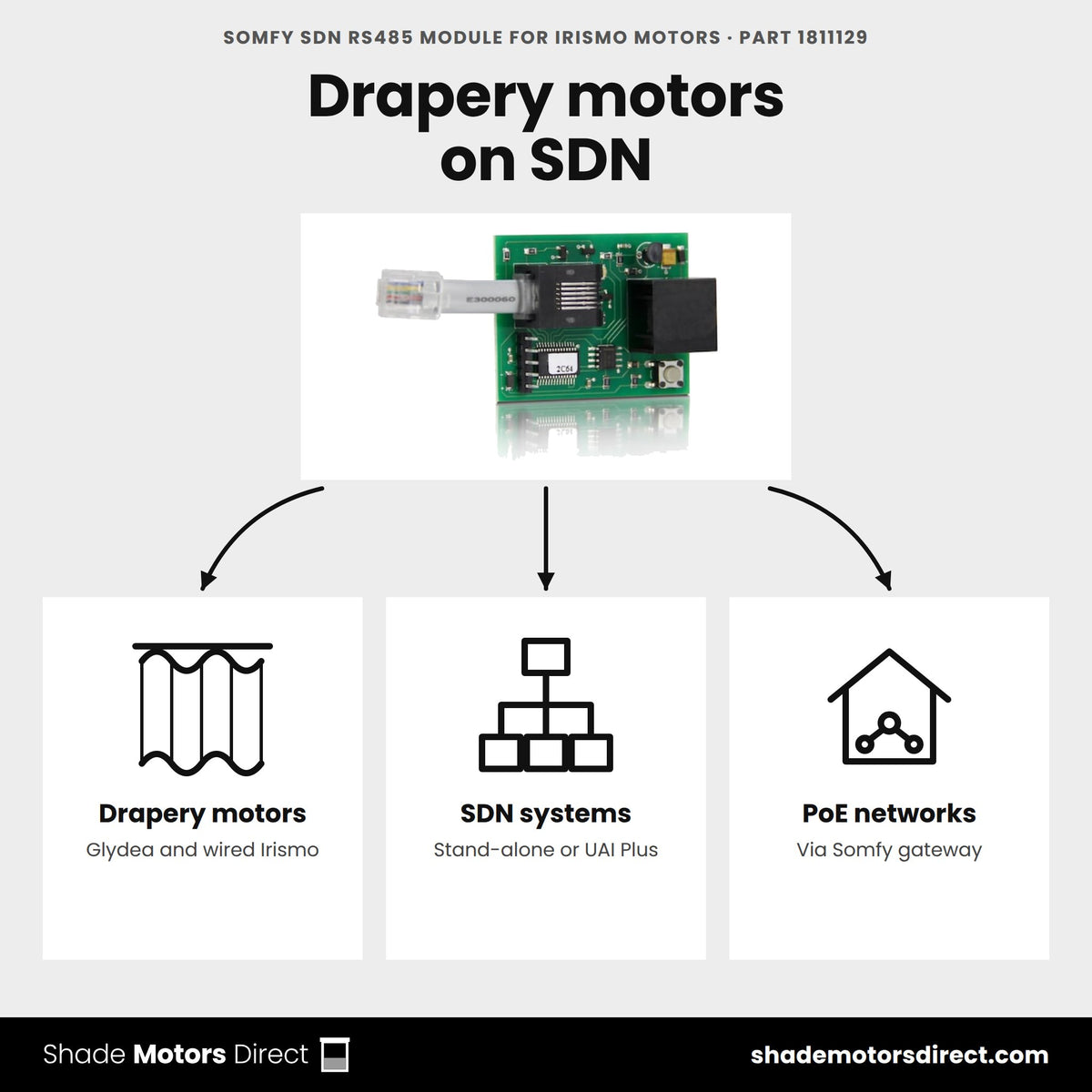

This module converts Somfy Digital Network (SDN) RS485 commands to dry-contact motor control commands, allowing Glydea and wired Irismo drapery motors to be integrated into a stand-alone SDN system, Somfy Connect UAI Plus SDN system, or PoE network.
Specifications
| Part type | RS485 (SDN) to DCT interface module |
| Fits | Glydea and wired Irismo drapery motors (not WireFree Irismo) |
| Connector | RJ12 modular cable |
| Genuine part | Yes -- Somfy 1811129 |
Compatible with: Glydea drapery motors, wired Irismo drapery motors
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What does the RS485 Module for Irismo Motors do?
It receives Somfy Digital Network (SDN) commands over the bus and turns them into open, close and stop commands for a Somfy drapery motor. That lets an Irismo motor join a stand-alone SDN system, a Somfy Connect UAI Plus system or a PoE network.
Which drapery motors does it work with?
Somfy lists the Irismo 35 (Mini DC) DCT and Irismo 35 (Mini DC) RTS motors, including the Irismo 35 Mini DC RTS Drapery Motor (1003004) sold here, plus earlier Glydea DCT motors. For Glydea ULTRA motors, choose the SDN RS485 Module for Glydea ULTRA (1871412).
How is the module powered?
It draws its power from the SDN bus, so the module needs no supply of its own. Somfy rates it at 10mA, which counts as 1 power unit when you plan the bus. The Irismo motor runs on its own 24V DC power supply.
What connectors and cable does it use?
An RJ12 modular plug goes to the motor, and an RJ45 connector takes the SDN input. Somfy calls for CAT-5e or higher cable wired to the TIA-568B standard. The module measures 1.81 in L x 1.4 in W x 0.58 in D.
How is it addressed and programmed?
Use Somfy's motor configuration software. Each module holds up to 6 SDN group addresses, so one drapery can answer its own commands and also move with several room or zone groups.
What else does an SDN drapery setup need?
A powered SDN bus and a way to send commands. The Power Panel 24V for Somfy Digital Network (1871026) feeds the bus, and an SDN keypad such as 1871497 puts buttons on the wall. Somfy backs the module with a 5-year warranty.
Couldn't load pickup availability
Replace a failed SDN part or plan a new Somfy Digital Network.

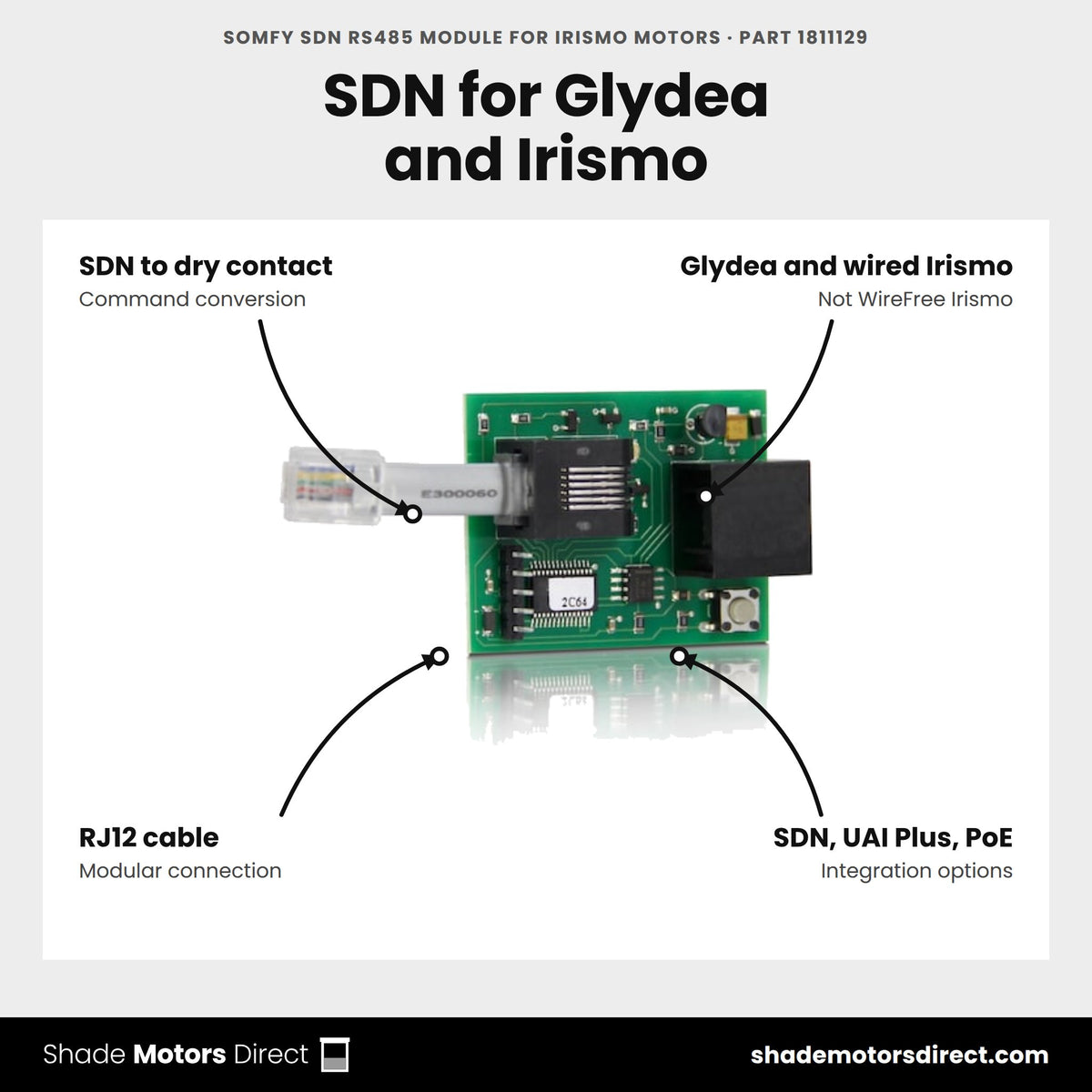

Cable plugConnects the board to the motor.
Data jackTakes the RS485 network cable.
ButtonPush button on the board for setup.
123- 1Cable plug Connects the board to the motor.
- 2Data jack Takes the RS485 network cable.
- 3Button Push button on the board for setup.
Replacing one
-
1
Match the part
Confirm the part number and firmware with the old device.
-
2
Swap it on the bus
Disconnect the old device and connect the SDN RS485 Module for Irismo Motors in its place.
-
3
Restore settings
Set the same address and settings with Somfy's SDN setup tools.
Working on a project? Send us your parts list. We'll check every part number. Ask us
Starting new
-
1
Plan the network
Confirm the layout and addresses with your integrator.
-
2
Connect it
Wire it to the RS485 bus with Somfy data cables.
-
3
Configure
Address and set it up with Somfy's SDN setup tools.
Working on a project? Send us your parts list. We'll check every part number. Ask us
Somfy backs the SDN RS485 Module for Irismo Motors for 5 years. We handle the claim.
5years
Somfy warranty on the SDN RS485 Module for Irismo Motors, part 1811129.
- What Somfy covers
- Defects in materials and workmanship, for 5 years from purchase.
- If it fails
- Email us your order number. We arrange the replacement with Somfy.
- Where it comes from
- ShadeMotorsDirect is an authorized Somfy distributor. You get the US version, new in Somfy packaging.
- Returns
- Unopened items in original packaging. Ask us for an RA number before you ship.
- Questions
- Call or chat, 8:00 AM - 7:30 PM ET.

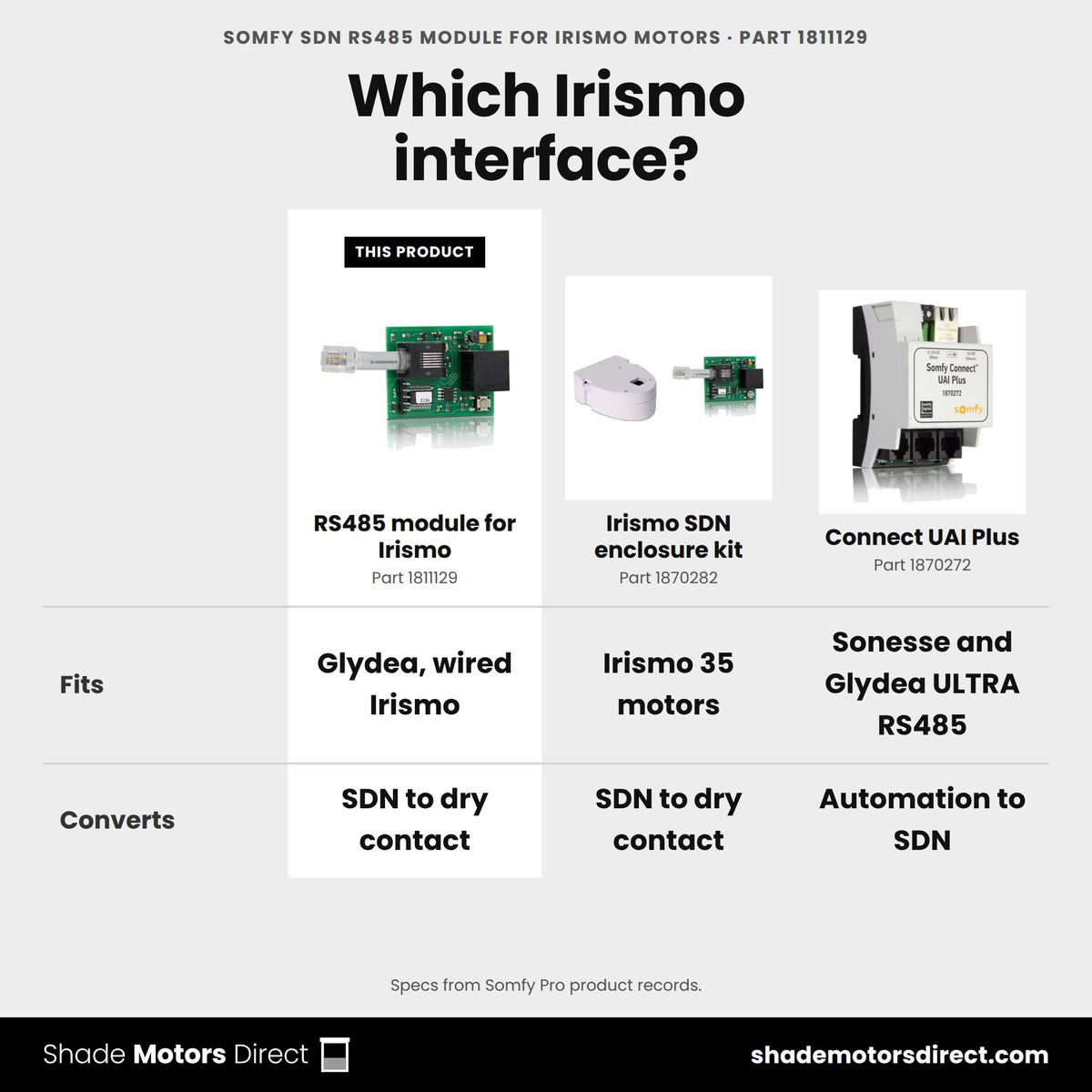

How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy SDN RS485 Module for Irismo Motors (DCT to RS485 upgrade) (1811129)
|

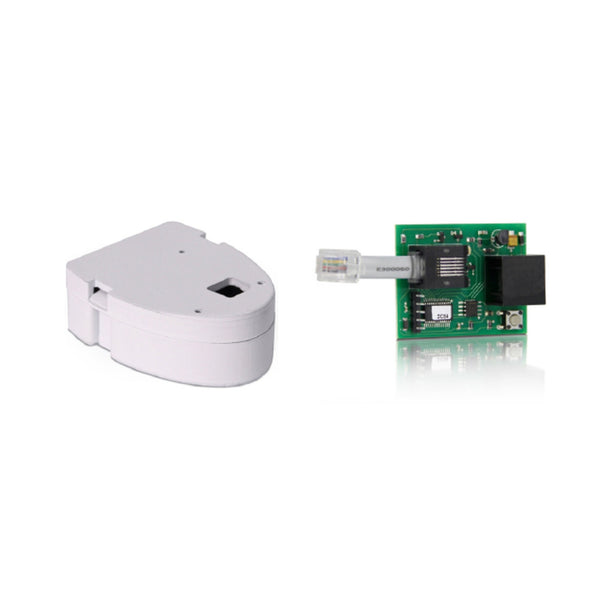

Somfy SDN Irismo 24V Mini DC Control Enclosure Kit (1870282)
|
Somfy Connect Universal Automation Interface (UAI) Plus (1870272)
|
Somfy Control4 Module (1870533)
|
|---|---|---|---|---|
| Price | ||||
| Control | SDN to dry contact | SDN to dry contact | IP / SDN 2.0 | Zigbee to RS485 |
| Power | — | — | 12-24V DC | — |
| What's different | The product on this page | Close alternative | Same size, IP / SDN 2.0 control | Same size, Zigbee to RS485 control |
| Buy | Currently viewing | View details | View details | View details |
