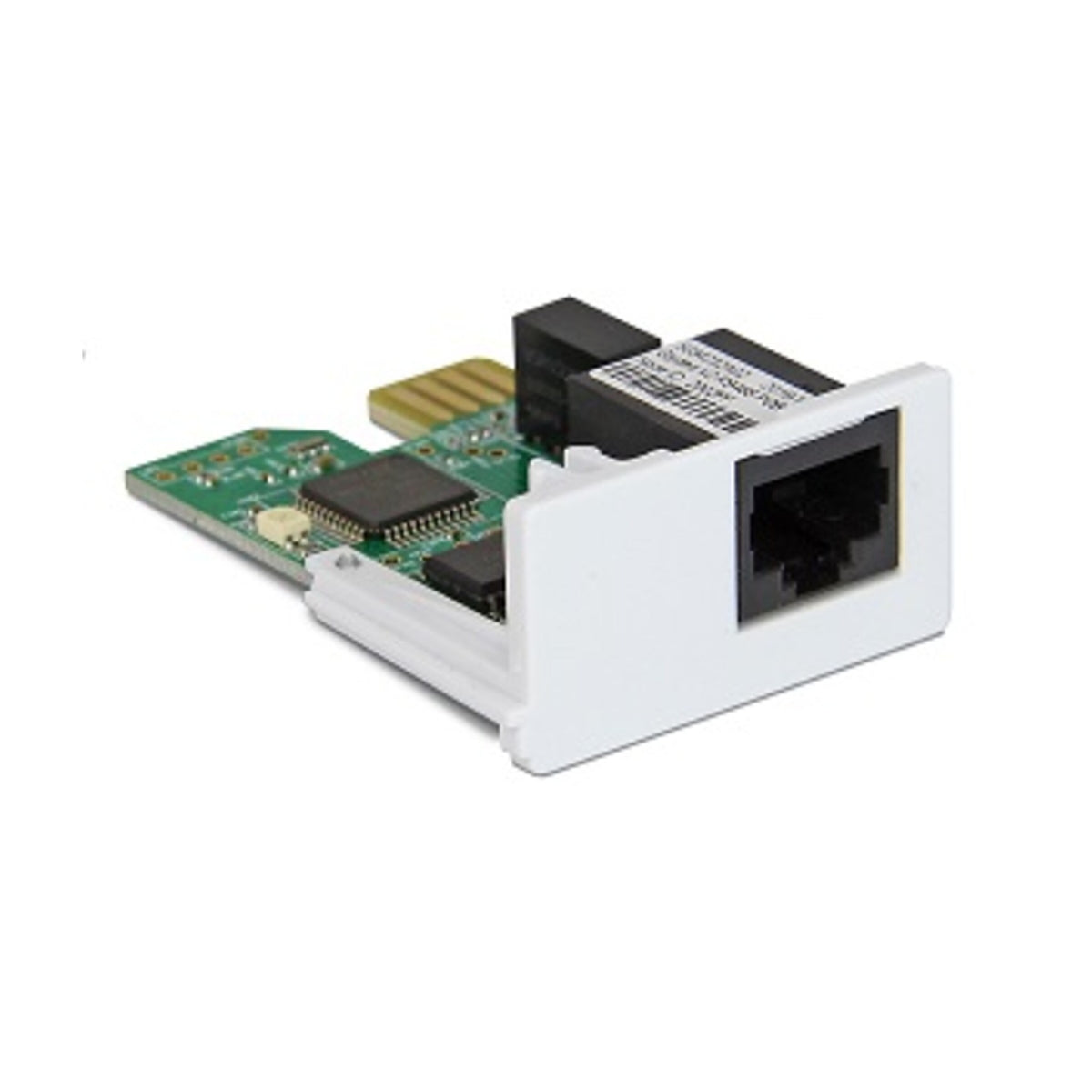

Somfy SDN RS485 Module for Glydea ULTRA Motors

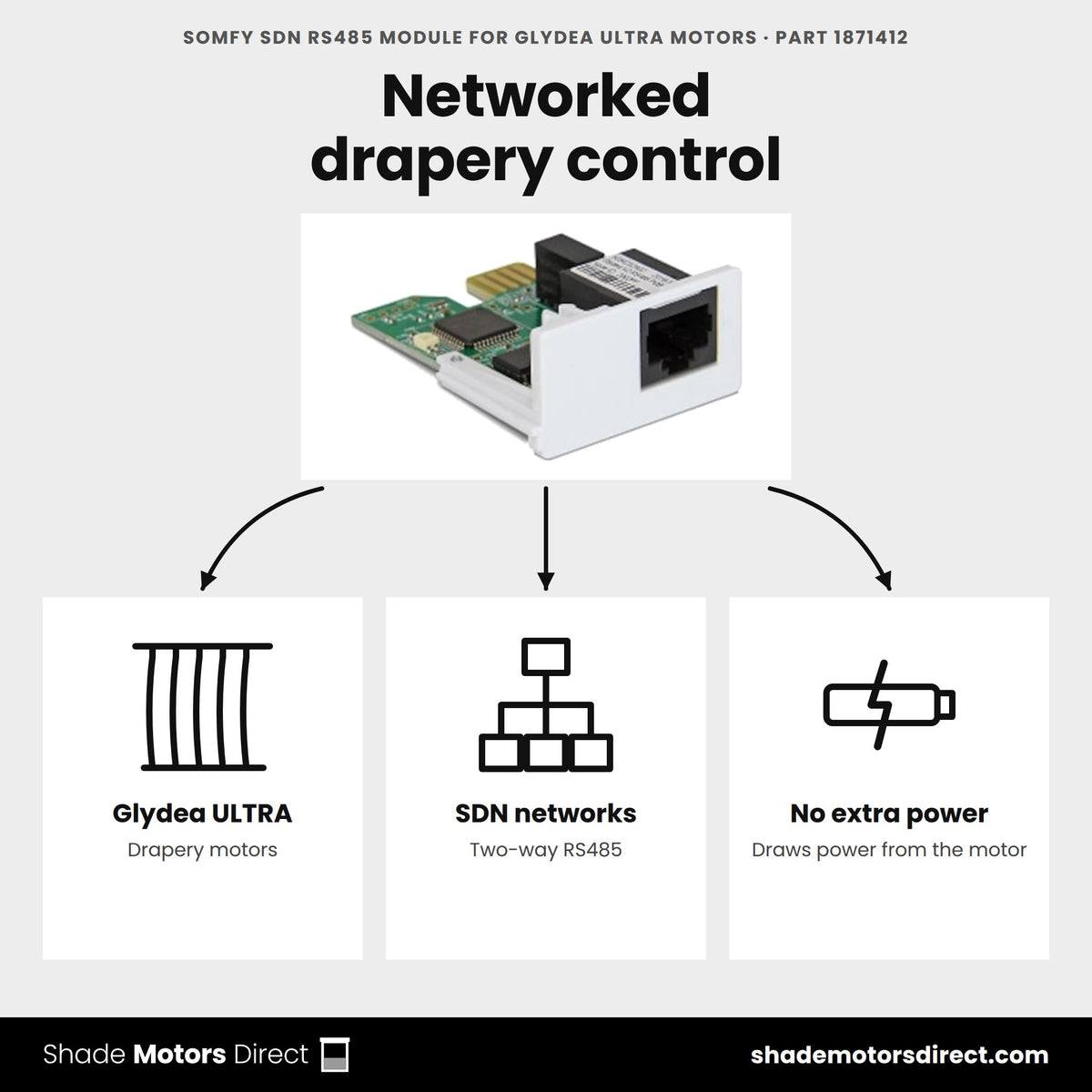

A custom module that plugs directly into a Glydea ULTRA motor, converting Somfy Digital Network (SDN) commands into open, close, stop, and intermediate-position motor commands for stand-alone SDN or Somfy Connect UAI Plus SDN systems.
Specifications
| Part type | RS485 (SDN, 2-way) module |
| Fits | Glydea ULTRA motors (custom plug-in fit) |
| Power source | Powered directly by the Glydea ULTRA motor |
| SDN group addresses | Up to 16 |
| Genuine part | Yes -- Somfy 1871412 |
Compatible with: Glydea ULTRA motors
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What does the SDN RS485 Module (1871412) do?
It adds Somfy Digital Network control to a Glydea ULTRA drapery motor. The module plugs into the motor and turns two-way RS485 SDN commands into open, close, stop and intermediate position moves.
Which Glydea motors does it fit?
Somfy lists the Glydea ULTRA 35 and Glydea ULTRA 60 DCT motors with 10' plug. Both are in the store as the Glydea Ultra 35 DCT Drapery Motor (1246115) and the Glydea Ultra 60 DCT Drapery Motor (1246117).
Does the module need its own power supply?
No. The module draws its power from the Glydea ULTRA motor and connects through a custom connector Somfy designed for that motor. You run no extra power wiring to the module itself.
How many group addresses can it hold?
You can program up to 16 SDN group addresses into the module. One drapery can then answer its own commands as well as room, floor or zone groups on the same network.

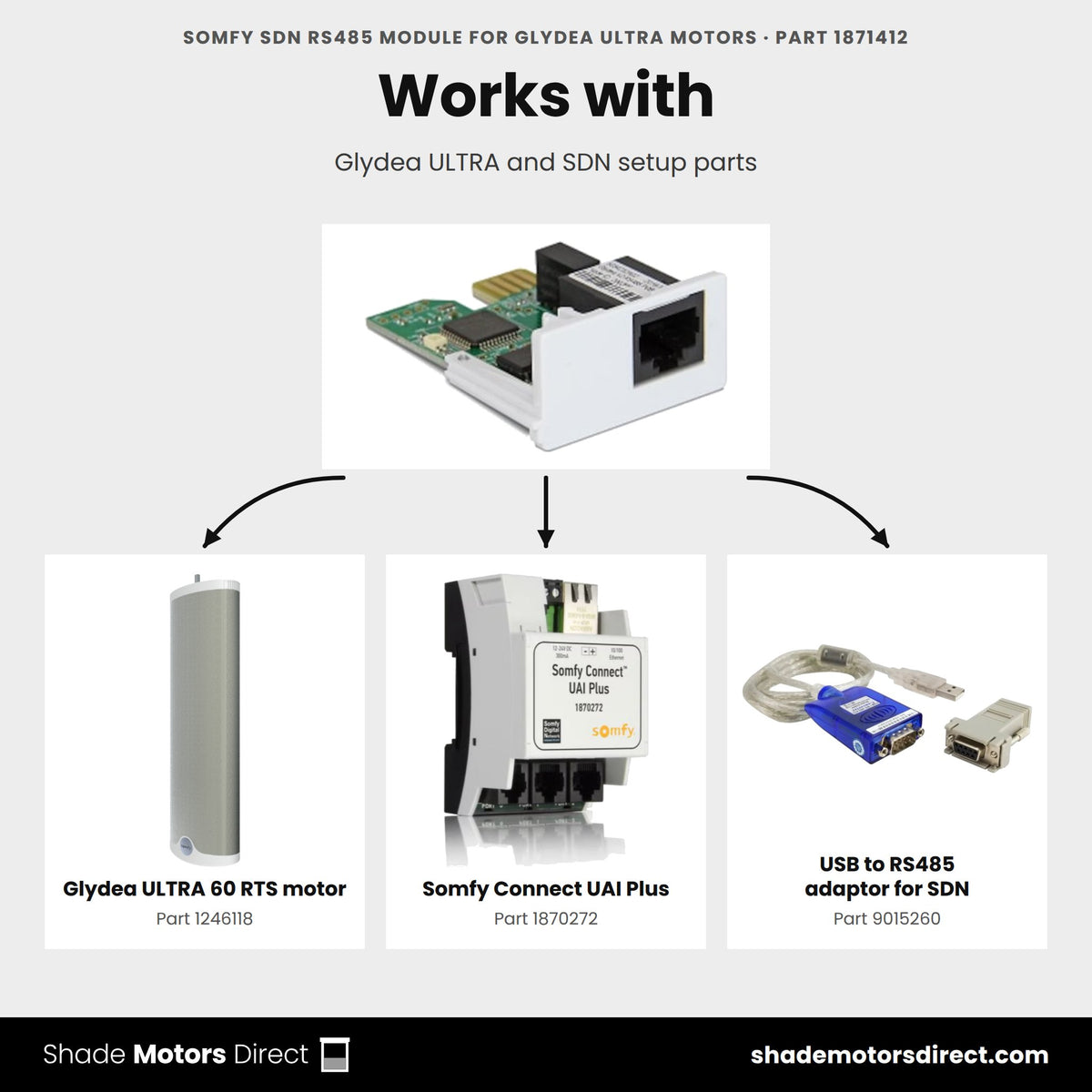

Which control systems does it work with?
It works in stand-alone SDN systems and in Somfy Connect UAI Plus SDN systems. The Somfy Connect Universal Automation Interface (UAI) Plus (1870272) is available in the store for the second setup.
How do I configure it?
Set up the module with Set pro by Somfy configuration software, where you assign its addresses and positions. Somfy covers the module with a 5-year limited warranty.
Couldn't load pickup availability
Replace a failed Glydea ULTRA module or upgrade your motor.

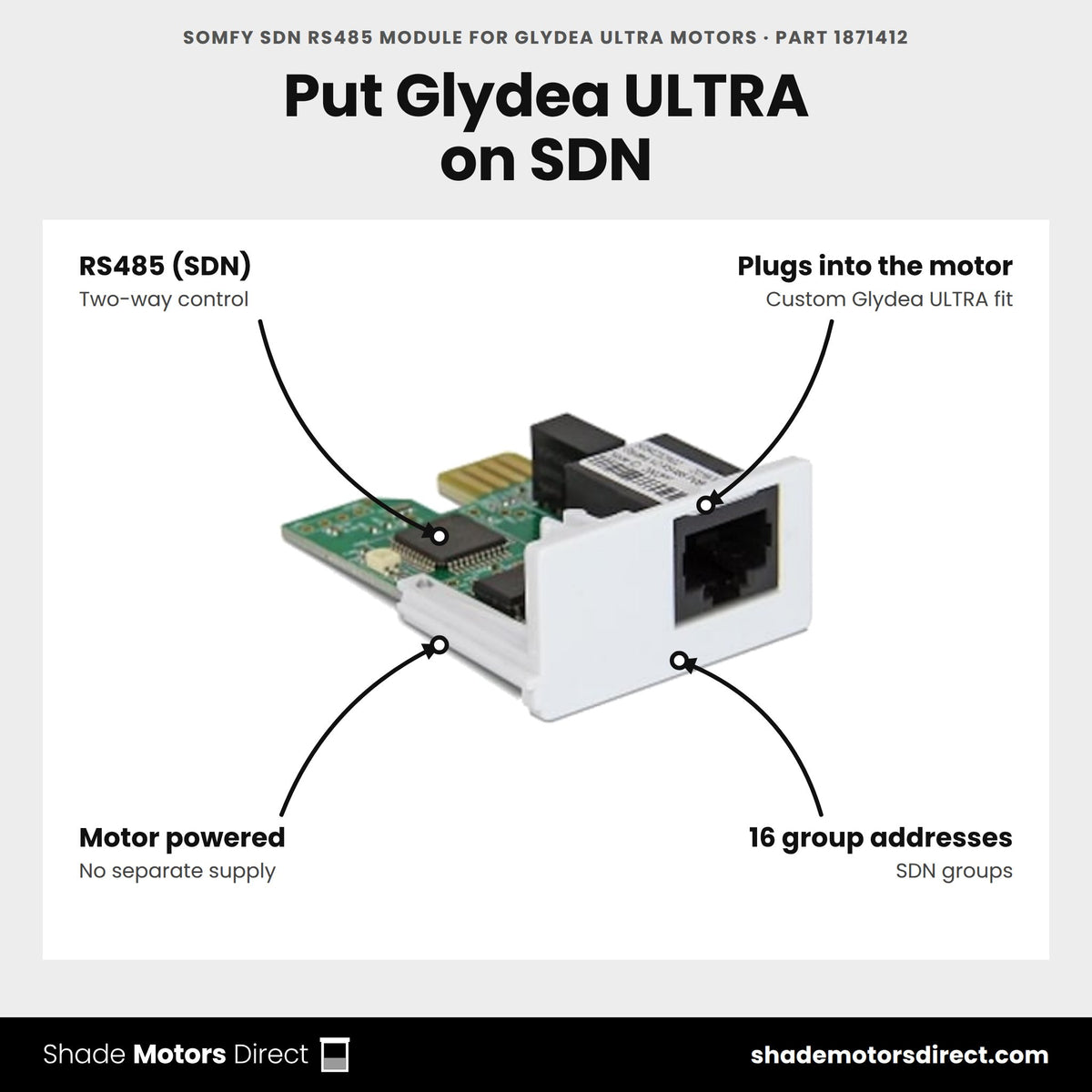

RJ45 portConnects the RS485 data line.
Card edgePlugs into the Glydea ULTRA motor.
12- 1RJ45 port Connects the RS485 data line.
- 2Card edge Plugs into the Glydea ULTRA motor.
Replacing one
-
1
Unplug the motor
Disconnect power before you open the module slot.
-
2
Swap the module
Take out the current module and fit the SDN RS485 Module for Glydea ULTRA Motors.
-
3
Connect and pair
Power up, then join your hub or wire it to your SDN network.
Not sure which Glydea motor you have? Send us a photo of its label. Ask us
Starting new
-
1
Unplug the motor
Disconnect power before you open the module slot.
-
2
Fit the module
Take out the current module and fit the SDN RS485 Module for Glydea ULTRA Motors.
-
3
Connect and pair
Power up, then join your hub or wire it to your SDN network.
Planning a new install? Send us the window size and a photo. We'll build the parts list with you. Ask us
Somfy backs the SDN RS485 Module for Glydea ULTRA Motors for 5 years. We handle the claim.
5years
Somfy warranty on the SDN RS485 Module for Glydea ULTRA Motors, part 1871412.
- What Somfy covers
- Defects in materials and workmanship, for 5 years from purchase.
- If it fails
- Email us your order number. We arrange the replacement with Somfy.
- Where it comes from
- ShadeMotorsDirect is an authorized Somfy distributor. You get the US version, new in Somfy packaging.
- Returns
- Unopened items in original packaging. Ask us for an RA number before you ship.
- Questions
- Call or chat, 8:00 AM - 7:30 PM ET.
How this motor compares
Verified Somfy specs for this motor and its closest alternatives.
| Specification | You're viewing
Somfy SDN RS485 Module for Glydea ULTRA Motors (1871412)
|
Somfy Connect Universal Automation Interface (UAI) Plus (1870272)
|
Somfy Control4 Module (1870533)
|
Somfy IGC 4-in-1 Motor Control (1811416)
|
|---|---|---|---|---|
| Price | ||||
| Control | RS485 (SDN) | IP / SDN 2.0 | Zigbee to RS485 | Wired (dry contact) |
| Power | Powered by motor | 12-24V DC | — | — |
| What's different | The product on this page | Same size, IP / SDN 2.0 control | Same size, Zigbee to RS485 control | Same size, Wired (dry contact) control |
