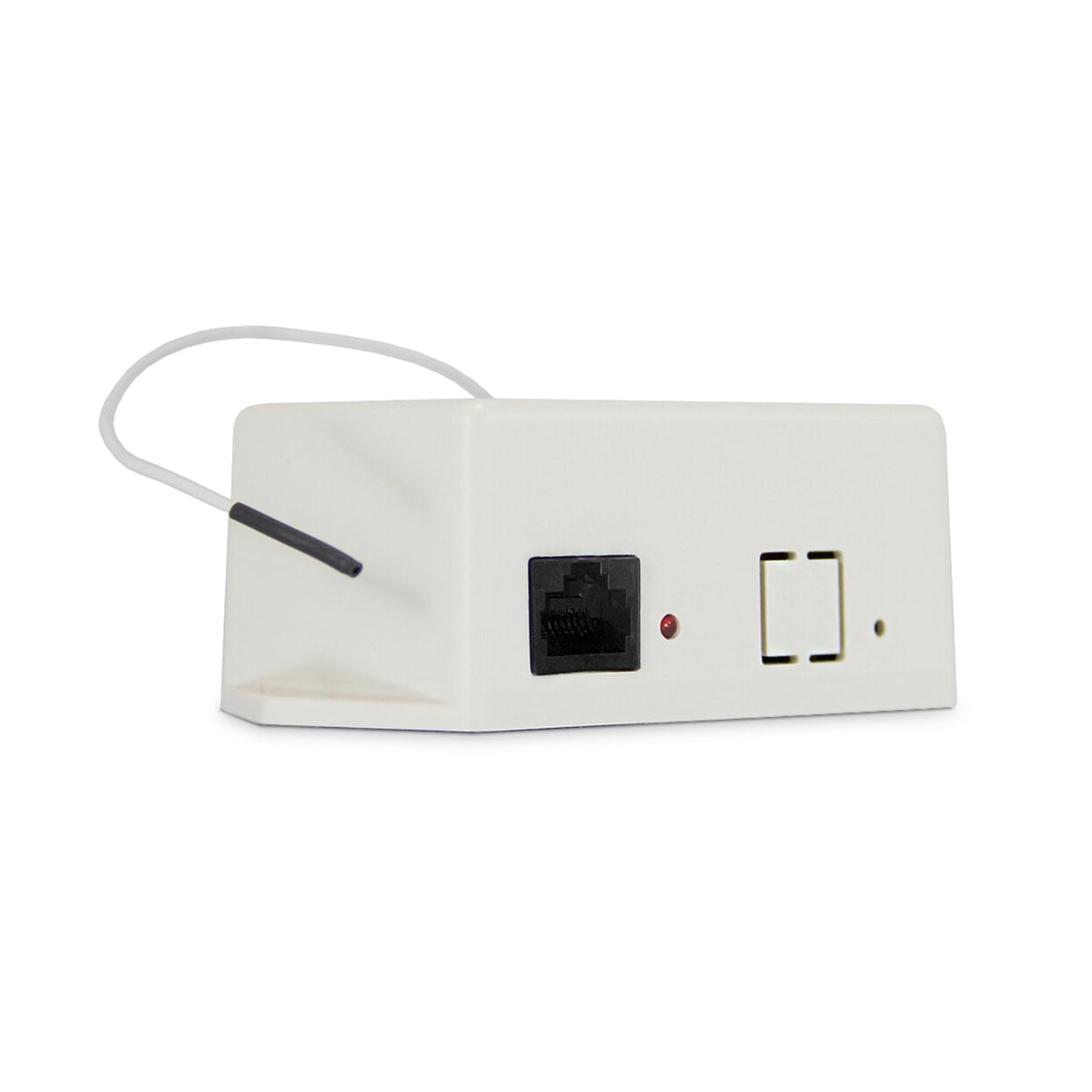

Somfy RTS Receiver for animeo IP V2 (1871498)

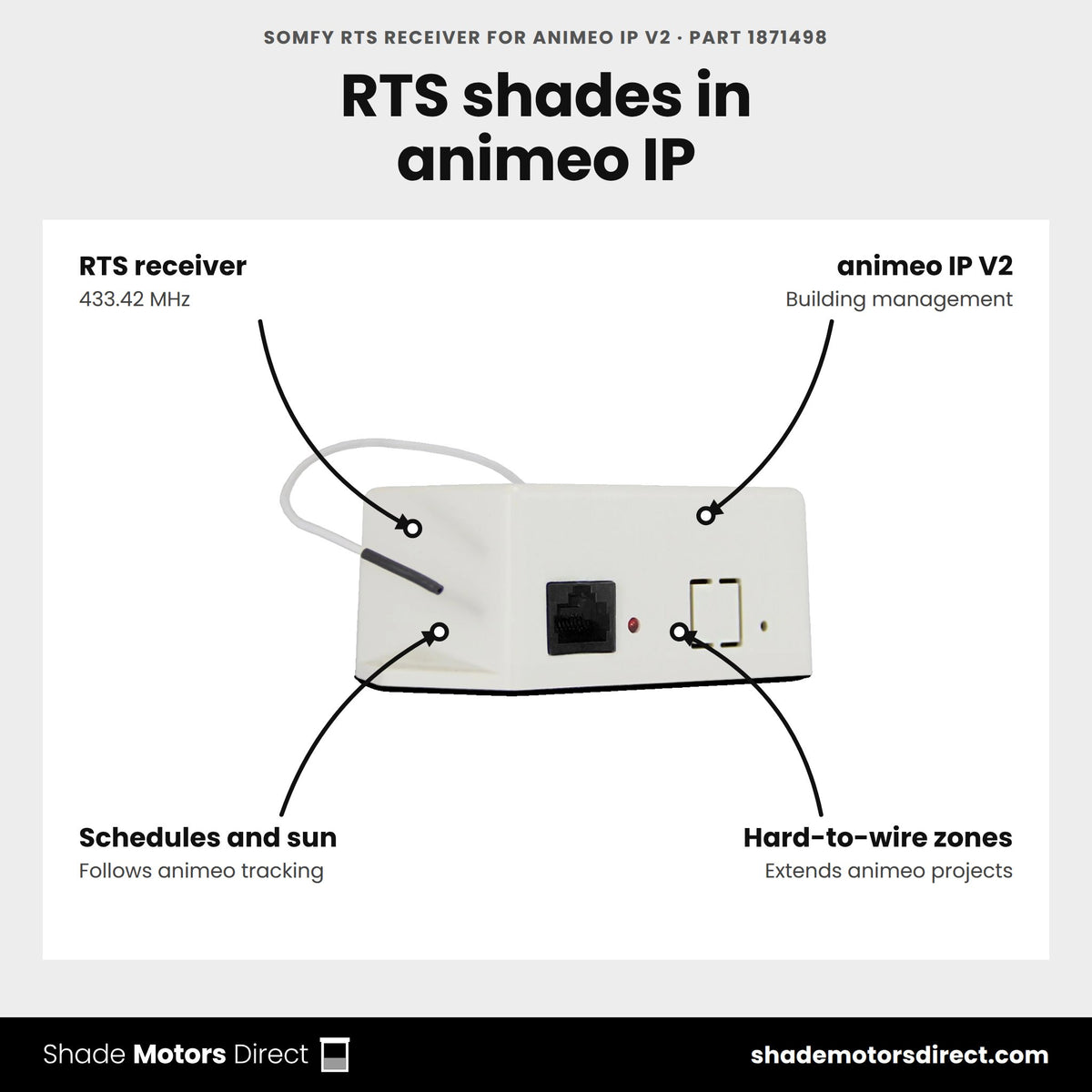

Somfy RTS receiver for animeo IP V2, part 1871498, features: RTS 433.42 MHz receiver for animeo IP V2 scheduling and solar tracking

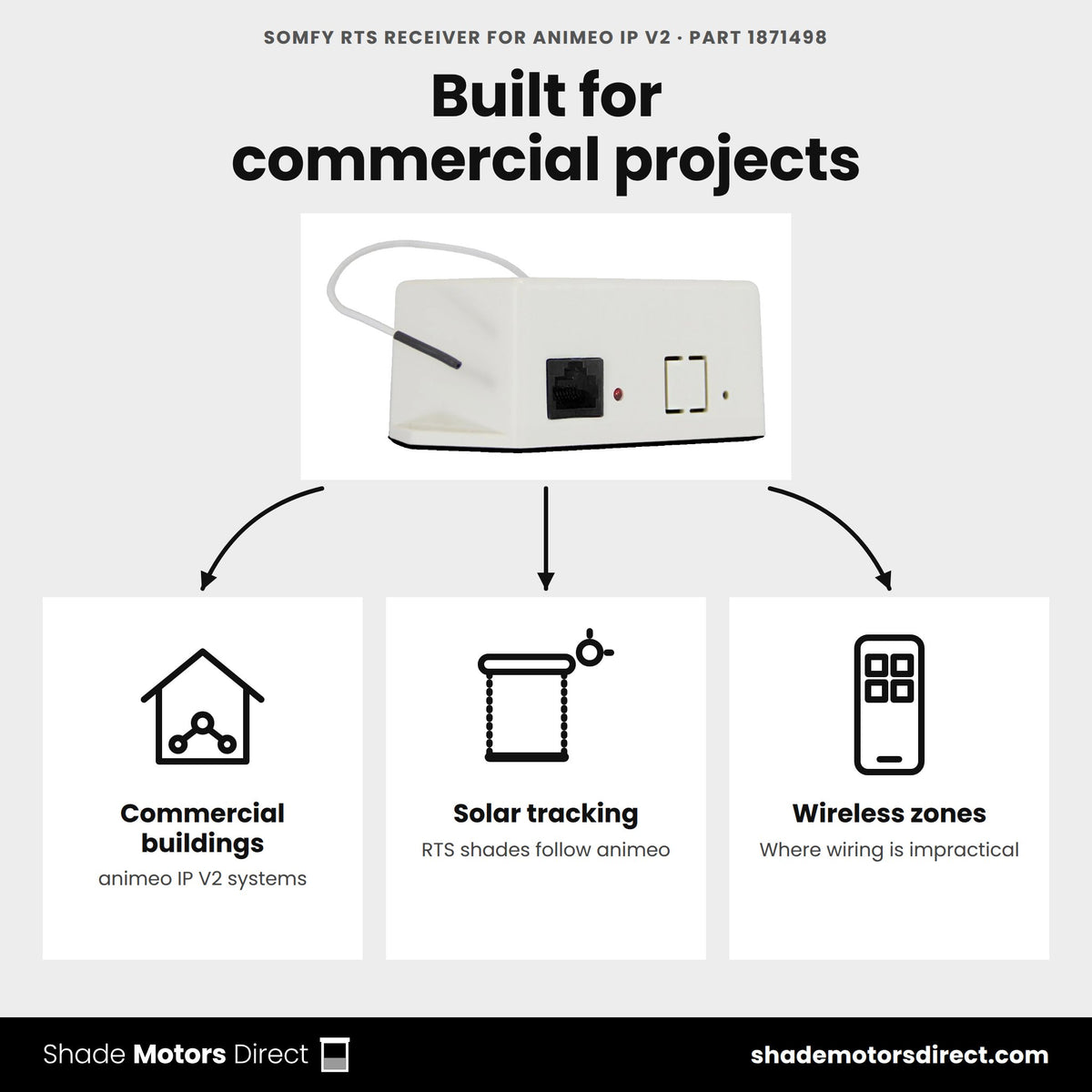

Somfy RTS receiver 1871498 uses: commercial animeo IP V2 buildings, solar tracking for RTS shades, hard-to-wire zones

Somfy RTS motors that work with the animeo IP V2 RTS receiver 1871498: Sonesse ULTRA 506A2 1002562, Altus RTS 1043423, Glydea ULTRA 60 1246118

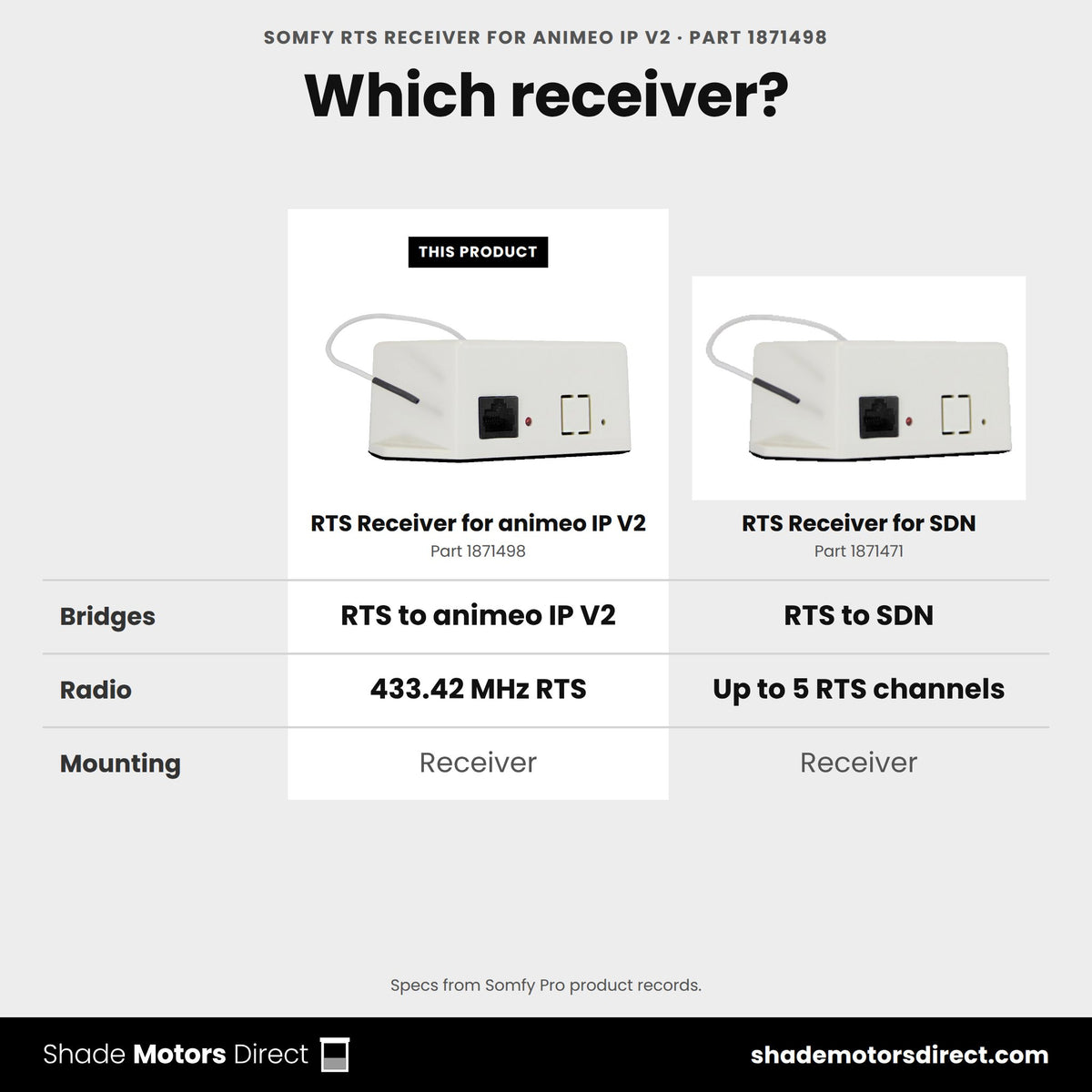

Somfy RTS receivers: animeo IP V2 1871498 vs SDN 1871471

Buy the Somfy RTS Receiver for animeo IP V2, part 1871498, genuine new, from ShadeMotorsDirect

Somfy RTS Receiver for animeo IP V2 (1871498)

SKU: 1871498

$199.95

Shipping calculated at checkout.

Secure checkout with

Genuine Somfy Authorized distributor

5-Year Warranty Somfy warranty on every part

30-Day Returns 35% restocking fee

Expert Support Call 859-414-6872

Ships in 1-2 business days. US shipping $15 flat.

Returns: 30 days from delivery, unused and in original packaging, with an RMA. A 35% restocking fee applies and the customer pays return shipping, unless the item is defective or we made an error. Custom and engraved items can be returned only if defective. Full return policy

Not sure this fits? Ask our tech team

RTS Receiver for animeo IP V2 -- add RTS products to an animeo IP building system

This receiver brings Radio Technology Somfy (RTS) products into an animeo IP V2 building control system, letting RTS motorized shades and screens respond to the automation, scheduling, and sun-tracking commands of a commercial animeo installation.

Benefits

Bridges RTS motorized products into animeo IP V2 building automation
Lets RTS shades follow animeo scheduling and solar tracking
Genuine Somfy component for reliable commercial integration
Extends an animeo project to zones where wiring RTS is impractical

Specifications

Part type	RTS radio receiver
For system	Somfy animeo IP V2 building management
Radio Frequency	433.420 MHz
Genuine part	Somfy

Compatible with: animeo IP V2 building control systems and Somfy RTS motors

Official Somfy documentation

Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.

Common questions

What does the RTS Receiver for animeo IP V2 do?

Part 1871498 brings Somfy RTS handheld and wall controls into an animeo IP V2 building system. Occupants can move groups, facades or single motors by hand while animeo IP keeps central control.

How is the receiver powered and connected?

It takes DC 11-24V and connects to the animeo IP system through a single SDN connection that carries both power and data. The SDN line powers it, so the receiver needs no power feed of its own.

How many RTS channels does it handle?

Somfy lists up to five RTS channels, so you can pair it with several transmitters and map them to the groups, facades or motors you need to control.

Which remotes and switches pair with it?

Somfy lists Situo, DecoFlex and Telis RTS transmitters. Options in this store include the Situo 5 Channel RTS Pure Remote (1870575), the Telis 16 Channel RTS Pure Hand Held Remote (1811081) and the DecoFlex 5 Channel RTS WireFree Wall Switch White (1810813).

How do I add it to the animeo IP system?

The receiver supports auto-discovery through the animeo IP keypad discovery wizard. The wizard finds the receiver on the SDN network, which shortens commissioning on large projects with many zones.

What applications and warranty does it cover?

Somfy lists the receiver for interior window coverings, including blinds, draperies and shades, in animeo IP projects. It gives occupants manual control next to the building schedule and carries a 5-year Somfy warranty.

Shade Motors Direct Spec Library Product specs, manuals and technical documents

Replace a failed SDN part or plan a new Somfy Digital Network.

RTS Receiver for animeo IP V2, part 1871498.

Replacing one

1
Match the part
Confirm the part number and firmware with the old device.
2
Swap it on the bus
Disconnect the old device and connect the RTS Receiver for animeo IP V2 in its place.
3
Restore settings
Set the same address and settings with Somfy's SDN setup tools.

Working on a project? Send us your parts list. We'll check every part number. Ask us

Starting new

1
Plan the network
Confirm the layout and addresses with your integrator.
2
Connect it
Wire it to the RS485 bus with Somfy data cables.
3
Configure
Address and set it up with Somfy's SDN setup tools.

Working on a project? Send us your parts list. We'll check every part number. Ask us

Somfy backs the RTS Receiver for animeo IP V2 for 5 years. We handle the claim.

5years

Somfy warranty on the RTS Receiver for animeo IP V2, part 1871498.

What Somfy covers: Defects in materials and workmanship, for 5 years from purchase.
If it fails: Email us your order number. We arrange the replacement with Somfy.
Where it comes from: ShadeMotorsDirect is an authorized Somfy distributor. You get the US version, new in Somfy packaging.
Returns: Unopened items in original packaging. Ask us for an RA number before you ship.
Questions: Call or chat, 8:00 AM - 7:30 PM ET.
Somfy documents: RTS Pocket Programming Guide (PDF)

How this motor compares

Verified Somfy specs for this motor and its closest alternatives.

Specification	You're viewing Somfy RTS Receiver for animeo IP V2 (1871498)	Somfy Connect Universal Automation Interface (UAI) Plus (1870272)	Somfy Control4 Module (1870533)	Somfy IGC 4-in-1 Motor Control (1811416)
Price	$199.95	$1,204.95	$171.25	$446.30
Control	RTS to animeo IP	IP / SDN 2.0	Zigbee to RS485	Wired (dry contact)
Power	—	12-24V DC	—	—
What's different	The product on this page	Same size, IP / SDN 2.0 control	Same size, Zigbee to RS485 control	Same size, Wired (dry contact) control
Buy	Currently viewing	View details	View details	View details
