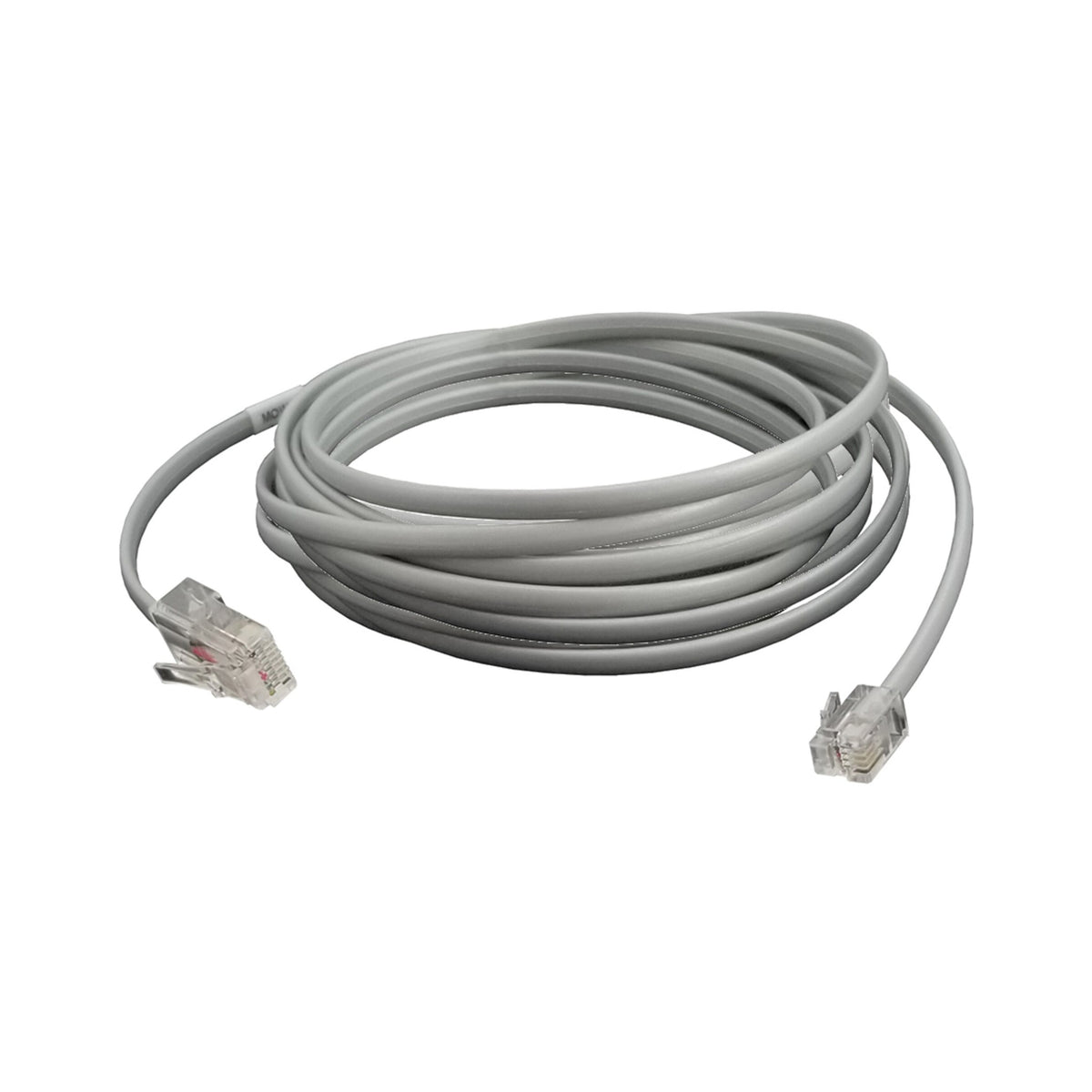

Somfy RS485 Data Cable w/Power, RJ9 to RJ45, 12 ft
26 AWG, 4-conductor modular cable with RJ9 to RJ45 connectors, carrying both power and data between SDN RS485 motors and receiver/interface modules.
Specifications
| Part type | 4-conductor 26 AWG modular power+data cable |
| Length | 12 ft |
| Connectors | RJ9 to RJ45 |
| Wiring | Power and data |
| Color | Grey |
| Genuine part | Yes -- Somfy 9018547 |
Compatible with: SDN RS485 motors and receiver/interface modules
Official Somfy documentation
Sold by ShadeMotorsDirect -- an authorized source for genuine Somfy motorized window shade, blind, and drapery parts.
Common questions
What does this cable do?
It carries both power and data between Somfy RS485 motors and the modules they connect to. The cable is 12 ft long, with 4 conductors of 26 AWG wire, an RJ9 plug on one end and an RJ45 plug on the other.
Which motors does it work with?
Somfy lists it for the Sonesse 506S2 RS485 (1002286), Sonesse 510S2 RS485 (1002287), 515S2 RS485 (1002427) and 535A2 RS485 (1002288). These are 120V motors that run on the Somfy Digital Network.
How is it different from the black data-only cable?
This grey cable carries power and data together. Somfy's black RJ9 to RJ45 cables, such as the 8 ft 9018542, carry data and no power. Choose this cable when the connection also needs to deliver power.
What other lengths are available?
Somfy makes this power and data cable in 2.5 ft (9018545), 8 ft (9018546) and 24 ft (9018548) lengths as well. Pick the length that reaches from the motor to its module without a lot of slack.
Which Somfy system is it used on?
It belongs to the Somfy Digital Network (SDN), Somfy's RS485 wired platform for motor control and building integration. Installers who set limits and addresses on these motors can use the Somfy RS485 Setting Tool (9017142).
What warranty applies to this cable?
It is a genuine Somfy part covered by Somfy's 5-year warranty. The grey jacket marks it as a power and data cable, which helps installers tell it apart from black data-only cables in the same panel.
Couldn't load pickup availability
Replace a damaged data cable or set up new networked motors.
12- 1RJ45 end Standard network-size plug.
- 2RJ9 end Small 4-pin plug.
Replacing one
-
1
Unplug
Disconnect the damaged cable at both ends.
-
2
Swap it
Connect the RS485 Data Cable w/Power RJ9 to RJ45 in its place.
-
3
Test
Run each motor on the line and check it responds.
