Module 1 of 4
What CMO means
What a compact manual override does and when a client needs one. After this module you can explain CMO to an owner in one sentence.
3 lessons, then a scenario check.
Shade Motors School · Pick the Motor · 201
Somfy CMO Motors: The Manual Override for Awnings and Shutters
A Somfy CMO motor adds a compact manual override, so a crank still moves an awning or rolling shutter when the power is out. Learn what CMO means, the difference between the RTS and wired 550R2 CMO motors, how to size them and which brackets hold the head.
You will be able to: Choose and order a Somfy 550R2 CMO motor with the bracket that holds its head.
Inside this course
4 modules, one idea at a time
- What CMO meansWhat a compact manual override does and when a client needs one. After this module you can explain CMO to an owner in one sentence.3 lessons · scenario check
- RTS or wired CMOThe two 550R2 CMO motors and the control each one takes. After this module you will never sell a remote for a wired CMO motor.3 lessons · scenario check
- Size itThe figures that decide whether a 550R2 CMO fits the job. After this module you can check torque and tube before you quote.3 lessons · scenario check
- Brackets and crank partsThe bracket that holds a CMO head and the parts that complete the order. After this module you can pack a CMO job that installs first time.3 lessons · scenario check
- Final quiz10 real job scenarios, one per screen, each with a hint if you need it. Score 80% to pass and get your certificate.
What CMO means
A crank for outage days
CMO stands for compact manual override. A crank turns the motor head by hand, so the awning or shutter still moves with the power off.
ExampleA storefront shutter that must close every night, power or not, is a CMO job.
What CMO means
Somfy's CMO motor

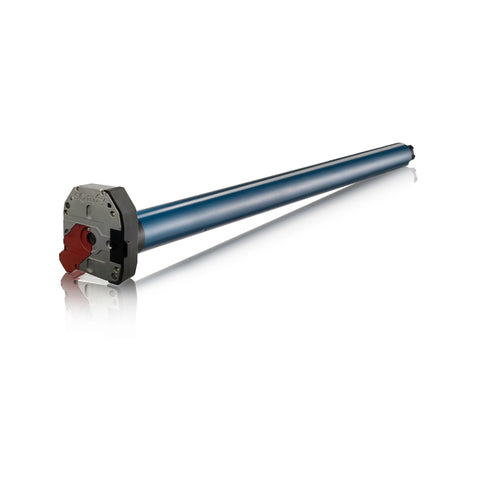

Somfy describes the 550R2 RTS CMO (1051466) as an LT50 motor with RTS built in and a compact manual override.
On the jobAsk the owner how they will close the shutter in a power cut. A yes to "by hand" points to CMO.
What CMO means
The crank eye sits on the head
The override and its crank eye sit on the front of the motor head. That head shape decides the bracket.
Watch forPlan the bracket and hood so the crank eye stays reachable.
Check yourself
An awning owner wants to retract by hand in a power cut. What motor feature do they need?
Hint: What does CMO add?
A compact manual override, as on the Somfy 550R2 RTS CMO.
Module 2 of 4
RTS or wired CMO
The two 550R2 CMO motors and the control each one takes. After this module you will never sell a remote for a wired CMO motor.
3 lessons, then a scenario check.
RTS or wired CMO
Two 550R2 CMO motors

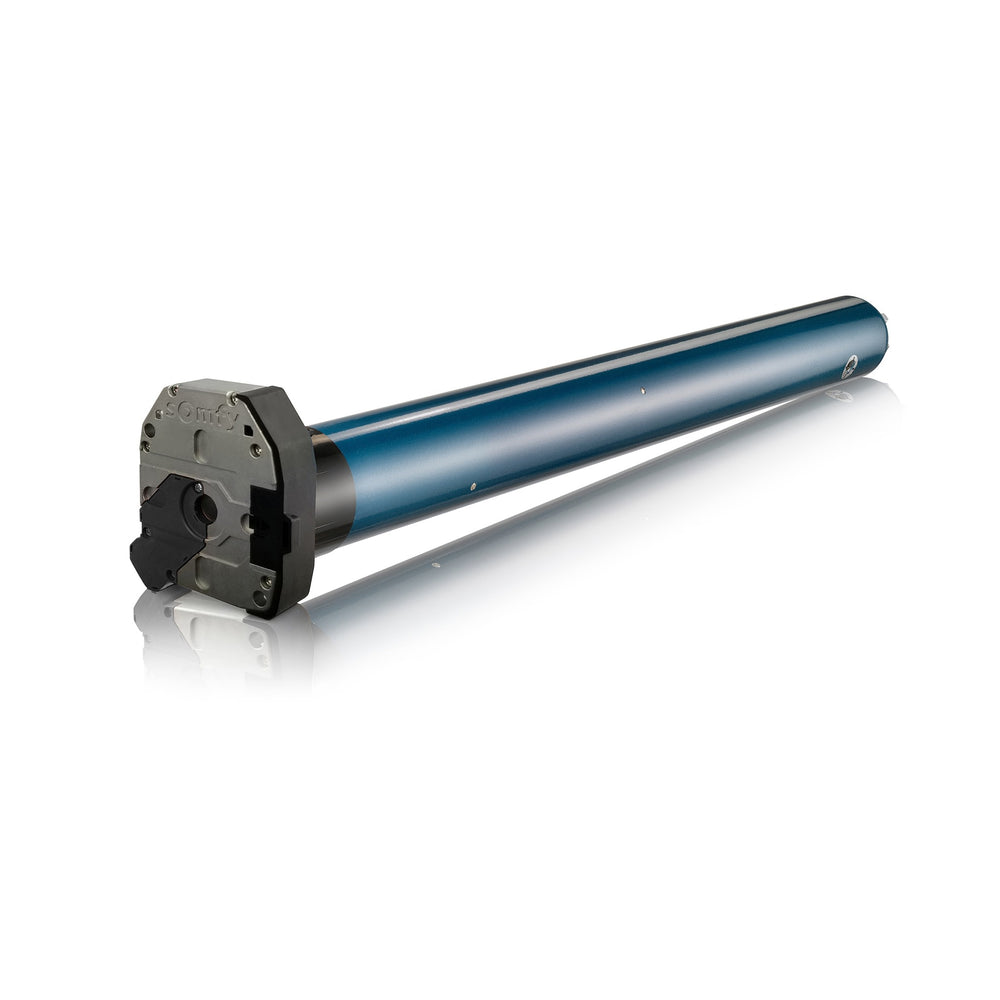

The 550R2 RTS CMO (1051466) has RTS built in and electronic limits. The 550R2 CMO (1051014) is a wired 4-wire motor with mechanical limits.
ExampleA storefront on a keyed wall switch gets the wired 1051014. A home awning on a remote gets the 1051466.
RTS or wired CMO
The wired CMO takes a wired switch
The 550R2 CMO (1051014) has no radio receiver. It runs from a wired switch or relay, and no remote can pair to it.
Watch forA customer expecting to pair a remote to 1051014 needs the RTS version instead.
RTS or wired CMO
The RTS CMO takes RTS controls
The 550R2 RTS CMO pairs with RTS remotes such as the Situo 1 RTS. Somfy lists 433.420 MHz and 656.2 ft open-field range.
On the jobPair the remote and set the electronic limits from it after the bracket is in.
Check yourself
A client wants to run a CMO awning from a handheld remote. Which 550R2 CMO do you order?
Hint: Only one of the two has a radio.
The 550R2 RTS CMO, 1051466, with RTS built in.
Module 3 of 4
Size it
The figures that decide whether a 550R2 CMO fits the job. After this module you can check torque and tube before you quote.
3 lessons, then a scenario check.
Size it
The 550R2 RTS CMO figures
Somfy lists 50 Nm at 14 rpm, a 1.85 in minimum tube inside diameter, a CMO head, and awning and rolling shutter as the applications.
ExampleA wide rolling shutter that sizes at 45 Nm fits inside this motor's 50 Nm.
Size it
Check the tube inside
This is an LT50 motor, so it needs at least 1.85 in inside the tube. Measure the inside, not the outside.
Watch forA load over 50 Nm needs a bigger platform. Our LT50 vs LT60 course covers that step.
Size it
Thermal time
Somfy lists 5 minutes of thermal protection on the 550R2 RTS CMO. A long run on a hot day can pause it until it cools.
On the jobIf it stops during limit setting, wait five minutes before you troubleshoot.
Check yourself
A shutter sizes at 48 Nm on a tube with a 2 in bore. Does the 550R2 RTS CMO fit?
Hint: Check torque, then the tube.
Yes. It is rated 50 Nm and needs at least 1.85 in inside the tube.
Module 4 of 4
Brackets and crank parts
The bracket that holds a CMO head and the parts that complete the order. After this module you can pack a CMO job that installs first time.
3 lessons, then a scenario check.
Brackets and crank parts
US-thread CMO bracket
The Motor Bracket for Sunea CMO RTS US (9015802) holds a CMO head with the crank eye clear of the bracket face.
Watch forAn LT50 star bracket will not hold a CMO head. Leave it in the van.
Brackets and crank parts
Metric CMO bracket
The Sunea RTS CMO Universal Bracket, Metric (5061539) is the metric version of the CMO bracket.
ExampleMatch the bracket thread to the awning frame you are mounting to.
Brackets and crank parts
Crown and drive for the tube
The crown and drive still follow the tube. A 70mm octagonal tube takes the Octagonal LT50 70mm Crown and Drive Set (9012234).
On the jobOrder the crank rod and eye with the motor. Somfy lists a CMO Awning Override Kit (9012349) among its accessories.
Check yourself
A CMO job is packed with the motor, a crown and drive set and a remote. What is missing for the head?
Hint: The head is not a star.
A CMO bracket: 9015802 (US) or 5061539 (metric). Add the crank parts too.
Final quiz
10 questions. Score 80% to pass.
Each question is a real job scenario, one per screen. Stuck? Tap the hint. You see the right answer and why right after you choose. Pass and you get a printable certificate, plus a 10% code for your first ShadeMotorsDirect order.
Question 1 of 10
On the job: A shop owner needs the security shutter to close by hand during an outage.
Which feature does the motor need?
Hint: Think about the crank.
CMO lets a crank move the shutter with the power off.
Question 2 of 10
On the job: You are explaining CMO to a client.
What does CMO stand for?
Hint: Somfy's own term.
CMO stands for compact manual override.
Question 3 of 10
On the job: A CMO awning should run from a handheld remote.
Which motor?
Hint: One of the two has a radio.
The 1051466 has RTS built in.
Question 4 of 10
On the job: A customer bought the 550R2 CMO 1051014 and cannot pair a remote.
Why?
Hint: Check the control type.
The 1051014 runs from a wired switch or relay.
Question 5 of 10
On the job: You compare the two 550R2 CMO motors.
How do their limits differ?
Hint: Read the limit switch row for each.
Somfy lists electronic limits on 1051466 and mechanical on 1051014.
Question 6 of 10
On the job: A shutter sizes at 46 Nm.
Does the 550R2 RTS CMO cover it?
Hint: Read the torque figure.
Somfy lists 50 Nm at 14 rpm.
Question 7 of 10
On the job: The tube bore measures 1.7 in.
Will the 550R2 RTS CMO fit?
Hint: Check the minimum tube inside diameter.
The motor needs at least 1.85 in inside the tube.
Question 8 of 10
On the job: The CMO motor stopped after twenty runs during limit setting.
What do you do?
Hint: It worked hard in a short time.
Let it cool, then continue.
Question 9 of 10
On the job: A CMO job heads out with an LT50 star bracket.
What should it carry instead?
Hint: The head carries a crank eye.
A CMO head needs a CMO bracket.
Question 10 of 10
On the job: The awning frame uses metric hardware.
Which CMO bracket fits?
Hint: One of the CMO brackets is metric.
The 5061539 is the metric CMO bracket.
Almost done
Where should we send your certificate?
Your score shows on the next screen. The certificate goes to your inbox so you can download it again later.
